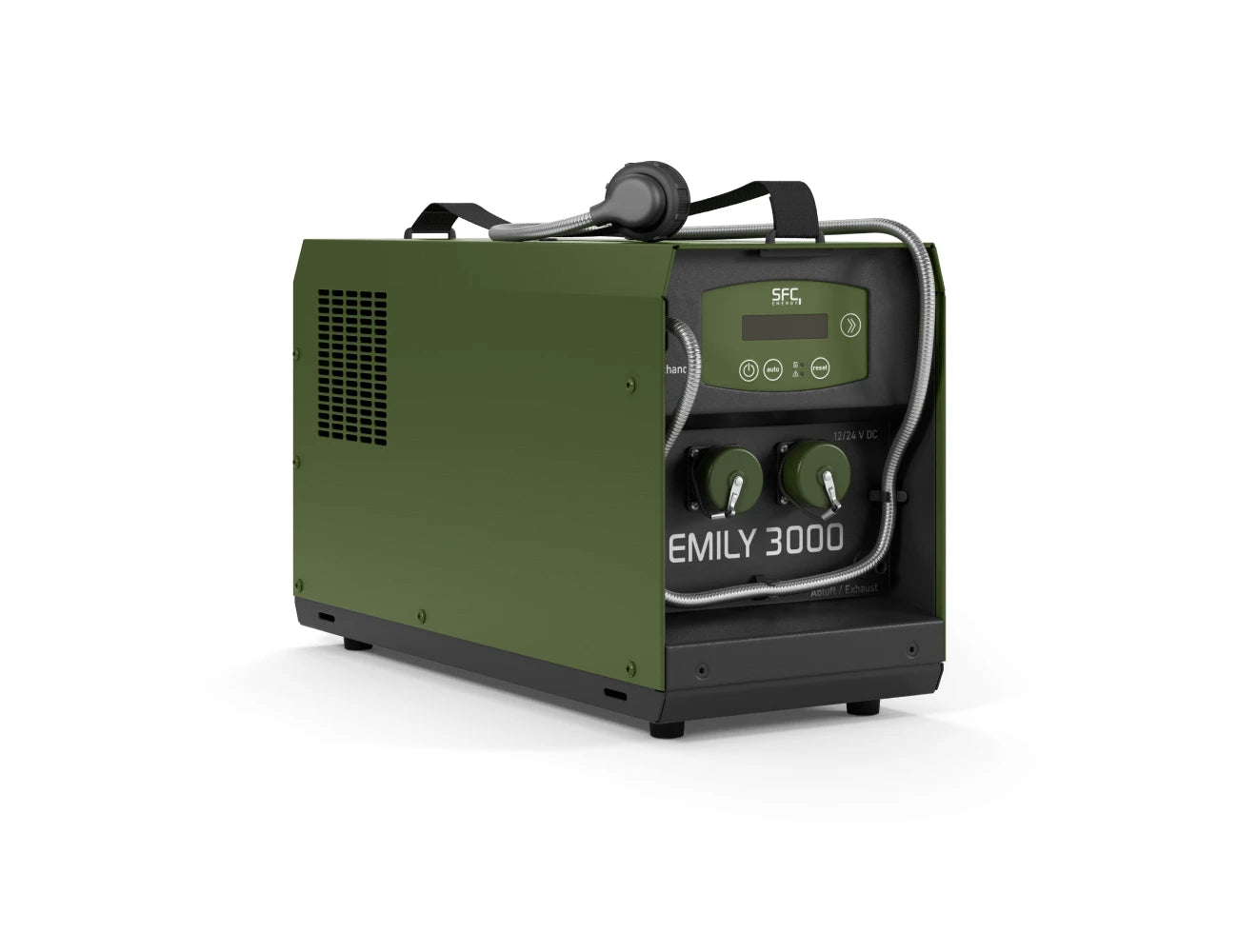

SFC Energy EMILY 3000 Fuel Cell
The SFC Energy EMILY 3000 Fuel Cell is a high-performance power generator designed for military and defence applications. Utilising advanced methanol fuel cell technology, it delivers reliable, silent, and eco-friendly energy for extended missions. Its rugged and compact design ensures easy integration and consistent performance in the most dema...
Read MoreThe SFC Energy EMILY 3000 Fuel Cell is a high-performance power generator designed for military and defence applications. Utilising advanced methanol fuel cell technology, it delivers reliable, silent, and eco-friendly energy for extended missions. Its rugged and compact design ensures easy integration and consistent performance in the most demanding environments.
Show Less
Features
- Nominal Power: 125W
- Off Grid Power
- Certified Military Use
- Battery Charger
- Will also charge Li-Ion and Li-Polymer
- Ideal for military vehicles
Specifications
| TECHNICAL DATA | |
|---|---|
| Roll-axis: permanent 20° |
3000 Wh/d |
| Nominal power |
125 W (BoL + 10 %/ EoW – 10 %)* |
| Nominal voltage |
12 V / 24 V / 16 V/ 9.5 V – 11.5 V |
| Nominal charging current |
10.4 A / 5.2 A / 7.8 A / 8 A (limited) |
|
Recommended type of batteries |
Lead-acid battery/ Li- Ion 3.4 and 7 cell/ 3 cell Li-Polymer |
| Weight |
12.5 kg |
| Dimensions L x W x H |
476 x 206 x 285.5 mm |
| Methanol consumption |
<0.9L/kWh |
| Display |
Alphanumeric LCD and Pushbutton (Remote control optional) |
| Data-Interface |
MIL-C-5015 / VG 95234-20-11 SV (RS-232) MIL-C-5015 / VG 95234-20-8 PN (Power) |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature |
-20 °C to +50 °C MIL-STD 810F, table 501.4-I, cyclic operation |
| Start-up temperature | +1 °C to +50 °C |
| Storing temperature | -31 °C to +71 °C |
| Recommended altitude |
up to 3000m @100% nominal power up to 4000m @80% nominal power |
| Humidity | 0 to 100% |
| Water protection |
MIL-STD 810F Method 506.4, Procedure I Operation under heavy rainfall |
| Dust |
MIL-STD 810F Method 510.4 Procedure I and Procedure II |
| Vibration |
MIL-STD 810F Method 514.5 Table 514.5C-VII, Figure 514.5C-3 AECTP 400 B401 light tracked vehicles |
| Drop |
MIL-STD 810F Method 5146.5, Procedure IV |
| Surface Temperature |
MIL-STD 1472F Table XXI |
| Noise emission |
MIL-STD 1474D Table 2-II > 30 m non detectable |
|
Inclination Roll- / Lateral-axis |
Lateral-axis: permanent 35° temporary 45° Roll-axis: permanent 20° |
Selection Table
| FUEL CARTRIDGES | M10 | M28 |
|---|---|---|
| Item number | 150 905 008 | 150 905 040 |
| Volume | 10L | 28L |
| Weight | 8.4kg | 22kg |
| Nominal Capacity | 11.1kwh | 31.1kwh |
| Operating temperature | -25°C to +50°C | -25°C to +50°C |
| Dimensions LxWxH | 230 x 93 x 318mm |
370 x 285 x 403mm |
