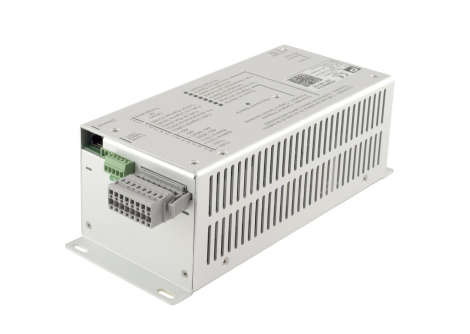

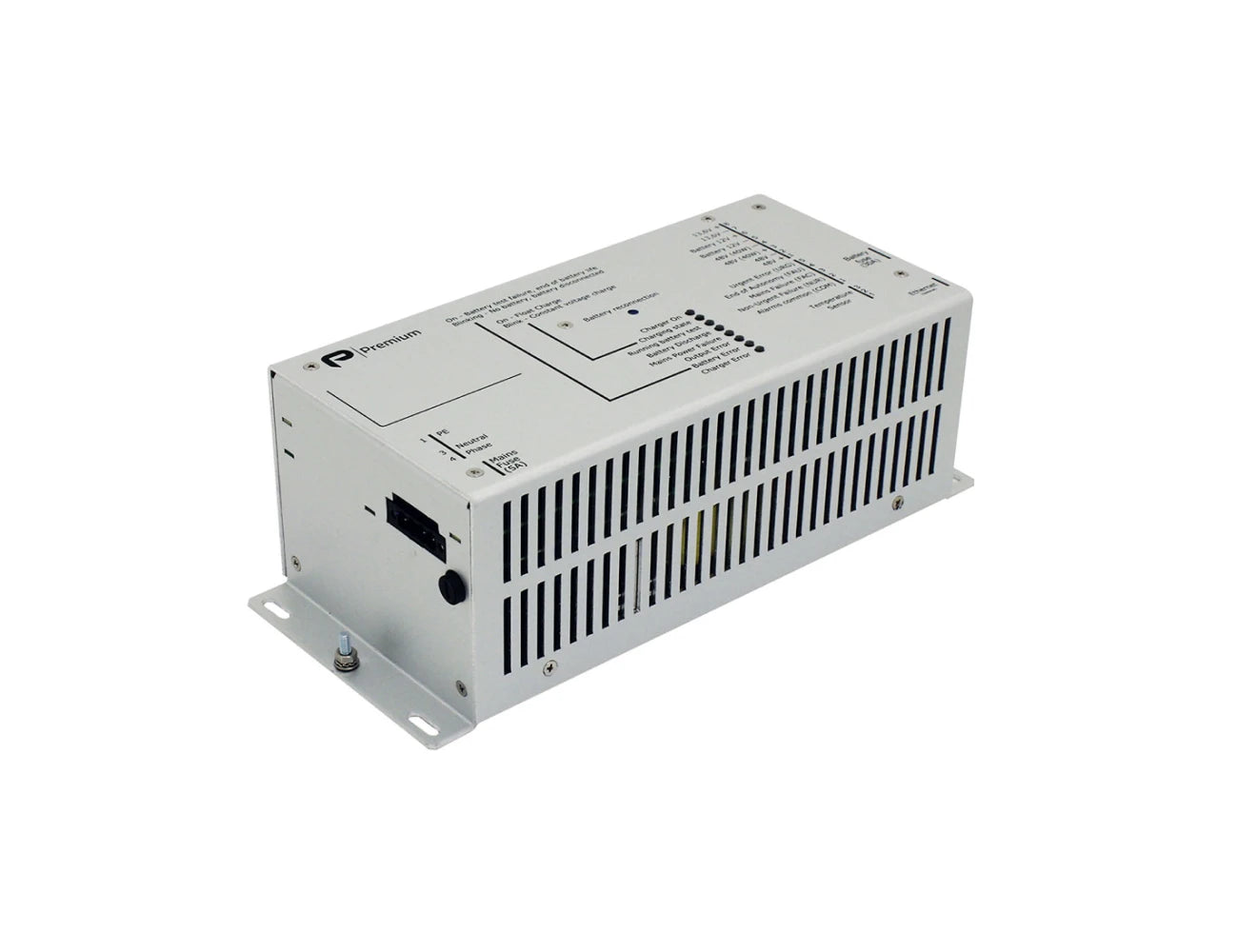

Premium PREMIUM EDT-150 SERIES Battery Charger
The Premium EDT-150 Series Battery Charger is a smart and reliable DC uninterruptible power supply (DC-UPS) designed for critical industrial and telecommunication applications. Delivering up to 150W of continuous output and supporting peak power demands of up to 275W, it ensures efficient battery charging and system uptime.
Read More
Features
- Full operation without the need for a battery
- Local monitoring with 8 LEDs
- Remote monitoring with 4 alarm relays
- Monitoring and configuration via RJ45/Ethernet
- Protocols TCP/IP DHCP ICMP HTTP SNTP LDAP
- Embedded WEB server
| INPUT | |
|---|---|
| Rated Input Voltage | 230Vac |
| Input Voltage Range | 184…264Vac |
| Mains Frequency Range | 47…63Hz |
| Inrush Current | 12A |
| Power Factor | >0.6 |
| OUTPUTS |
|||
|---|---|---|---|
| 1 | 2 | 3 | |
| Rated Output Voltage (Vdc) | 13.6 | 48 | 48 |
| Output Voltage Range (Vdc) | 9.6...15 | ± 1 | ± 1 |
| Maximum Cont. Current (A) | 15.7A | 0.83A | 3.2A |
| Maximum Peak Current (10s) (A) | 28.6A | 0.83A | 5.2A |
| Line Regulation (%) | < 0.1 | < 0.1 | < 0.1 |
| Ripple (mVpp) | < 50 | < 100 | < 100 |
| Noise (BW 20MHz) | < 100 | < 200 | < 200 |
| Total Output Power |
150W Continuous, with no battery support 275W 10s no battery support 300W 200ms, no battery support 300W 60s with battery support |
||
| BATTERY | |
| Charging Method | Constant Current / Absorption / Float |
| Battery Type | Lead-acid |
| Rated Battery Voltage | 12Vdc |
| Recommended Battery Capacity | 38Ah |
| Maximum Charging Current (configurable) | 15.7A (Configurable) |
| Standby Battery Self-Consumption | <0.5mA |
| Battery Test | Yes - By measure of capacity discharged to load |
| ENVIRONMENTAL | |
| Storage Temperature | -25 ... 70ºC |
| Operating Temperature | -25 ... 60ºC |
| Maximum Relative Humidity | 95% Non-Condensing |
| Cooling | By natural convection |
| Environmental Requirements | RoHS according to directive 2015/863/EU and REACH |
| Mechanical and Temperature Tests | Refer to Table 1 of Specification Sheet |
| EMC | |
| Emissions |
EN 55032 Class B; EN 55032 Class A Refer to Table 2 of Specification Sheet |
| Immunity |
IEC61000-4 Refer to Table 3 of Specification Sheet |
| SAFETY | |
| Electrical Safety |
IEC62368-1
|
| Dielectric Strength |
Input / Output - 3kVac 50Hz 1 min Input / Earth - 3kVac 50Hz 1 min Output / Earth - 2.5kVac 50Hz 1 min
|

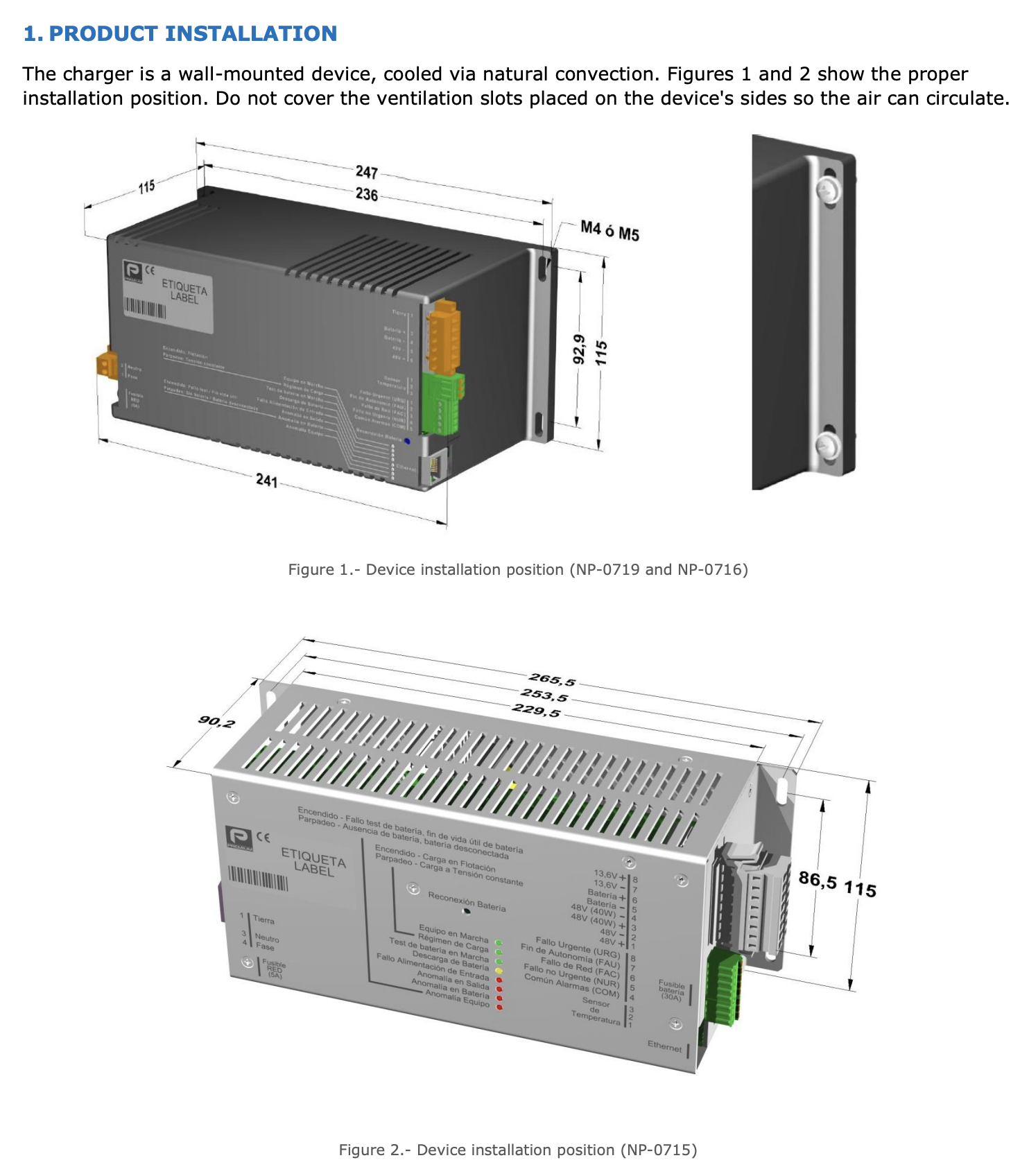

| MECHANICAL | |
| Size |
247 x 115 x 115 mm |
| Weight |
< 1.65 kg |
| CONTROL | |
| Battery Reconnect Button | Yes - Allows you to start the charger in the absence of mains voltage |
| LEDs | Charger ON; Charging State (fast charging or float); Running Battery Test; Battery Discharge; Mains Power Failure; Output Error; Battery Error; Charger Error |
| Urgent Failure Alarm (URG) |
Contact closed in case of alarm: • Battery failure • Charger failure • Failures involving battery disconnection or charging |
| Low Battery Alarm |
Contact closed in case of alarm: • The battery has reached the minimum voltage value (it is activated for a while before the battery is disconnected) |
| Mains Failure Alarm |
Contact closed in case of alarm: Mains Failure Alarm • Input voltage out of range |
| Alarm Non-Urgent Failure (NUR) |
Contact closed in case of alarm: • Battery voltage above its maximum value Alarm Non-urgent failure • Output voltage out of range • Temperature probe error • Battery temperature out of range |
| Alarm Specification (Urgent Failure): |
Type: Electro-Mechanical Relay Maximum Voltage: 220V Maximum Current: 8A |
| Alarm Specification (Other Alarms): |
Type: Solid State Relay Maximum Voltage: 200V Maximum Current: 0.2A |
| PROTECTION | |
| Outputs Overcurrent | Electronic current limitation |
| Battery Overcurrent | Accessible Fuse |
| Overcurrent or Overvoltage at Input | Accessible Fuse |
| Battery reverse polarity |
By solid state relay |
| Model | Input Voltage | Rated Output Voltage(s) | Max. Output Power (W) |
|---|---|---|---|
| EDT-150-5191 | 230Vac | 12V/48V/48V | 150W |
| INPUT | |
|---|---|
| Rated Input Voltage | 230Vac |
| Input Voltage Range | 184…264Vac |
| Mains Frequency Range | 47…63Hz |
| Inrush Current | 12A |
| Power Factor | >0.6 |
| OUTPUTS |
|||
|---|---|---|---|
| 1 | 2 | 3 | |
| Rated Output Voltage (Vdc) | 13.6 | 48 | 48 |
| Output Voltage Range (Vdc) | 9.6...15 | ± 1 | ± 1 |
| Maximum Cont. Current (A) | 15.7A | 0.83A | 3.2A |
| Maximum Peak Current (10s) (A) | 28.6A | 0.83A | 5.2A |
| Line Regulation (%) | < 0.1 | < 0.1 | < 0.1 |
| Ripple (mVpp) | < 50 | < 100 | < 100 |
| Noise (BW 20MHz) | < 100 | < 200 | < 200 |
| Total Output Power |
150W Continuous, with no battery support 275W 10s no battery support 300W 200ms, no battery support 300W 60s with battery support |
||
| BATTERY | |
| Charging Method | Constant Current / Absorption / Float |
| Battery Type | Lead-acid |
| Rated Battery Voltage | 12Vdc |
| Recommended Battery Capacity | 38Ah |
| Maximum Charging Current (configurable) | 15.7A (Configurable) |
| Standby Battery Self-Consumption | <0.5mA |
| Battery Test | Yes - By measure of capacity discharged to load |
| ENVIRONMENTAL | |
| Storage Temperature | -25 ... 70ºC |
| Operating Temperature | -25 ... 60ºC |
| Maximum Relative Humidity | 95% Non-Condensing |
| Cooling | By natural convection |
| Environmental Requirements | RoHS according to directive 2015/863/EU and REACH |
| Mechanical and Temperature Tests | Refer to Table 1 of Specification Sheet |
| EMC | |
| Emissions |
EN 55032 Class B; EN 55032 Class A Refer to Table 2 of Specification Sheet |
| Immunity |
IEC61000-4 Refer to Table 3 of Specification Sheet |
| SAFETY | |
| Electrical Safety |
IEC62368-1
|
| Dielectric Strength |
Input / Output - 3kVac 50Hz 1 min Input / Earth - 3kVac 50Hz 1 min Output / Earth - 2.5kVac 50Hz 1 min
|
| MECHANICAL | |
| Size |
247 x 115 x 115 mm |
| Weight |
< 1.65 kg |
| CONTROL | |
| Battery Reconnect Button | Yes - Allows you to start the charger in the absence of mains voltage |
| LEDs | Charger ON; Charging State (fast charging or float); Running Battery Test; Battery Discharge; Mains Power Failure; Output Error; Battery Error; Charger Error |
| Urgent Failure Alarm (URG) |
Contact closed in case of alarm: • Battery failure • Charger failure • Failures involving battery disconnection or charging |
| Low Battery Alarm |
Contact closed in case of alarm: • The battery has reached the minimum voltage value (it is activated for a while before the battery is disconnected) |
| Mains Failure Alarm |
Contact closed in case of alarm: Mains Failure Alarm • Input voltage out of range |
| Alarm Non-Urgent Failure (NUR) |
Contact closed in case of alarm: • Battery voltage above its maximum value Alarm Non-urgent failure • Output voltage out of range • Temperature probe error • Battery temperature out of range |
| Alarm Specification (Urgent Failure): |
Type: Electro-Mechanical Relay Maximum Voltage: 220V Maximum Current: 8A |
| Alarm Specification (Other Alarms): |
Type: Solid State Relay Maximum Voltage: 200V Maximum Current: 0.2A |
| PROTECTION | |
| Outputs Overcurrent | Electronic current limitation |
| Battery Overcurrent | Accessible Fuse |
| Overcurrent or Overvoltage at Input | Accessible Fuse |
| Battery reverse polarity |
By solid state relay |
| Model | Input Voltage | Rated Output Voltage(s) | Max. Output Power (W) |
|---|---|---|---|
| EDT-150-5191 | 230Vac | 12V/48V/48V | 150W |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
EDT-150-5191 | 184...264Vac 50/60Hz | Output 1: 13.6Vdc Output 2: 48Vdc Output 3: 48Vdc | Output 1: 15.7A Output 2: 0.83A Output 3: 3.2A |
