Premium ODS-1500 SERIES DC/AC Inverter

The Premium ODS-1500 Series DC/AC Inverter is a high-performance power solution tailored for industrial and railway applications. Delivering up to 1500VA of sine wave output, this inverter ensures efficient and reliable power conversion in demanding environments.

Read More

View Models
  • premium-ods-1500-series

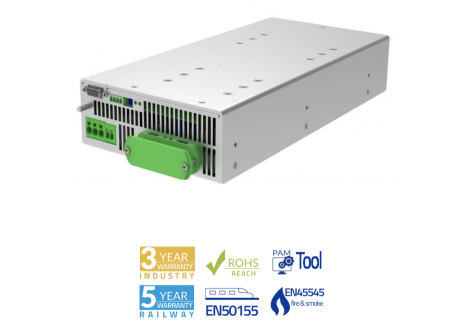

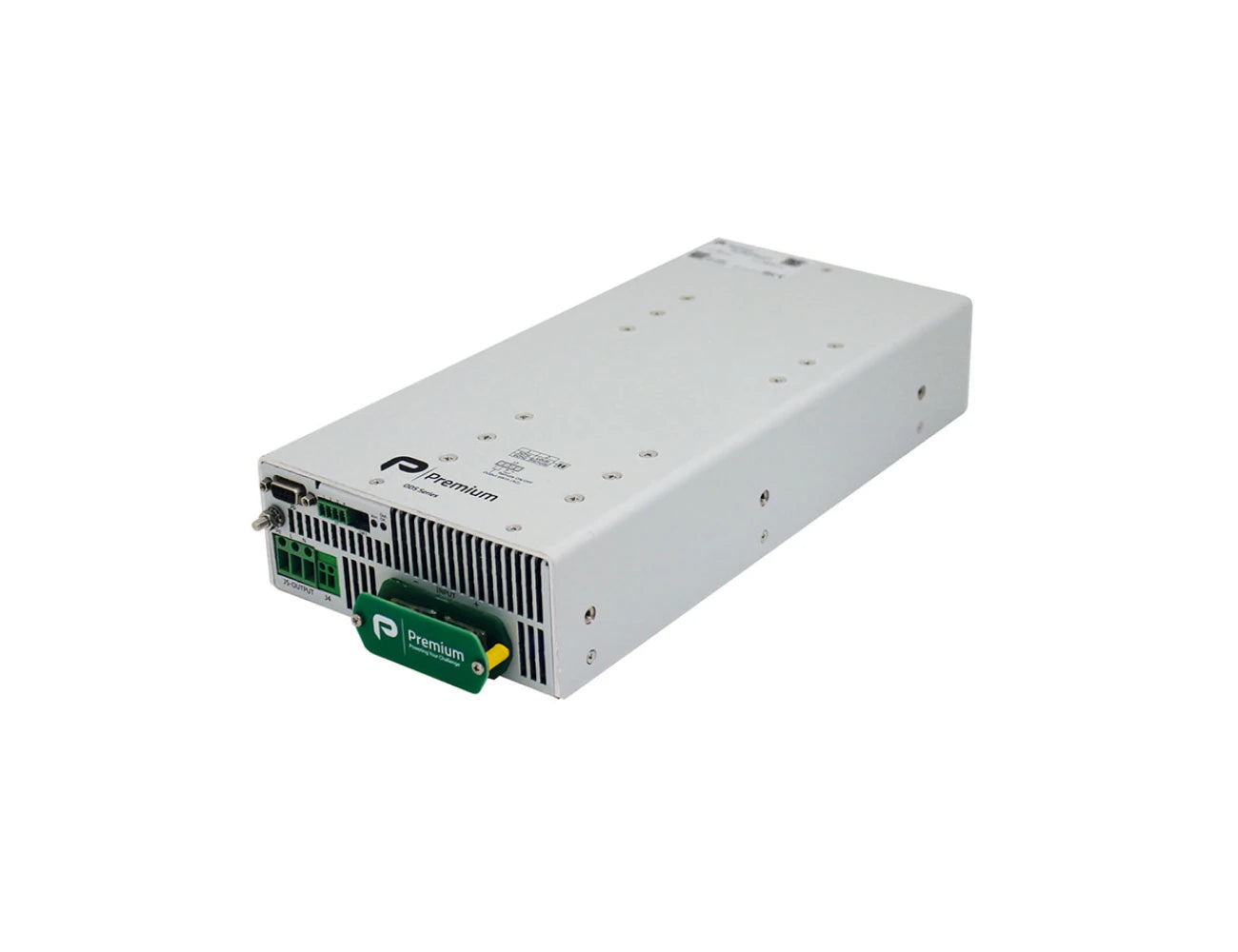

  • Premium ODS-1500 SERIES DC/AC Inverter

Features

  • Sine wave output voltage
  • Selectable output frequency: 50/60Hz
  • Adjustable output voltage
  • High input-output isolation 3000Vrms
  • Remote inhibit
  • Remote control via RS232
Specifications
INPUT
Input Voltage range -30, +25% Vin nom, (10 … 15Vdc)*
Max input ripple 5% Vin nom (Vrms, 100Hz)
SAFETY
Dielectric strength: Input /output 3000 Vrms / 50Hz / 1min
Dielectric strength: Output / ground 1500 Vrms / 50Hz / 1min
Dielectric strength: Input / ground 500 Vrms / 50Hz / 1min
Safety according to EN60950-1, EN62368-1
Fire and smoke EN45545-2 approved
OUTPUT
Output Voltage 120 / 230Vac sinusoidal
Output frequency 50 / 60Hz ± 0.25Hz
Load regulation < 4 %
Line regulation < 2 % Vin -25% … +25%, < 10% Vin -30% … +30%
Output wave distortion THD < 2% (average of 16 samples)
Output HF ripple   < 2.5%
MECHANICAL
Weight 3800g
ENVIRONMENTAL
StorageTemperature -25 … 80°C
Operating temperature at Full load -25 … 55°C(EN50155 OT1)
Operating temperature at 50% load  -25 … 70°C(EN50155 OT3)
Relative humidity without condensation 5 … 95%
Cooling Controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C) 130.000 h
EMC
Immunity according EN61000-6-2 (EN50121-3-2)
Emissions according EN61000-6-4 (EN50121-3-2)
CONTROL
Output OK LED Green
Alarm LED Red
Output failure alarm Isolated contact relay open when alarm (<0.3A at 150Vcc)
Remote OFF Off applying 4…24 Vdc, Impedance > 3k3Ω
Status and programming RS232 port
PROTECTIONS
Against overloads Current andI²T limited (see overload protection)
Against over-temperature Shutdown with auto-recovery
Selection Table
PART
NUMBER		 INPUT
VOLTAGE
DC
(V)		 INPUT
VOLTAGE
RANGE
(V)		 OUTPUT
VOLTAGE
AC
(V)		 OUTPUT
CURRENT
(A)		 ACTIVE
OUTPUT
POWER
(W)		 APPAR.
OUTPUT
POWER
(VA)		 OUTPUT
PEAK
CURR. 5S
(Arms)		 OUTPUT
PEAK CURR.
Iopk 10MS
(Apk)		 EFFICIENCY
(%)		 NO LOAD
INPUT
CURRENT
(A)
ODS-1500-7111 12 10.0 - 15 230 5.2 1200 1200 6.8 16 87 < 0.8
ODS-1500-7113 24 16.8 - 30 230 6.5 1500 1500 10 16 88 < 0.4
ODS-1500-7114 36 25.2 - 45 230 6.5 1500 1500 10 16 89 < 0.3
ODS-1500-7115 48 33.6 - 60 230 6.5 1500 1500 10 16 90 < 0.2
ODS-1500-7116 72 50.4 - 90 230 6.5 1500 1500 10 16 90 < 0.15
ODS-1500-7117 110 77 - 138 230 6.5 1500 1500 10 16 91 < 0.1
ODS-1500-7121 12 10.0 - 15 120 12.5 1500 1500 13 30 86 < 0.8
ODS-1500-7123 24 16.8 - 30 120 12.5 1500 1500 13 30 88 < 0.4
ODS-1500-7124 36 25.2 - 45 120 12.5 1500 1500 13 30 88 < 0.3
ODS-1500-7125 48 33.6 - 60 120 12.5 1500 1500 13 30 89 < 0.2
ODS-1500-7126 72 50.4 - 90 120 12.5 1500 1500 13 30 89 < 0.15
ODS-1500-7127 110 77 - 138 120 12.5 1500 1500 13 30 90 < 0.1
Technical Illustrations

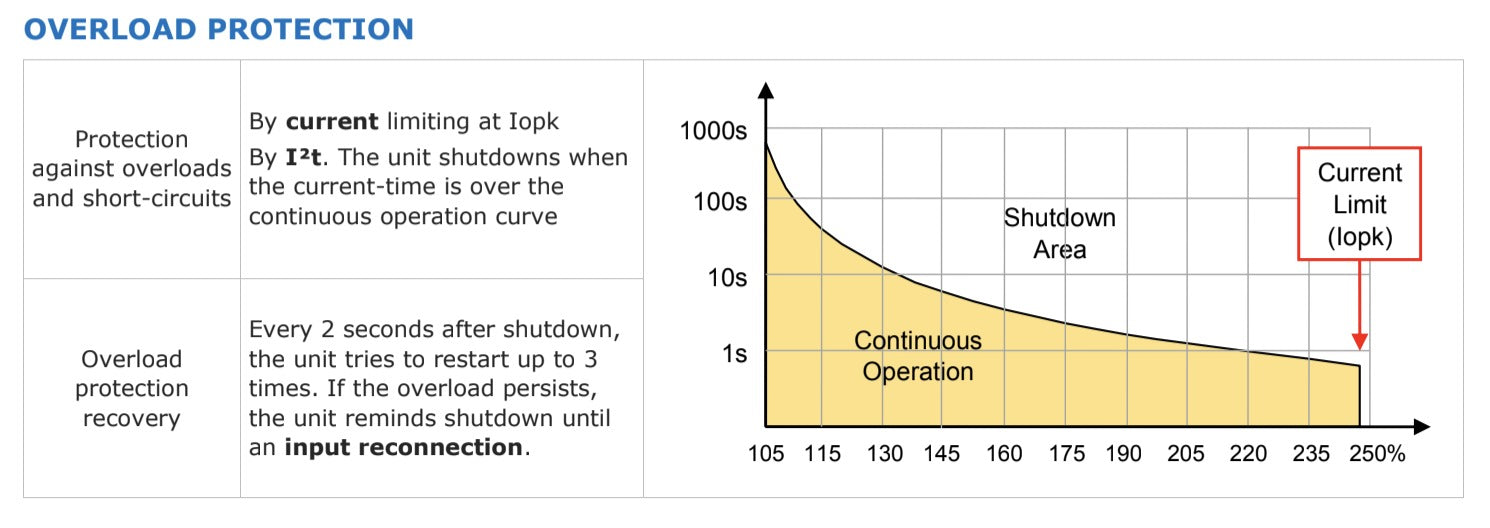

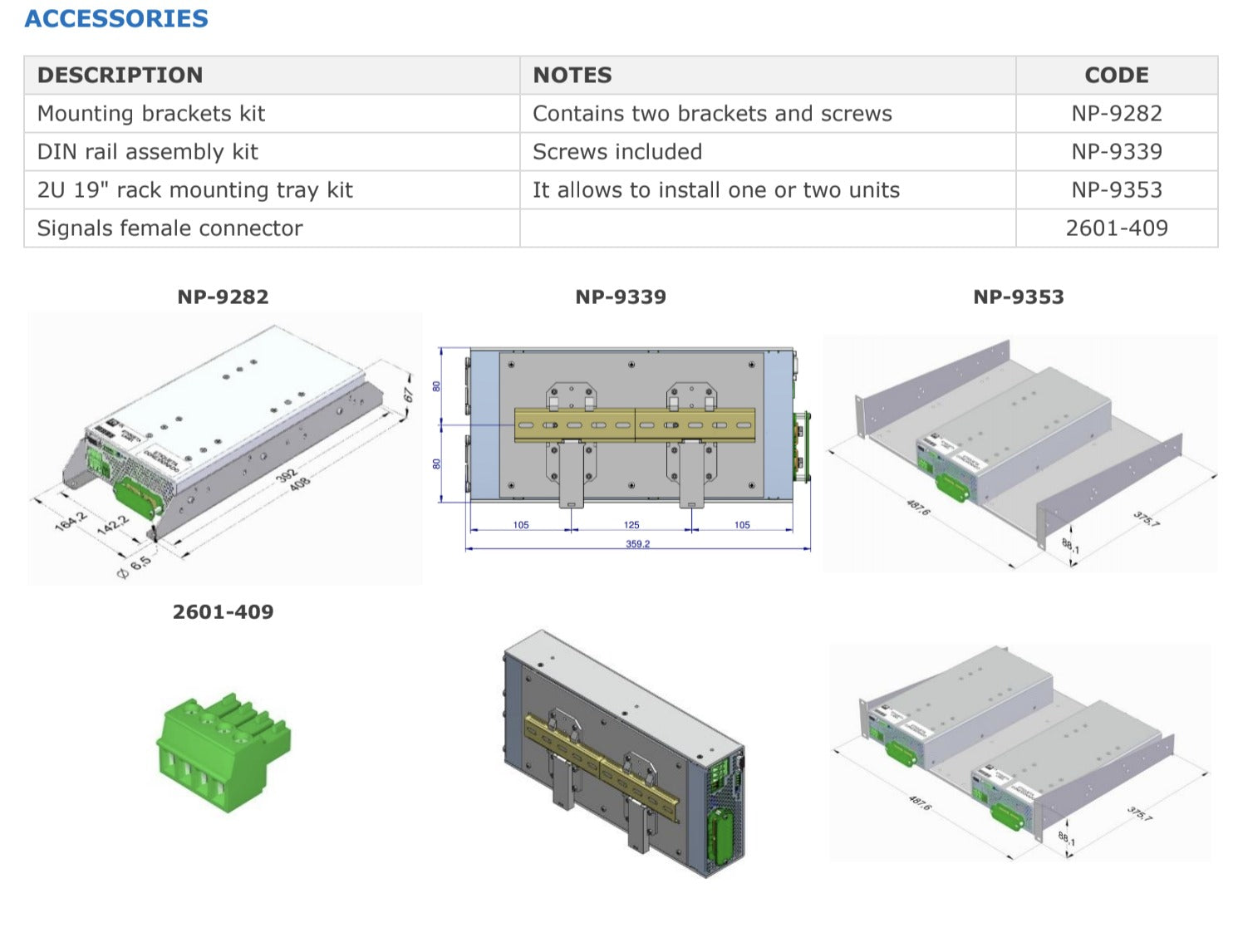

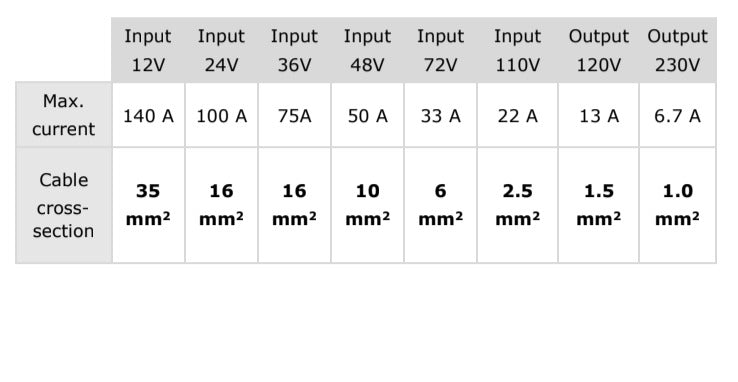

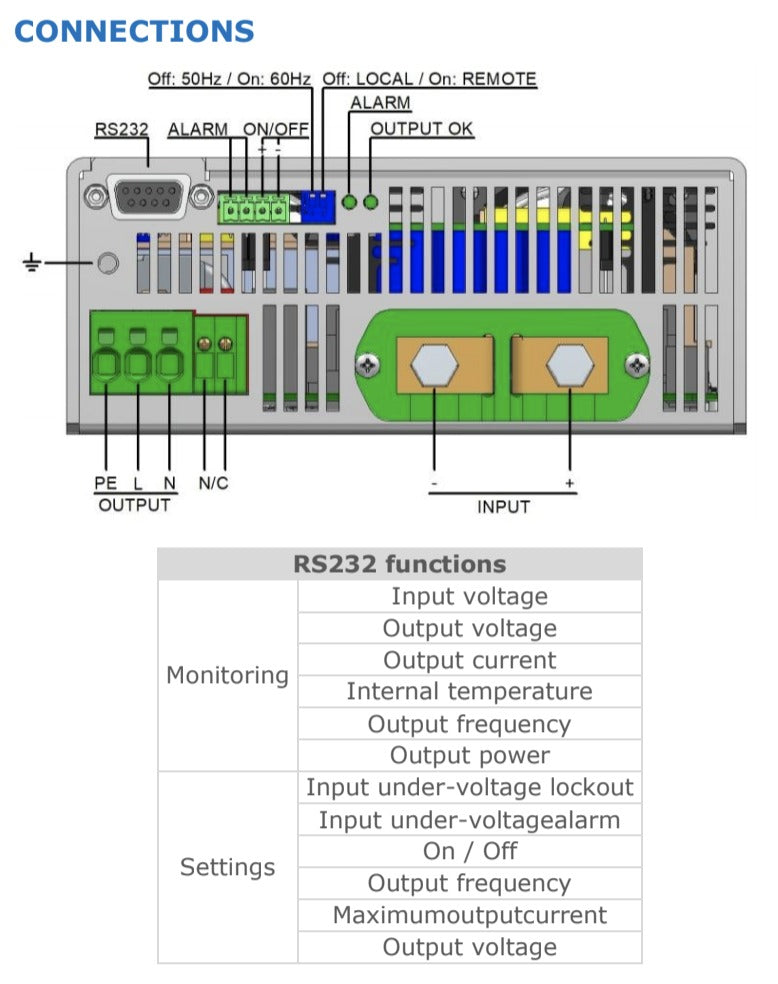

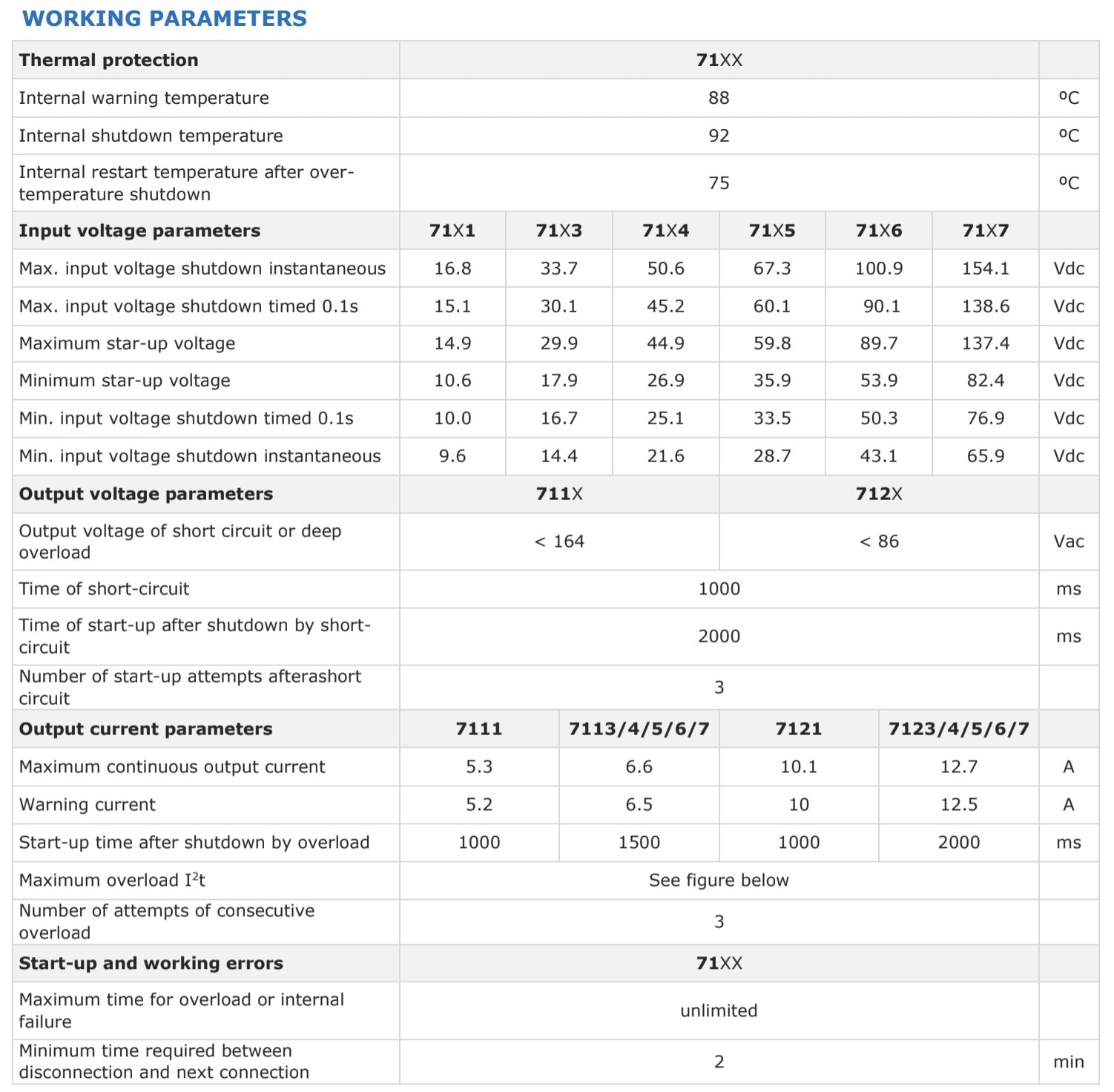

Premium ODS-1500 SERIES DC/AC Inverter Diagram showing the back panel connections and RS232 functions. Electrical block diagram showing input, output, and control circuitry. Graph showing power derating against ambient temperature. Table showing max current and cable cross-section ratings for varying voltages. Table showing electrical working parameters, including voltage, current and error values. Graph showing overload protection: shutdown area and continuous operation. Selection of component accessories, including mounting brackets and connectors.
Downloads
ODS-1500_Datasheet.pdf
INPUT
Input Voltage range -30, +25% Vin nom, (10 … 15Vdc)*
Max input ripple 5% Vin nom (Vrms, 100Hz)
SAFETY
Dielectric strength: Input /output 3000 Vrms / 50Hz / 1min
Dielectric strength: Output / ground 1500 Vrms / 50Hz / 1min
Dielectric strength: Input / ground 500 Vrms / 50Hz / 1min
Safety according to EN60950-1, EN62368-1
Fire and smoke EN45545-2 approved
OUTPUT
Output Voltage 120 / 230Vac sinusoidal
Output frequency 50 / 60Hz ± 0.25Hz
Load regulation < 4 %
Line regulation < 2 % Vin -25% … +25%, < 10% Vin -30% … +30%
Output wave distortion THD < 2% (average of 16 samples)
Output HF ripple   < 2.5%
MECHANICAL
Weight 3800g
ENVIRONMENTAL
StorageTemperature -25 … 80°C
Operating temperature at Full load -25 … 55°C(EN50155 OT1)
Operating temperature at 50% load  -25 … 70°C(EN50155 OT3)
Relative humidity without condensation 5 … 95%
Cooling Controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C) 130.000 h
EMC
Immunity according EN61000-6-2 (EN50121-3-2)
Emissions according EN61000-6-4 (EN50121-3-2)
CONTROL
Output OK LED Green
Alarm LED Red
Output failure alarm Isolated contact relay open when alarm (<0.3A at 150Vcc)
Remote OFF Off applying 4…24 Vdc, Impedance > 3k3Ω
Status and programming RS232 port
PROTECTIONS
Against overloads Current andI²T limited (see overload protection)
Against over-temperature Shutdown with auto-recovery
PART
NUMBER		 INPUT
VOLTAGE
DC
(V)		 INPUT
VOLTAGE
RANGE
(V)		 OUTPUT
VOLTAGE
AC
(V)		 OUTPUT
CURRENT
(A)		 ACTIVE
OUTPUT
POWER
(W)		 APPAR.
OUTPUT
POWER
(VA)		 OUTPUT
PEAK
CURR. 5S
(Arms)		 OUTPUT
PEAK CURR.
Iopk 10MS
(Apk)		 EFFICIENCY
(%)		 NO LOAD
INPUT
CURRENT
(A)
ODS-1500-7111 12 10.0 - 15 230 5.2 1200 1200 6.8 16 87 < 0.8
ODS-1500-7113 24 16.8 - 30 230 6.5 1500 1500 10 16 88 < 0.4
ODS-1500-7114 36 25.2 - 45 230 6.5 1500 1500 10 16 89 < 0.3
ODS-1500-7115 48 33.6 - 60 230 6.5 1500 1500 10 16 90 < 0.2
ODS-1500-7116 72 50.4 - 90 230 6.5 1500 1500 10 16 90 < 0.15
ODS-1500-7117 110 77 - 138 230 6.5 1500 1500 10 16 91 < 0.1
ODS-1500-7121 12 10.0 - 15 120 12.5 1500 1500 13 30 86 < 0.8
ODS-1500-7123 24 16.8 - 30 120 12.5 1500 1500 13 30 88 < 0.4
ODS-1500-7124 36 25.2 - 45 120 12.5 1500 1500 13 30 88 < 0.3
ODS-1500-7125 48 33.6 - 60 120 12.5 1500 1500 13 30 89 < 0.2
ODS-1500-7126 72 50.4 - 90 120 12.5 1500 1500 13 30 89 < 0.15
ODS-1500-7127 110 77 - 138 120 12.5 1500 1500 13 30 90 < 0.1
Premium ODS-1500 SERIES DC/AC Inverter Diagram showing the back panel connections and RS232 functions. Electrical block diagram showing input, output, and control circuitry. Graph showing power derating against ambient temperature. Table showing max current and cable cross-section ratings for varying voltages. Table showing electrical working parameters, including voltage, current and error values. Graph showing overload protection: shutdown area and continuous operation. Selection of component accessories, including mounting brackets and connectors.
ODS-1500_Datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vac) Output Power (Va / kVA)
product variant ODS-1500-71111 12Vdc: 9.5 - 15Vdc 230Vac 50 / 60Hz ± 0.25Hz 1,200 VA
product variant ODS-1500-71113 24Vdc: 16.8 - 30Vdc 230Vac 50 / 60Hz ± 0.25Hz 1,500 VA
product variant ODS-1500-71114 36Vdc: 25.2 - 45Vdc 230Vac 50 / 60Hz ± 0.25Hz 1,500 VA
product variant ODS-1500-71115 48Vdc: 33.6 - 60Vdc 230Vac 50 / 60Hz ± 0.25Hz 1,500 VA
product variant ODS-1500-71116 72Vdc: 50.4 - 90Vdc 230Vac 50 / 60Hz ± 0.25Hz 1,500 VA
product variant ODS-1500-71117 110Vdc: 77 - 138Vdc 230Vac 50 / 60Hz ± 0.25Hz 1,500 VA
product variant ODS-1500-71121 12Vdc: 9.5 - 15Vdc 120Vac 50 / 60Hz ± 0.25Hz 1,200 VA
product variant ODS-1500-71123 24Vdc: 16.8 - 30Vdc 120Vac 50 / 60Hz ± 0.25Hz 1,500 VA
product variant ODS-1500-71124 36Vdc: 25.2 - 45Vdc 120Vac 50 / 60Hz ± 0.25Hz 1,500 VA
product variant ODS-1500-71125 48Vdc: 33.6 - 60Vdc 120Vac 50 / 60Hz ± 0.25Hz 1,500 VA
product variant ODS-1500-71126 72Vdc: 50.4 - 90Vdc 120Vac 50 / 60Hz ± 0.25Hz 1,500 VA
product variant ODS-1500-71127 110Vdc: 77 - 138Vdc 120Vac 50 / 60Hz ± 0.25Hz 1,500 VA
