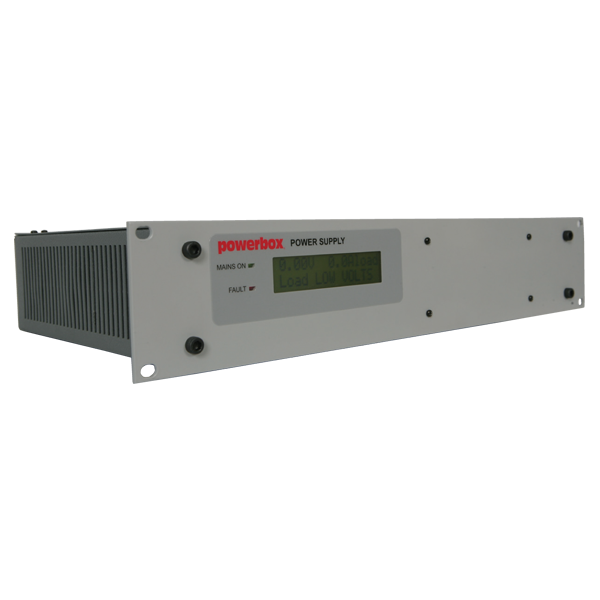

Powerbox PB314A-RM SERIES DC-UPS / Battery Charger - 19" Rack Mount
The Powerbox PB314A Series DC-UPS and Battery Charger delivers a robust and reliable solution for applications demanding uninterrupted DC power and intelligent battery management. Proudly designed and manufactured in Australia by Powerbox, the PB314A reflects decades of local engineering expertise and is built to meet the needs of Australian ind...
Read MoreThe Powerbox PB314A Series DC-UPS and Battery Charger delivers a robust and reliable solution for applications demanding uninterrupted DC power and intelligent battery management. Proudly designed and manufactured in Australia by Powerbox, the PB314A reflects decades of local engineering expertise and is built to meet the needs of Australian industry and infrastructure.
Designed for 19" rack-mount installation, it is ideally suited to telecommunications networks, radio communications infrastructure, and industrial systems where backup power is critical. The PB314A operates as a true off-line DC-UPS, delivering power to connected DC loads directly from the rectifier during normal operation, while simultaneously charging the battery. In the event of an AC mains failure, it automatically switches to battery power with no interruption to the load—ensuring continuous operation of critical systems without voltage dips or reset events.
Key features include a digital front-panel display for real-time system monitoring, selectable constant float voltage, current limiting, and integrated circuit breakers for both load and battery protection. The system also supports optional low-voltage disconnect (LVD) and battery temperature compensation, helping to maximise battery life and performance. Advanced alarm functionality and optional network connectivity via SNMP V1 and an embedded web server support reliable remote system monitoring.
Available in 13.8Vdc, 27.6Vdc, and 55.4Vdc output configurations, with models delivering between 636W and 1056W, the PB314A Series offers scalable, high-efficiency power solutions for a wide range of critical applications. Fully compliant with relevant safety (AS/NZS 60950.1) and EMC (AS/NZS CISPR11) standards, it ensures both performance and compliance in demanding environments.
The Powerbox PB314A Series is a trusted and proven choice for mission-critical systems requiring dependable DC-UPS functionality and advanced, configurable battery charging.
Show Less
Features
- True Off-Line DC-UPS Functionality: The PB314A provides continuous DC power during mains failure by seamlessly switching to battery backup—ensuring no interruption to connected equipment.
- Ideal for Radio Communications & Telecom Applications: Widely used in radio networks, base station sites, and telecommunications infrastructure, the PB314A delivers dependable backup power where system uptime is mission-critical.
- Designed and Manufactured in Australia: Engineered by Powerbox in Australia, the PB314A Series reflects local expertise and is built to meet the demanding standards of the Australian Radio and Critical Communications industry.
- Rack-Mountable High-Power System: Available in 13.8Vdc, 27.6Vdc, and 55.4Vdc configurations, with output power up to 1056W, this 2RU 19” rack-mounted system integrates easily into existing comms and control environments.
- Integrated Battery Management & Protection: Features include constant float voltage, current limiting, thermal-magnetic circuit breakers for both load and battery, and optional battery LVD and temperature compensation for enhanced battery care.
- Advanced Monitoring with Optional Network Connectivity: Onboard digital display, alarm relays, and optional SNMP V1/web interface provide reliable system status reporting and remote monitoring capability.
Specifications
| INPUT | |
|---|---|
| Input Voltage | 85-264Vac or 120-360Vdc |
| Frequency: | 47 to 63 Hz |
| Input Current: | 4.1A typical 200Vac |
| Inrush current: | 40A typical cold start 200Vac |
| OUTPUT | |
|---|---|
| Output Voltage | 13.8Vdc, 27.6Vdc, 55.4Vdc |
| Output Power | 624W - 1056W |
| Output Current | See Selection Table |
| Load regulation | 1% typical |
| Ripple | 160mVp-p maximum |
| Noise | 180mVp-p maximum |
| Overvoltage shutdown | 16.2 to 19.8V latching |
| Output short circuit protection | Indefinite (Autoresetting) |
| Battery charger short circuit protection | Indefinite (Autoresetting) |
| Load output protection | Thermal - Magnetic Circuit Breaker |
| Battery output protection | Thermal - Magnetic Circuit Breaker. |
| Efficiency | 79% typical |
| DISPLAY AND ALARMS | |
|---|---|
| DC OK | LED Green On = OK, Voltage-free changeover contact (32V, 1A). Alarm on failure of AC/DC PSU and tripping of over temperature limit. |
| AC OK | Neon Green On = OK, Voltage-free changeover contact (32V, 1A). Alarm on mains fail. |
| Charger voltage OK alarm | LED Green On = OK, Voltage-free changeover contact (32V, 1A). Alarm on battery low voltage or on opening of battery circuit breaker. |
| Battery low voltage alarm | 11.0V (12V), 22.0V (24V), 44.0V (48V |
| OPTIONAL FEATURES | |
|---|---|
| Battery Charge Current | Option XXA: The battery charging current limit "XX" amps is set at time of manufacture. Often recommended by battery manufacturer given AH rating of battery.. Or contact Powerbox for more information. See selection table |
| Battery LVD Disconnect | Option LVD: For 12V and 24V models, not available in 48V models. |

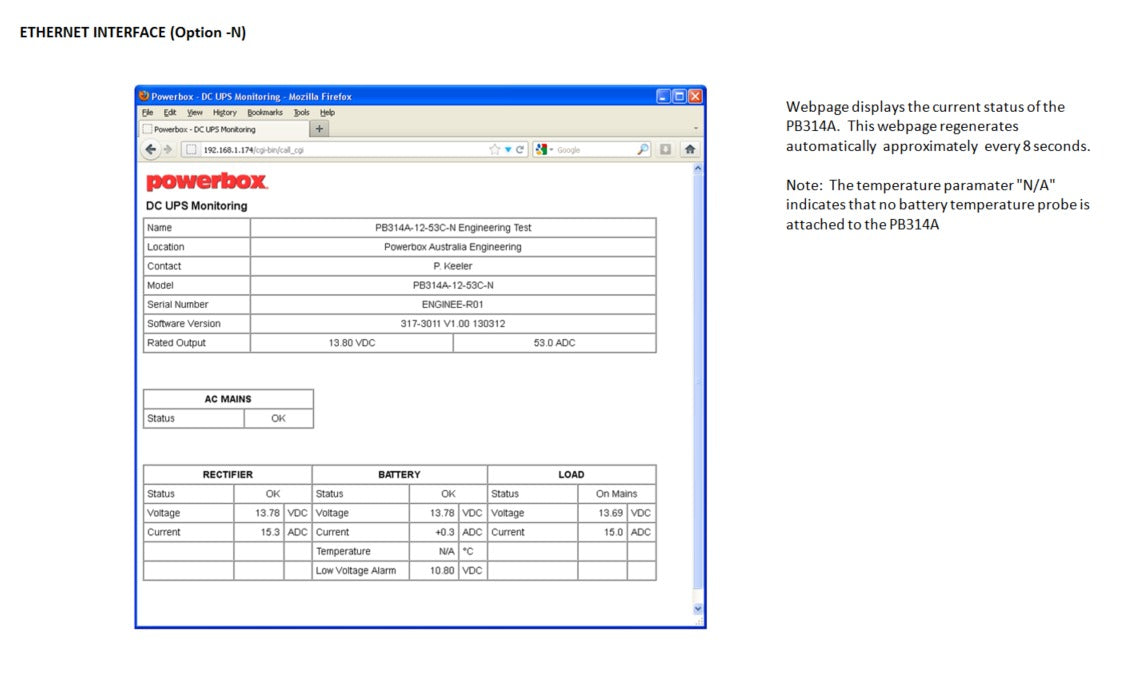

| Network Card | Option N: Internal network card in conjunction with PB314A becomes a network enable device combining the benefits of SNMP V1, XML and an embedded webpage. |
| Temperature Compensation | Option T: Temperature probe 2.5M cable Option T5: Temperature probe 5M cable Float voltage set to 2.3V per cell at 25°C with compensation of 3.3mV per cell |
| Output Alarm Connection | Option P: Phoenix Contact Mating Connector included |
| PROTECTION | |
|---|---|
| Overvoltage shutdown | 16.2 to 19.8V latching |
| Output short circuit protection | Indefinite (Autoresetting) |
| Battery charger short circuit protection | Indefinite (Autoresetting) |
| Load output protection | Thermal - Magnetic Circuit Breaker |
| Battery output protection | Thermal - Magnetic Circuit Breaker. |
| Isolation | Input - Output: 3KVac 1 min Input - Ground: 2KVac 1 min Output - Ground: 500Vac 1min |
| STANDARDS & APPROVALS | |
|---|---|
| C-Tick | AS/NZS CISPR11 Group 1 Class A. |
| Safety | UL 60950 Class 1 |
| EMC | Emissions comply with AS/NZ CISPR22 Class-B |
| ENVIRONMENT | |
|---|---|
| Operating temperature | -20°C to +71°C Derating linearly from 50°C to 71°C to 50% power |
| Humidity | 20-90% relative humidity (non condensing) |
| Cooling | Forced cooling - internal fan |
| MECHANICAL | |
|---|---|
| AC input socket | IEC320 fused / on off switch |
| Output termination | Cage clamp terminals (-C version) |
| Output Alarm Connection | Standard DB25 Socket Mating Connector not included |
| Load fault current protection | 63A circuit breaker |
| Battery fault current protection | 63A circuit breaker |
| Rack mount size | 270 D x 19" W x 2RU H |
| Weight | 5.0 kg |
Selection Table
| MODEL NUMBER |
OUTPUT VOLTAGE |
LOAD CURRENT¹ |
LOAD PK CURRENT |
BATTERY
CHARGE CURRENT² |
OUTPUT POWER |
|---|---|---|---|---|---|
| PB314A-12-53-C-XXA | 13.8Vdc | 46A | 53A | 5 - 53A | 636W |
| PB314A-12-88-C-XXA | 13.8Vdc | 76A | 88A | 10 - 88A | 1045W |
| PB314A-24-27-C-XXA | 27.6Vdc | 23A | 27A | 2.5 - 27A | 648W |
| PB314A-24-44-C-XXA | 27.6Vdc | 38A | 44A | 5 - 44A | 1056W |
| PB314A-48-13-C-XXA | 55.4Vdc | 11A | 13A | 2.5 - 13A | 624W |
| PB314A-48-22-C-XXA | 55.4Vdc | 19A | 22A | 2.5 - 22A | 1056W |
¹ Output Load Current also includes Battery Charge Current.
² The Battery Charging Current is factory set. Battery supplier to recommend or contact Powerbox for recommendation battery charge current. The 'XX" in model number designates the required battery charge current limit.

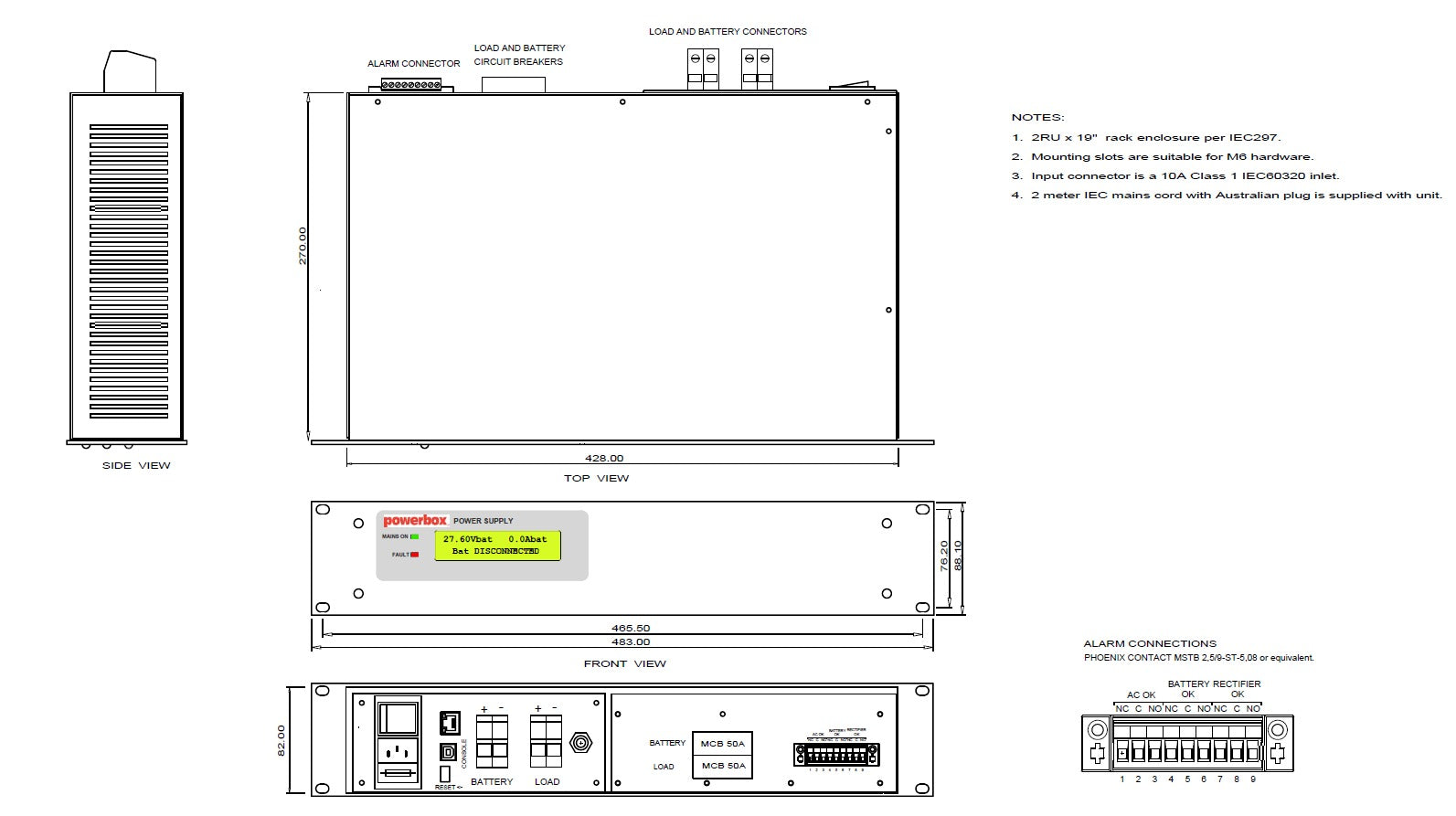

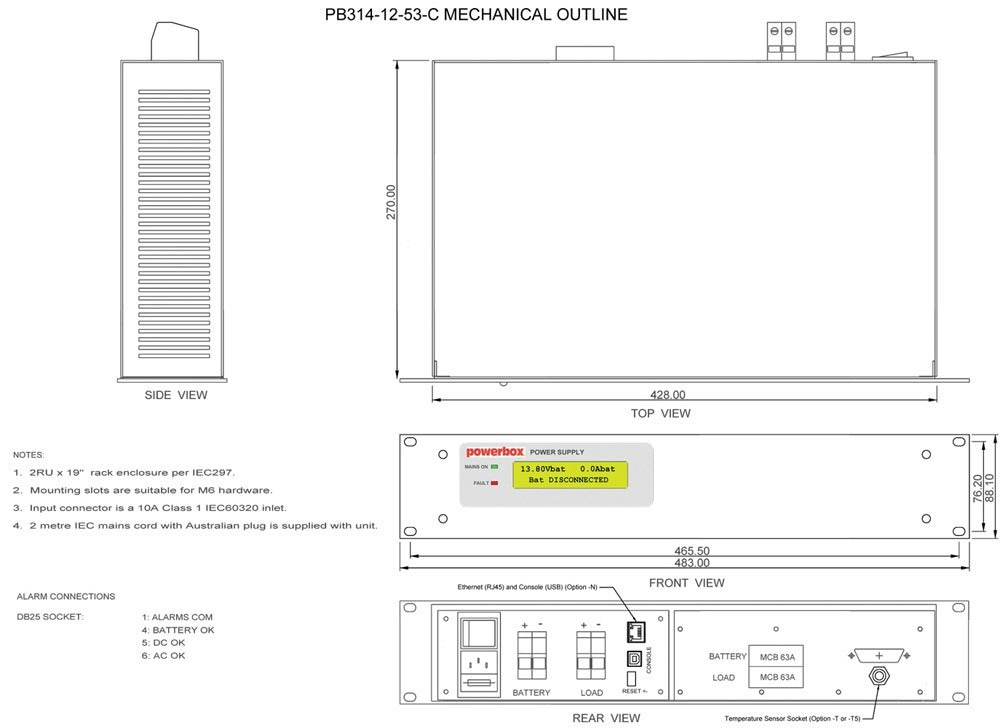

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
