DC Power Systems

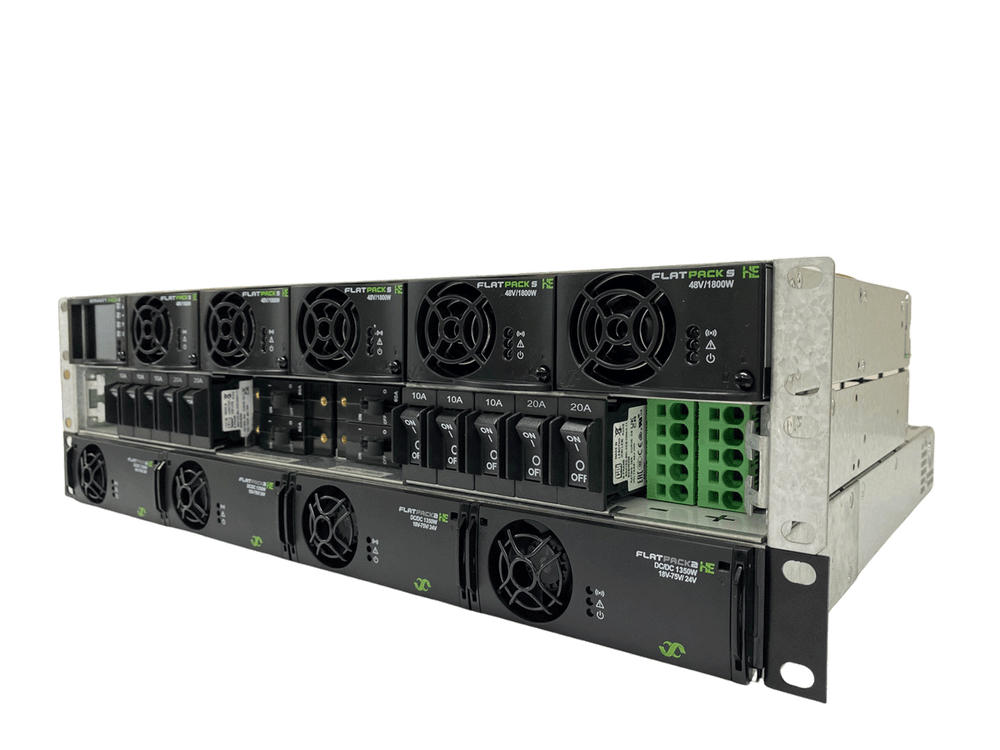

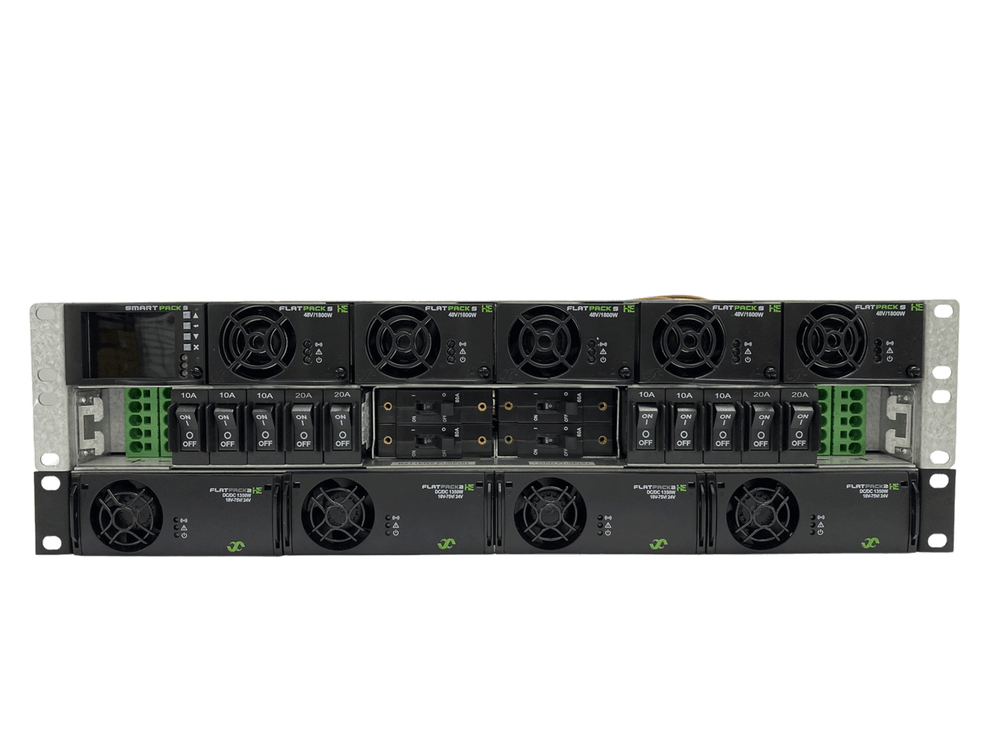

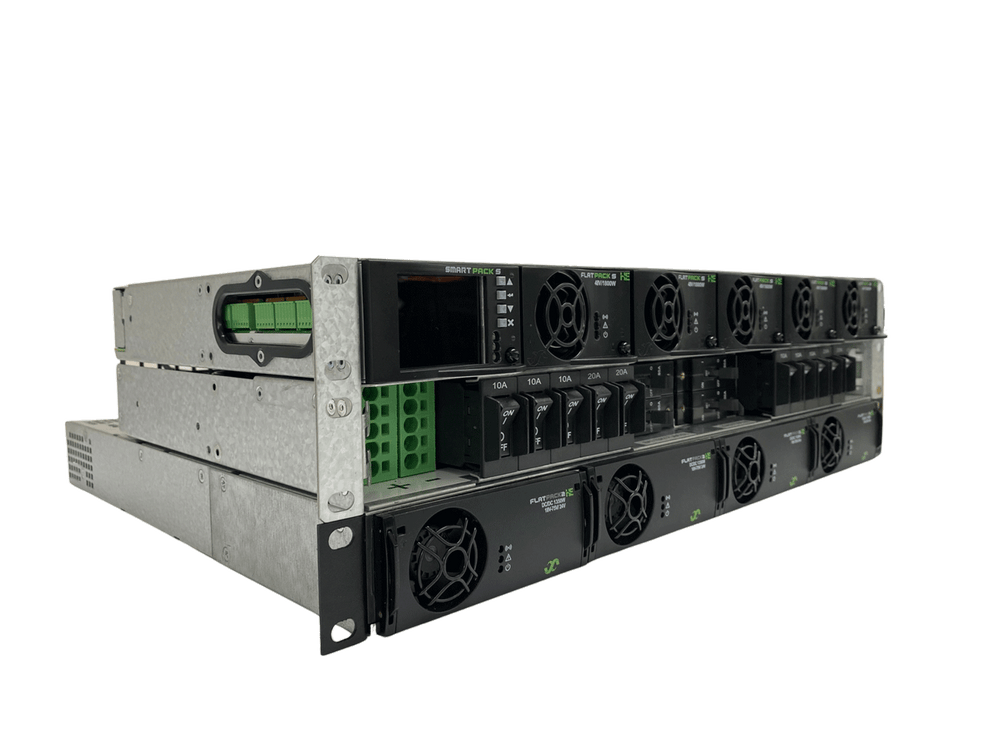

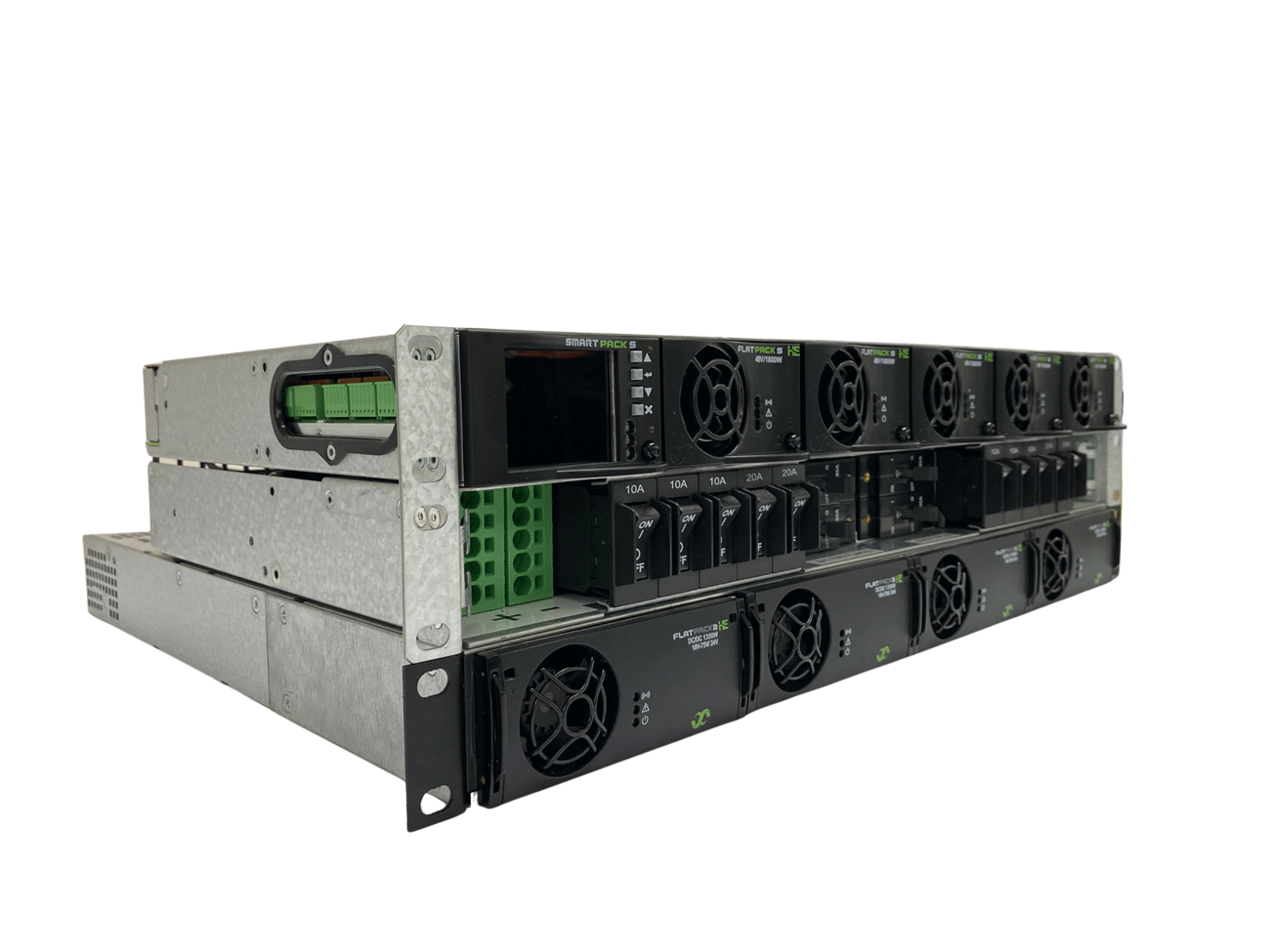

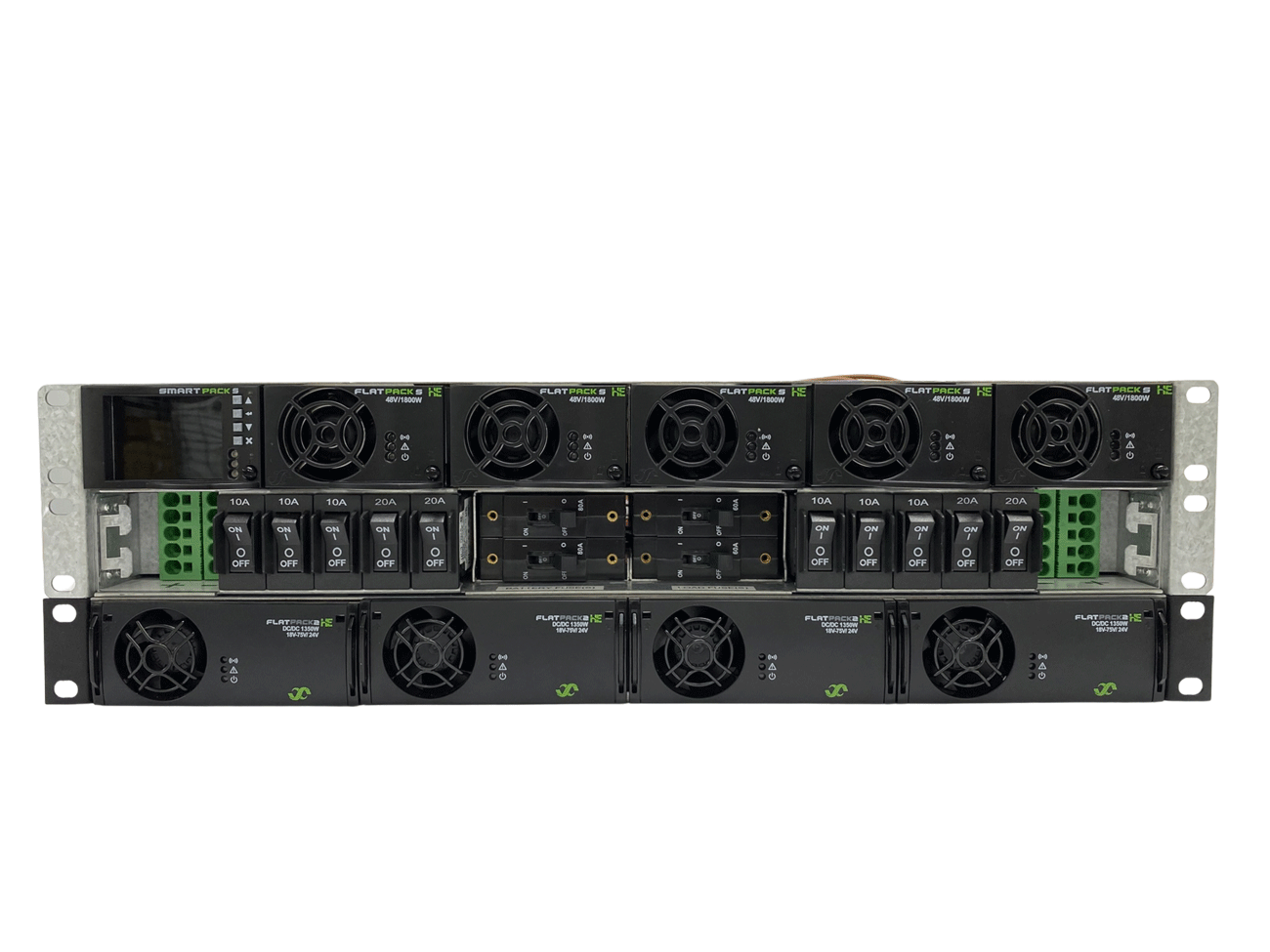

Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf
The Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf is a high-density, modular DC power system engineered for reliable performance in telecom, industrial, and security environments. With stock available locally, it’s the perfect solution for projects requiring scalable and efficient DC power.
Read More
Features
- Hot-Swappable for Maximum Uptime – Designed for continuous operation, with hot-pluggable rectifiers and controllers, ensuring easy maintenance and expansion without downtime.
- Advanced Control & Monitoring – Integrated Smartpack S controller provides real-time system oversight, remote monitoring via Ethernet, and intelligent power management.
- Power Performance – Supports configurations with 5 high-efficiency rectifiers, delivering 48V DC power with up to 150A output.
- Flexible Load Distribution – Multiple load breakers, supporting a wide range of telecom and network applications.
- Support 4 additional DC/DC converters of 24Vdc or 48Vdc with 1350W per module.
- Built to suit your needs – inverter options available on request.
Specifications

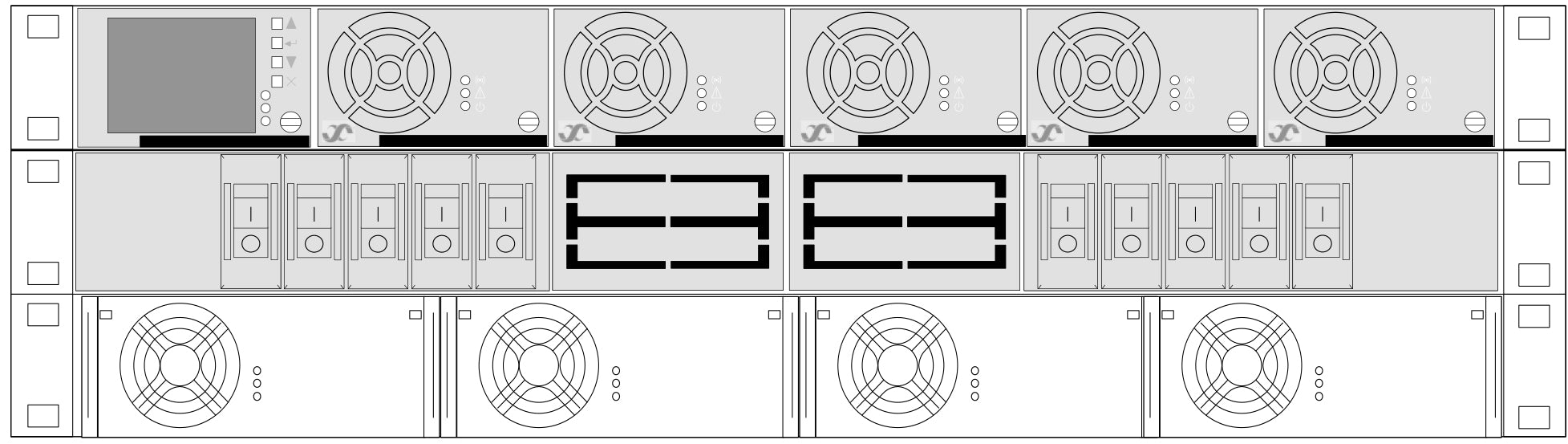

Technical Illustrations
Downloads
| MANUFACTURER PART NUMBER | ||||
|---|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | |||
| Part Number | PB-CTES0503D-0-0-007 | |||
| Height (RU) | 3U | |||
| Module slots (Not supplied) | 5 x Flatpack S HE Rectifier Modules 4 x Flatpack 2 DC/DC Modules |
|||
| Compatible AC/DC Rectifiers¹⁾ | 241122.105 Flatpack S AC/DC Rectifier 48/1000 HE 241122.125 Flatpack S AC/DC Rectifier 48/1800 HE |
|||
| Compatible DC/DC Modules¹⁾ |
241115.600 Flatpack 2 DC/DC 24V/1350 |
|||
| 1) All modules per shelf must be of the same voltage/model. | ||||
| AC INPUT DATA | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Voltage (Vac) | 100 - 250 Vac | ||
| Mains Configuration | 1 x 230 Vac | ||
| Mains Connection | Terminal Block | ||
| Frequency (Hz) | 45-66 Hz | ||
| 48V BATTERY DATA | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Plug in breakers | 2 x 80A Circuit breakers | ||
| 48V LOAD DATA | ||||
|---|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | |||
| Nominal System Voltage (Vdc) | -48 Vdc | |||
| Voltage Range (Vdc) | -42 Vdc - -58.6 Vdc | |||
| Plug in breakers | 1 x 80A, 10 x 30A2) | |||
| Max. Current (A) | 150A total, 80A per channel | |||
|
2) Other configurations available. Please consult with your Powerbox representative. |
||||
| DC/DC LOAD DATA | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Maximum Current (A) | Up to 150 A3) | ||
| 3) At 24Vdc, maximum input current to DC/DC converters is 100A from the 48Vdc bus. | |||
| POWER DISTRIBUTION / CABLE ENTRY | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Connection |
2 x 48Vdc Battery (M6 bolt) |
||
| CONTROL & MONITORING | ||||
|---|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | |||
| System Controller | Smartpack S4) | |||
| 4) For detailed Specifications & Manuals, please refer to Smartpack S product page. | ||||
| MECHANICAL | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Dimensions (WxHxD) | tba | ||
| Weight | tba | ||
| DESIGN STANDARDS | ||||
|---|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | |||
| Electrical Safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60950-1:2013, UL 60950-1:2014 | |||
| EMC | EN 61000-6-1:2019 / -2:2019 / -3:2007/A1:2011/AC:2012 / -4:2019 FCC CFR47 part 15B section 109: 2010, ETSI EN 300 386 v2.1.1: 2016 |
|||
| Environment | ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) EU 2015/863 (RoHS) & 2012/19/EU (WEEE) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised |
|||
| MANUFACTURER PART NUMBER | ||||
|---|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | |||
| Part Number | PB-CTES0503D-0-0-007 | |||
| Height (RU) | 3U | |||
| Module slots (Not supplied) | 5 x Flatpack S HE Rectifier Modules 4 x Flatpack 2 DC/DC Modules |
|||
| Compatible AC/DC Rectifiers¹⁾ | 241122.105 Flatpack S AC/DC Rectifier 48/1000 HE 241122.125 Flatpack S AC/DC Rectifier 48/1800 HE |
|||
| Compatible DC/DC Modules¹⁾ |
241115.600 Flatpack 2 DC/DC 24V/1350 |
|||
| 1) All modules per shelf must be of the same voltage/model. | ||||
| AC INPUT DATA | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Voltage (Vac) | 100 - 250 Vac | ||
| Mains Configuration | 1 x 230 Vac | ||
| Mains Connection | Terminal Block | ||
| Frequency (Hz) | 45-66 Hz | ||
| 48V BATTERY DATA | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Plug in breakers | 2 x 80A Circuit breakers | ||
| 48V LOAD DATA | ||||
|---|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | |||
| Nominal System Voltage (Vdc) | -48 Vdc | |||
| Voltage Range (Vdc) | -42 Vdc - -58.6 Vdc | |||
| Plug in breakers | 1 x 80A, 10 x 30A2) | |||
| Max. Current (A) | 150A total, 80A per channel | |||
|
2) Other configurations available. Please consult with your Powerbox representative. |
||||
| DC/DC LOAD DATA | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Maximum Current (A) | Up to 150 A3) | ||
| 3) At 24Vdc, maximum input current to DC/DC converters is 100A from the 48Vdc bus. | |||
| POWER DISTRIBUTION / CABLE ENTRY | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Connection |
2 x 48Vdc Battery (M6 bolt) |
||
| CONTROL & MONITORING | ||||
|---|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | |||
| System Controller | Smartpack S4) | |||
| 4) For detailed Specifications & Manuals, please refer to Smartpack S product page. | ||||
| MECHANICAL | |||
|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | ||
| Dimensions (WxHxD) | tba | ||
| Weight | tba | ||
| DESIGN STANDARDS | ||||
|---|---|---|---|---|
| Model | Eltek by Powerbox Flatpack S 9kW 3U Powercore with DC/DC Shelf | |||
| Electrical Safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60950-1:2013, UL 60950-1:2014 | |||
| EMC | EN 61000-6-1:2019 / -2:2019 / -3:2007/A1:2011/AC:2012 / -4:2019 FCC CFR47 part 15B section 109: 2010, ETSI EN 300 386 v2.1.1: 2016 |
|||
| Environment | ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) EU 2015/863 (RoHS) & 2012/19/EU (WEEE) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised |
|||
Find the Right Model
| Model Number | System Power (W) | Max. DC/DC Power (W) | Max. Solar Power (W) | ||
|---|---|---|---|---|---|
|
PB-CTES0503D-0-0-007 | 9000W | 5400W | - |
Need help finding the right product model?
