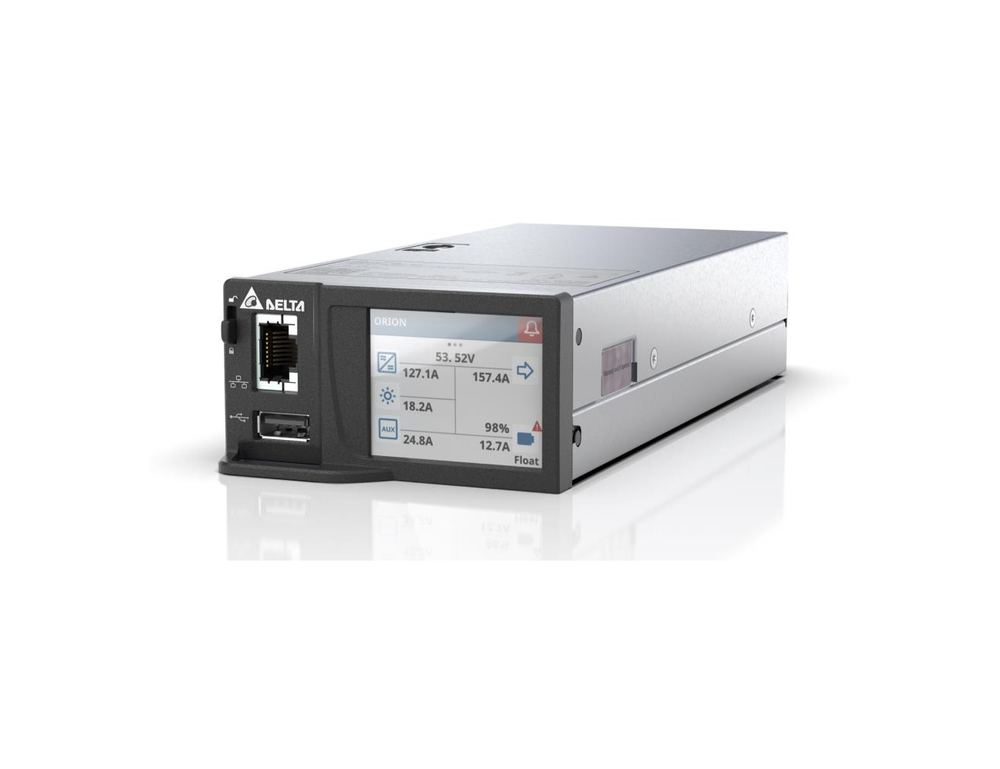

Delta Electronics ORION Touch Controller
The Delta ORION Touch Controller is a power system controller that monitors and manages a DC power system from a single hot-pluggable unit. It supervises rectifiers, converters and batteries, controls site infrastructure and delivers processed data and alarms remotely, so you can manage the site without being there. Its modular design scales wit...
Read MoreThe Delta ORION Touch Controller is a power system controller that monitors and manages a DC power system from a single hot-pluggable unit. It supervises rectifiers, converters and batteries, controls site infrastructure and delivers processed data and alarms remotely, so you can manage the site without being there.
Its modular design scales with the site. The controller provides basic I/O on board, and optional I/O modules connect over IMBUS, a robust CAN-based communication bus, to expand the system as it grows. Because the unit is hot-pluggable, you can replace it without shutting down the power system. A micro SD card slot enables automatic backup, and loadable configurations, battery profiles, communication protocols and device drivers keep maintenance straightforward.
One ORION Touch Controller brings Delta and Eltek rectifiers, PV converters and DC/DC converters, along with Eltek Rectiverters and boost converters, under one point of control. Eltek power modules integrate through a second CAN interface using the eNexus protocol, and third-party devices connect over RS485 or Ethernet using Modbus, SNMP or a proprietary protocol.
Battery functions include temperature-compensated float, boost and equalise charging, low voltage disconnection, backup time supervision, lifetime prediction and automatic battery testing. The controller supports lead acid, NiCad and lithium batteries, including combined lithium and lead acid systems.
On sites with renewable sources or diesel generators, intelligent energy saving features prioritise renewable energy, optimise rectifier system efficiency through advanced rectifier cycling and minimise generator fuel consumption. Integrated PLC functions add flexible supervision and control of auxiliary devices and other site infrastructure.
You can monitor and configure the system on the colour touch display, through the built-in web server with configurable access rights and user profiles, or remotely via SNMP, Modbus, MQTT, HTTP-API, REST and Syslog over Gigabit Ethernet, RS232, RS485 or modem. Six potential-free changeover contacts provide dry-contact alarming, and the optional UIM Touch adds a second colour touch display.
The ORION Touch Controller is fully backwards compatible with previous ORION versions, so you can use it to upgrade the functionality of existing systems in the field.
Explore the Delta Electronics range, or browse the complete Delta and Eltek product range for rectifiers, converters and related power system equipment.
Show Less
Features
- Hot-pluggable unit that can be replaced without shutting down the power system
- Manages up to 128 Delta or Eltek rectifiers with individual control, efficiency mode and sequential soft start
- Advanced battery management for lead acid, NiCad and lithium, including combined lithium and lead acid systems
- Integrates Eltek power modules via a second CAN interface using the eNexus protocol
- Intelligent energy saving that prioritises renewable sources and minimises diesel generator fuel use
- Integrated PLC functions for supervision and control of auxiliary devices and site infrastructure
- Colour touch display and built-in web server for local and remote system management
- Multi-protocol monitoring via SNMP, Modbus, MQTT, REST and HTTP-API over Gigabit Ethernet
- Configurable security with access rights, login control and user profiles
- Advanced data logging with user-defined data and sampling
- Micro SD card slot for automatic backup
- Fully backwards compatible with previous ORION versions for upgrading existing systems
Specifications
| DC Input | |
|---|---|
| Voltage range | 18–60Vdc |
| Max. current | 0.8Adc |
| Protection | Internal fuse 2A |
| Feature | |
|---|---|
| Support for rectifiers and other power converters | Up to 128 Delta or Eltek rectifiers 128 Delta or Eltek PV converters 64 Delta or Eltek DC/DC converters 64 Eltek Rectiverters 64 Boost converters |
| Number of battery, load and source strings | Up to 40 individually measured lead acid or NiCad battery strings 200 individually measured load strings 16 DC source strings |
| I/Os (expandable with I/O modules) | 1 Gigabit Ethernet port 2 RS485 ports 1 RS232 port 1 USB host 6 potential free change over contacts 2 inputs for temperature sensors 4 analogue/digital inputs 4 middle point/block measurement / generic inputs |
| Remote monitoring and control | Web browser, SNMP, Modbus, MQTT, HTTP-API, REST, Syslog and customer specific protocols via Gigabit Ethernet, RS232, RS485 or modem |
| Remote alarming | Dry contact, SNMP traps, Modbus, MQTT |
| Function | |
|---|---|
| System | Site expansions using additional CAN based I/O modules PLC functionality for customisation and supervision and control of auxiliary devices AC measurement, mains failure/phase failure detection and alarming Advanced generator control functions for fuel savings Configurable event and data log / statistics Remote and local SW and configuration update |
| Battery | Temperature compensated float charge, boost and equalise charge with charging current limitation Low voltage disconnection State of charge supervision and display Backup time supervision / life time prediction Automatic battery test Symmetry supervision for cell/block voltages and string currents Lithium battery and combinations of lithium and lead acid batteries |
| Rectifier | Individual rectifier information and control Sequential start-up / system soft start Efficiency mode with advanced rectifier cycling Redundancy and power capacity supervision |
| General | |
|---|---|
| Dimensions (H×W×D) | 83.4×40.0×205.1mm (3.28×1.57×8.07in) |
| Weight | 0.5kg (1.10lb) |
| Safety | IEC/EN/UL 62368-1 CAN/CSA C22.2 No. 62368-1 |
| EMC | EN 55022, class B |
| Operating temperature | −40 to +70°C (−40 to +158°F) |
| Relative humidity | 95%, non-condensing (max.) |
| User Interface | |
|---|---|
| Local user interface | Colour touch display |
| WEB server | Web UI with configurable access rights, login control and user profiles |
| Configurability | Meter Panel to show measurements and events User-configurable application specific page for settings and status information |
| UIM Touch (optional) | Additional user interface module with colour touch display |
| Languages | English as default, other languages as loadable files |
| Ordering Information | |
|---|---|
| Model | ORION ID:E1 |
| Part number | TPS1020028A |
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
FAQs

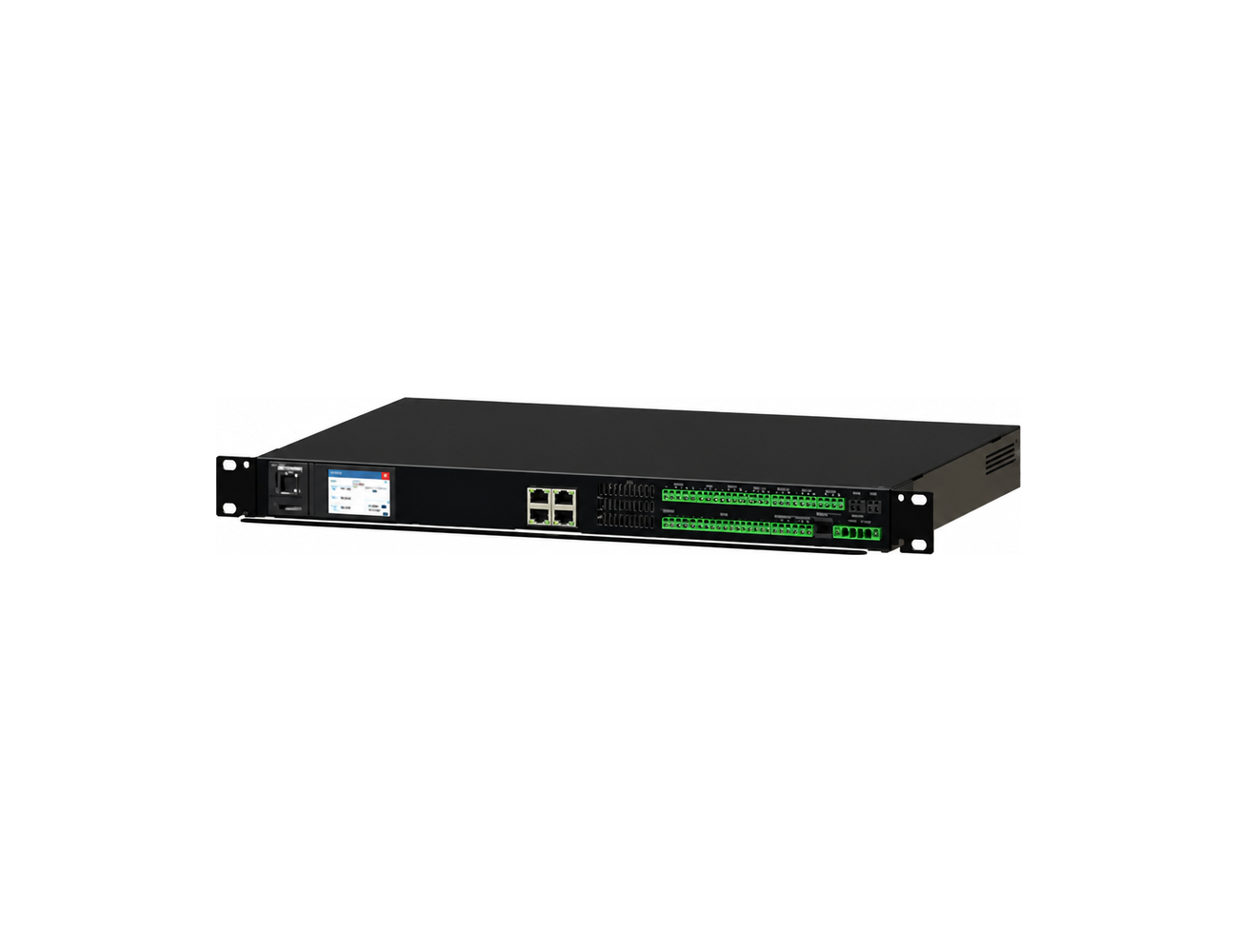

Related Products
