Cincon TRH50A-SERIES AC/DC Power Supply
The Cincon TRH50A Series AC/DC Power Supply is a compact and energy-efficient solution, delivering a reliable 50W output across a range of voltage configurations from 12V to 48V. Designed for desktop applications, this series is ideal for industrial, IT, and telecommunications environments requiring dependable and cost-effective power systems. K...
Read MoreThe Cincon TRH50A Series AC/DC Power Supply is a compact and energy-efficient solution, delivering a reliable 50W output across a range of voltage configurations from 12V to 48V. Designed for desktop applications, this series is ideal for industrial, IT, and telecommunications environments requiring dependable and cost-effective power systems.
Key features include a universal input voltage range (90–264VAC) and efficiency ratings of up to 89%, ensuring minimal energy loss and optimised performance. Advanced protection mechanisms such as continuous short circuit, over-voltage, and over-current protection enhance operational safety, while compliance with CoC Tier 2 and DOE Level VI standards ensures eco-friendly operation with low standby power consumption (<150mW).
The TRH50A Series supports reliable performance in diverse conditions, with an operating altitude of up to 5000m and a wide temperature range (-20°C to 70°C). Its lightweight (300g) and compact design (120 x 52 x 31 mm) allow for easy integration into space-constrained setups. Certified to IEC/EN/UL 62368-1 safety standards and EMC emission standards, this power supply guarantees compliance with global regulations.
Show Less
Features
- 50W Desktop Power Supply
- Australian / New Zealand Approved
- Regulatory Compliance Mark RCM: AS/NZS4417
- Safety: Certificate of Approval ESO160362
- Energy Efficiency: GEMS Determination 2014
- Meets CoC Tier 2 & DoE Level VI
- Meets EN55022 Class B and CISPR/FCC Class B
- Over Voltage Protection
- Continuous Short Circuit Protection
- No load Power Consumption <150mW
- Cable Length options
- Connector options
Specifications
| INPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage range | 90 to 264Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency | 47 to 63Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input current | 1.2A max | ||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush current | Cold start @25C 100Amax @240Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Leakage current | 3.5mA max. | ||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output voltage |
See Selection Table Factory preset, not adjustable |
||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage set-point | +/-2% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Ripple and noise | 1% p-p max | ||||||||||||||||||||||||||||||||||||||||||||||||
| Hold-up time | 8ms typ @ 115Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Load regulation | +/-2 to +/-3% (60% to 100% load | ||||||||||||||||||||||||||||||||||||||||||||||||
| Line regulation | +/-1% max 100Vac to 240Vac at full load. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Coefficient | +/- 0.05%/C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Switching Frequency | Typical. 65KHz | ||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency | Typical. 89% | ||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF | MIL-HDBK217F, GB at 25C/115Vac 200Khrs min | ||||||||||||||||||||||||||||||||||||||||||||||||
| PROTECTION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Short circuit protection | Continuous (Auto recovery) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Over voltage protection | TVS Component to Clamp | ||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation | Input to Output 4,242Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature | -20°C to +70°C | ||||||||||||||||||||||||||||||||||||||||||||||||

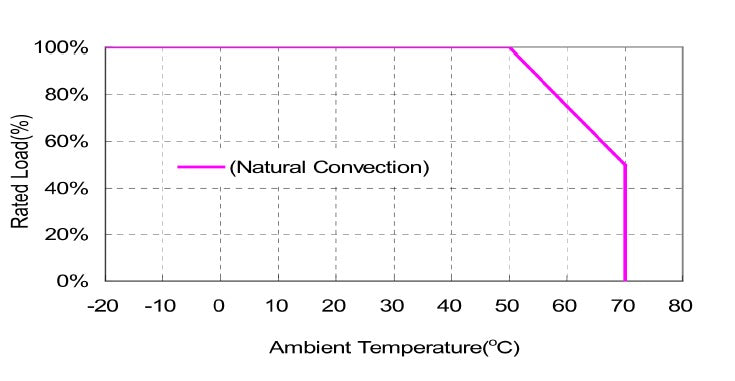

| Derating | See Derating Curve | ||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling | Natural Convection | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage temperature | -20°C to +85°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 93% RH max. Non condensing | ||||||||||||||||||||||||||||||||||||||||||||||||
| Altitude | 5,000m | ||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS AND APPROVALS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Australian Approvals |
RCM - Regulatory Compliance Mark, AS/NZS4417 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Safety |
Certificate of Conformity: ESV210053 Equipment class: Level 3 Equipment sub-type: Power Supply Relevant Standard: AS/NZS 62368.1: 2022 Protection against electric shock: Class I Type of operation: For use with audio, video, or information technology equipment only. EESS Registration: E2021035721
|
||||||||||||||||||||||||||||||||||||||||||||||||
| EMC |
EN55032:2015+A11:2020 Class B, FCC Part 15 Class B EN61000-6-3, EN61000-3-2, EN61000-3-3 EN55024, EN61204-3, EN61000-6-1
|
||||||||||||||||||||||||||||||||||||||||||||||||
| Energy Efficiency |
GEMS Determination 2014, External Power Supplies High Efficiency 2014 (Mark VI) DoE Level VI, CoC V5 Tier 2 |
||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 120 x 52 x 31mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 300g | ||||||||||||||||||||||||||||||||||||||||||||||||
| AC inlet | IEC320/C14 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output connector |
Right angle, hollow barrel connector 2.5mm inside diameter; 5.5mm outside diameter; 9.5mm length center positive polarity. Output connector options available |
||||||||||||||||||||||||||||||||||||||||||||||||
| DC cord length |
720mm with ferrite core Output cord options available |
||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| MODEL NUMBER |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
OUTPUT POWER |
|---|---|---|---|
| TRH50A120-21E11-VI | 12Vdc | 4.2A | 50W |
| TRH50A150-21E11-VI | 15Vdc | 3.36A | 50W |
| TRH50A180-21E11-VI | 18Vdc | 2.8A | 50W |
| TRH50A190-21E11-VI | 19Vdc | 2.65A | 50W |
| TRH50A240-21E11-VI | 24Vdc | 2.1A | 50W |
| TRH50A280-21E11-VI | 28Vdc | 1.8A | 50W |
| TRH50A360-21E11-VI | 36Vdc | 1.4A | 50W |
| TRH50A480-21E11-VI | 48Vdc | 1.05A | 50W |

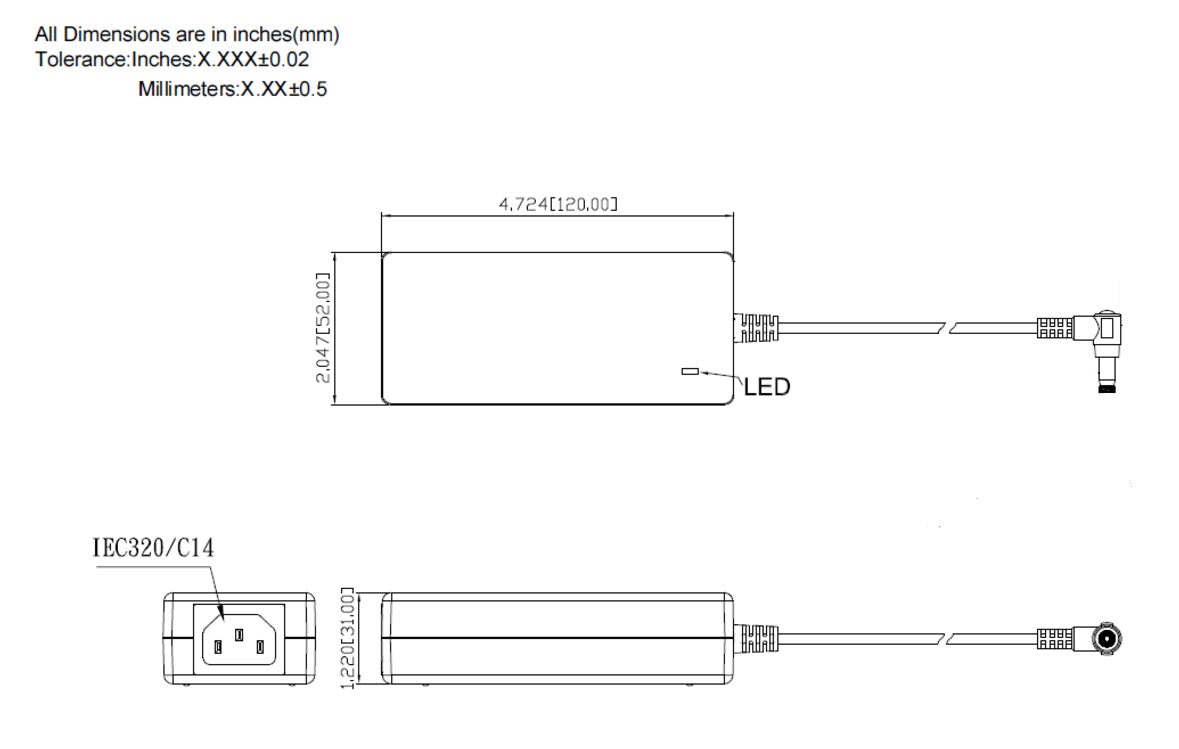

Technical Drawings
