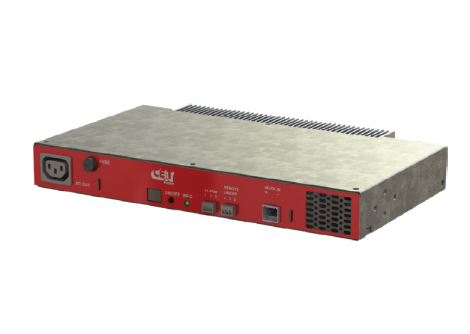

CET Power E-ONE 230 VAC SERIES DC/AC Inverter

The CET Power E-One 230 VAC Series DC/AC Inverter is a high-performance, compact power solution designed to ensure uninterrupted operation of critical AC equipment in telecommunications, mass transport, and public safety applications. Delivering up to 1 kVA (0.8 kW) of pure sine wave power with efficiency levels of up to 91%, this inverter is engineered for reliability and versatility in demanding environments. Its lightweight, space-saving design makes it ideal for rack, wall, or desk mounting in constrained spaces.

Read More

View Models
  • ce-t-power-cet-e-one-230-vac-series
  • CET Power E-ONE 230 VAC SERIES DC/AC Inverter

Features

  • DC In: 48 Vdc
  • AC Out: 230 Vac
  • Power: 1 kVA. 0.8 kW
  • Peak Efficiency 91%
  • Operating temperature -20 to 65°C.
  • High reliability
Specifications
GENERAL
Peak Efficiency DC/AC 91%
AC Output Power 1000 VA / 800 W
Short time overload capacity 150 % (15 seconds) within T° range
Admissible load power factor 0 lagging to 0 leading
Input Nominal voltage (DC) 48 V
Voltage range (DC) 40 - 60 V
Nominal current at 800 W / 48 VDC 19 A (at 800 W / 48 VDC)
Maximum input current 28 A / 2 mV psopho @ 48 V - 80% LOAD (for 15 seconds) / voltage ripple
Nominal voltage (AC) 230 V
Frequency / frequency accuracy Separate part number for 50 Hz / ± 0.1% and 60 Hz / ± 0.1%
Total harmonic distortion < 3 % (resistive load)
Turn on delay 20 s
Nominal current. 4.35 A at 230 VAC Protected against reverse current
Crest factor at nominal power 2.5 : 1 With short circuit management and protection
RELIABILITY
RoHS Compliant
Material (casing) Coated steel,
MTBF 200 000 hrs
Dielectric strength DC/AC 4300 Vdc
RoHS Compliant
Signaling & Supervision
Display Front LED
Alarms output / supervision Dry contact on the front
Remote ON / OFF On the front
ENVIRONMENTAL
Ambient temperature -20 to 65° C Derating from 50° C to 65° C
Storage temperature -40 to 70° C
Cooling Forced cooling with FAN speed control
Vibration GR63 office vibration 0 to 100 hz-0.1 g / transport vibration 5-100 Hz 0.5 g 100 to 500 hz-1.5 g / Drop test
Altitude < 1500 m / derating > 1500 m – 0.8 % per 100 m
Relative humidity Non-condensing,
COMPLIANCES
Standards IEC60950 ETS 300 386 – 2 : 2mV EN 55022 Class A Radiated and Conducted ETS 300 132 – 2 : Product Standard IEC 61000-3-2 harmonic current class A EN61000-4-2 ESD criteria A - 15 kV Air and 8 kV contact EN61000-4-3 RF Field – Enclosure Port criteria A : 10 V/m EN61000-4-4 Burst - All ports criteria A : 2kV EN61000-4-5 Surge criteria B all ports EN61000-4-6 class A criteria A 10V
Technical Illustrations

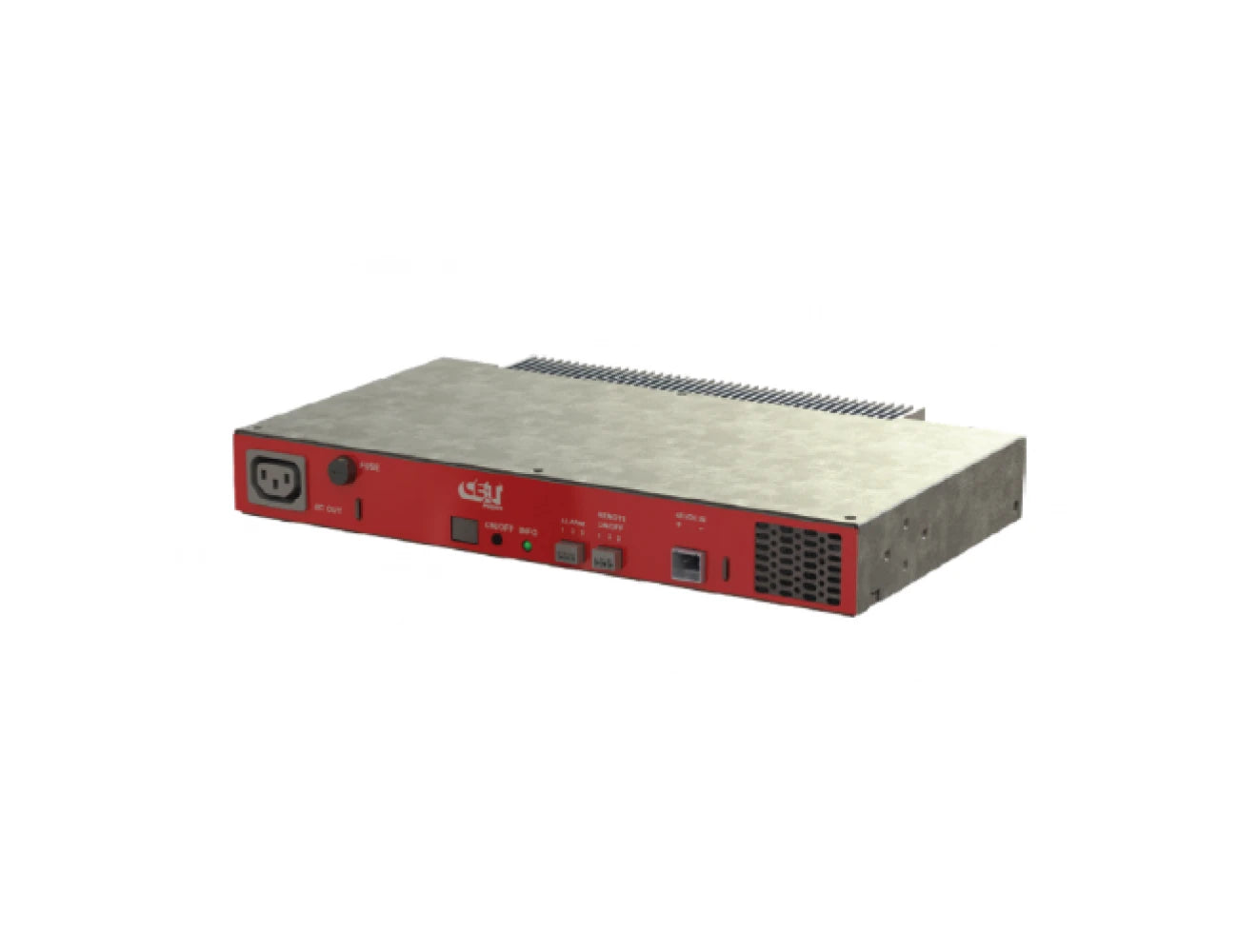

CET Power CET - E-ONE 230 VAC SERIES DC/AC Inverter
