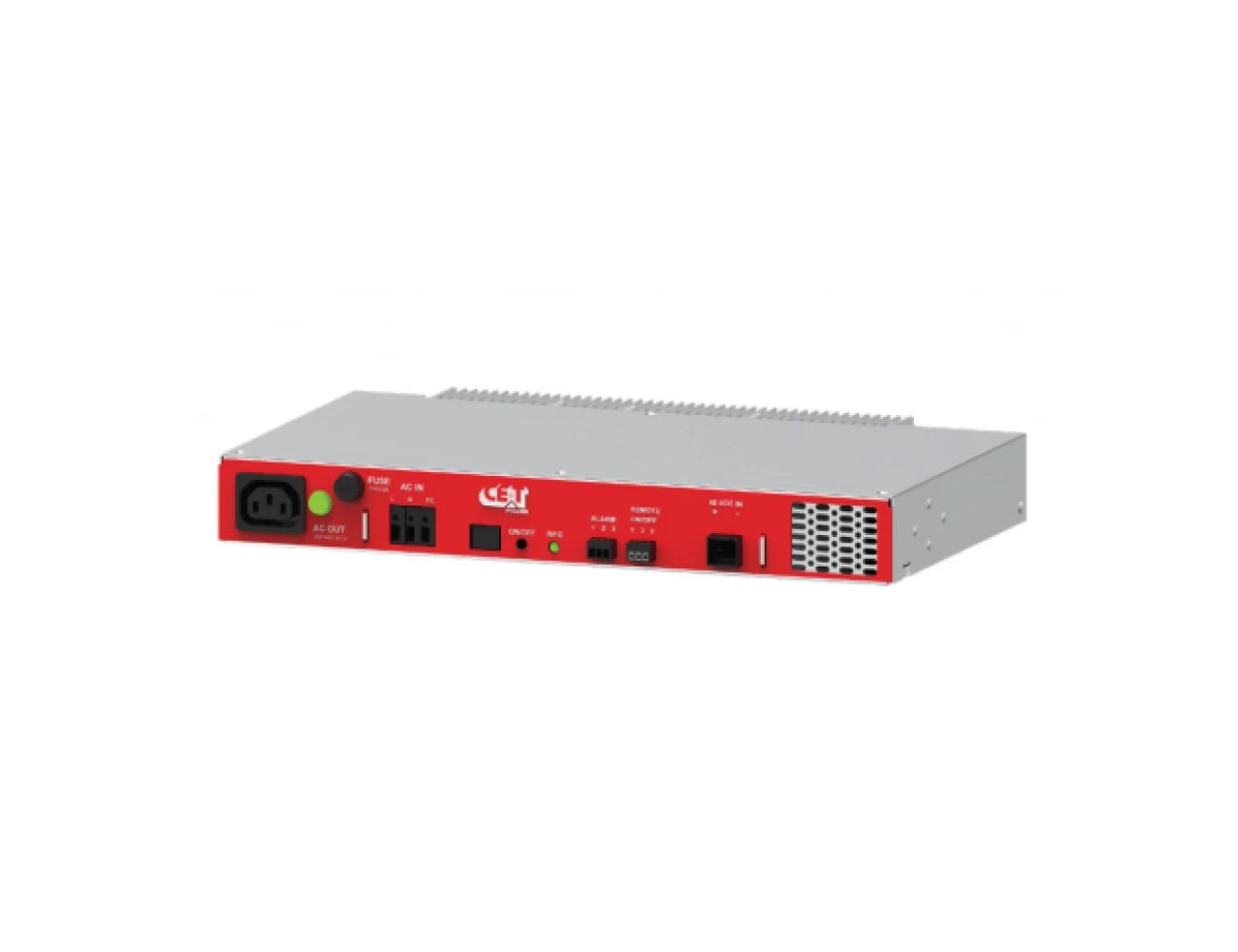

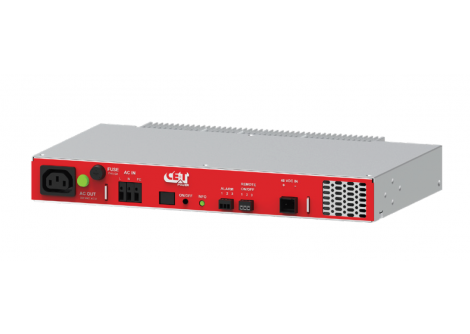

CET Power - E-ONE 1000VA SERIES By Pass DC/AC Inverter
The CET Power E-One 1000VA Series DC/AC Inverter is a high-efficiency power conversion solution, engineered to meet the demands of critical AC applications in telecommunications, transport, and public safety. Delivering 1 kVA (0.8 kW) of pure sine wave power from a 48 Vdc input, this inverter ensures reliable and stable performance in environments where uninterrupted power is essential. Its compact, lightweight design makes it suitable for rack, wall, or desk mounting, even in space-constrained setups.
Read More
Features
- DC In: 48 Vdc
- AC In: 230 Vac
- AC Out: 230 Vac
- Power:1 kVA 0.8 kW
- Peak Efficiency 91%
- Operating temperature -20 to 65°C.
Specifications

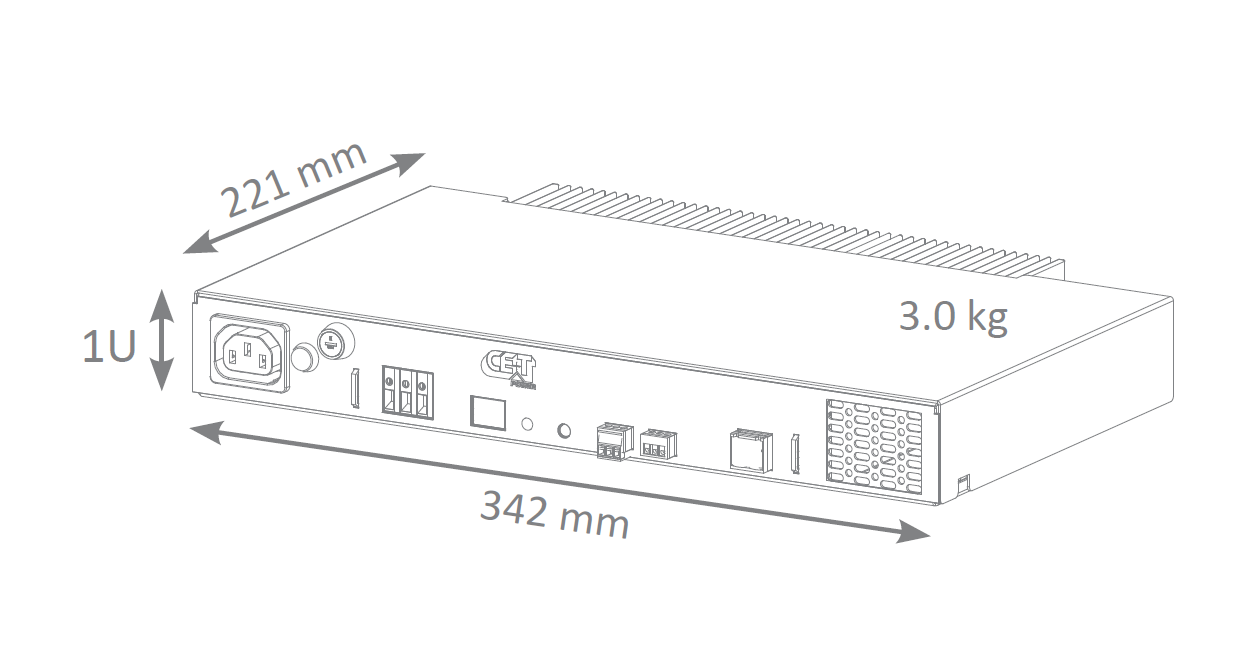

Technical Illustrations
Downloads
| GENERAL | |
|---|---|
| Peak Efficiency DC/AC | 91% |
| Material (casing) | Coated steel |
| AC Output Power | 1000 VA / 800 W |
| Short time overload capacity | 150 % (15 seconds) within T° range |
| Admissible load power factor | 0 lagging to 0 leading |
| Nominal voltage (DC) | 48 V |
| Voltage range (DC) | 40 - 60 V |
| Nominal current | 19 A at 800 W / 48 VDC |
| Maximum input current | 28 A / 2 mV psopho @ 48 V - 80% LOAD (for 15 seconds) / voltage ripple |
| Nominal voltage (AC) | 230 V |
| Nominal frequency | 50 Hz and 60 Hz (Separate part number ) |
| Voltage range | 207 - 253 Vac |
| Frequency range | 50 Hz (range 47 – 53 Hz) / 60 Hz (range 57 – 63 Hz) |
| Nominal voltage (AC) | 230 V |
| Frequency / frequency accuracy | Separate part number for 50 Hz / ±0.1% and 60 Hz / ±0.1% |
| Total harmonic distortion | < 3 % (resistive load) |
| Turn on delay | 20 s |
| Nominal current. | 4.35 A at 230 VAC Protected against reverse current |
| Crest factor at nominal power | 2.5 : 1 |
| With S/C management and protection | > 9A (2xIn) for 15 s and then no output power from module |
| Transfer time | < 10 ms from DC mode to By-pass mode and vice-versa |
| RELIABILITY | |
|---|---|
| Dielectric strength DC/AC | 4300 Vdc |
| RoHS | Compliant |
| MTBF | 200 000 hrs |
| SIGNALING AND SUPERVISION | |
|---|---|
| Display | Front LED |
| Alarms output / supervision | Dry contact on the front |
| Remote ON / OFF | On the front |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Forced cooling with FAN speed control |
| Ambient temperature | -20 to 65° C (Derating from 50° C to 65° C) |
| Storage temperature | -40 to 70° C |
| Relative humidity | 95 %, non-condensing |
| Altitude | < 1500 m / derating > 1500 m – 0.8% per 100 m |
| Vibration | GR63 office vibration 0 to 100 hz-0.1 g transport vibration 5-100 Hz 0.5 g 100 to 500 hz-1.5 g Drop test |
| COMPLIANCES | |
|---|---|
| Standards | IEC60950 ETS 300 386 – 2 : 2mV EN 55022 Class A Radiated and Conducted ETS 300 132 – 2 : Product Standard IEC 61000-3-2 harmonic current class A EN61000-4-2 ESD criteria A - 15 kV Air and 8 kV contact EN61000-4-3 RF Field – Enclosure Port criteria A : 10 V/m EN61000-4-4 Burst - All ports criteria A : 2kV EN61000-4-5 Surge criteria B all ports EN61000-4-6 class A criteria A 10V |
| GENERAL | |
|---|---|
| Peak Efficiency DC/AC | 91% |
| Material (casing) | Coated steel |
| AC Output Power | 1000 VA / 800 W |
| Short time overload capacity | 150 % (15 seconds) within T° range |
| Admissible load power factor | 0 lagging to 0 leading |
| Nominal voltage (DC) | 48 V |
| Voltage range (DC) | 40 - 60 V |
| Nominal current | 19 A at 800 W / 48 VDC |
| Maximum input current | 28 A / 2 mV psopho @ 48 V - 80% LOAD (for 15 seconds) / voltage ripple |
| Nominal voltage (AC) | 230 V |
| Nominal frequency | 50 Hz and 60 Hz (Separate part number ) |
| Voltage range | 207 - 253 Vac |
| Frequency range | 50 Hz (range 47 – 53 Hz) / 60 Hz (range 57 – 63 Hz) |
| Nominal voltage (AC) | 230 V |
| Frequency / frequency accuracy | Separate part number for 50 Hz / ±0.1% and 60 Hz / ±0.1% |
| Total harmonic distortion | < 3 % (resistive load) |
| Turn on delay | 20 s |
| Nominal current. | 4.35 A at 230 VAC Protected against reverse current |
| Crest factor at nominal power | 2.5 : 1 |
| With S/C management and protection | > 9A (2xIn) for 15 s and then no output power from module |
| Transfer time | < 10 ms from DC mode to By-pass mode and vice-versa |
| RELIABILITY | |
|---|---|
| Dielectric strength DC/AC | 4300 Vdc |
| RoHS | Compliant |
| MTBF | 200 000 hrs |
| SIGNALING AND SUPERVISION | |
|---|---|
| Display | Front LED |
| Alarms output / supervision | Dry contact on the front |
| Remote ON / OFF | On the front |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Forced cooling with FAN speed control |
| Ambient temperature | -20 to 65° C (Derating from 50° C to 65° C) |
| Storage temperature | -40 to 70° C |
| Relative humidity | 95 %, non-condensing |
| Altitude | < 1500 m / derating > 1500 m – 0.8% per 100 m |
| Vibration | GR63 office vibration 0 to 100 hz-0.1 g transport vibration 5-100 Hz 0.5 g 100 to 500 hz-1.5 g Drop test |
| COMPLIANCES | |
|---|---|
| Standards | IEC60950 ETS 300 386 – 2 : 2mV EN 55022 Class A Radiated and Conducted ETS 300 132 – 2 : Product Standard IEC 61000-3-2 harmonic current class A EN61000-4-2 ESD criteria A - 15 kV Air and 8 kV contact EN61000-4-3 RF Field – Enclosure Port criteria A : 10 V/m EN61000-4-4 Burst - All ports criteria A : 2kV EN61000-4-5 Surge criteria B all ports EN61000-4-6 class A criteria A 10V |
Find the Right Model
| Model Number | Input Voltage (Vdc) | Output Voltage (Vac) | Output Power (Va / kVA) | ||
|---|---|---|---|---|---|
|
e-one 10 48 / 230 by-pass | 48Vdc: 40 - 60Vdc | 230Vac 50Hz | 1,000 VA | |
|
|
e-one 10 48 / 230VAC-REG | 48Vdc: 40 - 60Vdc | 230Vac 50Hz | 1,000 VA |
