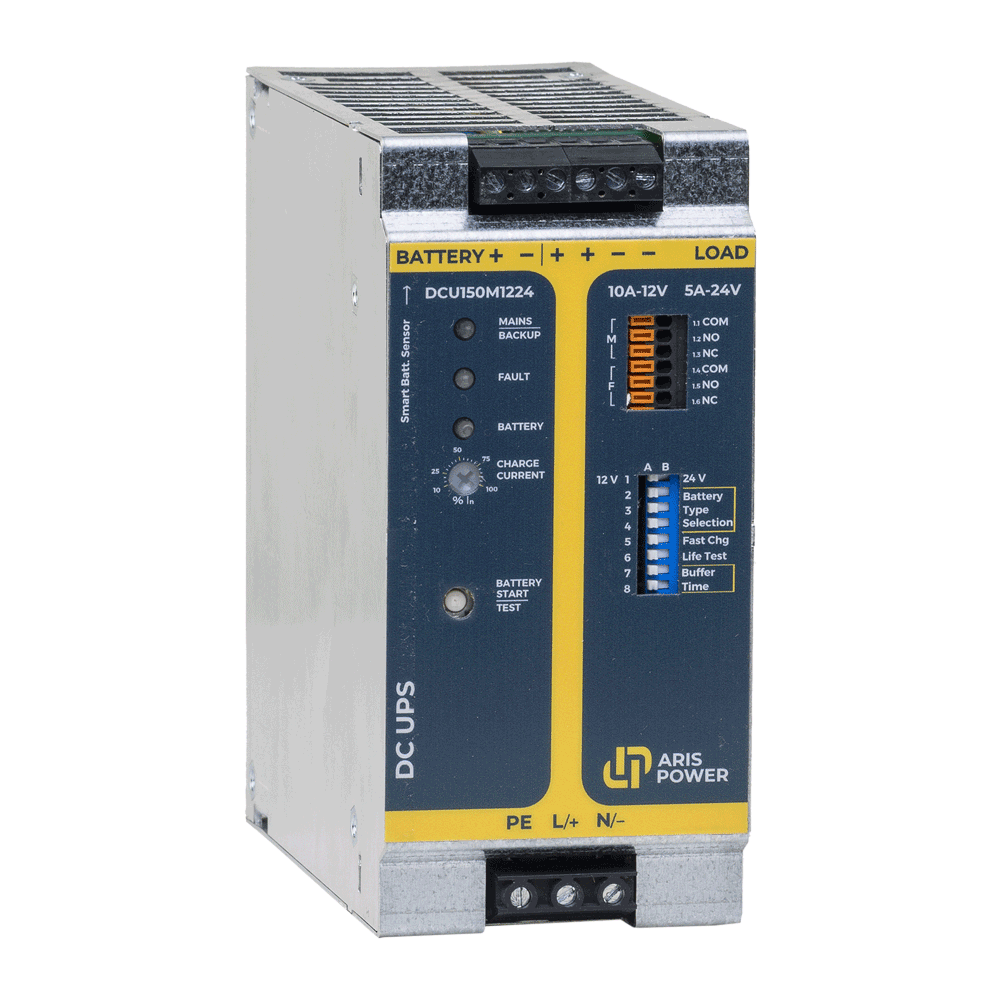

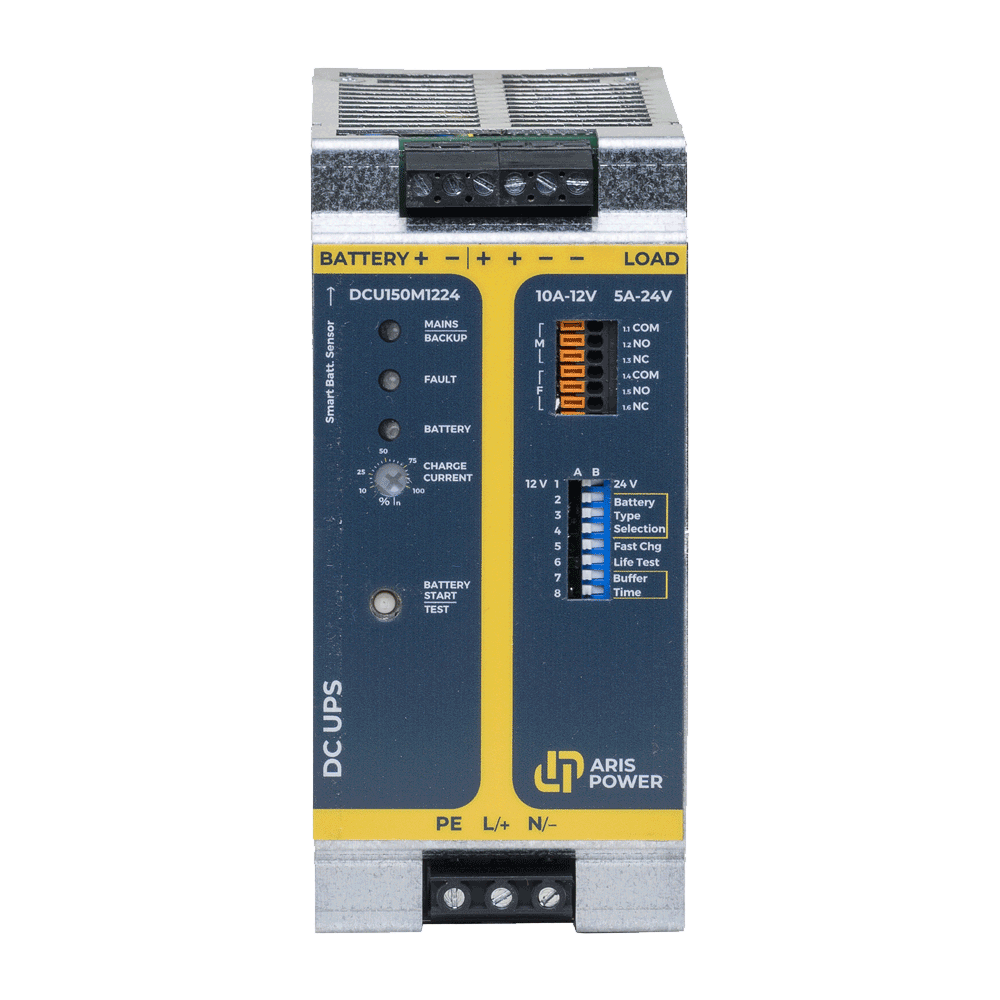

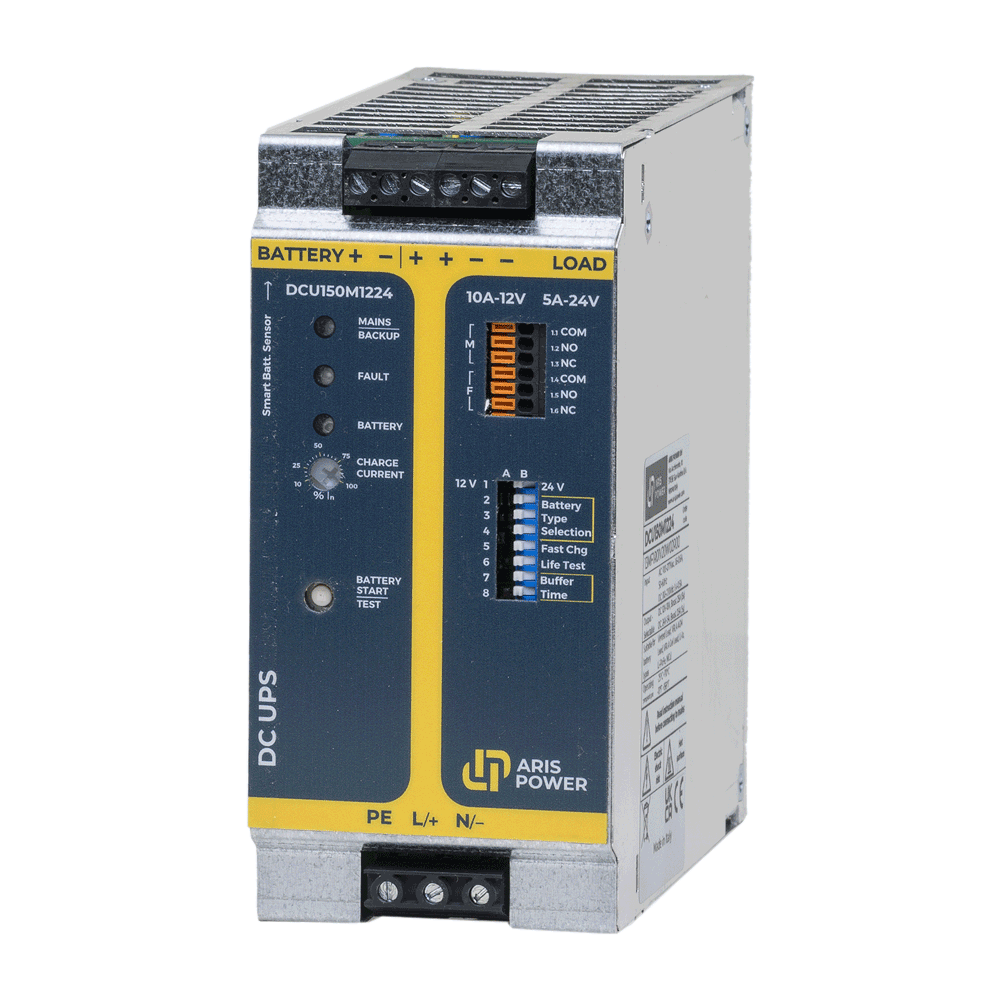

ARIS Power DCU150M1224 DC-UPS / Battery Charger
The ARIS Power DCU150M1224 is a compact, all-in-one DIN-rail mounted DC uninterruptible power supply systems delivering 150W of continuous output power. Designed for critical DC loads in industrial automation, water utilities, telecommunications, and electronic security applications, these DC-UPS units combine a high-efficiency AC/DC power supply, intelligent battery charger, and integrated backup functionality.
Read More
Features
- Integrated all-in-one solution: Combines high-efficiency AC/DC power supply, battery charger, backup controller, battery diagnostics, and status signalling in a single DIN-rail enclosure, simplifying installation and reducing panel space requirements
- Selectable DC output voltage: Supports either 12Vdc or 24Vdc operation, easily set via DIP switch; output is stabilised during power supply mode and tracks battery voltage during backup operation
- High peak current capability: Delivers up to 25A for short durations (5 seconds), allowing reliable backup of loads with high inrush or transient current requirements such as relays, solenoids, and PLCs
- Advanced battery charging and diagnostics: BATTSAFE firmware implements configurable IUoU charging profiles with recovery mode, battery life test, temperature compensation, and fault diagnostics for Lead Acid, NiCd, and Lithium chemistries
- Flexible system configuration: Adjustable buffer time, charge current limit, and fast charge enablement allow users to tailor system behaviour for application-specific load and battery parameters
- Communication and Remote Alarms: supports Modbus-RTU via dual RJ45 ports for PLC/HMI integration (DCU150M1224S Only), alongside three voltage-free relay outputs for mains loss, battery fault, and rectifier failure signalling
Specifications
Technical Illustrations
Downloads
| INPUT | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Rated Input Voltage | 115/230/277Vac (Range 85...305Vac) | |
| Frequency Range | 50/60 Hz (range 47- 440Hz) | |
| Input Current AC (Typ.) | 1.6 A (115Vac), 0.6 A (230Vac) | |
| Rated Input Voltage DC | 110/220 Vdc (range 110–420 Vdc) | |
| Input Current DC (Typ.) | 1.5 (110 Vdc), 0.8 A (220 Vdc) | |
| Inrush Current (Typ. Cold Start) | 15A max | |
| Setup, Rise Time Max | 1s | |
| Recommended External Fuse/MCB | 6A, Curve B | |
| Load Output - Power Supply Mode (Mains ON & Battery OFF) | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Voltage - Selectable by Dip Switch | 12Vdc | 24Vdc |
| Rated Current (IR) | 10A | 5A |
| Ripple / Noise | 80 mVpp | 100 mVpp |
| Short Circuit Protection | Yes | |
| Over Load Protection | Constant Current mode > 110% IR | |
| Over Voltage Protection | 35Vdc | |
| Load Output - Standby Mode (Mains ON & Battery ON) | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Voltage Range - Automatic Set | 12...14.4Vdc | 24...28.8Vdc |
| Max Continuous Current (IR+IBATT) | 15A | 10A |
| Max Current for 30s | 17A | 15A |
| Max Current for 15s | 20A | 20A |
| Max Current for 5s | < 25A | < 25A |
| Load Output - Backup Mode (Mains OFF & Battery ON) | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Voltage Range - Automatic Set | 9.5...12Vdc | 18.5...24Vdc |
| Max Continuous Current (IR+IBATT) | 15A | 10A |
| Max Current for 30s | 17A | 15A |
| Max Current for 15s | 20A | 20A |
| Max Current for 5s | < 25A | < 25A |
| Time Buffering for Backup | 30 s up to ∞ | |
| Start from Battery with no mains (LVD overide) | Yes (via push button) | |
| Quiescent Current | < 90mA | |
| Alarms & Controls | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Mains / Backup Fail Alarm | Via change-over Relay Contact, M terminals | |
| Fault Alarm (DC OK) | Via change-over Relay Contact, F terminals | |
| Rectifier Alarm | Via change-over Relay Contact, S terminals | |
| Full set of monitor and alarm visual signals | Flashing codes on 3, Three-colour LEDs | |
| MODbus Data Link | Dual RJ45 connector (DCU150M1224S Only) | |
| Battery Management | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Rated Voltage | 12Vdc | 24Vdc |
| Charging Curve | 3 Stages (IUoU) + Recovery | |
| Charging Current setting (min/max) | 1.0 A / 10.0 A | 0.5 A / 5.0 A |
| Battery Type (dip switch selectable) | Vented & Sealed Lead Acid, AGM, Li-Io, Li-PoFe, NiCd/NiCd/Ni-Mh | |
| Voltage max | 14.75Vdc | 29.50Vdc |
| Boost Voltage | 14.4Vdc | 28.8Vdc |
| Float Voltage (dip switch selectable) | According to Battery Type | |
| Recovery Charge | 2-10Vdc | 2-20Vdc |
| Low Voltage Disconnect (LVD) Threshold | 9.3Vdc | 18.5Vdc |
| Low Voltage Alarm Threshold | 11Vdc | 22Vdc |
| Time Boost–Bulk Charge (Typ. IN) | min 5s, max 15h | |
| Temperature Compensation | Optional - via SBS Smart Temperature Compensation probe | |
| Boost Voltage Enable/Disable | Local dip switch or Remote Link | |
| Protections | Reverse Polarity | |
| Battery Diagnostics | Disconnected Battery, Wrong Battery Voltage, Sulphated Battery, Cell-In Short Circuit | |
| Life Test | Automatic Every 2 h in Standby, Manual on Push Button | |
| Environmental | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Operating Ambient Temperature (TA) | -25 up to +70°C | |
| Ambient Temperature D-Rating | 2.5 % / °C , TA > 50°C | |
| Relative Humidity, no condensation @ 25°C | max 95% | |
| Storage Temperature | -40 up to +85°C | |
| Cooling | Natural Convection | |
| Elevation D-Rating | 0.5°C/100 m, above 2000 m | |
| INPUT | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Rated Input Voltage | 115/230/277Vac (Range 85...305Vac) | |
| Frequency Range | 50/60 Hz (range 47- 440Hz) | |
| Input Current AC (Typ.) | 1.6 A (115Vac), 0.6 A (230Vac) | |
| Rated Input Voltage DC | 110/220 Vdc (range 110–420 Vdc) | |
| Input Current DC (Typ.) | 1.5 (110 Vdc), 0.8 A (220 Vdc) | |
| Inrush Current (Typ. Cold Start) | 15A max | |
| Setup, Rise Time Max | 1s | |
| Recommended External Fuse/MCB | 6A, Curve B | |
| Load Output - Power Supply Mode (Mains ON & Battery OFF) | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Voltage - Selectable by Dip Switch | 12Vdc | 24Vdc |
| Rated Current (IR) | 10A | 5A |
| Ripple / Noise | 80 mVpp | 100 mVpp |
| Short Circuit Protection | Yes | |
| Over Load Protection | Constant Current mode > 110% IR | |
| Over Voltage Protection | 35Vdc | |
| Load Output - Standby Mode (Mains ON & Battery ON) | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Voltage Range - Automatic Set | 12...14.4Vdc | 24...28.8Vdc |
| Max Continuous Current (IR+IBATT) | 15A | 10A |
| Max Current for 30s | 17A | 15A |
| Max Current for 15s | 20A | 20A |
| Max Current for 5s | < 25A | < 25A |
| Load Output - Backup Mode (Mains OFF & Battery ON) | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Voltage Range - Automatic Set | 9.5...12Vdc | 18.5...24Vdc |
| Max Continuous Current (IR+IBATT) | 15A | 10A |
| Max Current for 30s | 17A | 15A |
| Max Current for 15s | 20A | 20A |
| Max Current for 5s | < 25A | < 25A |
| Time Buffering for Backup | 30 s up to ∞ | |
| Start from Battery with no mains (LVD overide) | Yes (via push button) | |
| Quiescent Current | < 90mA | |
| Alarms & Controls | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Mains / Backup Fail Alarm | Via change-over Relay Contact, M terminals | |
| Fault Alarm (DC OK) | Via change-over Relay Contact, F terminals | |
| Rectifier Alarm | Via change-over Relay Contact, S terminals | |
| Full set of monitor and alarm visual signals | Flashing codes on 3, Three-colour LEDs | |
| MODbus Data Link | Dual RJ45 connector (DCU150M1224S Only) | |
| Battery Management | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Rated Voltage | 12Vdc | 24Vdc |
| Charging Curve | 3 Stages (IUoU) + Recovery | |
| Charging Current setting (min/max) | 1.0 A / 10.0 A | 0.5 A / 5.0 A |
| Battery Type (dip switch selectable) | Vented & Sealed Lead Acid, AGM, Li-Io, Li-PoFe, NiCd/NiCd/Ni-Mh | |
| Voltage max | 14.75Vdc | 29.50Vdc |
| Boost Voltage | 14.4Vdc | 28.8Vdc |
| Float Voltage (dip switch selectable) | According to Battery Type | |
| Recovery Charge | 2-10Vdc | 2-20Vdc |
| Low Voltage Disconnect (LVD) Threshold | 9.3Vdc | 18.5Vdc |
| Low Voltage Alarm Threshold | 11Vdc | 22Vdc |
| Time Boost–Bulk Charge (Typ. IN) | min 5s, max 15h | |
| Temperature Compensation | Optional - via SBS Smart Temperature Compensation probe | |
| Boost Voltage Enable/Disable | Local dip switch or Remote Link | |
| Protections | Reverse Polarity | |
| Battery Diagnostics | Disconnected Battery, Wrong Battery Voltage, Sulphated Battery, Cell-In Short Circuit | |
| Life Test | Automatic Every 2 h in Standby, Manual on Push Button | |
| Environmental | ||
|---|---|---|
| Model(s) | DCU150M1224 / DCU150M1224S | |
| Operating Ambient Temperature (TA) | -25 up to +70°C | |
| Ambient Temperature D-Rating | 2.5 % / °C , TA > 50°C | |
| Relative Humidity, no condensation @ 25°C | max 95% | |
| Storage Temperature | -40 up to +85°C | |
| Cooling | Natural Convection | |
| Elevation D-Rating | 0.5°C/100 m, above 2000 m | |
