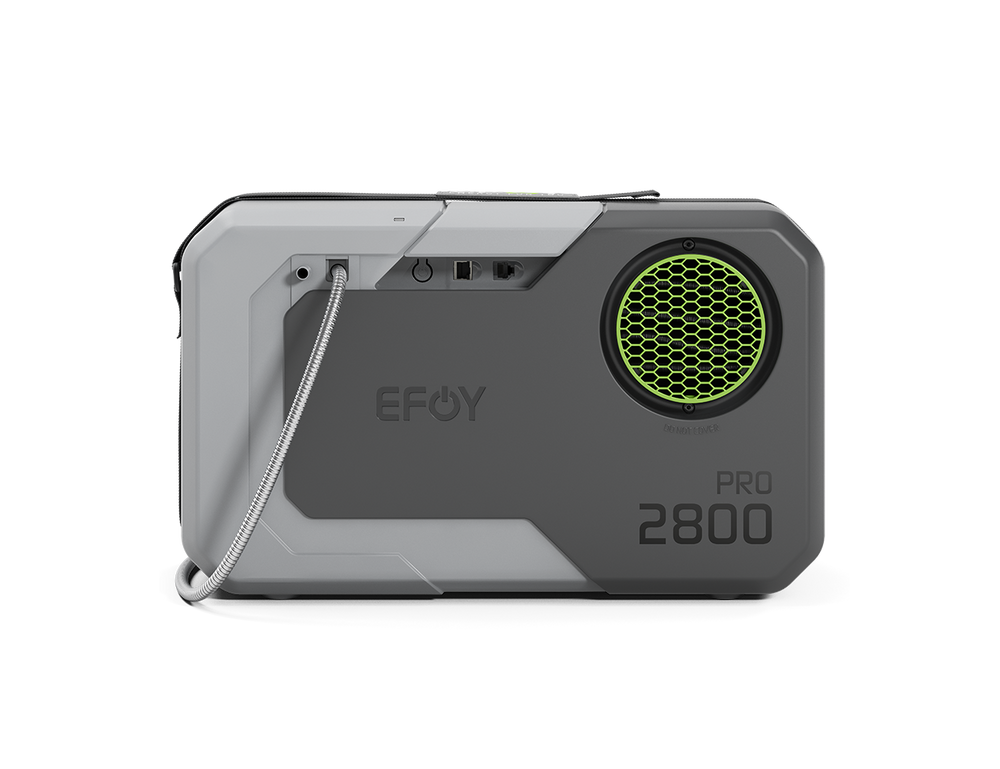

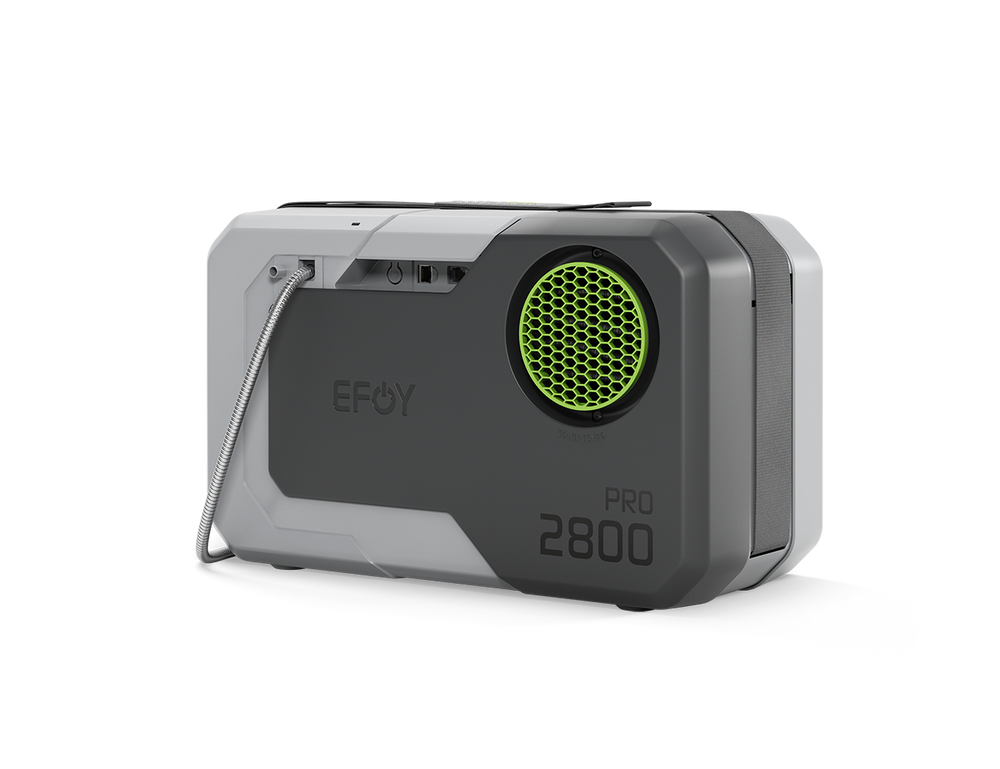

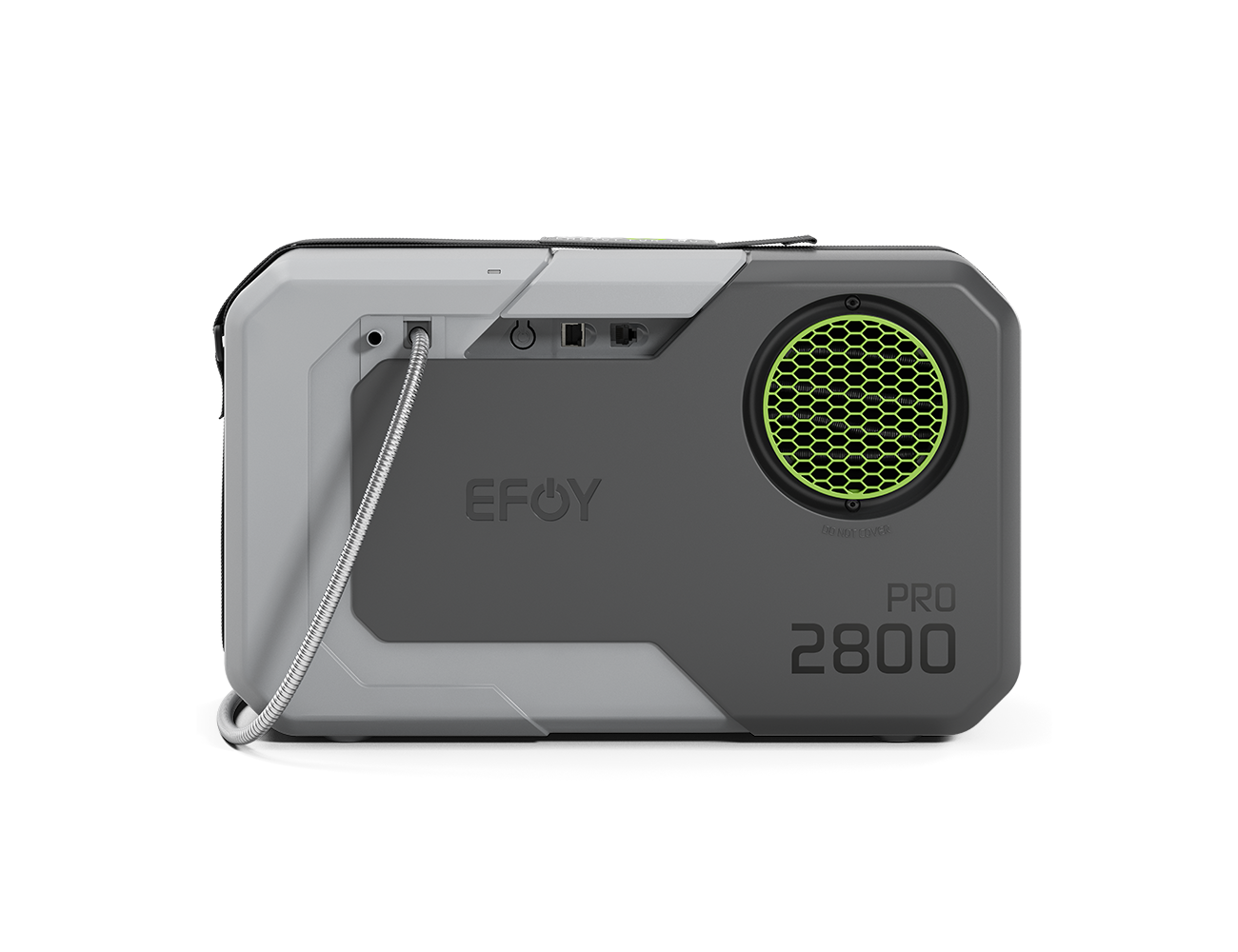

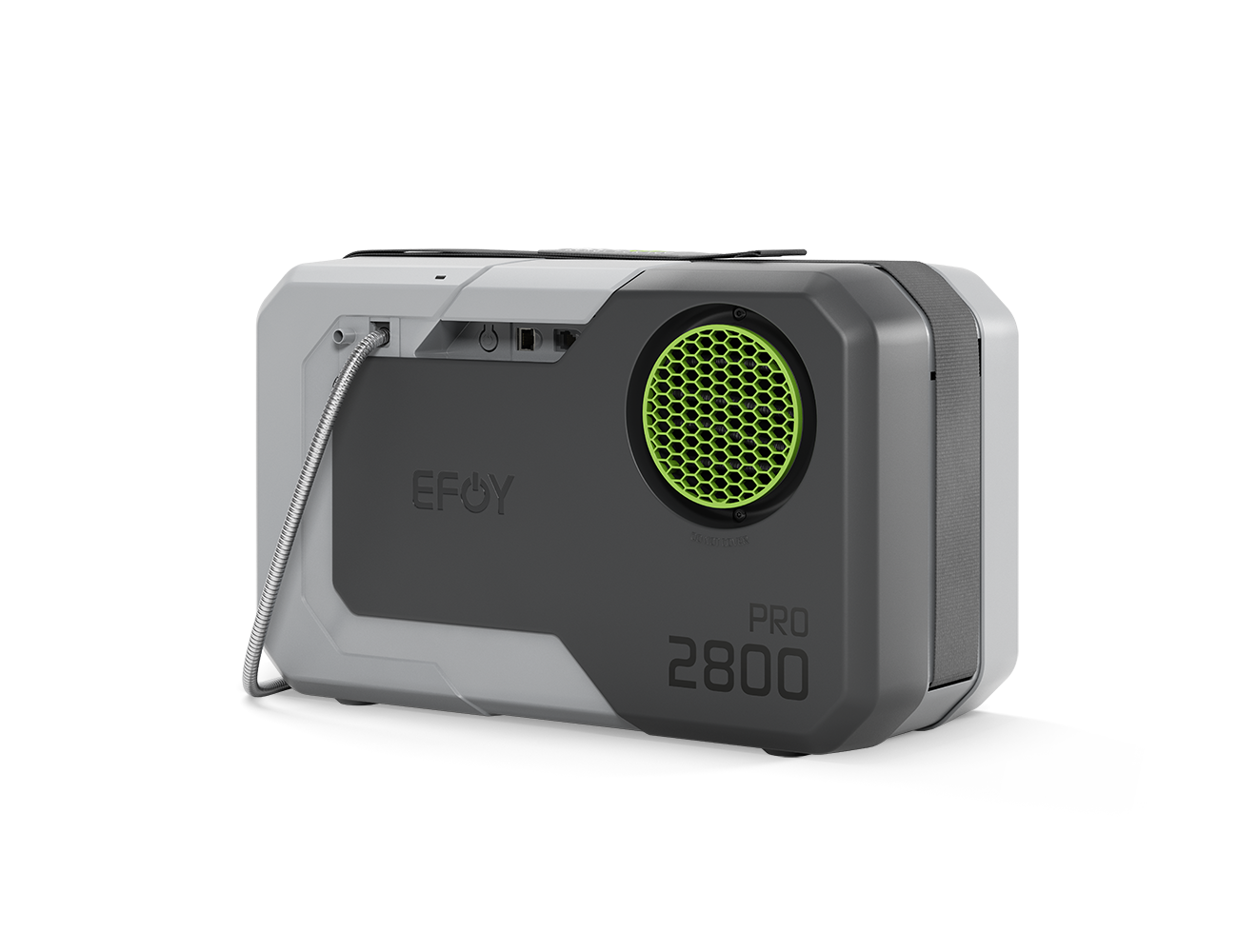

SFC Energy EFOY Pro 2800 Fuel Cell

Name: EFOY PRO 2800 SFC Energy EFOY Pro 2800 Fuel Cell
SKU: EFOY PRO 2800

Reliable off-grid power, whenever and wherever you need it. As a trusted distributor of SFC Energy solutions across Australia and New Zealand, Powerbox is proud to offer the EFOY Pro 2800 — a proven direct methanol fuel cell delivering reliable, clean, and maintenance-free off-grid power for mission-critical applications. Designed for continuous...

Designed for continuous operation and hybrid integration with solar, EFOY Pro fuel cells automatically monitor and maintain battery charge levels, ensuring your systems stay powered year-round without user intervention. Ideal for remote communications, mobile security towers, environmental monitoring, mining, defence, and emergency services, the EFOY Pro series is a flexible, eco-friendly alternative to diesel generators.

Why Choose EFOY Pro?

Extended Autonomy:
Operate for weeks or months without human intervention using fuel cartridges and EFOY Fuel Manager options.
Eco-Friendly:
Generates electricity with minimal CO₂ emissions — a sustainable alternative to traditional generators.
Weather-Independent:
Reliable in temperatures ranging from -20°C to +50°C, rain, snow, or shine.
Proven in the Field:
Trusted worldwide across critical applications like mobile CCTV towers, telemetry stations, disaster response vehicles, and more.

Typical Applications:

Remote security and surveillance (CCTV towers, rapid deployment trailers)
Telecommunications and radio sites
Mining and construction site operations
Environmental monitoring stations
Emergency services vehicles and equipment
Defence and tactical off-grid deployments

Show Less

Select model number

or send a quick enquiry about this product only

This product has compatible accessories — view accessories ↓

Features

Max. output power: 125W
Dimensions (L x W x H): 448 x 198 x 275 mm
100% reliable
Autonomous low maintenance
Environmentally friendly and quiet
Lightweight and compact
Remote surveillance
Reduced operating costs

Specifications

Specifications	EFOY PRO 2800
Nominal voltage	Lead: 12 V / 24 V (Lead-Gel, Lead-Acid, AGM) LiFePO4: 12.8 V / 25.6 V
Acceptable battery types	Lead: 2 V cells: 6S (12 V) und 12S (24 V) LiFePO4: 3.2 V cells: 4S (12.8 V) und 8S (25.6 V)
Consumption⁴	0.9 L / kWh
Connectable cartridges	1 (up to 8 with EFOY Fuel Manager)
Length fuel cartridge connector	75 cm / 29.5 in
Weight	7.8 kg
Dimensions (L × W × H)	448 x 198 x 275mm
User interface	Push button and LED optional 4,3” TFT Display optional Bluetooth adapter – EFOY App optional Ethernet connection to EFOY Cloud
Data interface	RJ-12 socket (CAN & RS232) for the use of accessories RJ-45 socket (Ethernet)
Communication protocol	MODBUS TCP; clear text protocol (SIO commands) Secured MQTT protocol to EFOY Cloud
Electrical interface	4-pin Plug for EFOY charging cable Power: Positive (+) and negative (-) terminals: 4 mm² (AWG 12) Sense: Positive (+) and negative (-) terminals: 0.75 mm² (AWG 20)
Electrical interface for EFOY accessory	Positive (+) and negative (-) terminals: min 0.75 mm² (AWG 20) / max 2.5 mm² (AWG 14) Available voltage: battery voltage / Max. current: 2 A (external fuse needed
Noise level⁵ at 1 m	< 50 dB (A)
Minimal installation space (L x D x H)	EFOY Fuel Cell only: 510 x 320 x 290 mm
Inclination along the roll axis	permanent: max. 35°
Inclination along the lateral axis	permanent: max. 35°
Operating temperature	-20 °C to +50 °C / -4 °F to +122 °F
Start-up temperature	+3 °C to +50 °C / +37 °F to +104 °F
Storage temperature	+1 °C to +50 °C / +34 °F to +122 °F
International Protection (IP-Class)	IP 21
Altitude	From approx. 2000 m above sea level there is a reduction in performance possible
Warranty	24 months within 6,000 operating hours
1 All performance data apply to the connection of the charging cable to the EFOY. 2 The output power varies by ± 10% and decreases with the operating hours, depending on the installation situation and the operating conditions. 3 Operation still possible after 3000 h, no guaranteed power output. 4 Effective consumption depends on operating conditions and hours. 5 Different noises may occur due to different components. 6 The output power may be reduced at temperatures above +42 °C / 108 °F (EFOY Pro). At temperatures below 0 ° C, charging lithium batteries (LiFePO4) may not always be possible. Follow the instructions from the battery manufacturer. 7 Warranty conditions: “Warranty_EFOY 80_150_EFOY_Pro 900_1800_2800” apply

Selection Table

FUEL CELLS	EFOY PRO 2800
	12 V	24 V
Max. output*	125 W	125 W
Output Power² within 3.000 hours	105 W	100 W
Output Power² within 6.000 hours	87 W	83 W
Max. Charging current @ 10.5 V	11.9 A	-
Max. Charging current @ 21.0 V	-	6 A
Recommended minimal battery capacity lead batteries	80 Ah	40 Ah
Maximum adjustable battery capacity lead batteries	800 Ah	400 Ah
Recommended minimal battery capacity LiFePO4 batteries	40 Ah	20 Ah
Maximum adjustable battery capacity LiFePO4 batteries	600 Ah	300 Ah
Quiescent consumption	0.5 W	0.6 W

FUEL CARTRIDGES	M10	M28*	MT60
Volume	10 litres	28 litres	60 litres
Weight	8.4 kg	23.4 kg	55 kg
Nominal Capactity	11.1 kWh	31.1 kWh	66.7 kWh
Autonomy @ 50W	222 h	622 h	1320 h
Orientation	Only in upright postion	In upright position and on the side, with valve upside	Only in upright position
Dimensions	230 x 193 x 318 mm	370 x 285 x 395 mm With M28 Adapter: 370 x 285 x 425 mm	340 x 390 x 670 mm

*M28 adapter required

Technical Drawings

Diagram showing how an EFOY Pro 2800 fuel cell generates power.

Infographic showing remote monitoring ecosystem for EFOY fuel cells with connected devices and benefits.

Downloads

Data-Sheet-EFOY-80_150_Pro-900_1800_2800_EN_2.pdf

Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

Accessories

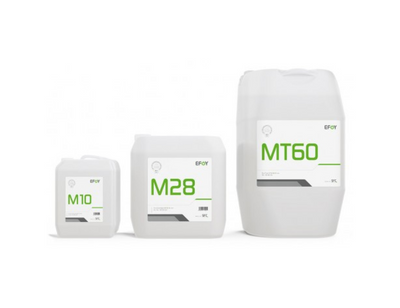

SFC Energy EFOY Fuel Cartridge Series

Fuel for Direct Methanol Fuel cell
Extremely high energy density
Safety-tested - meet strictest safety standards
Robust - designed for the requirements in tough application areas

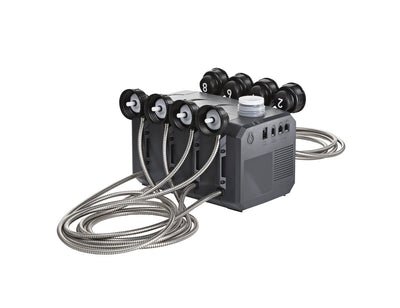

SFC Energy EFOY Fuel Manager

2,4 or 8 Fuel Cartridges
Automatically switches from the current to the next full fuel cartridge
Ensures a long self sufﬁcency without user intervention
Not compatible with EFOY Pro 12000 Duo

FAQs

How long can the EFOY Pro 2800 run on a single fuel cartridge?

On the MT60 (60L) cartridge, the EFOY Pro 2800 delivers up to 1,333 hours of autonomy at 50W — approximately 55 days of continuous operation. The M28 (28L) provides around 622 hours. With the optional EFOY Fuel Manager, up to 8 cartridges can be connected for fully unattended extended deployments.

What batteries is the EFOY Pro 2800 compatible with?

It supports 12V and 24V lead-acid batteries (Lead-Gel, Lead-Acid, AGM) and LiFePO4 lithium batteries (12.8V / 25.6V). Battery capacity can be configured up to 800Ah at 12V or 400Ah at 24V for lead-acid, and up to 600Ah/300Ah for LiFePO4.

Can the EFOY Pro 2800 operate in harsh Australian outdoor conditions?

Yes. It operates across a wide temperature range of -20°C to +50°C, covering everything from alpine to outback environments. It carries an IP21 ingress protection rating and functions reliably in rain and challenging field conditions. Note that start-up requires temperatures above +3°C.

How much maintenance does the EFOY Pro 2800 require?

Very little. It automatically monitors battery charge levels and activates only when top-up is needed. The only regular task is replacing fuel cartridges. With the EFOY Fuel Manager pre-loaded with multiple cartridges, sites can operate for months without intervention.

How loud is the EFOY Pro 2800 during operation?

It operates at less than 50 dB(A) measured at 1 metre — roughly equivalent to a quiet office environment. This makes it well suited for noise-sensitive deployments including residential security towers, environmental monitoring stations, and wildlife research sites.

Can the EFOY Pro 2800 be monitored and controlled remotely?

Yes. It includes Ethernet connectivity and supports MODBUS TCP and secured MQTT protocols for integration with SCADA and remote monitoring platforms. It also connects to the EFOY Cloud for real-time status, performance data, and alerts via an optional Bluetooth adapter or Ethernet connection.

What fuel does the EFOY Pro 2800 use and can it be transported by air?

It uses methanol fuel cartridges available in M10 (10L), M28 (28L), and MT60 (60L) sizes. All cartridges carry UN approval for transport by road, sea, and air, and meet strict international safety standards. Fuel consumption is approximately 0.9 litres per kWh.

What warranty is included with the EFOY Pro 2800?

The EFOY Pro 2800 is covered by a 24-month warranty within 6,000 operating hours. Contact Powerbox Australia at sales@powerbox.com.au for full warranty terms applicable to your specific application and deployment conditions.
