PSC Series Industrial Multi-Output Converter

AC/DC Power Supplies

Polyamp PSC SERIES AC/DC Power Supply

The Polyamp PSC Series AC/DC Power Supply is a versatile and reliable solution for industrial, railway, and telecommunications applications. Delivering power outputs ranging from 80W to 240W, it ensures efficient and stable performance in demanding environments.

View Models

Features

100W - 240W Industrial Grade Supply
High Operating Temp
Single Dual & Triple Outputs
Optional series diode on output
Optional Alarm Relay
Euro Mount

Specifications

INPUT
Input Voltage	See Selection Table.
Current at no load(max)	3W–5W
SoftStart	Yes with inrush current limit

OUTPUT
Output Voltage	See selection table.
Voltage adjustment	-10% to +10%.
Output Current	See selection table.
Current Limit	105%
Ripple & noise	10mV pk-pk typical
Regulation	Line: 0.2% L1 to H1; Load: 0.2% NL to FL
Temperature Coefficient	0.02% per °C
Transient Response	10% up to 100% typical <2mS
Efficiency	AC 80%–91% typical ACW 78%–87% typical ACR 80%–91% typical

PROTECTION
Overvoltage Protection	Option.
Reverse Voltage Protection	Option.
Protection	Fuse on board, reverse voltage protection
Isolation	Input – Output: 2.5kVac / 4kVdc. Input – Case: 2.5kVac / 4kVdc. Output – Case: 2kVdc. Alarm – Input: 2.5kVac / 4kVdc.

STANDARDS AND APPROVALS
Safety standards	IEC950, IEC 60950
EMI standards	EN61000-6-3, EN55011/EN55022 Level B
Immunity standards	EN 61000-6-2, EN/IEC 61000-4-2, EN/IEC 61000-4-3, EN/IEC 61000-4-4, EN 61000-4-5, EN/IEC61000-4-6
C-Tick	AS/NZS CISPR11: 2002 Group1 Class A

OPTIONS
A	Overvoltage protection (OVP) A built in SCR thyristor short circuits the output when an overvoltage occurs. The trigger voltage is 15% higher than the nominal output voltage.
B	Undervoltage alarm with relay.
C	Series diode on output. For parallel redundant applications built in series diodes can be provided. The output power may be derated depending upon the model.
E2	2.5k VAC between output/case.
L	Front panel for eurorack 10, 12, 14 TE
N	Wall mounting brackets
H15-S	H15 female screw connector
H15-T	H15 fast on 6.3mm connector.
S	Remote sense

ENVIRONMENTAL
Operating temperature	-25°C to +70°C (Single outputs > 10V). -25°C to +55°C (Single outputs < 10V). -25°C to +55°C (Dual and triple outputs)..
Storage temperature	-40°C to +85°C
Derating	No
Cooling	Convection

MECHANICAL
Case	Eurocassette
Dimensions	See drawing examples. Consult sales office for full details
Connectors	15 Pole DIN standard 41612 H15

Selection Table

SINGLE OUTPUTS
MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	OUTPUT CURRENT	CASE WIDTH	OUTPUT POWER
PSC240ACR15	85-135Vac	15V	16A	12TE	240W
PSC240ACR24	85-135Vac	24V	10A	12TE	240W
PSC240ACR48	85-135Vac	48V	5A	12TE	240W
PSC240ACR110	85-135Vac	110V	2.2A	12TE	240W
PSC100AC5	176-264Vac	5V	20A	10TE	100W
PSC150AC5	176-264Vac	5V	30A	12TE	150W
PSC100AC12	176-264Vac	12V	8.3A	10TE	100W
PSC150AC12	176-264Vac	12V	12.5A	12TE	150W
PSC100AC13.2	176-264Vac	13.6V	7.4A	10TE	100W
PSC150AC13.2	176-264Vac	13.6V	11A	12TE	150W
PSC100AC15	176-264Vac	15V	6.7A	10TE	100W
PSC150AC15	176-264Vac	15V	10A	12TE	150W
PSC240AC15	176-264Vac	15V	16A	12TE	240W
PSC100AC24	176-264Vac	24V	4.2A	10TE	100W
PSC150AC24	176-264Vac	24V	6.3A	12TE	150W
PSC240AC24	176-264Vac	24V	10A	12TE	240W
PSC100AC48	176-264Vac	48V	2.1A	10TE	100W
PSC150AC48	176-264Vac	48V	3.1A	12TE	150W
PSC240AC48	176-264Vac	48V	5A	12TE	240W
PSC240AC110	176-264Vac	110V	2.2A	12TE	240W
PSC100ACW5	85-264Vac	5V	20A	10TE	100W
PSC150ACW5	85-264Vac	5V	30A	12TE	150W
PSC100ACW12	85-264Vac	12V	8.3A	10TE	100W
PSC150ACW12	85-264Vac	12V	12.5A	12TE	150W
PSC100ACW13.2	85-264Vac	13.2V	7.4A	10TE	100W
PSC150ACW13.2	85-264Vac	13.2V	11A	12TE	150W
PSC100ACW15	85-264Vac	15V	6.7A	10TE	100W
PSC150ACW15	85-264Vac	15V	10A	12TE	150W
PSC100ACW24	85-264Vac	24V	4.2A	10TE	100W
PSC150ACW24	85-264Vac	24V	6.3A	12TE	150W
PSC100ACW48	85-264Vac	48V	2.1A	10TE	100W
PSC150ACW48	85-264Vac	48V	3.1A	12TE	150W

DUAL OUTPUTS
MODEL NUMBER	INPUT VOLTAGE	MASTER OUTPUT		AUX OUTPUT		CASE WIDTH	OUTPUT POWER
PSC100ACR5S12	85-135Vac	5V	17A	12V	1.2A	10TE	100W
PSC150ACR5S12	85-135Vac	5V	25A	12V	1.2A	12TE	150W
PSC100ACR5S15	85-135Vac	5V	17A	15V	1.2A	10TE	100W
PSC150ACR5S15	85-135Vac	5V	25A	15V	1.2A	12TE	150W
PSC100ACR12S5	85-135Vac	12V	7.3A	5V	2.5A2	10TE	100W
PSC150ACR12S5	85-135Vac	12V	11A	5V	2.5A2	12TE	150W
PSC100ACR12S12	85-135Vac	12V	7A	12V	1.2A	10TE	100W
PSC150ACR12S12	85-135Vac	12V	11A	12V	1.2A	12TE	150W
PSC100ACR15S12	85-135Vac	15V	5.5A	12V	1.2A	10TE	100W
PSC150ACR15S12	85-135Vac	15V	9A	12V	1.2A	12TE	150W
PSC100ACR24S24	85-135Vac	24V	3A	24V	1.2A	10TE	100W
PSC150ACR24S24	85-135Vac	24V	5A	24V	1.2A	12TE	150W
PSC100AC5S12	176-264Vac	5V	17A	12V	1.2A	10TE	100W
PSC150AC5S12	176-264Vac	5V	25A	12V	1.2A	12TE	150W
PSC100AC5S15	176-264Vac	5V	17A	15V	1.2A	10TE	100W
PSC150AC5S15	176-264Vac	5V	25A	15V	1.2A	12TE	150W
PSC100AC12S5	176-264Vac	12V	7.3A	5V	2.5A2	10TE	100W
PSC150AC12S5	176-264Vac	12V	11A	5V	2.5A2	12TE	150W
PSC100AC12S12	176-264Vac	12V	7A	12V	1.2A	10TE	100W
PSC150AC12S12	176-264Vac	12V	11A	12V	1.2A	12TE	150W
PSC100AC15S12	176-264Vac	15V	5.5A	12V	1.2A	10TE	100W
PSC150AC15S12	176-264Vac	15V	9A	12V	1.2A	12TE	150W
PSC100AC24S24	176-264Vac	24V	3A	24V	1.2A	10TE	100W
PSC150AC24S24	176-264Vac	24V	5A	24V	1.2A	12TE	150W
NOTE	2. Common zero on the output. The secondary output voltages are only factory adjustable. Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W.

TRIPLE OUTPUTS
MODEL NUMBER	INPUT VOLTAGE	MASTER OUTPUT		AUX OUTPUT		CASE WIDTH	OUTPUT POWER
PSC100ACR5S12-12	85-135Vac	5V	14A	±12V	1.2A	10TE	100W
PSC150ACR5S12-12	85-135Vac	5V	23A	±12V	1.2A	12TE	150W
PSC100ACR5S15-15	85-135Vac	5V	14A	±15V	1.2A	10TE	100W
PSC150ACR5S15-15	85-135Vac	5V	23A	±15V	1.2A	12TE	150W
PSC100AC5S12-12	176-264Vac	5V	14A	±12V	1.2A	10TE	100W
PSC150AC5S12-12	176-264Vac	5V	23A	±12V	1.2A	12TE	150W
PSC100AC5S15-15	176-264Vac	5V	14A	±15V	1.2A	10TE	100W
PSC150AC5S15-15	176-264Vac	5V	23A	±15V	1.2A	12TE	150W
NOTE	Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W. The two secondary output uses common zero for ±12 or ±15V application or to supply 24V and 30V The secondary voltages are only factory adjustable.

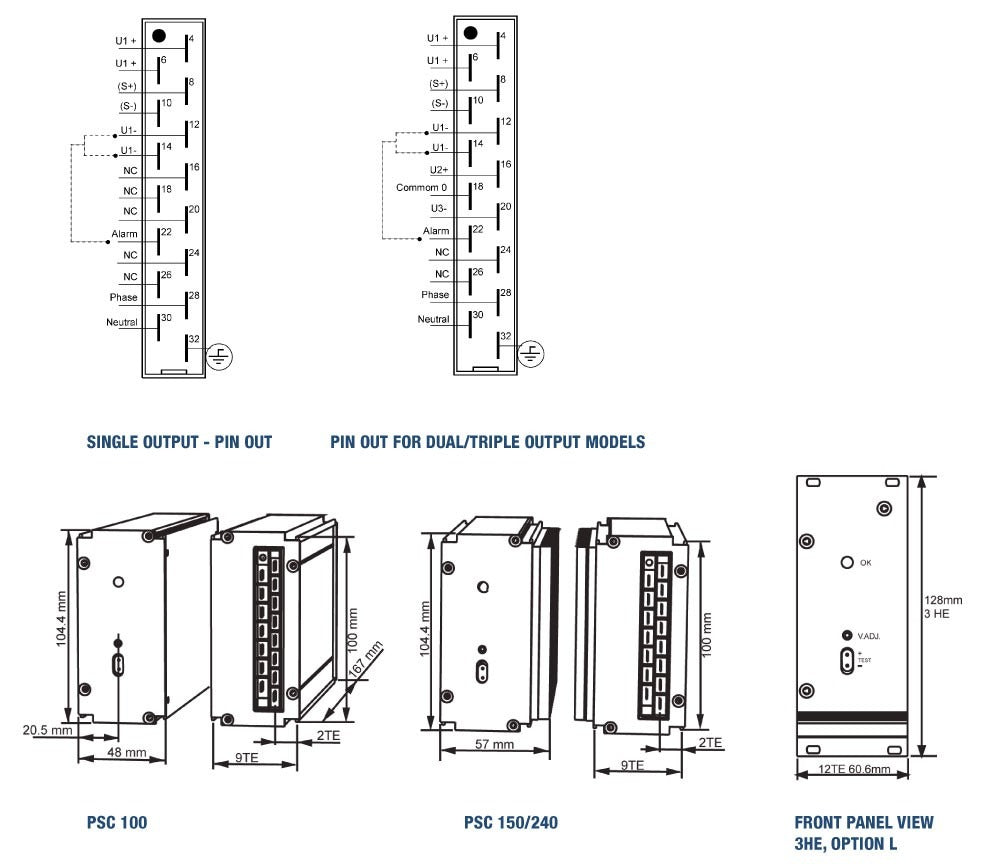

Technical Illustrations

Downloads

psc-ac-series-datasheet.pdf

INPUT
Input Voltage	See Selection Table.
Current at no load(max)	3W–5W
SoftStart	Yes with inrush current limit

OUTPUT
Output Voltage	See selection table.
Voltage adjustment	-10% to +10%.
Output Current	See selection table.
Current Limit	105%
Ripple & noise	10mV pk-pk typical
Regulation	Line: 0.2% L1 to H1; Load: 0.2% NL to FL
Temperature Coefficient	0.02% per °C
Transient Response	10% up to 100% typical <2mS
Efficiency	AC 80%–91% typical ACW 78%–87% typical ACR 80%–91% typical

PROTECTION
Overvoltage Protection	Option.
Reverse Voltage Protection	Option.
Protection	Fuse on board, reverse voltage protection
Isolation	Input – Output: 2.5kVac / 4kVdc. Input – Case: 2.5kVac / 4kVdc. Output – Case: 2kVdc. Alarm – Input: 2.5kVac / 4kVdc.

STANDARDS AND APPROVALS
Safety standards	IEC950, IEC 60950
EMI standards	EN61000-6-3, EN55011/EN55022 Level B
Immunity standards	EN 61000-6-2, EN/IEC 61000-4-2, EN/IEC 61000-4-3, EN/IEC 61000-4-4, EN 61000-4-5, EN/IEC61000-4-6
C-Tick	AS/NZS CISPR11: 2002 Group1 Class A

OPTIONS
A	Overvoltage protection (OVP) A built in SCR thyristor short circuits the output when an overvoltage occurs. The trigger voltage is 15% higher than the nominal output voltage.
B	Undervoltage alarm with relay.
C	Series diode on output. For parallel redundant applications built in series diodes can be provided. The output power may be derated depending upon the model.
E2	2.5k VAC between output/case.
L	Front panel for eurorack 10, 12, 14 TE
N	Wall mounting brackets
H15-S	H15 female screw connector
H15-T	H15 fast on 6.3mm connector.
S	Remote sense

ENVIRONMENTAL
Operating temperature	-25°C to +70°C (Single outputs > 10V). -25°C to +55°C (Single outputs < 10V). -25°C to +55°C (Dual and triple outputs)..
Storage temperature	-40°C to +85°C
Derating	No
Cooling	Convection

MECHANICAL
Case	Eurocassette
Dimensions	See drawing examples. Consult sales office for full details
Connectors	15 Pole DIN standard 41612 H15

SINGLE OUTPUTS
MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	OUTPUT CURRENT	CASE WIDTH	OUTPUT POWER
PSC240ACR15	85-135Vac	15V	16A	12TE	240W
PSC240ACR24	85-135Vac	24V	10A	12TE	240W
PSC240ACR48	85-135Vac	48V	5A	12TE	240W
PSC240ACR110	85-135Vac	110V	2.2A	12TE	240W
PSC100AC5	176-264Vac	5V	20A	10TE	100W
PSC150AC5	176-264Vac	5V	30A	12TE	150W
PSC100AC12	176-264Vac	12V	8.3A	10TE	100W
PSC150AC12	176-264Vac	12V	12.5A	12TE	150W
PSC100AC13.2	176-264Vac	13.6V	7.4A	10TE	100W
PSC150AC13.2	176-264Vac	13.6V	11A	12TE	150W
PSC100AC15	176-264Vac	15V	6.7A	10TE	100W
PSC150AC15	176-264Vac	15V	10A	12TE	150W
PSC240AC15	176-264Vac	15V	16A	12TE	240W
PSC100AC24	176-264Vac	24V	4.2A	10TE	100W
PSC150AC24	176-264Vac	24V	6.3A	12TE	150W
PSC240AC24	176-264Vac	24V	10A	12TE	240W
PSC100AC48	176-264Vac	48V	2.1A	10TE	100W
PSC150AC48	176-264Vac	48V	3.1A	12TE	150W
PSC240AC48	176-264Vac	48V	5A	12TE	240W
PSC240AC110	176-264Vac	110V	2.2A	12TE	240W
PSC100ACW5	85-264Vac	5V	20A	10TE	100W
PSC150ACW5	85-264Vac	5V	30A	12TE	150W
PSC100ACW12	85-264Vac	12V	8.3A	10TE	100W
PSC150ACW12	85-264Vac	12V	12.5A	12TE	150W
PSC100ACW13.2	85-264Vac	13.2V	7.4A	10TE	100W
PSC150ACW13.2	85-264Vac	13.2V	11A	12TE	150W
PSC100ACW15	85-264Vac	15V	6.7A	10TE	100W
PSC150ACW15	85-264Vac	15V	10A	12TE	150W
PSC100ACW24	85-264Vac	24V	4.2A	10TE	100W
PSC150ACW24	85-264Vac	24V	6.3A	12TE	150W
PSC100ACW48	85-264Vac	48V	2.1A	10TE	100W
PSC150ACW48	85-264Vac	48V	3.1A	12TE	150W

DUAL OUTPUTS
MODEL NUMBER	INPUT VOLTAGE	MASTER OUTPUT		AUX OUTPUT		CASE WIDTH	OUTPUT POWER
PSC100ACR5S12	85-135Vac	5V	17A	12V	1.2A	10TE	100W
PSC150ACR5S12	85-135Vac	5V	25A	12V	1.2A	12TE	150W
PSC100ACR5S15	85-135Vac	5V	17A	15V	1.2A	10TE	100W
PSC150ACR5S15	85-135Vac	5V	25A	15V	1.2A	12TE	150W
PSC100ACR12S5	85-135Vac	12V	7.3A	5V	2.5A2	10TE	100W
PSC150ACR12S5	85-135Vac	12V	11A	5V	2.5A2	12TE	150W
PSC100ACR12S12	85-135Vac	12V	7A	12V	1.2A	10TE	100W
PSC150ACR12S12	85-135Vac	12V	11A	12V	1.2A	12TE	150W
PSC100ACR15S12	85-135Vac	15V	5.5A	12V	1.2A	10TE	100W
PSC150ACR15S12	85-135Vac	15V	9A	12V	1.2A	12TE	150W
PSC100ACR24S24	85-135Vac	24V	3A	24V	1.2A	10TE	100W
PSC150ACR24S24	85-135Vac	24V	5A	24V	1.2A	12TE	150W
PSC100AC5S12	176-264Vac	5V	17A	12V	1.2A	10TE	100W
PSC150AC5S12	176-264Vac	5V	25A	12V	1.2A	12TE	150W
PSC100AC5S15	176-264Vac	5V	17A	15V	1.2A	10TE	100W
PSC150AC5S15	176-264Vac	5V	25A	15V	1.2A	12TE	150W
PSC100AC12S5	176-264Vac	12V	7.3A	5V	2.5A2	10TE	100W
PSC150AC12S5	176-264Vac	12V	11A	5V	2.5A2	12TE	150W
PSC100AC12S12	176-264Vac	12V	7A	12V	1.2A	10TE	100W
PSC150AC12S12	176-264Vac	12V	11A	12V	1.2A	12TE	150W
PSC100AC15S12	176-264Vac	15V	5.5A	12V	1.2A	10TE	100W
PSC150AC15S12	176-264Vac	15V	9A	12V	1.2A	12TE	150W
PSC100AC24S24	176-264Vac	24V	3A	24V	1.2A	10TE	100W
PSC150AC24S24	176-264Vac	24V	5A	24V	1.2A	12TE	150W
NOTE	2. Common zero on the output. The secondary output voltages are only factory adjustable. Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W.

TRIPLE OUTPUTS
MODEL NUMBER	INPUT VOLTAGE	MASTER OUTPUT		AUX OUTPUT		CASE WIDTH	OUTPUT POWER
PSC100ACR5S12-12	85-135Vac	5V	14A	±12V	1.2A	10TE	100W
PSC150ACR5S12-12	85-135Vac	5V	23A	±12V	1.2A	12TE	150W
PSC100ACR5S15-15	85-135Vac	5V	14A	±15V	1.2A	10TE	100W
PSC150ACR5S15-15	85-135Vac	5V	23A	±15V	1.2A	12TE	150W
PSC100AC5S12-12	176-264Vac	5V	14A	±12V	1.2A	10TE	100W
PSC150AC5S12-12	176-264Vac	5V	23A	±12V	1.2A	12TE	150W
PSC100AC5S15-15	176-264Vac	5V	14A	±15V	1.2A	10TE	100W
PSC150AC5S15-15	176-264Vac	5V	23A	±15V	1.2A	12TE	150W
NOTE	Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W. The two secondary output uses common zero for ±12 or ±15V application or to supply 24V and 30V The secondary voltages are only factory adjustable.

psc-ac-series-datasheet.pdf

Find the Right Model

Model Number	Input Voltage (Vac)	Output Voltage (Vdc)	Output Current (A)
PSC80ACR5	8...135Vac, 48...420Hz	5Vdc	16A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC120ACR12	8...135Vac, 48...420Hz	12Vdc	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100ACR13.2	8...135Vac, 48...420Hz	13.2Vdc	7.6A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150ACR13.2	8...135Vac, 48...420Hz	13.2Vdc	11.4A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100ACR15	8...135Vac, 48...420Hz	15Vdc	6.7A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150ACR15	8...135Vac, 48...420Hz	15Vdc	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100ACR24	8...135Vac, 48...420Hz	24Vdc	4.2A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150ACR24	8...135Vac, 48...420Hz	24Vdc	6.3A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC240ACR24	8...135Vac, 48...420Hz	24Vdc	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100ACR48	8...135Vac, 48...420Hz	48Vdc	2.1A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150ACR48	8...135Vac, 48...420Hz	48Vdc	3.1A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC240ACR48	8...135Vac, 48...420Hz	48Vdc	5A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC80AC5	176...264Vac, 48...420Hz	5Vdc	16A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC120AC12	176...264Vac, 48...420Hz	12Vdc	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100AC13.2	176...264Vac, 48...420Hz	13.2Vdc	7.6A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150AC13.2	176...264Vac, 48...420Hz	13.2Vdc	11.4A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100AC15	176...264Vac, 48...420Hz	15Vdc	6.7A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150AC15	176...264Vac, 48...420Hz	15Vdc	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100AC24	176...264Vac, 48...420Hz	24Vdc	4.2A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150AC24	176...264Vac, 48...420Hz	24Vdc	6.3A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC240AC24	176...264Vac, 48...420Hz	24Vdc	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100AC48	176...264Vac, 48...420Hz	48Vdc	2.1A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150AC48	176...264Vac, 48...420Hz	48Vdc	3.1A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC240AC48	176...264Vac, 48...420Hz	48Vdc	5A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC240AC60	176...264Vac, 48...420Hz	60Vdc	4A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC240AC110	176...264Vac, 48...420Hz	110Vdc	2.2A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC240AC220	176...264Vac, 48...420Hz	220Vdc	1.1A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC80ACW5	85...264Vac, 48...420Hz	5Vdc	16A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC120ACW12	85...264Vac, 48...420Hz	12Vdc	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100ACW13.2	85...264Vac, 48...420Hz	13.2Vdc	7.6A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150ACW13.2	85...264Vac, 48...420Hz	13.2Vdc	11.4A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100ACW15	85...264Vac, 48...420Hz	15Vdc	6.7A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150ACW15	85...264Vac, 48...420Hz	15Vdc	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100 ACW24	85...264Vac, 48...420Hz	24Vdc	4.2A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150 ACW24	85...264Vac, 48...420Hz	24Vdc	6.3A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC100 ACW48	85...264Vac, 48...420Hz	48Vdc	2.1A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now
PSC150 ACW48	85...264Vac, 48...420Hz	48Vdc	3.1A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Please indicate the nature of your product enquiry: (You may select more than one) Pricing & Availability Technical Support / Application Guidance Product Documentation Other Industry Product you're enquiring about Product Model Need assistance PSC80ACR5 PSC120ACR12 PSC100ACR13.2 PSC150ACR13.2 PSC100ACR15 PSC150ACR15 PSC100ACR24 PSC150ACR24 PSC240ACR24 PSC100ACR48 PSC150ACR48 PSC240ACR48 PSC80AC5 PSC120AC12 PSC100AC13.2 PSC150AC13.2 PSC100AC15 PSC150AC15 PSC100AC24 PSC150AC24 PSC240AC24 PSC100AC48 PSC150AC48 PSC240AC48 PSC240AC60 PSC240AC110 PSC240AC220 PSC80ACW5 PSC120ACW12 PSC100ACW13.2 PSC150ACW13.2 PSC100ACW15 PSC150ACW15 PSC100 ACW24 PSC150 ACW24 PSC100 ACW48 PSC150 ACW48 Message (optional) Enquire Now

Item added to your cart

Polyamp PSC SERIES AC/DC Power Supply

Features

Find the Right Model

Need help finding the right product model?

Polyamp PSC SERIES AC/DC Power Supply

Features

Find the Right Model

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Need help finding the right product model?

Product Enquiry
