Kendrion Single Stroke Solenoids

Name: SINGLE STROKE SOLENOID Kendrion Single Stroke Solenoids
SKU: SINGLE STROKE SOLENOID

The Kendrion Single-Stroke Solenoid series is engineered for exceptional performance in a wide array of applications requiring reliable, short-stroke linear motion. With its high force output, compact design, and rapid switching times, this solenoid is an ideal choice for industries like automation, safety technology, and medical devices. Automa...

Automation Systems: Precise actuation in conveyor systems and robotics.

Safety Technology: Reliable locking and unlocking mechanisms for secure operations.

Medical Devices: Smooth and accurate motion for diagnostic and therapeutic equipment.

Industrial Equipment: Compact actuation for switches, valves, and controls.

Technical Highlights:
Nominal voltage: 24 VDC
Nominal stroke: 2 - 20mm
Nominal force: 0.03 - 6.5N
End force: 0.25 - 18 N
Thermal class: E (120°C) or B (130°C)
Protection class: IP00

Built with durability and performance in mind, Kendrion Single-Stroke Solenoids are your trusted solution for applications where precision, efficiency, and reliability are paramount.

Show Less

Select model number

or send a quick enquiry about this product only

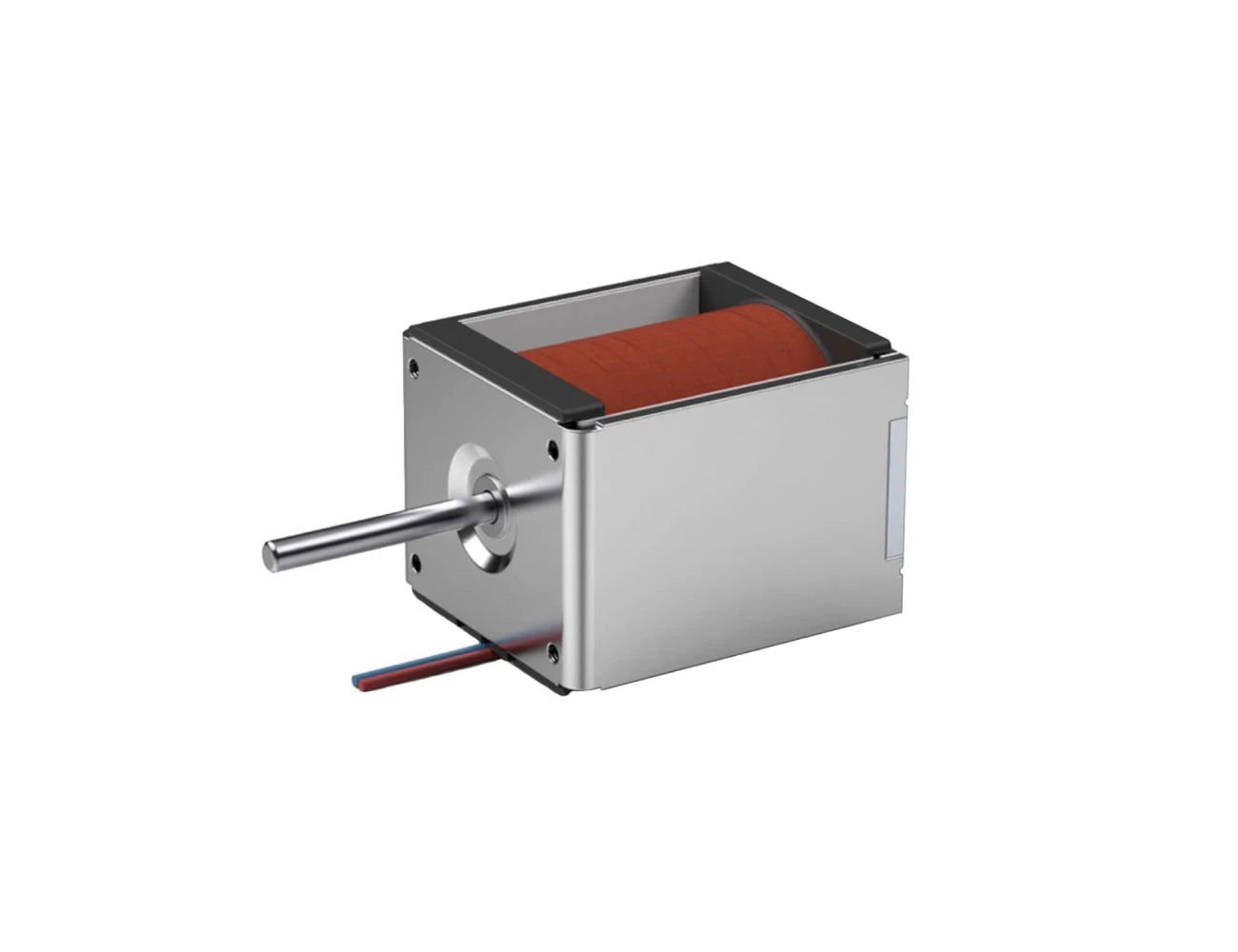

Compact electric motor with red coil and metal shaft for industrial drive systems

Features

Compact Yet Powerful: Delivers impressive force-to-size ratios, ensuring efficient performance even in space-constrained environments.
Versatile Configurations: Available in various dimensions and force capacities to meet specific application requirements.
Energy Efficiency: Designed for low power consumption, with nominal power ranging from 1.1 W to 16 W.
Continuous Operation: 100% duty cycle capability ensures reliable, uninterrupted performance in demanding applications.
Precision Engineering: Provides consistent force output with nominal strokes ranging from 2 mm to 20 mm.

Downloads

Single-Stroke-Linear-Solenoid-H-Line-OVERVIEW-Kendrion.pdf

Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs

What voltage do the Kendrion Single Stroke Solenoids run on?

They operate at a nominal voltage of 24VDC.

What stroke and force range is available?

The series covers nominal strokes from 2mm to 20mm, with nominal force from 0.03N to 6.5N and end force up to 18N, allowing a model to be selected to suit the required actuation distance and holding force.

Can these solenoids run continuously?

Yes, they're rated for 100% duty cycle, meaning they can be energised continuously without exceeding their thermal limits, unlike solenoids rated only for intermittent duty.

What thermal class do these solenoids use?

Depending on the model, they're rated to thermal class E (120°C) or B (130°C), which determines the maximum continuous winding temperature the solenoid can sustain.

What ingress protection rating do these solenoids have?

They carry an IP00 protection rating, meaning they have no specific protection against dust or moisture ingress — installation in an enclosure or protected location is recommended for harsh environments.

What applications are these solenoids typically used in?

They're commonly used in automation systems (conveyors, robotics), safety technology (locking/unlocking mechanisms), medical devices, and industrial equipment such as switches and valves where compact, precise short-stroke actuation is needed.
