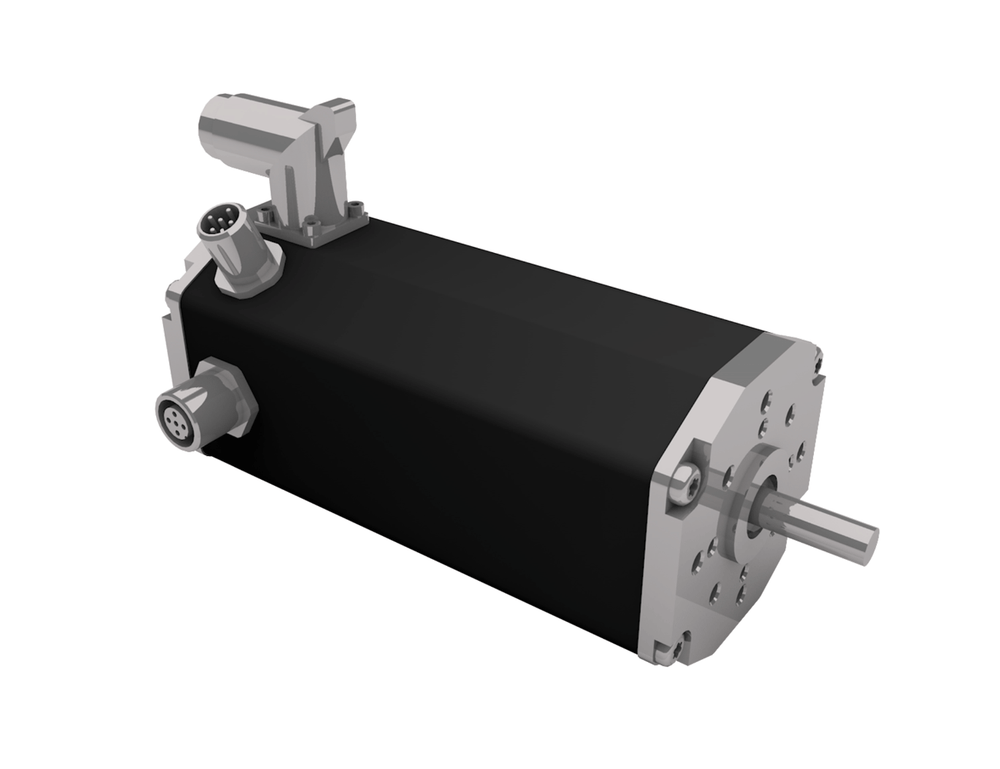

Dunkermotoren BG 65 dMove CO/IO Brushless DC Motor

The Dunkermotoren BG 65 dMove CO/IO is a 3-phase EC motor with an integrated 4Q controller, designed for demanding motion applications requiring flexible control. Available in BG 65x25, BG 65x50, and BG 65x75 stack lengths with 12 Vdc, 24 Vdc, and 48 Vdc supply options, the series delivers continuous output power up to 268 W (thermally connected) and peak output power up to 391 W.

Read More

View Models

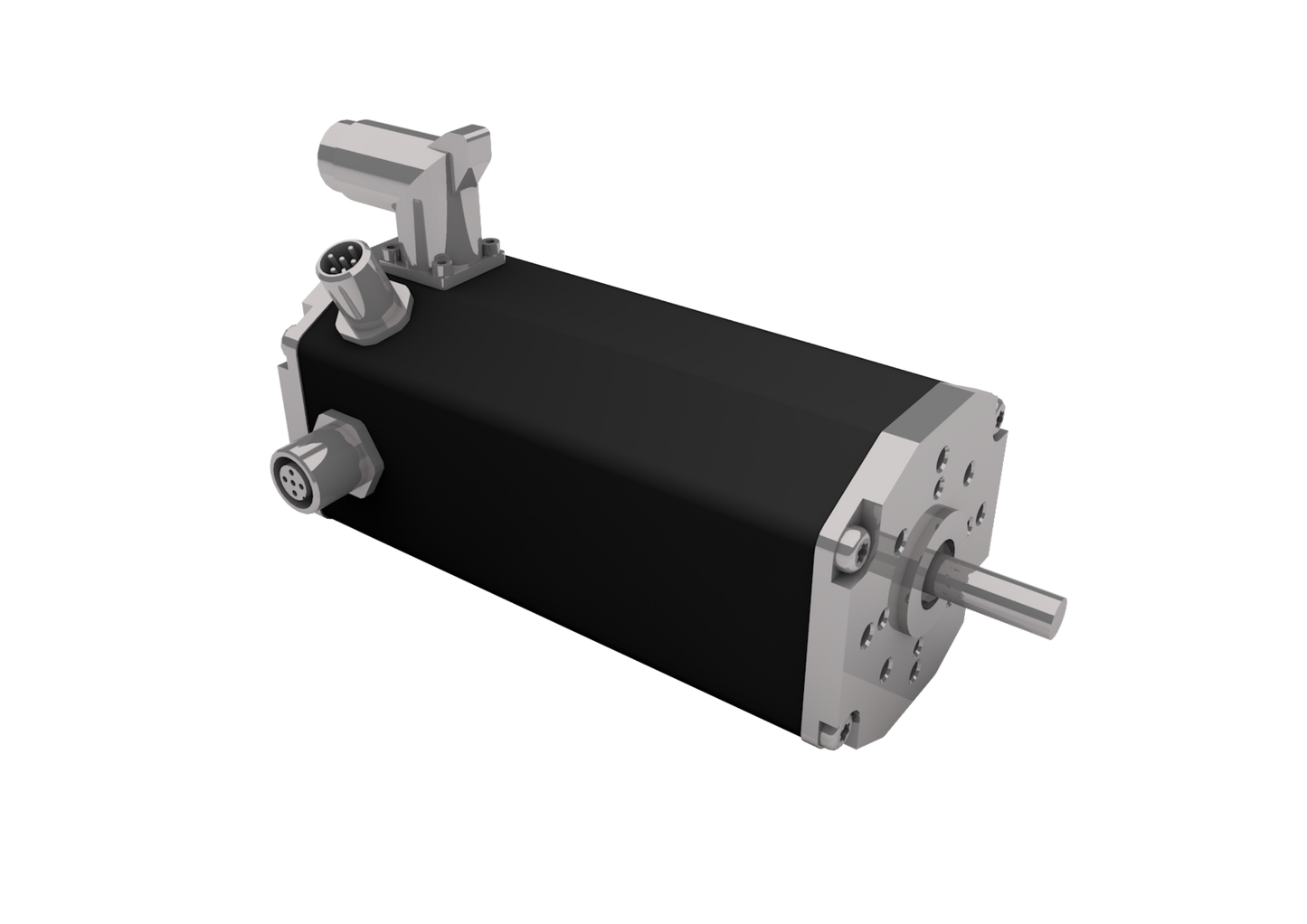

bg65x50_dmove_co_

Features

  • 3-phase EC motor with integrated 4Q controller.
  • Control via CANopen (fully CiA 402 compatible) or digital/analogue inputs (IO mode).
  • Individually assignable inputs and outputs.
  • Stand-alone operation capability.
  • Speed control, current control, and low-resolution position control.
  • Two CANopen connectors.
Specifications
BG 65 dMove CO/IO Specifications
Parameter Units BG 65x25
12V		 BG 65x25
24V		 BG 65x25
48V		 BG 65x50
24V		 BG 65x50
48V		 BG 65x75
24V		 BG 65x75
48V
Nominal voltage VDC 12 24 48 24 48 24 48
Nominal current
(thermally connected / insulated)		 A* 13.9 / 10.0 7.9 / 5.8 4.0 / 2.8 10.5 / 7.7 5.9 / 4.2 14.0 / 10.0 7.2 / 5.0
Nominal torque
(thermally connected / insulated)		 Nm* 0.30 / 0.20 0.34 / 0.23 0.38 / 0.24 0.57 / 0.39 0.66 / 0.43 0.75 / 0.49 0.86 / 0.55
Nominal speed
(thermally connected / insulated)		 rpm* 3450 / 4020 3760 / 4360 3500 / 4130 3060 / 3470 3080 / 3560 3210 / 3650 2970 / 3390
Maximum torque Nm** 0.6 0.57 0.58 1.16 1.18 1.57 1.78
No load speed rpm* 7300 8180 7720 6190 6430 6250 5870
Nominal output power
(thermally connected / insulated)		 W** 107 / 85 135 / 105 137 / 104 182 / 142 213 / 160 253 / 187 268 / 195
Maximum output power W 145 172 172 261 284 367 391
Torque constant Nm A⁻¹*** 0.026 0.053 0.116 0.069 0.142 0.066 0.147
Peak current A** 23.4 11.1 5.2 17.2 8.6 23.4 12.1
Voltage range (power) VDC 3...58 3...58 3...58 3...58 3...58 3...58 3...58
Rotor inertia gcm² 72 72 72 128 128 172 172
Weight of motor kg 1 1 1 1.43 1.43 2 2
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point; 1) see thermally connected/insulated note
Downloads
Datasheet_bg_65_dmove.pdf
BG 65 dMove CO/IO Specifications
Parameter Units BG 65x25
12V		 BG 65x25
24V		 BG 65x25
48V		 BG 65x50
24V		 BG 65x50
48V		 BG 65x75
24V		 BG 65x75
48V
Nominal voltage VDC 12 24 48 24 48 24 48
Nominal current
(thermally connected / insulated)		 A* 13.9 / 10.0 7.9 / 5.8 4.0 / 2.8 10.5 / 7.7 5.9 / 4.2 14.0 / 10.0 7.2 / 5.0
Nominal torque
(thermally connected / insulated)		 Nm* 0.30 / 0.20 0.34 / 0.23 0.38 / 0.24 0.57 / 0.39 0.66 / 0.43 0.75 / 0.49 0.86 / 0.55
Nominal speed
(thermally connected / insulated)		 rpm* 3450 / 4020 3760 / 4360 3500 / 4130 3060 / 3470 3080 / 3560 3210 / 3650 2970 / 3390
Maximum torque Nm** 0.6 0.57 0.58 1.16 1.18 1.57 1.78
No load speed rpm* 7300 8180 7720 6190 6430 6250 5870
Nominal output power
(thermally connected / insulated)		 W** 107 / 85 135 / 105 137 / 104 182 / 142 213 / 160 253 / 187 268 / 195
Maximum output power W 145 172 172 261 284 367 391
Torque constant Nm A⁻¹*** 0.026 0.053 0.116 0.069 0.142 0.066 0.147
Peak current A** 23.4 11.1 5.2 17.2 8.6 23.4 12.1
Voltage range (power) VDC 3...58 3...58 3...58 3...58 3...58 3...58 3...58
Rotor inertia gcm² 72 72 72 128 128 172 172
Weight of motor kg 1 1 1 1.43 1.43 2 2
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point; 1) see thermally connected/insulated note
Datasheet_bg_65_dmove.pdf

Find the Right Model

Model Number Nom. Voltage (Vdc) Nom. Torque (Nm) Nom. Speed (RPM)
product variant BG 65x25-12 dMove 12Vdc 0.3Nm 3450rpm
product variant BG 65x25-24 dMove 24Vdc 0.34Nm 3760rpm
product variant BG 65x25-48 dMove 48Vdc 0.38Nm 3500rpm
product variant BG 65x50-24 dMove 24Vdc 0.57Nm 3060rpm
product variant BG 65x50-48 dMove 48Vdc 0.66Nm 3080rpm
product variant BG 65x75-24 dMove 24Vdc 0.75Nm 3210rpm
product variant BG 65x75-48 dMove 48Vdc 0.86Nm 2970rpm

Need help finding the right product model?
