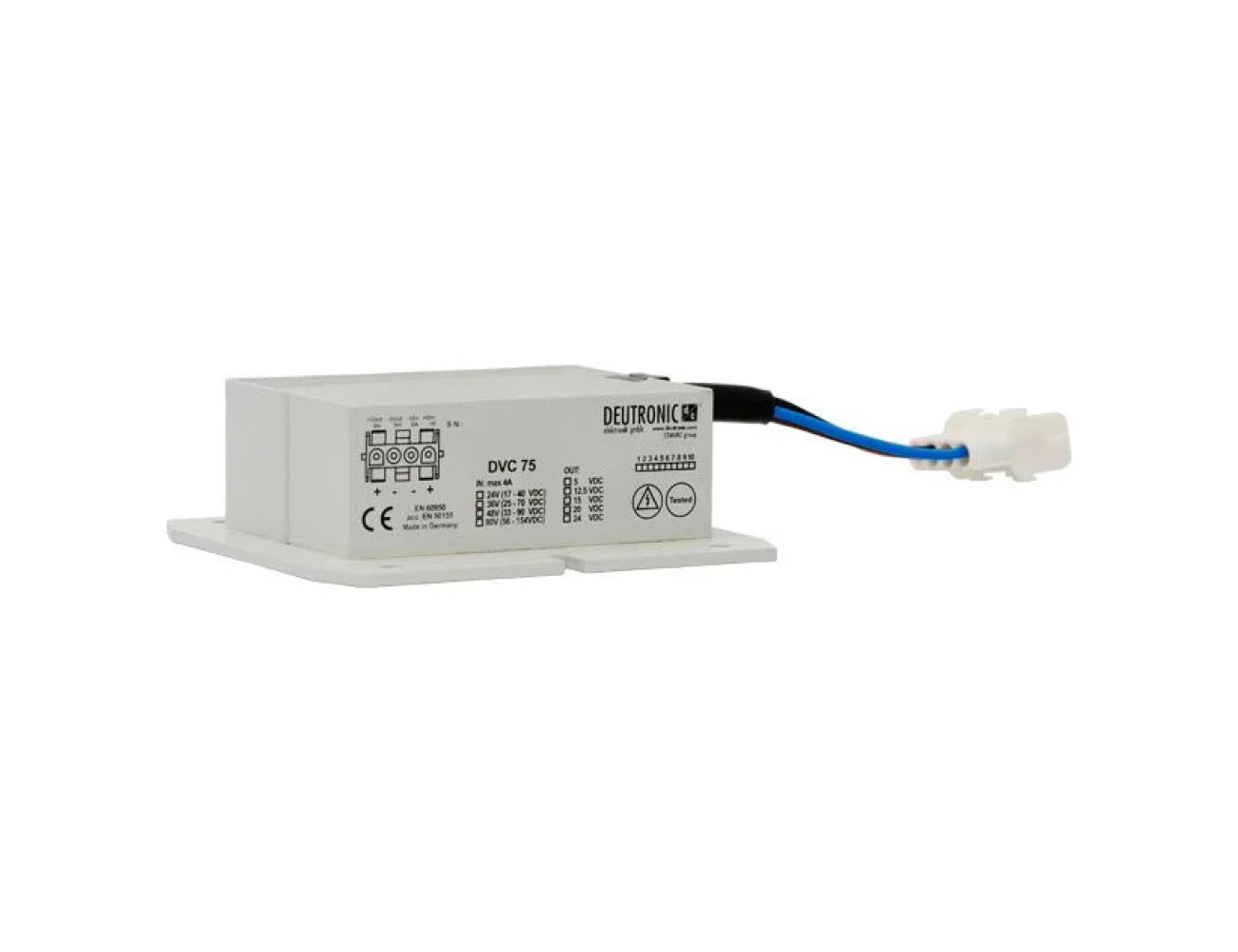

Deutronic DVC75 SERIES DC/DC Converter
The Deutronic DVC75 Series DC/DC Converter is a reliable and durable solution tailored for automotive applications. Delivering power outputs up to 75W, it ensures efficient and stable performance for on-road and off-road vehicle systems. Key features include a wide input voltage range (17–154V DC, depending on the model) to support diverse vehic...
Read MoreThe Deutronic DVC75 Series DC/DC Converter is a reliable and durable solution tailored for automotive applications. Delivering power outputs up to 75W, it ensures efficient and stable performance for on-road and off-road vehicle systems.
Key features include a wide input voltage range (17–154V DC, depending on the model) to support diverse vehicular power systems and multiple output voltage options (5–24.5V DC) with output currents up to 8A. The DVC75 Series features a fully potted design for enhanced vibration resistance and heat dissipation, as well as galvanic isolation to protect sensitive electronic systems from voltage spikes and electrical interference. Additional advanced protection features, such as over-temperature shutdown and reverse polarity protection, combined with optional E1 approval for road vehicle use, ensure compliance with automotive safety standards. Its IP67-rated enclosure provides resistance to dust and water, making it suitable for rugged environments.
With a compact and lightweight design (110x100x39mm, approximately 600g), the DVC75 Series is easy to integrate into vehicle systems. Its wide operating temperature range (-40°C to +75°C) and high efficiency of up to 90% deliver dependable performance in demanding automotive environments.
Show Less
Features
- 40W - 77W Automotive Converter
- Designed for use in rough environments
- Rugged construction / potted device
- Protection against unfavourable environmental conditions
- DC/DC wide range input
- Filtered against vehicle on-board disturbances
- Galvanic separation 1.5kV
- Design acc. to EN60950. EN50155. EN1175. ISO20898
- Regulated output
- very high efficiency
- Short-circuit / No-load protection
- Over Temperature protection
Specifications
| INPUT | |
|---|---|
| Input range | 24Vdc (17-40Vdc) 48Vdc (33-90Vdc) 110Vdc (56-154Vdc) |
| Transient over voltage (20ms, one time) | 50V @ 24Vdc 80V @ 36Vdc 100V @ 48Vdc 220V @ 110Vdc |
| OUTPUT | |
|---|---|
| Output voltage | 12.5Vdc, 15Vdc, 24Vdc |
| voltage tolerance | ±1% @ 12.5V & 15V & 24V models ±3% @ 5V models |
| Output current | See Selection Table. |
| Regulation Time | < 0.5ms |
| Line regulation | ±0.1% |
| Temperature drift | 0 - 60C <1% |
| Ripple & noise | 100mVp-p |
| Efficiency | 84-90% Typical |
| PROTECTION | |
|---|---|
| Input Fuse | T10A/250V, T10A 32V @ In 24Vdc |
| Reverse polarity protection | External input fuse is blown. |
| Over voltage protection | Protective shut down Self reset after cool down |
| Over temperature Protection | Protective shut down, self reset after cool down. |
| Isolation | Input to case: 1.5kV, 500V for 24 models Output to case: 500V |
| Protective degree | IP67 (not connector) |
| STANDARDS | |
|---|---|
| Safety | Designed to meet EN60950, EN1175 |
| EMC | Designed to meet EN55011 Class B, EN61000-6-2 |
| ENVIRONMENT | |
|---|---|
| Ambient temperature | -40°C to 75°C with derating Max baseplate temperature 100°C |
| Cooling | Natural convection / cooling via contact to mounting surface. |
| Storage temperature | -40°C to 85°C |
| Humidity | 100% relative humidity, dewing permitted. |
| MECHANICAL | |
|---|---|
| Dimensions | 110 x 68 x 38mm |
| Weight | 450g |
| Case Material | Aluminium |
| Connectors | 10cm cable with 6-pole AP connector MATE-N-LOK |
Selection Table
| TYPE | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
|---|---|---|---|---|
| DVC75-24-5 | 24Vdc (17-40Vdc) | 5Vdc | 8A | 40W |
| DVC75-24-12 | 24Vdc (17-40Vdc) | 12.5Vdc | 4A | 50W |
| DVC75-24-20 | 24Vdc (17-40Vdc) | 20Vdc | 2.5A | 50W |
| DVC75-24-24 | 24Vdc (17-40Vdc) | 24Vdc | 2A | 48W |
| DVC75-36-12 | 36Vdc (25-70Vdc) | 12.5Vdc | 5A | 62W |
| DVC75-36-24 | 36Vdc (25-70Vdc) | 24Vdc | 2.8A | 70W |
| DVC75-48-12 | 48Vdc (33-90Vdc) | 12.5Vdc | 6A | 75W |
| DVC75-48-15 | 48Vdc (33-90Vdc) | 15Vdc | 5A | 75W |
| DVC75-48-24 | 48Vdc (33-90Vdc) | 24Vdc | 3.2A | 77W |
| DVC75-80-12 | 72/80/96/110Vdc (56-154Vdc) | 12.5Vdc | 6A | 75W |
| DVC75-80-24 | 72/80/96/110Vdc (56-154Vdc) | 24Vdc | 3.2A | 77W |

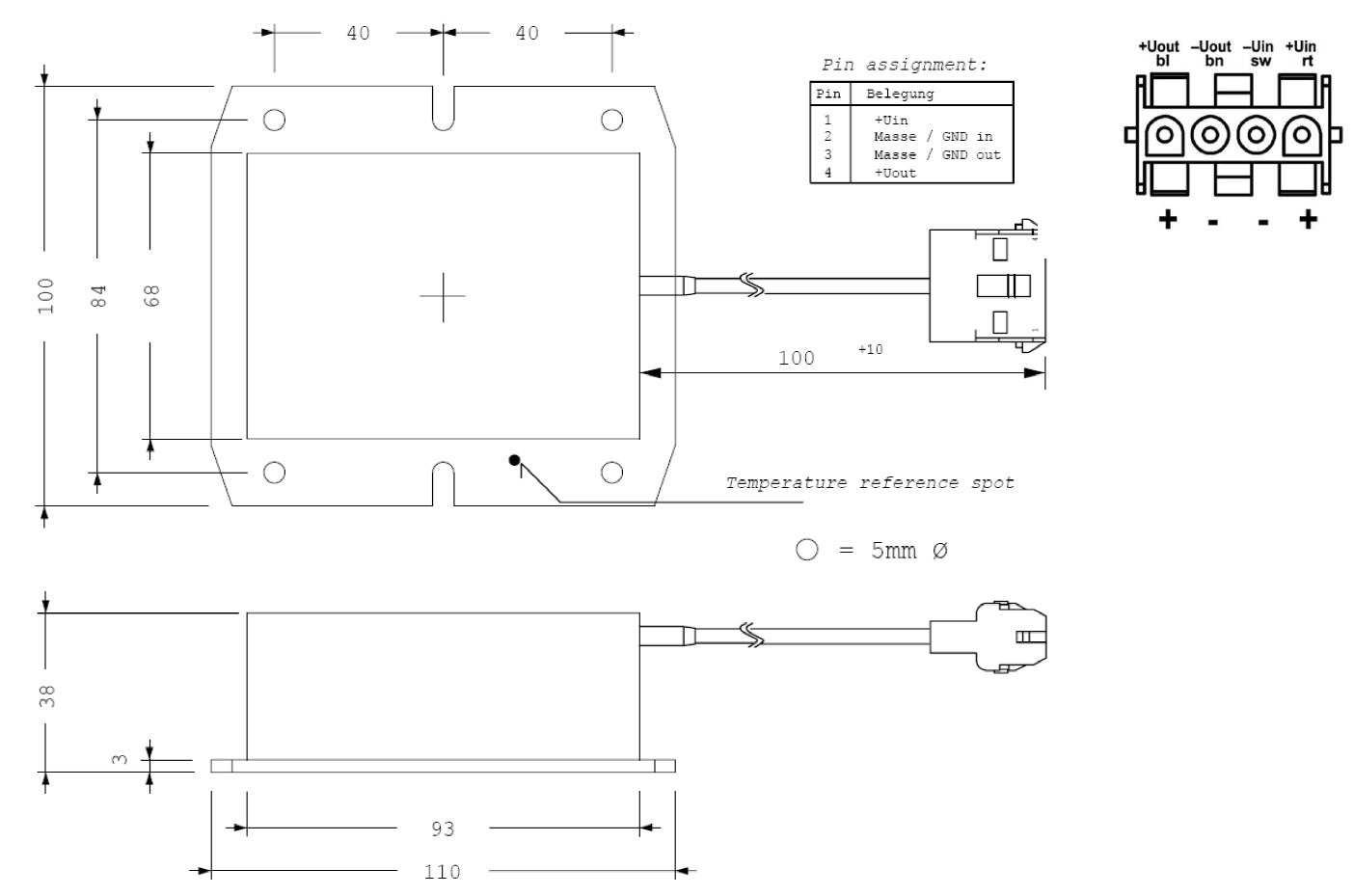

Technical Drawings
