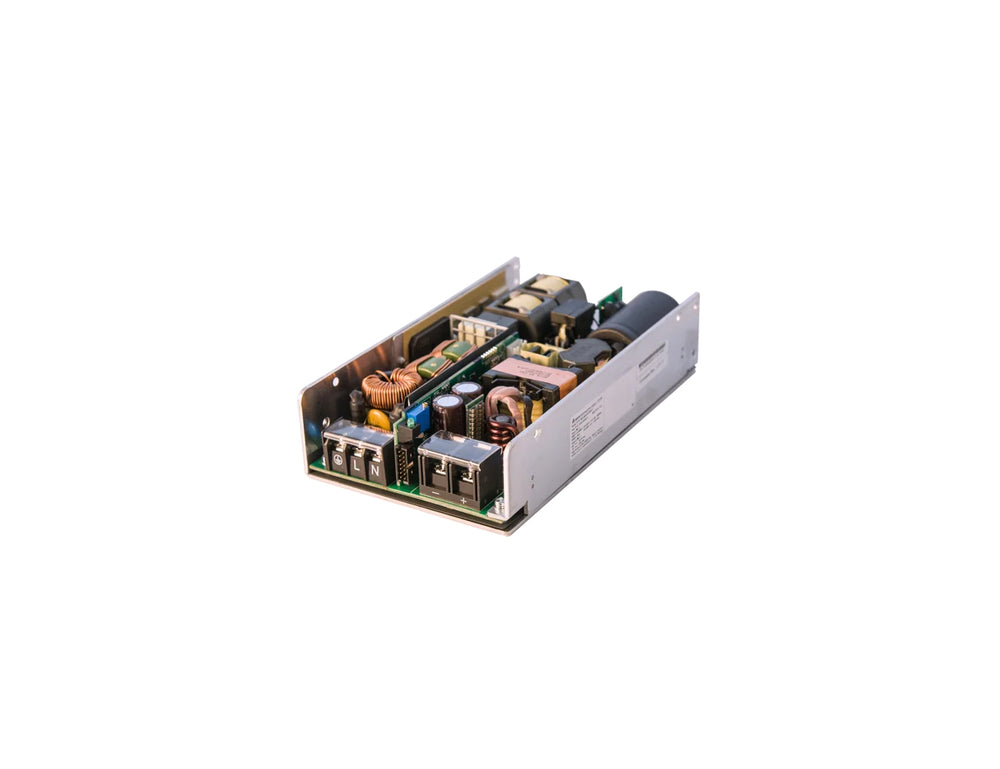

Delta Electronics IMA-S400 Series 400W Medical / Industrial AC-DC Power Supply
The Delta IMA-S400 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 12Vdc, 24Vdc or 48Vdc main output options with up to 33.3A, 16.7A or 8.3A respectively, plus a 5Vdc standby output rated at 0.5A....
Read MoreThe Delta IMA-S400 series is an enclosed AC-DC power supply family for medical, industrial and IT applications. It accepts a wide 80–275Vac input range and also supports 120–300Vdc input operation. The series provides 12Vdc, 24Vdc or 48Vdc main output options with up to 33.3A, 16.7A or 8.3A respectively, plus a 5Vdc standby output rated at 0.5A.
The Delta IMA-S400 features include up to 400W output power, adjustable main output voltage range of ±20%, active current sharing, PMBus-compatible monitoring and control, remote on/off, power good signal, remote sense, 2 × MOPP isolation, low acoustic noise below 30 dB(A), and a 500,000 hour MTBF. The standard IMA-S400 variants use an enclosed 1U chassis with fan cooling.
Show Lessor send a quick enquiry about this product only
Features
- Input voltage range: 80–275Vac or 120–300Vdc.
- Output voltage: 12Vdc, 24Vdc or 48Vdc main output plus 5Vdc standby.
- Output current: up to 33.3A at 12Vdc, 16.7A at 24Vdc, or 8.3A at 48Vdc.
- Output power: 400W maximum.
- High efficiency up to 94%.
- Main output adjustable by ±20%.
- Active current sharing.
- PMBus compatible for control, programming and monitoring.
- Remote on/off, remote sense and power good signal.
- 2 × MOPP isolation.
- Low acoustic noise level of less than 30 dB(A).
- Medical, industrial and IT safety approvals.
Specifications
| AC/DC INPUT (J1) | |||
|---|---|---|---|
| Parameter | IMA-x400-12 | IMA-x400-24 | IMA-x400-48 |
| Nominal Input Voltage | 100 Vac to 240 Vac | ||
| AC Operating Input Voltage Range | 80 Vac to 275 Vac | ||
| Nominal Input Frequency | 50 / 60 Hz | ||
| Input Frequency Range | 47 Hz to 63 Hz | ||
| DC Input Voltage Range | 120 Vdc to 300 Vdc | ||
| Maximum Input Current | 6 A @ 80 Vac / 3.8 A @ 120 Vdc | ||
| Efficiency @ 100% load @ 230 Vac | 92% | 94% | 94% |
| Efficiency @ 100% load @ 115 Vac | 90% | 92% | 92% |
| Max Inrush Current1 | < 20 A (hot and cold turn on) | ||
| Input Fuse | DC input compliant, dual 10 A fuses used | ||
| Power Factor2 (typical) | 0.9 (EN 61000-3-2, Class A compliant) | ||
| 1) Hot and cold turn on 2) EN 61000-3-2, Class A compliant | |||
| MAIN DC OUTPUT (J2) | |||
|---|---|---|---|
| Parameter | IMA-x400-12 | IMA-x400-24 | IMA-x400-48 |
| Nominal Output Voltage | 12 V | 24 V | 48 V |
| Output Voltage Adjustment Range | 9.6 V to 14.4 V | 19.2 V to 28.8 V | 38.4 V to 56.0 V |
| Maximum Output Power | 400 W | ||
| Maximum Output Current | 33.3 A | 16.7 A | 8.33 A |
| Output Voltage Regulation Total | ± 2.25% | ||
| Output Voltage Regulation Over Line | 0.25% | ||
| Output Voltage Regulation Over Load | 1% | ||
| Output Voltage Regulation Over Temperature | 1% | ||
| Maximum Output Capacitive Load | 10,000 µF | ||
| Dynamic Load Regulation1 | < 5% | ||
| PARD2 (20 MHz) | < 1% peak to peak | ||
| Turn On Overshoot | < 2% | ||
| Output Rising Time | < 150 ms | ||
| Hold Up Time | 20 ms nominal | ||
| Start Up Time (AC OFF → ON) | < 2.5 s (nominal input, max. load) | ||
| Start Up Time (Remote OFF → ON) | < 150 ms (nominal input, max. load) | ||
| Output Over Voltage Protection | YES, latch mode; 15 V to 17.5 V | YES, latch mode; 30 V to 35 V | YES, latch mode; 58.5 V to 63 V |
| Output Over Current Protection | YES, at 108% to 140% of nominal output current; auto recovery | ||
| Short Circuit Protection | YES, auto recovery | ||
| Over Temperature Protection | YES, auto recovery | ||
| Remote Sense3 | 200 mV total voltage drop compensation via +V_SENSE and -V_SENSE (J3 Pins 13 and 14) | ||
| Output Current Derating vs Output Voltage | When Vout > 12 Vdc: reduce by 2.292 A per 1 V | When Vout > 24 Vdc: reduce by 0.583 A per 1 V | When Vout > 48 Vdc: reduce by 0.148 A per 1 V |
| 1) 50% step from 5% load, 1 A/µs, 10 µF Tan and 1µF ceramic capacitor 2) 10 µF Tan and 1µF ceramic capacitor 3) Do not short or reversely connect +V_SENSE and -V_SENSE — this can damage the power supply. | |||
| AUXILIARY DC OUTPUT (J3) | |
|---|---|
| Connector Type | Molex, Part number 87833-1420, 14 pin |
| Nominal Output Voltage | 5 V |
| Output Voltage Adjustment Range | – |
| Output Voltage Regulation Total | 2.25% |
| Output Voltage Regulation Over Line | 0.25% |
| Output Voltage Regulation Over Load | 1% |
| Output Voltage Regulation Over Temperature | 1% |
| Maximum Output Current | 0.5 A |
| Maximum Output Capacitive Load | 1,000 µF |
| Output Over Voltage Protection | Yes, at 5.5 V to 6 V; latch mode |
| Output Over Current Protection | Yes, at 1.0 A to 1.3 A; auto recovery |
| Short Circuit Protection | YES, auto recovery |
| Over Temperature Protection | YES, auto recovery |
| Note: There is no galvanic isolation between 5VSB GND and Main DC Output GND. | |
| GALVANIC ISOLATION & LEAKAGE CURRENTS | ||
|---|---|---|
| Galvanic Isolation (IMA-x400-xx) | ||
| Input to Output | Reinforced | 4000 Vac; 2 x MOPP |
| Input to Case | Basic | 1500 Vac; 1 x MOPP |
| Output to Case | Basic | 1500 Vac; 1 x MOPP |
| Note: There is no galvanic isolation between 5VSB GND and Main DC Output GND. | ||
| AC Leakage Current — Input to Earth Ground (IMA-x400-xx) | ||
| Normal condition (low line) | 132 Vac | < 150 µA @ 60 Hz; < 150 µA @ 63 Hz |
| Single fault condition (low line) | 132 Vac | < 250 µA @ 60 Hz; < 260 µA @ 63 Hz |
| Normal condition (high line) | 264 Vac | < 300 µA @ 60 Hz; < 300 µA @ 63 Hz |
| Single fault condition (high line) | 264 Vac | < 500 µA @ 60 Hz; < 520 µA @ 63 Hz |
| AC Leakage Current — Output to Earth Ground1 | ||
| Normal condition | 264 Vac | Typical @ 60 Hz: 45 µA; Max @ 63 Hz: < 60 µA |
| Single fault condition (neutral open) | 264 Vac | Typical @ 60 Hz: 45 µA; Max @ 63 Hz: < 80 µA |
| Single fault condition (ground open) | 264 Vac | Typical @ 60 Hz: 114 µA; Max @ 63 Hz: < 150 µA |
| AC Backdrive fault | 264 Vac | < 450 µA @ 60 Hz; < 550 µA @ 63 Hz |
| 1) Meets IEC 60601-1 BF leakage current limit | ||
| ENVIRONMENTAL CONDITIONS | |||
|---|---|---|---|
| Parameter | IMA-x400-12 | IMA-x400-24 | IMA-x400-48 |
| Ambient Operating Temperature Range | -20°C to +70°C (-4°F to +158°F) | ||
| Ambient Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) | ||
| Relative Humidity | < 95% (non-condensing) | ||
| Operating Altitude1 2 | -200 m to 5,000 m (-650 ft to 16,400 ft) | ||
| Pollution Degree | 2 | ||
| Output Power Derating vs Input Voltage | When AC input voltage < 90 Vac, output power reduced by 4 W per 1 V | ||
| Output Power Derating vs Ambient Temperature | See datasheet derating curves (Fig. 7-8) | ||
| Shock Test (non-operating) | IEC 60068-2-27 compliant, 50 g, 11 ms, 3 shocks each direction | ||
| Vibration (non-operating) | IEC 60068-2-6 compliant, 2.09 Grms, 5 Hz to 500 Hz, 20 minutes per side (3 planes) | ||
| 1) Ambient operating temperature decreases by 1°C per 305 m (1000 ft) altitude increase 2) Maximum operating altitude requirements for different types of products, see “Safety standards and directives”, p. 6 | |||
| RELIABILITY | |
|---|---|
| MTBF1 | 500,000 hours (Telecordia SR-332, Issue 3, 25°C, 90% confidence level) |
| Expected Capacitor Life Time2 | 10 years (nominal input voltage, 45°C, 80% load) |
| Warranty | 3 years |
| No fan — system airflow cooling or natural convection cooling | |
| 1) Telecordia SR-332, Issue 3, 25°C, 90% confidence level 2) Nominal input voltage, 45°C, 80% load | |
| SAFETY STANDARDS & DIRECTIVES | |
|---|---|
| IEC 62368 Edition 2 | IEC 62368-1 (2014) Edition 2 5000 m (16,400 ft) altitude, 120 V to 300 Vdc and 100 V to 240 ±10% Vac |
| IEC/EN 60950-1, Edition 2 | UL 60950-1/CSA 22.2 No 60950-1, Edition 2 5,000 m (16,400 ft) altitude, 120 V to 300 Vdc and 100 V to 240 ±10% Vac (UL File E191395) |
| IEC/EN 60601-1, Edition 3 & IEC 60601-1-2 Edition 4 | IEC 60601-1:2005, EN60601-1(2006) ANSI/AAMI ES 60601-1(2005) CAN/CSA C22.2 No. 60601-1 (2008) 3,000 m (9,800 ft) altitude, 100 V to 240 Vac ±10% (UL File E325662) |
| Protection Class1 | I |
| Ecological | WEEE Directive 2012/19/EU RoHS EU Directive 2011/65/EU compliant |
| 1) Designed to support Type B Applied Part End Product Requirements | |
| EMC | |
|---|---|
| Fully tested according to EN 60601-1-2:2015 (4th edition) | |
| Test / Applied Standard | Details |
| Radiated Emissions1 | EN 55011, EN 55022 and FCC, Class B |
| Conducted Emissions1 | EN 55011, EN 55022 and FCC, Class B |
| Power Line Harmonics | EN 61000-3-2, Class A |
| Voltage Flicker | EN 61000-3-3 |
| ESD | EN 61000-4-2, level 4, 8 kV contact, 15 kV air |
| Radiated Immunity | EN 61000-4-3, level 3, 10 V/m |
| Electrical Fast Transient | EN 61000-4-4, level 4, ±4 kV |
| Surge Immunity | EN 61000-4-5, level 4, 2 kV DM, 4 kV CM |
| Conducted RF Immunity | EN 61000-4-6, level 2, 3 Vrms, 6 Vrms in ISM band |
| Power Frequency Magnetic Field | EN 61000-4-8, 30 A/m |
| Voltage Dips and Sags | EN 61000-4-11, 30%, 500 ms EN 61000-4-11, 60%, 100 ms EN 61000-4-11, 100%, 20 ms EN 60601-1-2:2015 (4th Ed.), 30%, 500 ms EN 60601-1-2:2015 (4th Ed.), 60%, 100 ms EN 60601-1-2:2015 (4th Ed.), 100%, 20 ms EN 60601-1-2:2015 (4th Ed.), 100%, 5000 ms |
| Ring Wave | EN 61000-4-12, level 3, 1 kV DM, 2 kV CM |
| Voltage Fluctuations | EN 61000-4-14, Class 3 |
| 1) Power Supply Unit inside a dummy system | |
| MECHANICAL DATA | |
|---|---|
| Dimensions (L x W x D) | 176.8 x 101.6 x 40.6 mm (6.96 x 4 x 1.6 in) |
| Weight | 0.960 kg (2.12 lb) |
| Indicator | Green LED |
| Cooling System | System airflow cooling or natural convection cooling (no integrated fan) |
| Acoustic Noise1 | < 30 dB(A) |
| AC/DC Input Port (J1) | Block M3.5 x 3 pins (Switchlab T14-EMII03, max. torque 1.3 Nm) |
| Main DC Output Port (J2) | Block M5 x 2 pins (Dinkle DT-7C-B01W-3943-02, M4 screws, max. torque 1.5 Nm) |
| Auxiliary DC Output + Signals Port (J3) | Connector x 14 pins (Molex 51110-1450 or 51110-1451) |
| 1) At 1 Hz to 20 kHz and a distance of 1 m. Test conditions: 100 Vac, 100% load, ambient temperature 30°C (86°F) | |
Selection Table
| Model Number | AC Input | DC Input | Main Output | Auxiliary Output |
|---|---|---|---|---|
| IMA-S400-12-ZNPLx | 80-275 Vac | 120-300 Vdc | 12 Vdc / 33.3 A | 5 Vdc / 0.5 A |
| IMA-S400-24-ZNPLx | 24 Vdc / 16.7 A | |||
| IMA-S400-48-ZNPLx | 48 Vdc / 8.33 A | |||
| IMA-C400-12-ZNPLx | 12 Vdc / 33.3 A | |||
| IMA-C400-24-ZNPLx | 24 Vdc / 16.7 A | |||
| IMA-C400-48-ZNPLx | 48 Vdc / 8.33 A | |||
| S = Standard | C = Conformal coated | ZNPLI = Remote ON when pin open | ZNPLY = Remote ON when pin shorted All models: 400 W, active current sharing, PMBus™ compatible, 1U form factor, no integrated fan (400 W) |
||||

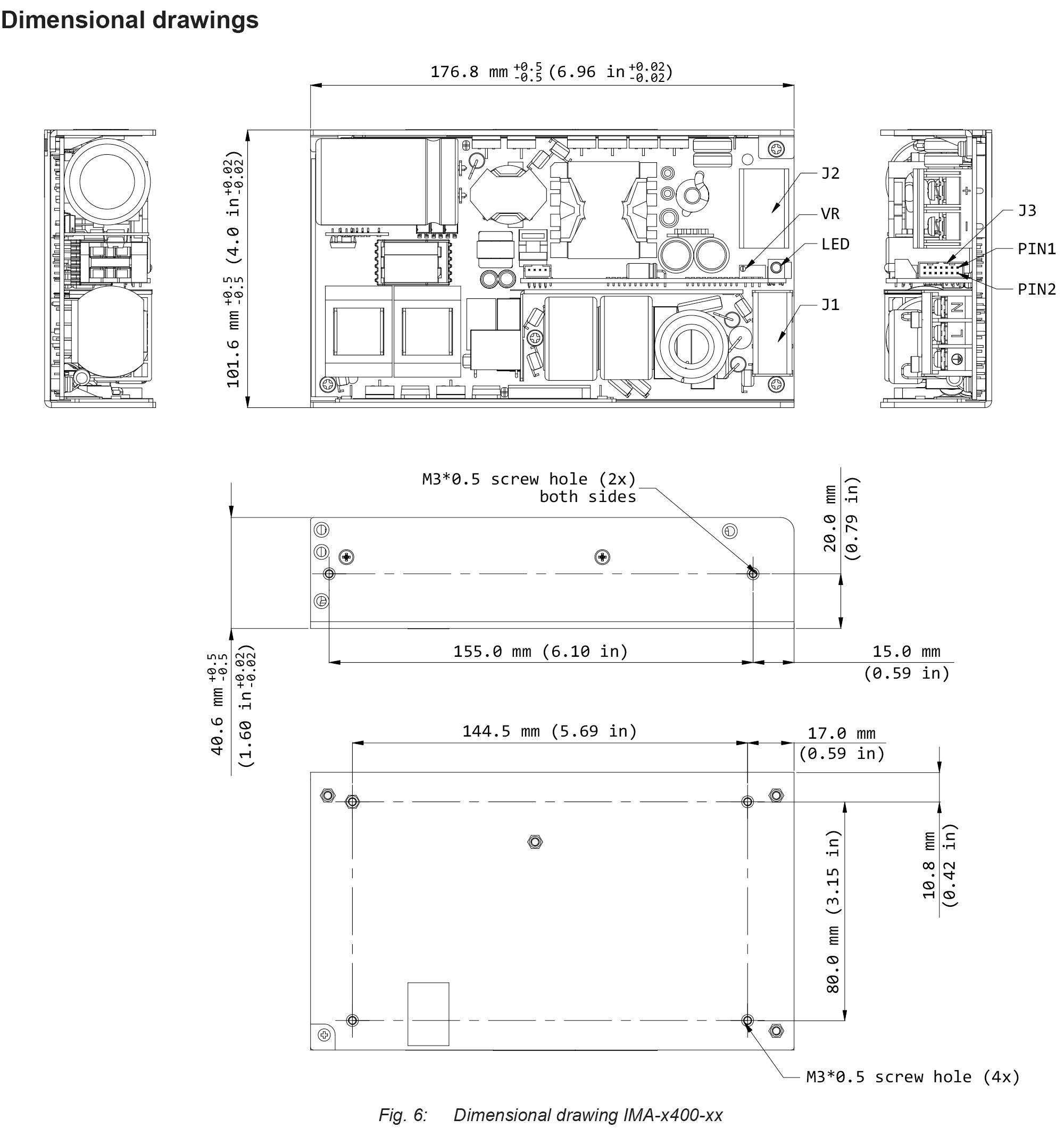

Technical Drawings
