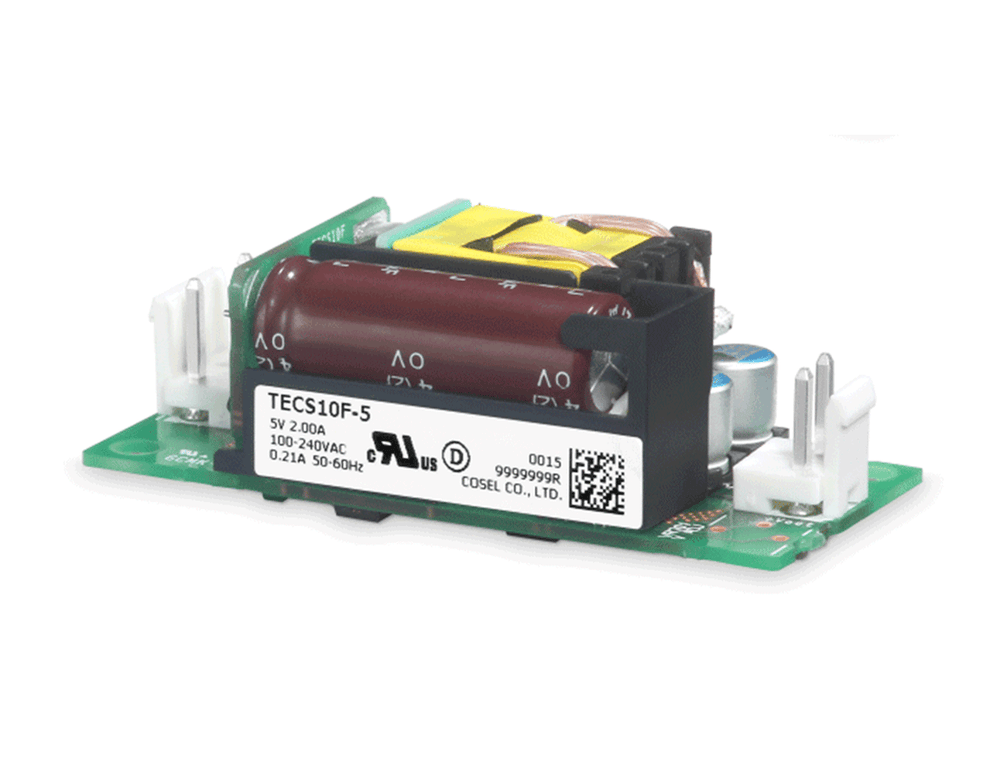

Cosel TECS10F Series Open Frame AC/DC Power Supply
When board space is the constraint, the Cosel TECS10F Series fits where larger supplies can't. It's a compact open-frame AC/DC power supply in a 1" x 2.3" footprint just 1.1mm-PCB thin, delivering up to 10W from a universal 85-264VAC input — one part valid on any mains worldwide. Despite the size, protection is built in: inrush current limiting,...
Read MoreWhen board space is the constraint, the Cosel TECS10F Series fits where larger supplies can't. It's a compact open-frame AC/DC power supply in a 1" x 2.3" footprint just 1.1mm-PCB thin, delivering up to 10W from a universal 85-264VAC input — one part valid on any mains worldwide.
Despite the size, protection is built in: inrush current limiting, overcurrent protection and overvoltage protection are all on board, and the series is Class II rated, so no protective-earth connection is required. A harmonic attenuator brings IEC61000-3-2 compliance, and outputs of 5V, 12V, 15V and 24V cover the common rails.
H-option models add a higher peak-current rating for 12V and 24V outputs — useful for short motor or capacitive surges — while the -Y option adds an output-adjust potentiometer (±10%) and -N adds a protective cover. Manufactured with SMD technology and backed by a 5-year warranty.
Show Lessor send a quick enquiry about this product only
Features
- Universal 85-264VAC input keeps one part number valid worldwide
- Output models in 5V, 12V, 15V and 24V
- Up to 10W in a compact 1" x 2.3" open-frame footprint
- Built-in inrush, overcurrent and overvoltage protection
- Class II rated — no protective earth connection required
- Harmonic attenuator for IEC61000-3-2 compliance
- H-option peak-current and -Y voltage-adjust versions available
Specifications
| QUICK REFERENCE | ||||||
|---|---|---|---|---|---|---|
| Parameter | TECS10F-5 | TECS10F-12 | TECS10F-12-H | TECS10F-15 | TECS10F-24 | TECS10F-24-H |
| Max Output Wattage [W] 2 | 10.0 | 10.2 | 10.2 (15.0) | 10.5 | 10.8 | 10.8 (15.6) |
| DC Output 2 | 5Vdc 2.0A | 12Vdc 0.85A | 12Vdc 0.85A (Peak 1.25A) | 15Vdc 0.7A | 24Vdc 0.45A | 24Vdc 0.45A (Peak 0.65A) |
| 2. Derating is required. ( ) means peak current. There is a possibility that an internal device is damaged when the specification is exceeded. Please contact us about the detail. | ||||||
| INPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | TECS10F-5 | TECS10F-12 | TECS10F-12-H | TECS10F-15 | TECS10F-24 | TECS10F-24-H |
| Input Voltage [Vac] 2 | 85–264, single phase. Refer to derating curves | |||||
| Input Current [A] – ACIN 100V | 0.21typ | |||||
| Input Current [A] – ACIN 230V | 0.12typ | |||||
| Input Frequency [Hz] | 50/60 (45–440) | |||||
| Efficiency [%] – ACIN 100V | 82.5typ | 88.0typ | 88.0typ | 88.0typ | 90.0typ | 90.0typ |
| Efficiency [%] – ACIN 230V | 84.0typ | 88.0typ | 88.0typ | 88.0typ | 90.0typ | 90.0typ |
| Inrush Current [A] – ACIN 100V | 15typ (Io=100%, Ta=25°C at cold start) | |||||
| Inrush Current [A] – ACIN 230V | 35typ (Io=100%, Ta=25°C at cold start) | |||||
| Leakage Current [mA] | 0.1max (ACIN 264V, 60Hz, Io=100%, according to IEC62368-1 and DEN-AN) | |||||
| 2. Derating is required. ( ) means peak current. There is a possibility that an internal device is damaged when the specification is exceeded. Please contact us about the detail. | ||||||
| OUTPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | TECS10F-5 | TECS10F-12 | TECS10F-12-H | TECS10F-15 | TECS10F-24 | TECS10F-24-H |
| Output Voltage [V] | 5 | 12 | 12 | 15 | 24 | 24 |
| Output Current [A] 2 | 2.0 | 0.85 | 0.85 (Peak 1.25) | 0.7 | 0.45 | 0.45 (Peak 0.65) |
| Line Regulation [mV] max 3 | 20 | 48 | 48 | 60 | 96 | 96 |
| Load Regulation [mV] max 3 | 40 | 100 | 100 | 120 | 150 | 150 |
| Ripple [mVp-p] max – -20 to +60°C 4, 5 | 200 | 200 | 200 | 200 | 200 | 200 |
| Ripple Noise [mVp-p] max – -20 to +60°C 4, 5 | 240 | 240 | 240 | 240 | 240 | 240 |
| Temperature Regulation [mV] max – 0 to +60°C 5 | 50 | 120 | 120 | 150 | 240 | 240 |
| Temperature Regulation [mV] max – -20 to +60°C 5 | 60 | 160 | 160 | 200 | 320 | 320 |
| Drift [mV] max 6 | 20 | 48 | 48 | 60 | 96 | 96 |
| Start-up Time [ms] | 80typ (ACIN 100/230V, Io=100%) | |||||
| Hold-up Time [ms] | 15typ (ACIN 100V, Io=100%) / 110typ (ACIN 230V, Io=100%) | |||||
| Output Voltage Adjustment Range [V] 9 | Fixed (Y option is available for adjusting output voltage between ±10%) | |||||
| Output Voltage Setting [V] | 4.90–5.30 | 11.50–12.50 | 11.50–12.50 | 14.50–15.50 | 23.00–25.00 | 23.00–25.00 |
| 2. Derating is required. ( ) means peak current. There is a possibility that an internal device is damaged when the specification is exceeded. Please contact us about the detail. 3. At low load conditions, the burst mode operation will start. To check load regulation, you will need to measure the characteristics at average mode with instruments. 4. This is the value that measured on measuring board with capacitor of 22µF and 0.1µF at 150mm from output terminal. (Refer to Instruction Manual) 5. 5V output product, the maximum temperature of 50°C. 6. Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25°C, with the input voltage held constant at the rated input/output. 9. 5V output product, with an adjustable output voltage range of -5% - +10%. | ||||||
| PROTECTION CIRCUIT AND OTHERS | ||||||
|---|---|---|---|---|---|---|
| Parameter | TECS10F-5 | TECS10F-12 | TECS10F-12-H | TECS10F-15 | TECS10F-24 | TECS10F-24-H |
| Overcurrent Protection | Works over 105% of rating (works over 101% of peak current at option -H) and recovers automatically | |||||
| Overvoltage Protection [V] | 5.75–7.00 | 13.80–16.80 | 13.80–16.80 | 17.25–21.00 | 27.60–33.60 | 27.60–33.60 |
| Operating Indication | Not provided | |||||
| Remote Sensing | Not provided | |||||
| Output Peak Current 1 | Optional (-H): for 12V and 24V models | |||||
| 1. The listed options may affect the published standard specifications. Please contact us for detailed product specifications. | ||||||
| ISOLATION | ||||||
|---|---|---|---|---|---|---|
| Parameter | TECS10F-5 | TECS10F-12 | TECS10F-12-H | TECS10F-15 | TECS10F-24 | TECS10F-24-H |
| Input–Output | AC3,000V 1 minute, cutoff current = 10mA; DC500V 100MΩ min (at room temperature); Class II | |||||
| ENVIRONMENT | ||||||
|---|---|---|---|---|---|---|
| Parameter | TECS10F-5 | TECS10F-12 | TECS10F-12-H | TECS10F-15 | TECS10F-24 | TECS10F-24-H |
| Operating Temperature, Humidity & Altitude 2 | -20 to +85°C, 20–90%RH (non-condensing), altitude 5,000m (16,500 feet) max. Refer to derating curves | |||||
| Storage Temperature, Humidity & Altitude | -40 to +85°C, 20–90%RH (non-condensing), altitude 9,000m (30,000 feet) max | |||||
| Vibration | 10–55Hz, 19.6m/s² (2G), 3 minute period, 60 minutes each along X, Y and Z axis | |||||
| Impact | 196.1m/s² (20G), 11ms, once each X, Y and Z axis | |||||
| 2. Derating is required. ( ) means peak current. There is a possibility that an internal device is damaged when the specification is exceeded. Please contact us about the detail. | ||||||
| SAFETY AND NOISE REGULATIONS | ||||||
|---|---|---|---|---|---|---|
| Parameter | TECS10F-5 | TECS10F-12 | TECS10F-12-H | TECS10F-15 | TECS10F-24 | TECS10F-24-H |
| Agency Approvals | UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1, complies with DEN-AN | |||||
| Conducted Noise 7 | Complies with CISPR11-B, CISPR32-B, EN55011-B, EN55032-B, FCC Part 15-B, FCC Part 18-B, VCCI-B | |||||
| Harmonic Attenuator 8 | Complies with IEC61000-3-2 (Class A). No built-in power factor correction | |||||
| 7. When secondary circuit will be connected to earth, the spec will be changed. (Refer to Instruction Manual 2) 8. Please contact us about another class. When two or more units are operating it may not comply with the IEC61000-3-2. Please contact us for details. | ||||||
| FEATURE CHARACTERISTICS | |
|---|---|
| Parameter | Details |
| Insulation Class | Class II (no protective earth connection required) |
| Built-in Protection | Inrush current limiting, overcurrent protection and overvoltage protection |
| Peak Current Option 1 | Optional (-H): higher peak-current rating for 12V and 24V models |
| Output Voltage Adjustment 9 | Optional (-Y): potentiometer; for 5V models, adjustable -5% to +10% |
| 1. The listed options may affect the published standard specifications. Please contact us for detailed product specifications. 9. 5V output product, with an adjustable output voltage range of -5% - +10%. | |
| GENERAL | |
|---|---|
| Parameter | Details |
| Case Size (W × H × D) | 25.4 × 21.1 × 58.5mm [1.00 × 0.83 × 2.30 inches] |
| Weight 2 | 35g max (with cover: 50g max) |
| Cooling Method 2 | Convection / forced air (requires external fan). Refer to derating curves |
| Warranty | 5 years (refer to Instruction Manual) |
| 2. Derating is required. ( ) means peak current. There is a possibility that an internal device is damaged when the specification is exceeded. Please contact us about the detail. • To meet the specification, do not operate overload condition. • Parallel operation is not possible. • Sound noise may be emitted from the power supply depending on operating conditions. |
|
Selection Table
| Model | Output Voltage | Rated Current | Peak Current (-H option) | Max Output Wattage |
|---|---|---|---|---|
| TECS10F-5 | 5V | 2.0A | — | 10.0W |
| TECS10F-12 | 12V | 0.85A | — | 10.2W |
| TECS10F-12-H | 12V | 0.85A | 1.25A | 10.2 (15.0)W |
| TECS10F-15 | 15V | 0.7A | — | 10.5W |
| TECS10F-24 | 24V | 0.45A | — | 10.8W |
| TECS10F-24-H | 24V | 0.45A | 0.65A | 10.8 (15.6)W |
