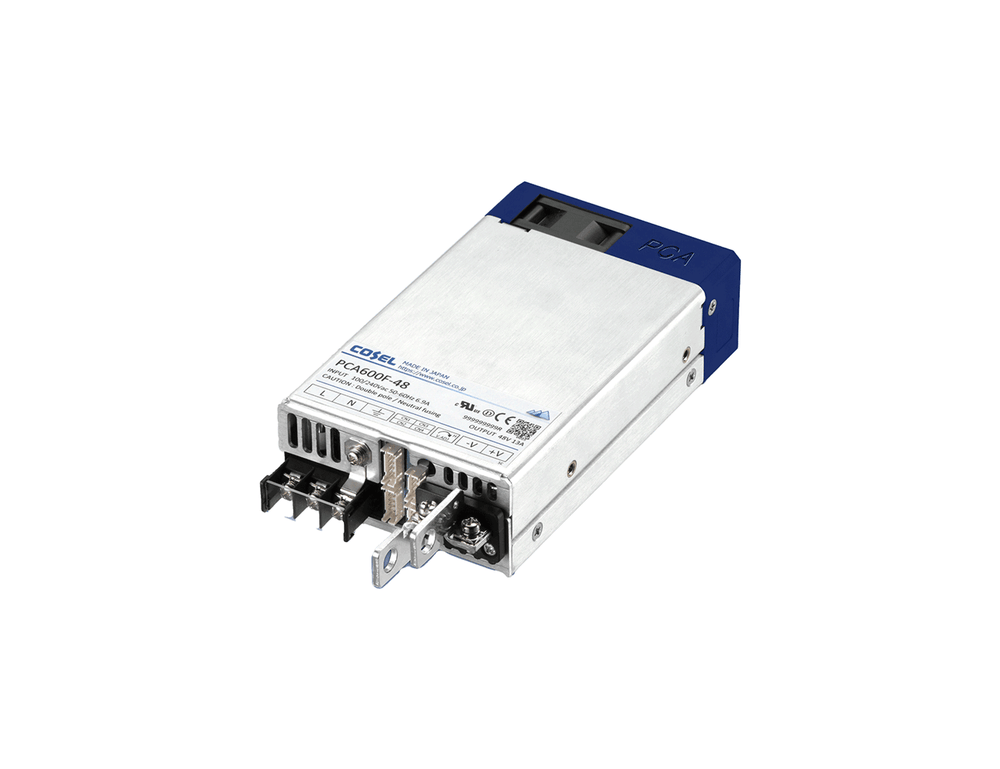

Cosel PCA600F Series Medical AC/DC Power Supply
The Cosel PCA600F answers a common problem: you need more power, but you don't have more rack space. It delivers a full 600W class in the exact same 89×41×152mm case and 0.84kg weight as the 300W PCA300F — doubling the output current without changing your mechanical layout or your 1U footprint.Like its smaller sibling, it carries 2MOPP medical i...
Read MoreThe Cosel PCA600F answers a common problem: you need more power, but you don't have more rack space. It delivers a full 600W class in the exact same 89×41×152mm case and 0.84kg weight as the 300W PCA300F — doubling the output current without changing your mechanical layout or your 1U footprint.
Like its smaller sibling, it carries 2MOPP medical isolation (4,000Vac input-to-output) with ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition approvals, and it accepts both a universal 85–264Vac input and an 88–370Vdc input for battery-backed installations (medical approvals apply to AC operation). Six output models from 5Vdc to 48Vdc scale up to 120A on the 5V unit, and the built-in constant-current function with near-0V adjustment makes it equally at home driving heavy logic rails or acting as a charging source.
Parallel and N+1 redundant operation are standard, supported by remote sensing, remote ON/OFF, DC-OK and alarm LEDs, and an Extended UART interface (optional PMBus). A 12V 0.1A auxiliary output powers supervision circuits, emissions meet EMI Class B, and Cosel backs the series with an up-to-5-year warranty.
or send a quick enquiry about this product only
Features
- Universal 85–264Vac input keeps one part number valid worldwide, with 88–370Vdc input capability
- Six output models from 5Vdc to 48Vdc, adjustable down to near 0V
- Up to 120A output with built-in constant current function
- 2MOPP medical isolation to ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition
- 41mm low-profile enclosed design fits a 1U rack space
- Parallel / N+1 redundant operation with Extended UART monitoring (optional PMBus)
- Optional UL508 approval for industrial control panels
Specifications
| QUICK REFERENCE | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA600F-5 | PCA600F-12 | PCA600F-15 | PCA600F-24 | PCA600F-32 | PCA600F-48 |
| Max Output Wattage [W] | 600 | 636 | 645 | 648 | 640 | 624 |
| DC Output | 5Vdc 120A | 12Vdc 53A | 15Vdc 43A | 24Vdc 27A | 32Vdc 20A | 48Vdc 13A |
| INPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA600F-5 | PCA600F-12 | PCA600F-15 | PCA600F-24 | PCA600F-32 | PCA600F-48 |
| Input Voltage [Vac] | 85–264, single phase (output derating required below 90V — refer to derating curves) | |||||
| Input Voltage [Vdc] | 88–370 (output derating required below 110V; DC input safety agency approvals not applied) | |||||
| Input Current [A] – ACIN 100V | 7.3typ | |||||
| Input Current [A] – ACIN 230V | 3.2typ | |||||
| Input Frequency [Hz] | 50/60 (45–66) | |||||
| Efficiency [%] – ACIN 100V (Io=50%) | 90typ | 91typ | 91typ | 91typ | 91typ | 91typ |
| Efficiency [%] – ACIN 100V (Io=100%) | 89typ | 90typ | 90typ | 91typ | 91typ | 91typ |
| Efficiency [%] – ACIN 230V (Io=50%) | 92typ | 92typ | 92typ | 93typ | 93typ | 93typ |
| Efficiency [%] – ACIN 230V (Io=100%) | 91typ | 92typ | 92typ | 93typ | 93typ | 93typ |
| Power Factor – ACIN 100V (Io=100%) | 0.98typ | |||||
| Power Factor – ACIN 230V (Io=100%) | 0.95typ | |||||
| Inrush Current [A] – ACIN 100V 1 | 20/40typ (Primary / Secondary inrush current, Io=100%. More than 3 sec. to re-start) | |||||
| Inrush Current [A] – ACIN 230V 1 | 40/40typ (Primary / Secondary inrush current, Io=100%. More than 3 sec. to re-start) | |||||
| Leakage Current [mA] | 0.5max (ACIN 240V 60Hz, Io=100%, according to IEC60601-1) | |||||
| 1. The value is primary surge. The current of input surge to a built-in EMI/EMS Filter (0.2ms or less) is excluded. | ||||||
| OUTPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA600F-5 | PCA600F-12 | PCA600F-15 | PCA600F-24 | PCA600F-32 | PCA600F-48 |
| Output Voltage [V] | 5 | 12 | 15 | 24 | 32 | 48 |
| Output Current [A] | 120 | 53 | 43 | 27 | 20 | 13 |
| Line Regulation [mV] max | 20 | 48 | 60 | 96 | 128 | 192 |
| Load Regulation [mV] max | 40 | 100 | 120 | 150 | 150 | 480 |
| Ripple [mVp-p] max – 0 to +50°C 2 3 | 160 | 240 | 240 | 240 | 320 | 480 |
| Ripple [mVp-p] max – -20 to 0°C 2 | 280 | 320 | 320 | 320 | 420 | 640 |
| Ripple Noise [mVp-p] max – 0 to +50°C 2 3 | 240 | 300 | 300 | 300 | 400 | 600 |
| Ripple Noise [mVp-p] max – -20 to 0°C 2 | 320 | 360 | 360 | 360 | 480 | 720 |
| Temperature Regulation [mV] max – 0 to +50°C 3 | 50 | 120 | 150 | 240 | 320 | 480 |
| Temperature Regulation [mV] max – -20 to +50°C 3 | 75 | 180 | 180 | 290 | 400 | 600 |
| Drift [mV] max 4 | 20 | 48 | 60 | 96 | 128 | 192 |
| Start-up Time [ms] | 700typ (ACIN 100/230V, Io=100%) | |||||
| Hold-up Time [ms] | 20typ (ACIN 230V, Io=80%) / 16typ (ACIN 230V, Io=100%) | |||||
| Output Voltage Adjustment Range [V] | 3.00–6.00 | 7.20–14.40 | 9.00–18.00 | 14.40–28.80 | 19.20–38.40 | 28.80–57.60 |
| Output Voltage Setting [V] | 5.00–5.05 | 12.00–12.12 | 15.00–15.15 | 24.00–24.24 | 32.00–32.32 | 48.00–48.48 |
| 2. Measured by 20MHz oscilloscope or Ripple-Noise meter (equivalent to KEISOKUGIKEN:RM103). Please refer to the instruction manual 1.2. 3. 5V output product: the maximum temperature is 40°C. 4. Drift is the change in DC output for an eight hours period after a half-hour warm-up at 25°C. | ||||||
| PROTECTION CIRCUIT AND OTHERS | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA600F-5 | PCA600F-12 | PCA600F-15 | PCA600F-24 | PCA600F-32 | PCA600F-48 |
| Overcurrent Protection | Works over 105% of rating (recovers automatically, hiccup overcurrent) | |||||
| Overvoltage Protection [V] | 6.25–7.00 | 15.00–16.80 | 18.75–21.00 | 30.00–33.60 | 40.00–44.80 | 60.00–67.20 |
| Remote Sensing | Provided | |||||
| Remote ON/OFF (RC) | Provided | |||||
| DC_OK Lamp | LED (Blue) | |||||
| Alarm Lamp | LED (Orange) | |||||
| Communication Function | Provided (Extended UART); PMBus interface optional (-I) | |||||
| ISOLATION | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA600F-5 | PCA600F-12 | PCA600F-15 | PCA600F-24 | PCA600F-32 | PCA600F-48 |
| Input–Output | AC4,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 2MOPP | |||||
| Input–FG | AC2,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 1MOPP | |||||
| Output–FG | AC500V 1 minute, cutoff current = 100mA; DC500V 50MΩ min (at room temperature) | |||||
| Output–Signal (AUX, RC, PG, INFO, DS, ADDR0–ADDR2) | AC500V 1 minute, cutoff current = 100mA; DC500V 50MΩ min (at room temperature) | |||||
| ENVIRONMENT | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA600F-5 | PCA600F-12 | PCA600F-15 | PCA600F-24 | PCA600F-32 | PCA600F-48 |
| Operating Temperature, Humidity & Altitude | -20 to +70°C, 20–90%RH (non-condensing). Refer to derating curves | |||||
| Storage Temperature, Humidity & Altitude | -20 to +75°C, 20–90%RH (non-condensing) | |||||
| Vibration | 10–55Hz, 19.6m/s² (2G), 3 minute period, 60 minutes each along X, Y and Z axis | |||||
| Impact | 196.1m/s² (20G), 11ms, once each X, Y and Z axis | |||||
| SAFETY AND NOISE REGULATIONS | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA600F-5 | PCA600F-12 | PCA600F-15 | PCA600F-24 | PCA600F-32 | PCA600F-48 |
| Agency Approvals | UL62368-1, EN62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), ANSI/AAMI ES60601-1, EN60601-1 3rd, C-UL (equivalent to CAN/CSA-C22.2 No.60601-1), UL508 (Optional), complies with IEC60601-1-2 4th Ed. | |||||
| Conducted Noise | Complies with FCC Part 15 Class B, VCCI-B, CISPR32-B, EN55011-B, EN55032-B | |||||
| Harmonic Attenuator 5 | Complies with IEC61000-3-2 (Class A) | |||||
| 5. Please contact us about another class. • Sound noise may be generated by the power supply in case of pulse load. |
||||||
| FEATURE CHARACTERISTICS | |
|---|---|
| Parameter | Details |
| Constant Current Function | Provided — output voltage adjustable to near 0V (refer to Instruction Manual item 2.6) |
| Auxiliary Output | 12Vdc 0.1A (voltage adjustable range 5–12Vdc) |
| Parallel Operation | Parallel operation / N+1 parallel redundancy operation possible |
| SEMI F47 | Complies (refer to Instruction Manual item 2.1) |
| GENERAL | |
|---|---|
| Parameter | Details |
| Case Size (W × H × D) | 89 × 41 × 152mm [3.50 × 1.61 × 5.98 inches] (without terminal block and screw) |
| Weight | 840g |
| Cooling Method | Forced cooling (internal fan) |
| Warranty | Up to 5 years (refer to Instruction Manual) |
Selection Table
| Model | Output Voltage | Output Current | Max Output Wattage |
|---|---|---|---|
| PCA600F-5 | 5V | 120A | 600W |
| PCA600F-12 | 12V | 53A | 636W |
| PCA600F-15 | 15V | 43A | 645W |
| PCA600F-24 | 24V | 27A | 648W |
| PCA600F-32 | 32V | 20A | 640W |
| PCA600F-48 | 48V | 13A | 624W |
