Cosel PCA300F Series Medical AC/DC Power Supply

Medical power design lives or dies on isolation, and the Cosel PCA300F earns its place with 2MOPP isolation (4,000Vac input-to-output) and full approvals to ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition. It packs that compliance into a 300W-class enclosed supply just 41mm high, so patient-adjacent electronics get certified power in a single 1U s...

What sets the PCA300F apart from larger supplies is input flexibility: alongside the universal 85–264Vac range, it accepts an 88–370Vdc input, so the unit keeps running from a battery backup if the mains drops (the medical safety approvals apply to AC operation). Six output models from 5Vdc to 48Vdc — up to 60A on the 5V unit — cover everything from logic rails to motorised stages, and a built-in constant-current function with adjustment down to near 0V adds real flexibility for charging and test loads.

For uptime-critical systems, parallel and N+1 redundant operation come standard, with remote sensing, remote ON/OFF, DC-OK and alarm LEDs, and an Extended UART interface (optional PMBus) for monitoring and control. A 12V 0.1A auxiliary output feeds supervisory circuits, emissions meet EMI Class B, and the series is backed by an up-to-5-year warranty.

Show Less

Select model number

or send a quick enquiry about this product only

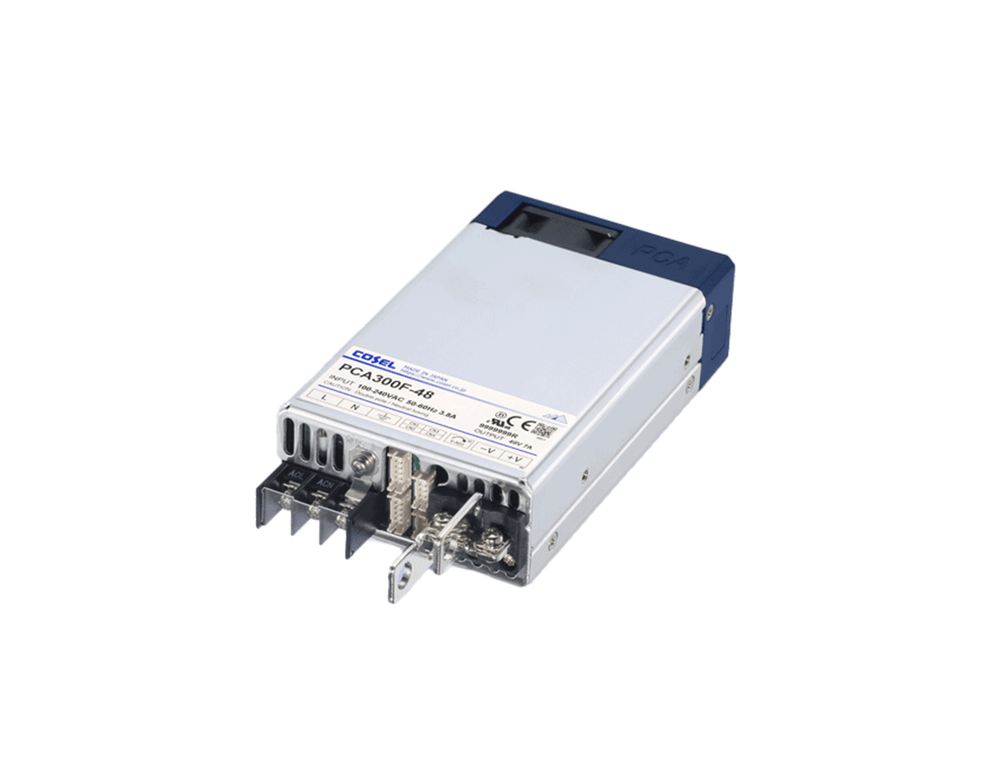

Cosel PCA300F series enclosed AC/DC power supply, 300W medical-grade unit with screw terminal block.

Features

Universal 85–264Vac input keeps one part number valid worldwide, with 88–370Vdc input capability
Six output models from 5Vdc to 48Vdc, adjustable down to near 0V
Up to 60A output with built-in constant current function
2MOPP medical isolation to ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition
41mm low-profile enclosed design fits a 1U rack space
Parallel / N+1 redundant operation with Extended UART monitoring (optional PMBus)
Optional UL508 approval for industrial control panels

Specifications

QUICK REFERENCE
Parameter	PCA300F-5	PCA300F-12	PCA300F-15	PCA300F-24	PCA300F-32	PCA300F-48
Max Output Wattage [W]	300	324	330	336	320	336
DC Output	5Vdc 60A	12Vdc 27A	15Vdc 22A	24Vdc 14A	32Vdc 10A	48Vdc 7A

INPUT CHARACTERISTICS
Parameter	PCA300F-5	PCA300F-12	PCA300F-15	PCA300F-24	PCA300F-32	PCA300F-48
Input Voltage [Vac]	85–264, single phase
Input Voltage [Vdc]	88–370 (DC input possible; DC input safety agency approvals not applied)
Input Current [A] – ACIN 100V	3.8typ
Input Current [A] – ACIN 230V	1.6typ
Input Frequency [Hz]	50/60 (45–66)
Efficiency [%] – ACIN 100V (Io=50%)	86typ	87typ	87typ	88typ	88typ	88typ
Efficiency [%] – ACIN 100V (Io=100%)	87typ	88typ	88typ	89typ	89typ	89typ
Efficiency [%] – ACIN 230V (Io=50%)	87typ	88typ	88typ	89typ	89typ	89typ
Efficiency [%] – ACIN 230V (Io=100%)	89typ	90typ	90typ	91typ	91typ	91typ
Power Factor – ACIN 100V (Io=100%)	0.98typ
Power Factor – ACIN 230V (Io=100%)	0.95typ
Inrush Current [A] – ACIN 100V ¹	20/40typ (Primary / Secondary inrush current, Io=100%. More than 3 sec. to re-start)
Inrush Current [A] – ACIN 230V ¹	40/40typ (Primary / Secondary inrush current, Io=100%. More than 3 sec. to re-start)
Leakage Current [mA]	0.5max (ACIN 240V 60Hz, Io=100%, according to IEC60601-1)
1. The value is primary surge. The current of input surge to a built-in EMI/EMS Filter (0.2ms or less) is excluded.

OUTPUT CHARACTERISTICS
Parameter	PCA300F-5	PCA300F-12	PCA300F-15	PCA300F-24	PCA300F-32	PCA300F-48
Output Voltage [V]	5	12	15	24	32	48
Output Current [A]	60	27	22	14	10	7
Line Regulation [mV] max	20	48	60	96	128	192
Load Regulation [mV] max	40	100	120	150	150	480
Ripple [mVp-p] max – 0 to +50°C ^{2 3}	160	240	240	240	320	480
Ripple [mVp-p] max – -20 to 0°C ²	280	320	320	320	420	640
Ripple Noise [mVp-p] max – 0 to +50°C ^{2 3}	240	300	300	300	400	600
Ripple Noise [mVp-p] max – -20 to 0°C ²	320	360	360	360	480	720
Temperature Regulation [mV] max – 0 to +50°C ³	50	120	150	240	320	480
Temperature Regulation [mV] max – -20 to +50°C ³	75	180	180	290	400	600
Drift [mV] max ⁴	20	48	60	96	128	192
Start-up Time [ms]	700typ (ACIN 100/230V, Io=100%)
Hold-up Time [ms]	20typ (ACIN 230V, Io=80%) / 16typ (ACIN 230V, Io=100%)
Output Voltage Adjustment Range [V]	3.00–6.00	7.20–14.40	9.00–18.00	14.40–28.80	19.20–38.40	28.80–57.60
Output Voltage Setting [V]	5.00–5.05	12.00–12.12	15.00–15.15	24.00–24.24	32.00–32.32	48.00–48.48
2. Measured by 20MHz oscilloscope or Ripple-Noise meter (equivalent to KEISOKUGIKEN:RM103). Please refer to the instruction manual 1.2. 3. 5V output product: the maximum temperature is 40°C. 4. Drift is the change in DC output for an eight hours period after a half-hour warm-up at 25°C.

PROTECTION CIRCUIT AND OTHERS
Parameter	PCA300F-5	PCA300F-12	PCA300F-15	PCA300F-24	PCA300F-32	PCA300F-48
Overcurrent Protection	Works over 105% of rating (recovers automatically, hiccup overcurrent)
Overvoltage Protection [V]	6.25–7.00	15.00–16.80	18.75–21.00	30.00–33.60	40.00–44.80	60.00–67.20
Remote Sensing	Provided
Remote ON/OFF (RC)	Provided
DC_OK Lamp	LED (Blue)
Alarm Lamp	LED (Orange)
Communication Function	Provided (Extended UART); PMBus interface optional (-I)

ISOLATION
Parameter	PCA300F-5	PCA300F-12	PCA300F-15	PCA300F-24	PCA300F-32	PCA300F-48
Input–Output	AC4,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 2MOPP
Input–FG	AC2,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 1MOPP
Output–FG	AC500V 1 minute, cutoff current = 100mA; DC500V 50MΩ min (at room temperature)
Output–Signal (AUX, RC, PG, INFO, DS, ADDR0–ADDR2)	AC500V 1 minute, cutoff current = 100mA; DC500V 50MΩ min (at room temperature)

ENVIRONMENT
Parameter	PCA300F-5	PCA300F-12	PCA300F-15	PCA300F-24	PCA300F-32	PCA300F-48
Operating Temperature, Humidity & Altitude	-20 to +70°C, 20–90%RH (non-condensing). Refer to derating curves
Storage Temperature, Humidity & Altitude	-20 to +75°C, 20–90%RH (non-condensing)
Vibration	10–55Hz, 19.6m/s² (2G), 3 minute period, 60 minutes each along X, Y and Z axis
Impact	196.1m/s² (20G), 11ms, once each X, Y and Z axis

SAFETY AND NOISE REGULATIONS
Parameter	PCA300F-5	PCA300F-12	PCA300F-15	PCA300F-24	PCA300F-32	PCA300F-48
Agency Approvals	UL62368-1, EN62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), ANSI/AAMI ES60601-1, EN60601-1 3rd, C-UL (equivalent to CAN/CSA-C22.2 No.60601-1), UL508 (Optional), complies with IEC60601-1-2 4th Ed.
Conducted Noise	Complies with FCC Part 15 Class B, VCCI-B, CISPR32-B, EN55011-B, EN55032-B
Harmonic Attenuator ⁵	Complies with IEC61000-3-2 (Class A)

FEATURE CHARACTERISTICS
Parameter	Details
Constant Current Function	Provided — output voltage adjustable to near 0V (refer to Instruction Manual item 2.6)
Auxiliary Output	12Vdc 0.1A (voltage adjustable range 5–12Vdc)
Parallel Operation	Parallel operation / N+1 parallel redundancy operation possible
SEMI F47	Complies (refer to Instruction Manual item 2.1)

GENERAL
Parameter	Details
Case Size (W × H × D)	89 × 41 × 152mm [3.50 × 1.61 × 5.98 inches] (without terminal block and screw)
Weight	840g
Cooling Method	Forced cooling (internal fan)
Warranty	Up to 5 years (refer to Instruction Manual)

Selection Table

Model	Output Voltage	Output Current	Max Output Wattage
PCA300F-5	5V	60A	300W
PCA300F-12	12V	27A	324W
PCA300F-15	15V	22A	330W
PCA300F-24	24V	14A	336W
PCA300F-32	32V	10A	320W
PCA300F-48	48V	7A	336W

Downloads

Cosel_PCA300F_Series_Datasheet.pdf

Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
