Cosel PCA1500F Series Medical AC/DC Power Supply

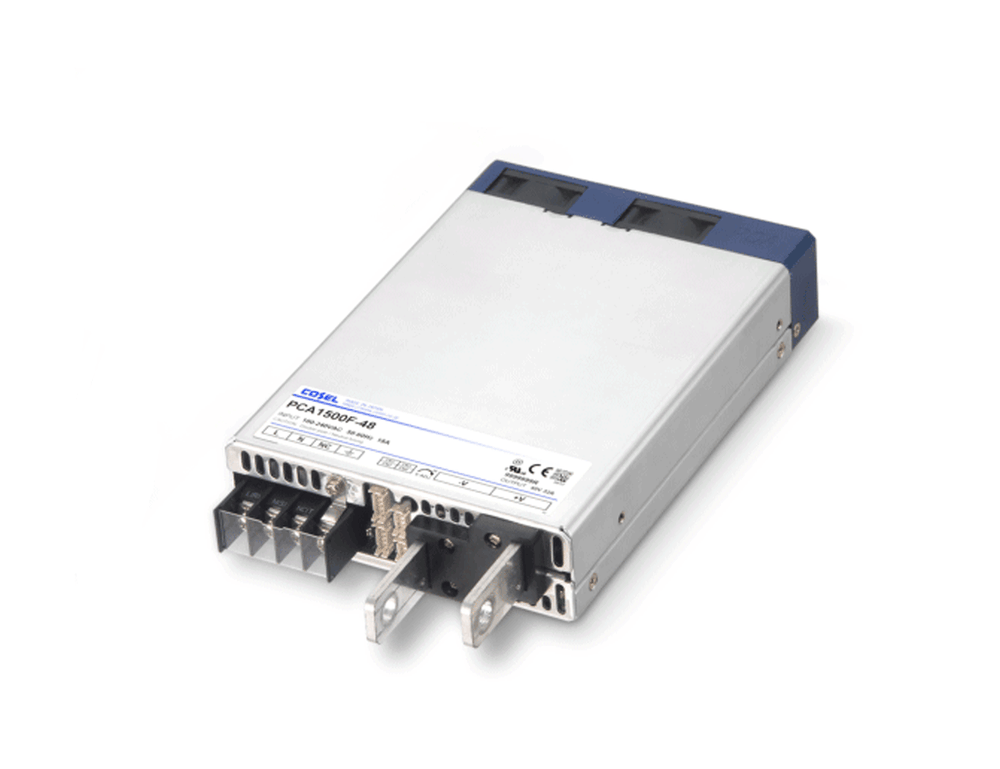

When the load list grows, the Cosel PCA1500F delivers a full 1500W — up to 300A on the 5V model — while still fitting a 41mm 1U rack height. It's the top of the PCA range, built for high-power medical and industrial systems that can't spare the vertical space a supply this capable would normally need, in a 140×41×203mm case weighing 2.0kg.The me...
Read MoreWhen the load list grows, the Cosel PCA1500F delivers a full 1500W — up to 300A on the 5V model — while still fitting a 41mm 1U rack height. It's the top of the PCA range, built for high-power medical and industrial systems that can't spare the vertical space a supply this capable would normally need, in a 140×41×203mm case weighing 2.0kg.
The medical foundation is unchanged: 2MOPP isolation (4,000Vac input-to-output) with ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition approvals, across six output models from 5Vdc to 48Vdc. Because it operates close to its ceiling, output current is rated by line voltage — for example, the 24V model supplies 65A at 100Vac and 70A at 230Vac — so size your installation to the input you'll actually run. The built-in constant-current function and near-0V adjustment handle specialised and charging loads. This model runs from the universal 85–264Vac input only; DC input is not offered on the 1500W unit.
Parallel and N+1 redundant operation are standard, with remote sensing, remote ON/OFF, DC-OK and alarm LEDs, and an Extended UART interface (optional PMBus). A 12V 0.1A auxiliary output feeds supervision circuits, emissions meet EMI Class A for industrial deployment, and Cosel backs the series with an up-to-5-year warranty.
or send a quick enquiry about this product only
Features
- Universal 85–264Vac input keeps one part number valid worldwide
- Six output models from 5Vdc to 48Vdc, adjustable down to near 0V
- Up to 300A output with built-in constant current function
- 2MOPP medical isolation to ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition
- 41mm low-profile enclosed design fits a 1U rack space
- Parallel / N+1 redundant operation with Extended UART monitoring (optional PMBus)
Specifications
| QUICK REFERENCE | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA1500F-5 | PCA1500F-12 | PCA1500F-15 | PCA1500F-24 | PCA1500F-32 | PCA1500F-48 |
| Max Output Wattage [W] | 1500/1500 | 1500/1500 | 1500/1500 | 1560/1680 | 1504/1664 | 1536/1680 |
| DC Output | 5Vdc 300/300A (100V/230V) | 12Vdc 125/125A (100V/230V) | 15Vdc 100/100A (100V/230V) | 24Vdc 65/70A (100V/230V) | 32Vdc 47/52A (100V/230V) | 48Vdc 32/35A (100V/230V) |
| INPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA1500F-5 | PCA1500F-12 | PCA1500F-15 | PCA1500F-24 | PCA1500F-32 | PCA1500F-48 |
| Input Voltage [Vac] | 85–264, single phase (output derating required below 95V — refer to derating curves) | |||||
| Input Current [A] – ACIN 100V | 18typ | |||||
| Input Current [A] – ACIN 230V | 7.8typ / 8.5typ | |||||
| Input Frequency [Hz] | 50/60 (45–66) | |||||
| Efficiency [%] – ACIN 100V (Io=50%) | 90typ | 91typ | 91typ | 91typ | 91typ | 91typ |
| Efficiency [%] – ACIN 100V (Io=100%) | 88typ | 90typ | 90typ | 91typ | 91typ | 91typ |
| Efficiency [%] – ACIN 230V (Io=50%) | 92typ | 92typ | 92typ | 93typ | 93typ | 93typ |
| Efficiency [%] – ACIN 230V (Io=100%) | 91typ | 92typ | 92typ | 93typ | 93typ | 93typ |
| Power Factor – ACIN 100V (Io=100%) | 0.98typ | |||||
| Power Factor – ACIN 230V (Io=100%) | 0.95typ | |||||
| X/td> | 20/40typ (Primary / Secondary inrush current, Io=100%. More than 10 sec. to re-start) | |||||
| Inrush Current [A] – ACIN 230V 1 | 40/40typ (Primary / Secondary inrush current, Io=100%. More than 10 sec. to re-start) | |||||
| Leakage Current [mA] | 0.5max (ACIN 240V 60Hz, Io=100%, according to IEC60601-1) | |||||
| 1. The value is primary surge. The current of input surge to a built-in EMI/EMS Filter (0.2ms or less) is excluded. | ||||||
| OUTPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA1500F-5 | PCA1500F-12 | PCA1500F-15 | PCA1500F-24 | PCA1500F-32 | PCA1500F-48 |
| Output Voltage [V] | 5 | 12 | 15 | 24 | 32 | 48 |
| Output Current [A] (ACIN 100V/230V) | 300/300 | 125/125 | 100/100 | 65/70 | 47/52 | 32/35 |
| Line Regulation [mV] max | 20 | 48 | 60 | 96 | 128 | 192 |
| Load Regulation [mV] max | 40 | 100 | 120 | 150 | 150 | 480 |
| Ripple [mVp-p] max – 0 to +50°C 2 3 | 160 | 240 | 240 | 240 | 320 | 480 |
| Ripple [mVp-p] max – -20 to 0°C 2 | 280 | 320 | 320 | 320 | 420 | 640 |
| Ripple Noise [mVp-p] max – 0 to +50°C 2 3 | 240 | 300 | 300 | 300 | 400 | 600 |
| Ripple Noise [mVp-p] max – -20 to 0°C 2 | 320 | 360 | 360 | 360 | 480 | 720 |
| Temperature Regulation [mV] max – 0 to +50°C 3 | 50 | 120 | 150 | 240 | 320 | 480 |
| Temperature Regulation [mV] max – -20 to +50°C 3 | 75 | 180 | 180 | 290 | 400 | 600 |
| Drift [mV] max 4 | 20 | 48 | 60 | 96 | 128 | 192 |
| Start-up Time [ms] | 700typ (ACIN 100/230V, Io=100%) | |||||
| Hold-up Time [ms] | 20typ (ACIN 230V, Io=80%) / 16typ (ACIN 230V, Io=100%) | |||||
| Output Voltage Adjustment Range [V] | 3.00–6.00 | 7.20–14.40 | 9.00–18.00 | 14.40–28.80 | 19.20–38.40 | 28.80–57.60 |
| Output Voltage Setting [V] | 5.00–5.05 | 12.00–12.12 | 15.00–15.15 | 24.00–24.24 | 32.00–32.32 | 48.00–48.48 |
| 2. Measured by 20MHz oscilloscope or Ripple-Noise meter (equivalent to KEISOKUGIKEN:RM103). Please refer to the instruction manual 1.2. 3. 5V, 12V and 15V output products: the maximum temperature is 40°C. 4. Drift is the change in DC output for an eight hours period after a half-hour warm-up at 25°C. | ||||||
| PROTECTION CIRCUIT AND OTHERS | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA1500F-5 | PCA1500F-12 | PCA1500F-15 | PCA1500F-24 | PCA1500F-32 | PCA1500F-48 |
| Overcurrent Protection | Works over 105% of rating (recovers automatically, hiccup overcurrent) | |||||
| Overvoltage Protection [V] | 6.25–7.00 | 15.00–16.80 | 18.75–21.00 | 30.00–33.60 | 40.00–44.80 | 60.00–67.20 |
| Remote Sensing | Provided | |||||
| Remote ON/OFF (RC) | Provided | |||||
| DC_OK Lamp | LED (Blue) | |||||
| Alarm Lamp | LED (Orange) | |||||
| Communication Function | Provided (Extended UART); PMBus interface optional (-I) | |||||
| ISOLATION | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA1500F-5 | PCA1500F-12 | PCA1500F-15 | PCA1500F-24 | PCA1500F-32 | PCA1500F-48 |
| Input–Output | AC4,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 2MOPP | |||||
| Input–FG | AC2,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 1MOPP | |||||
| Output–FG | AC500V 1 minute, cutoff current = 100mA; DC500V 50MΩ min (at room temperature) | |||||
| Output–Signal (AUX, RC, PG, INFO, DS, ADDR0–ADDR2) | AC500V 1 minute, cutoff current = 100mA; DC500V 50MΩ min (at room temperature) | |||||
| ENVIRONMENT | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA1500F-5 | PCA1500F-12 | PCA1500F-15 | PCA1500F-24 | PCA1500F-32 | PCA1500F-48 |
| Operating Temperature, Humidity & Altitude | -20 to +70°C, 20–90%RH (non-condensing). Refer to derating curves | |||||
| Storage Temperature, Humidity & Altitude | -20 to +75°C, 20–90%RH (non-condensing) | |||||
| Vibration | 10–55Hz, 19.6m/s² (2G), 3 minute period, 60 minutes each along X, Y and Z axis | |||||
| Impact | 196.1m/s² (20G), 11ms, once each X, Y and Z axis | |||||
| SAFETY AND NOISE REGULATIONS | ||||||
|---|---|---|---|---|---|---|
| Parameter | PCA1500F-5 | PCA1500F-12 | PCA1500F-15 | PCA1500F-24 | PCA1500F-32 | PCA1500F-48 |
| Agency Approvals | UL62368-1, EN62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), ANSI/AAMI ES60601-1, EN60601-1 3rd, C-UL (equivalent to CAN/CSA-C22.2 No.60601-1), complies with IEC60601-1-2 4th Ed. | |||||
| Conducted Noise | Complies with FCC Part 15 Class A, VCCI-A, CISPR11-A, CISPR32-A, EN55011-A, EN55032-A | |||||
| Harmonic Attenuator 5 | Complies with IEC61000-3-2 (Class A) | |||||
| 5. Please contact us about another class. • Sound noise may be generated by the power supply in case of pulse load. |
||||||
| FEATURE CHARACTERISTICS | |
|---|---|
| Parameter | Details |
| Constant Current Function | Provided — output voltage adjustable to near 0V (refer to Instruction Manual item 2.6) |
| Auxiliary Output | 12Vdc 0.1A (voltage adjustable range 5–12Vdc) |
| Parallel Operation | Parallel operation / N+1 parallel redundancy operation possible |
| SEMI F47 | Complies (refer to Instruction Manual item 2.1) |
| GENERAL | |
|---|---|
| Parameter | Details |
| Case Size (W × H × D) | 140 × 41 × 203mm [5.52 × 1.61 × 7.99 inches] (without terminal block and screw) |
| Weight | 2.0kg |
| Cooling Method | Forced cooling (internal fan) |
| Warranty | Up to 5 years (refer to Instruction Manual) |
Selection Table
| Model | Output Voltage | Output Current (100V/230V) | Max Output Wattage (100V/230V) |
|---|---|---|---|
| PCA1500F-5 | 5V | 300 / 300A | 1500 / 1500W |
| PCA1500F-12 | 12V | 125 / 125A | 1500 / 1500W |
| PCA1500F-15 | 15V | 100 / 100A | 1500 / 1500W |
| PCA1500F-24 | 24V | 65 / 70A | 1560 / 1680W |
| PCA1500F-32 | 32V | 47 / 52A | 1504 / 1664W |
| PCA1500F-48 | 48V | 32 / 35A | 1536 / 1680W |
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
FAQs
The PCA1500F is a 1500W medical-grade AC/DC power supply from Cosel — the highest-power model in the PCA F-series — certified to IEC 60601-1 for demanding medical equipment.
Safety: UL62368-1, C-UL (CSA62368-1), EN62368-1 (ITE/AV safety); plus ANSI/AAMI ES60601-1 and EN60601-1 3rd edition for medical electrical equipment, with 2×MOPP (Means of Patient Protection) input-to-output isolation. CE and UKCA marking. Optional UL508 (industrial control equipment) approval available. EMC: EN55032 Class A (PCA300F/600F), EN55011 Class A / CISPR32 Class A / FCC Class A (PCA1000F/1500F), with full IEC60601-1-2 and EN61000-4 immunity suite. Cosel provides a 5-year manufacturer's warranty on PCA series products.
Five output voltages: 5Vdc, 12Vdc, 15Vdc, 24Vdc, 32Vdc, and 48Vdc — the same selection as the PCA300F, PCA600F, and PCA1000F. The PCA1500F at 1500W is the highest-power model in the Cosel PCA medical series. An AUX output (12V, 0.1A, adjustable 5–12V) is also included for control logic.
The PCA1500F uses a built-in forced air cooling fan in a low-profile enclosed chassis at 41mm height (1U rack compatible). Operating temperature is -20°C to +70°C. The 1U format makes it suitable for rack-integrated medical and industrial equipment. Contact Powerbox at sales@powerbox.com.au for dimensional drawings.
The PCA1500F (1500W) delivers 50% more power than the PCA1000F (1000W). Specify the PCA1500F for medical equipment with the highest continuous power demands.
High-power medical imaging, surgical equipment, diagnostic systems, and other medical devices requiring a certified internal power supply at 1500W.
