Cosel AME1200F Series Configurable Medical AC/DC Power Supply

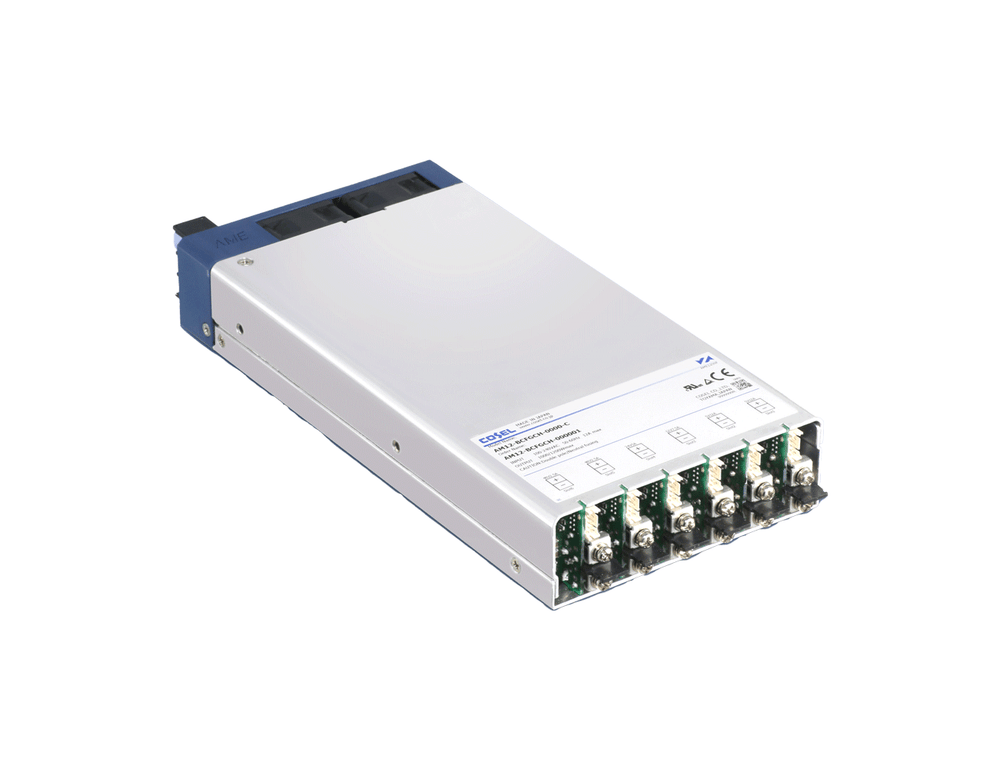

One medical power platform, dozens of output combinations. The Cosel AME1200F Series is a configurable AC/DC power supply that delivers up to 1200W across 6 module slots — mix single, high-current, peak-rated and isolated dual output modules from 3.3VDC to 100VDC, and the factory ships it as one assembled, safety-approved unit. No custom power s...
Read MoreOne medical power platform, dozens of output combinations. The Cosel AME1200F Series is a configurable AC/DC power supply that delivers up to 1200W across 6 module slots — mix single, high-current, peak-rated and isolated dual output modules from 3.3VDC to 100VDC, and the factory ships it as one assembled, safety-approved unit. No custom power supply lead times, no multi-vendor integration risk.
Designed for medical electric equipment, the AME1200F carries 2MOPP input-output isolation with approvals to ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition, plus a universal 85-264VAC input for worldwide deployment. The 41mm-high chassis fits a 1U rack space, with a built-in 5V 1A auxiliary supply, global inhibit, PR alarm and per-module remote ON/OFF and DC_OK indication as standard.
Options extend the platform further: PMBus or Extended UART monitoring with parameter adjustment, output connectors instead of screw terminals, reversed remote logic, low leakage current, conformal coating and a reversed-airflow fan — all covered by Cosel's 5-year warranty.
Show Less
Features
- Universal 85-264VAC input keeps one part number valid worldwide
- Configurable outputs from 3.3VDC to 100VDC across 6 module slots
- Module options to 32A, with peak-rated and isolated dual-output choices
- 2MOPP medical isolation to ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition
- 41mm low-profile 1U chassis with built-in 5V 1A auxiliary output
- Global inhibit, PR alarm and per-module remote ON/OFF as standard
- Optional PMBus or Extended UART monitoring and output connector versions
Specifications
| QUICK REFERENCE | |
|---|---|
| Parameter | AME1200F |
| Total Output Power [W] – ACIN 90–150V 7 | 1000 |
| Total Output Power [W] – ACIN 170–264V 7 | 1200 |
| Number of Output Slots | 6 |
| 7. At the total output power. The value depends on the combination of output modules or load factor. | |
| INPUT CHARACTERISTICS | |
|---|---|
| Parameter | AME1200F |
| Input Voltage [Vac] 2 | 85–264, single phase. Refer to derating curves |
| Input Current [A] – ACIN 100V (at total output power) 7 | 12typ |
| Input Current [A] – ACIN 230V (at total output power) 7 | 6.4typ |
| Input Frequency [Hz] | 50/60 (45–66) |
| Efficiency [%] – ACIN 100V (at total output power) | 88typ |
| Efficiency [%] – ACIN 230V (at total output power) | 91typ |
| Power Factor – ACIN 100V 7 | 0.98typ |
| Power Factor – ACIN 230V 7 | 0.95typ |
| Inrush Current [A] – ACIN 100V 1 | 15/50typ (Primary / Secondary inrush current, Po=100%. More than 3 sec. to re-start) |
| Inrush Current [A] – ACIN 230V 1 | 35/50typ (Primary / Secondary inrush current, Po=100%. More than 3 sec. to re-start) |
| Leakage Current [mA] | 0.30max (ACIN 240V 60Hz, Io=100%, according to IEC60601-1) |
| 1. The current of input surge to a built-in EMI/EMS Filter (0.2ms or less) is excluded. 2. Refer to "Derating". 7. At the total output power. The value depends on the combination of output modules or load factor. |
|
| OUTPUT CHARACTERISTICS | |
|---|---|
| Parameter | AME1200F |
| Start-up Time [ms] | 800typ (ACIN 100V, Po=100%) |
| Hold-up Time [ms] 7 | 20typ (ACIN 230V, Po=80%) / 16typ (ACIN 230V, Po=100%) |
| 7. At the total output power. The value depends on the combination of output modules or load factor. | |
| FUNCTION | |
|---|---|
| Parameter | AME1200F |
| Auxiliary Power (AUX) | 5V 1A (option -A: 12V 0.1A instead) |
| Global Inhibit (GI) | Provided |
| Alarm (PR) | Provided |
| Remote ON/OFF (RC) | Provided per output module |
| DC_OK Indicator | LED (Blue) — chassis and each output module |
| Communication Function | Optional: PMBus interface (-I) or Extended UART interface (-I3). Monitoring and some parameter changes available |
| ISOLATION | |
|---|---|
| Parameter | AME1200F |
| Input–Output | AC4,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 2MOPP |
| Input–FG | AC2,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 1MOPP |
| Output–FG (except modules V, V4, V5) | AC500V 1 minute, cutoff current = 100mA; DC500V 50MΩ min (at room temperature) |
| Output–FG (modules V, V4, V5) | AC1,000V 1 minute, cutoff current = 100mA; DC500V 50MΩ min (at room temperature); 1MOPP |
| Output–RC, LV, AUX, PR, GI 3 | AC500V 1 minute, cutoff current = 100mA; DC500V 50MΩ min (at room temperature). Each output module, V1–V2 (modules P, Q, R only), RC, LV, AUX (incl. GI1), PR and GI (GI2, GIG) are isolated |
| 3. Each output module, V1-V2 (only module P, Q, R), RC, LV, AUX (include GI1), PR and GI (GI2,GIG) are isolated. | |
| ENVIRONMENT | |
|---|---|
| Parameter | AME1200F |
| Operating Temperature, Humidity & Altitude 2 | -20 to +70°C, 20–90%RH (non-condensing). Refer to derating curves |
| Storage Temperature, Humidity & Altitude | -20 to +75°C, 20–90%RH (non-condensing) |
| Vibration | 10–55Hz, 19.6m/s² (2G), 3 minute period, 60 minutes each along X, Y and Z axis |
| Impact | 196.1m/s² (20G), 11ms, once each X, Y and Z axis |
| 2. Refer to "Derating". | |
| SAFETY AND NOISE REGULATIONS | |
|---|---|
| Parameter | AME1200F |
| Agency Approvals | UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1, ANSI/AAMI ES60601-1, C-UL (equivalent to CAN/CSA-C22.2 No.60601-1), EN60601-1 3rd, complies with IEC60601-1-2 4th Ed. |
| Conducted Noise | Complies with FCC-B, VCCI-B, CISPR11-B, CISPR32-B, EN55011-B, EN55032-B |
| Harmonic Attenuator | Complies with IEC61000-3-2 (Class A) |
| GENERAL | |
|---|---|
| Parameter | AME1200F |
| Case Size (W × H × D) 4 | 127 × 41 × 257mm [5.00 × 1.61 × 10.12 inches] (excludes terminal blocks, screws and other projections) |
| Weight | 1.8kg max |
| Cooling Method | Forced cooling (internal fan) |
| Warranty | 5 years (refer to Instruction Manual) |
| 4. Case size contains neither the terminal blocks, screw nor other projections. • The audible noise might be emitted from the power supply at the pulse load. |
|
| OUTPUT MODULE LIBRARY | |
|---|---|
| Parameter | AME1200F |
| Module J | 3.3V, 15.2A, 1 slot(s), 120W single |
| Module A | 5V, 12A, 1 slot(s), 120W single |
| Module K | 7.5V, 12A, 1 slot(s), 120W single |
| Module B | 12V, 8.5A, 1 slot(s), 120W single |
| Module L | 15V, 8A, 1 slot(s), 120W single |
| Module C | 24V, 5A, 1 slot(s), 120W single |
| Module M | 36V, 3.4A, 1 slot(s), 120W single |
| Module D | 48V, 2.5A, 1 slot(s), 120W single |
| Module E4 | 3.3V, 32A, 1 slot(s), 240W single |
| Module E | 5V, 32A, 1 slot(s), 240W single |
| Module S | 7.5V, 24A, 1 slot(s), 240W single |
| Module F4 | 7.5V, 20A, 1 slot(s), 240W single |
| Module F | 12V, 20A, 1 slot(s), 240W single |
| Module T | 15V, 16A, 1 slot(s), 240W single |
| Module G4 | 15V, 10A, peak 15A, 1 slot(s), 240W single |
| Module G | 24V, 10A, peak 15A, 1 slot(s), 240W single |
| Module U | 36V, 6.7A, peak 10A, 1 slot(s), 240W single |
| Module H4 | 36V, 5A, peak 7.5A, 1 slot(s), 240W single |
| Module H | 48V, 5A, peak 7.5A, 1 slot(s), 240W single |
| Module V4 | 65V, 3A, 1 slot(s), 240W single |
| Module V | 75V, 3A, 1 slot(s), 240W single |
| Module V5 | 100V, 2.25A, 1 slot(s), 240W single |
| Module 2C | 24V, 14A, peak 15A, 2 slot(s), 300W single |
| Module 2M | 36V, 9.3A, peak 10A, 2 slot(s), 300W single |
| Module 2D | 48V, 7A, peak 7.5A, 2 slot(s), 300W single |
| Module P | 12 + 12V, 8 + 8A, peak 10 + 10A, 1 slot(s), 150W dual |
| Module Q | 15 + 15V, 7 + 7A, peak 8 + 8A, 1 slot(s), 150W dual |
| Module R | 24 + 24V, 3 + 3A, 1 slot(s), 150W dual |
