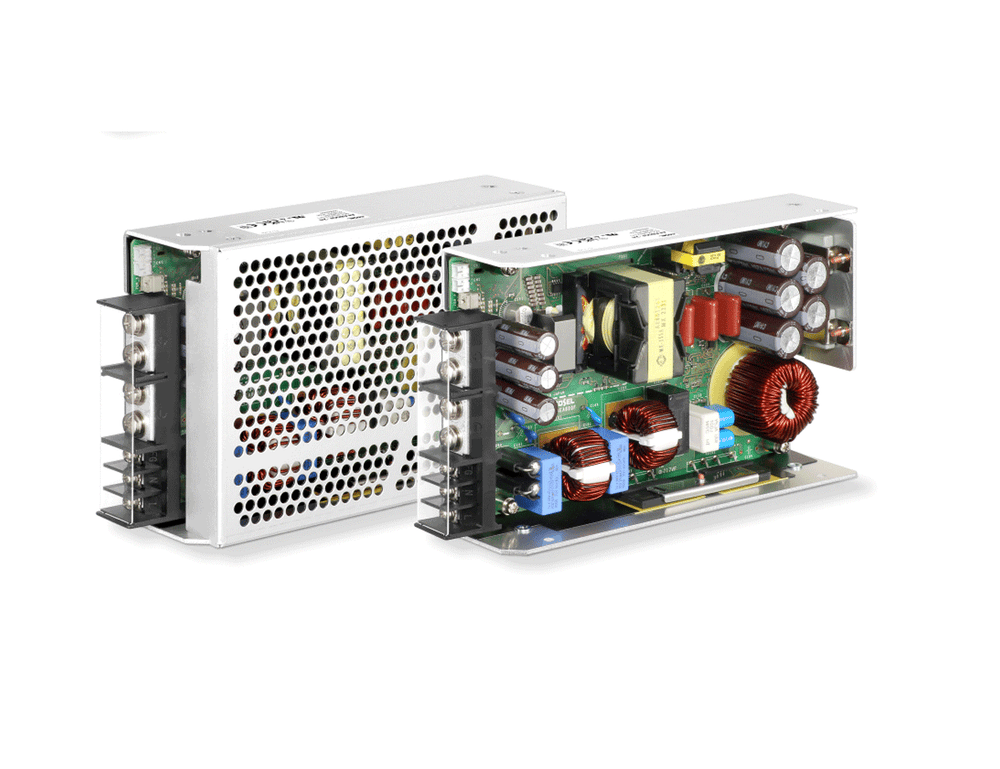

Cosel AEA800F Series Medical AC/DC Power Supply
Medical loads rarely draw steady current — pumps, compressors and motorised stages demand short bursts well above their running load. The Cosel AEA800F Series is built for exactly that: a 800W-class medical AC/DC power supply rated for peak currents more than double its continuous output (up to 72.5A peak), so you can size for the running load i...
Read MoreMedical loads rarely draw steady current — pumps, compressors and motorised stages demand short bursts well above their running load. The Cosel AEA800F Series is built for exactly that: a 800W-class medical AC/DC power supply rated for peak currents more than double its continuous output (up to 72.5A peak), so you can size for the running load instead of the worst-case spike and save cost, space and weight.
Safety credentials match the performance. With 2MOPP input-output and 1MOPP output-FG isolation, the AEA800F is suitable for BF applied-part applications under ANSI/AAMI ES60601-1 and EN60601-1 3rd Edition, with OVC III per EN62477-1 and SEMI F47 compliance for installation flexibility. A universal 85-264VAC input and output models from 24VDC to 48VDC keep one platform valid across global product lines.
Because there is no internal fan, the supply runs silently on convection cooling — ideal for patient-proximate and laboratory environments — or delivers its full forced-air ratings when system airflow is available. Options include alarms (PR/PG), remote ON/OFF, 12V and 5V auxiliary outputs, MODBUS interface, conformal coating and a protective cover, all backed by a 5-year warranty.
Show Less
Features
- Universal 85-264VAC input keeps one part number valid worldwide
- Output models from 24VDC to 48VDC with wide adjustment range
- Up to 34A continuous output with peak ratings to 72.5A for pulse and motor loads
- 2MOPP input-output and 1MOPP output-FG isolation — suitable for BF applied parts
- Silent fanless convection cooling, with higher forced-air ratings available
- OVC III (EN62477-1) and SEMI F47 compliant for flexible installation
- Optional alarms, remote ON/OFF, 12V/5V auxiliary outputs and MODBUS interface
Specifications
| QUICK REFERENCE | ||||
|---|---|---|---|---|
| Parameter | AEA800F-24 | AEA800F-30 | AEA800F-36 | AEA800F-48 |
| Max Output Wattage [W] | 816 | 816 | 817 | 816 |
| DC Output (forced air, ACIN 100V) | 24Vdc 25.5 (Peak 54.3) | 30Vdc 20.4 (Peak 43.5) | 36Vdc 17.0 (Peak 36.3) | 48Vdc 12.7 (Peak 27.2) |
| DC Output (forced air, ACIN 230V) | 24Vdc 34.0 (Peak 72.5) | 30Vdc 27.2 (Peak 58.0) | 36Vdc 22.7 (Peak 48.4) | 48Vdc 17.0 (Peak 36.3) |
| INPUT CHARACTERISTICS | ||||
|---|---|---|---|---|
| Parameter | AEA800F-24 | AEA800F-30 | AEA800F-36 | AEA800F-48 |
| Input Voltage [Vac] | 85–264, single phase (output derating required at 85–170V — refer to derating curves) | |||
| Input Current [A] – ACIN 100V (rated load) | 6.6typ (Io=25.5A) | 6.6typ (Io=20.4A) | 6.6typ (Io=17.0A) | 6.6typ (Io=12.7A) |
| Input Current [A] – ACIN 230V (rated load) | 3.7typ (Io=34.0A) | 3.7typ (Io=27.2A) | 3.7typ (Io=22.7A) | 3.7typ (Io=17.0A) |
| Input Frequency [Hz] | 50/60 (45–66) | |||
| Efficiency [%] – ACIN 100V (rated load) | 92.5typ | 92.5typ | 92.5typ | 92.5typ |
| Efficiency [%] – ACIN 230V (rated load) | 95.0typ | 95.0typ | 95.5typ | 95.5typ |
| Power Factor – ACIN 100V | 0.98typ | |||
| Power Factor – ACIN 230V | 0.95typ | |||
| Inrush Current [A] – ACIN 100V 2 | 20/40typ (Io=25.5A) | 20/40typ (Io=20.4A) | 20/40typ (Io=17.0A) | 20/40typ (Io=12.7A) |
| Inrush Current [A] – ACIN 230V 2 | 40/40typ (Io=34.0A) | 40/40typ (Io=27.2A) | 40/40typ (Io=22.7A) | 40/40typ (Io=17.0A) |
| Leakage Current [mA] | 0.3max (ACIN 240V 60Hz, Io=100%, according to IEC60601-1) | |||
| 2. The current of input surge to a built-in EMI/EMS Filter (0.2ms or less) is excluded. | ||||
| OUTPUT CHARACTERISTICS | ||||
|---|---|---|---|---|
| Parameter | AEA800F-24 | AEA800F-30 | AEA800F-36 | AEA800F-48 |
| Output Voltage [V] | 24 | 30 | 36 | 48 |
| Output Current [A] – ACIN 100V, convection | 17.6 (Peak 54.3) | 14.1 (Peak 43.5) | 11.7 (Peak 36.3) | 8.8 (Peak 27.2) |
| Output Current [A] – ACIN 100V, forced air | 25.5 (Peak 54.3) | 20.4 (Peak 43.5) | 17.0 (Peak 36.3) | 12.7 (Peak 27.2) |
| Output Current [A] – ACIN 230V, convection | 23.5 (Peak 72.5) | 18.8 (Peak 58.0) | 15.7 (Peak 48.4) | 11.8 (Peak 36.3) |
| Output Current [A] – ACIN 230V, forced air | 34.0 (Peak 72.5) | 27.2 (Peak 58.0) | 22.7 (Peak 48.4) | 17.0 (Peak 36.3) |
| Line Regulation [mV] max | 96 | 120 | 144 | 192 |
| Load Regulation [mV] max | 150 | 200 | 240 | 300 |
| Ripple [mVp-p] max – 0 to +50°C 3 | 120 | 200 | 200 | 250 |
| Ripple [mVp-p] max – -20 to 0°C 3 | 230 | 200 | 300 | 300 |
| Ripple Noise [mVp-p] max – 0 to +50°C 3 | 150 | 230 | 230 | 250 |
| Ripple Noise [mVp-p] max – -20 to 0°C 3 | 250 | 300 | 350 | 400 |
| Temperature Regulation [mV] max – 0 to +50°C | 240 | 300 | 360 | 480 |
| Drift [mV] max 4 | 96 | 120 | 144 | 192 |
| Start-up Time [ms] | 550typ (ACIN 100V/230V) / 750typ (ACIN 85V–264V) | |||
| Hold-up Time [ms] | 20typ (ACIN 230V, Io=100%) | |||
| Output Voltage Adjustment Range [V] | 21.6–26.4 | 27.0–33.0 | 32.4–39.6 | 43.2–52.8 |
| Output Voltage Setting [V] | 23.5–24.5 | 29.0–31.0 | 35.0–37.0 | 47.0–49.0 |
| 3. Measured by 20MHz oscilloscope or Ripple-Noise meter (equivalent to KEISOKUGIKEN:RM104). Please refer to the instruction manual 1.8. 4. Drift is the change in DC output for an eight hours period after a half-hour warm-up at 25°C. | ||||
| PROTECTION CIRCUIT AND OTHERS | ||||
|---|---|---|---|---|
| Parameter | AEA800F-24 | AEA800F-30 | AEA800F-36 | AEA800F-48 |
| Overcurrent Protection 5 | Works over 101% of peak current and recovers automatically | |||
| Overvoltage Protection [V] | 30–33.6 | 37.5–42.0 | 45–50.4 | 60–69.6 |
| Alarm | Optional (input voltage alarm: PR, output voltage alarm: PG) | |||
| Remote ON/OFF | Optional | |||
| AUX1 | Optional (12V 1A, forced air) | |||
| AUX2 | Optional (5V 1A, forced air) | |||
| 5. When the overcurrent protection continues, the output may be shut down. | ||||
| ISOLATION | ||||
|---|---|---|---|---|
| Parameter | AEA800F-24 | AEA800F-30 | AEA800F-36 | AEA800F-48 |
| Input–Output (PR, PG, RC, AUX) 6 | AC4,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 2MOPP | |||
| Input–FG | AC2,000V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 1MOPP | |||
| Output (PR, PG, RC, AUX)–FG 6 | AC1,500V 1 minute, cutoff current = 10mA; DC500V 50MΩ min (at room temperature); 1MOPP | |||
| Output–AUX1, PR, PG, RC, AUX2 6 | AC100V 1 minute, cutoff current = 25mA; DC100V 10MΩ min (at room temperature) | |||
| 6. Applicable when AUX and remote control (optional) is added. | ||||
| ENVIRONMENT | ||||
|---|---|---|---|---|
| Parameter | AEA800F-24 | AEA800F-30 | AEA800F-36 | AEA800F-48 |
| Operating Temperature, Humidity & Altitude | -20 to +70°C, 20–90%RH (non-condensing), altitude 5,000m (16,500 feet) max. Refer to derating curves | |||
| Storage Temperature, Humidity & Altitude | -20 to +75°C, 20–90%RH (non-condensing), altitude 9,000m (30,000 feet) max | |||
| Vibration | 10–55Hz, 19.6m/s² (2G), 3 minute period, 60 minutes each along X, Y and Z axis | |||
| Impact | 196.1m/s² (20G), 11ms, once each X, Y and Z axis | |||
| SAFETY AND NOISE REGULATIONS | ||||
|---|---|---|---|---|
| Parameter | AEA800F-24 | AEA800F-30 | AEA800F-36 | AEA800F-48 |
| Agency Approvals | UL62368-1, ANSI/AAMI ES60601-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1, CAN/CSA-C22.2 No.60601-1), EN62368-1, EN60601-1 3rd, EN62477-1 (OVC III), UL508 (Optional), complies with IEC60601-1-2 4th Ed. | |||
| Conducted Noise | Complies with FCC Part 15 Class B, VCCI-B, CISPR32-B, EN55011-B, EN55032-B | |||
| Harmonic Attenuator 7 | Complies with IEC61000-3-2 (Class A) | |||
| 7. Please contact us about another class. • Sound noise may be generated by power supply in case of pulse load. | ||||
| FEATURE CHARACTERISTICS | |
|---|---|
| Parameter | Details |
| Peak Current Capability | Rated for peak currents more than double continuous output (refer to per-model current ratings) |
| Series / Parallel Operation | Series and parallel operation possible |
| Communication Function | MODBUS interface optional (-I4, with subfeatures) |
| SEMI F47 | Complies (refer to Instruction Manual) |
| Overvoltage Category | OVC III according to EN62477-1 |
| GENERAL | |
|---|---|
| Parameter | Details |
| Case Size (W × H × D) | 50 × 127 × 203.2mm [1.97 × 5 × 8 inches] (W × H × D) (without terminal block) |
| Weight | 1.3kg max (with cover: 1.4kg max) |
| Cooling Method | Convection / forced air |
| Warranty | 5 years (refer to Instruction Manual) |
Selection Table
| Model | Output Voltage | Output Current (forced air, ACIN 100V) | Output Current (forced air, ACIN 230V) | Max Output Wattage |
|---|---|---|---|---|
| AEA800F-24 | 24V | 25.5A (Peak 54.3A) | 34.0A (Peak 72.5A) | 816W |
| AEA800F-30 | 30V | 20.4A (Peak 43.5A) | 27.2A (Peak 58.0A) | 816W |
| AEA800F-36 | 36V | 17.0A (Peak 36.3A) | 22.7A (Peak 48.4A) | 817W |
| AEA800F-48 | 48V | 12.7A (Peak 27.2A) | 17.0A (Peak 36.3A) | 816W |
