Chinfa PBDRD SERIES DC/DC Converter

The Chinfa PBDRD Series DC/DC Converter is a compact and reliable solution for industrial and automation applications. Delivering power outputs from 15W to 30W, it ensures efficient and stable performance in demanding environments.

Read More

View Models

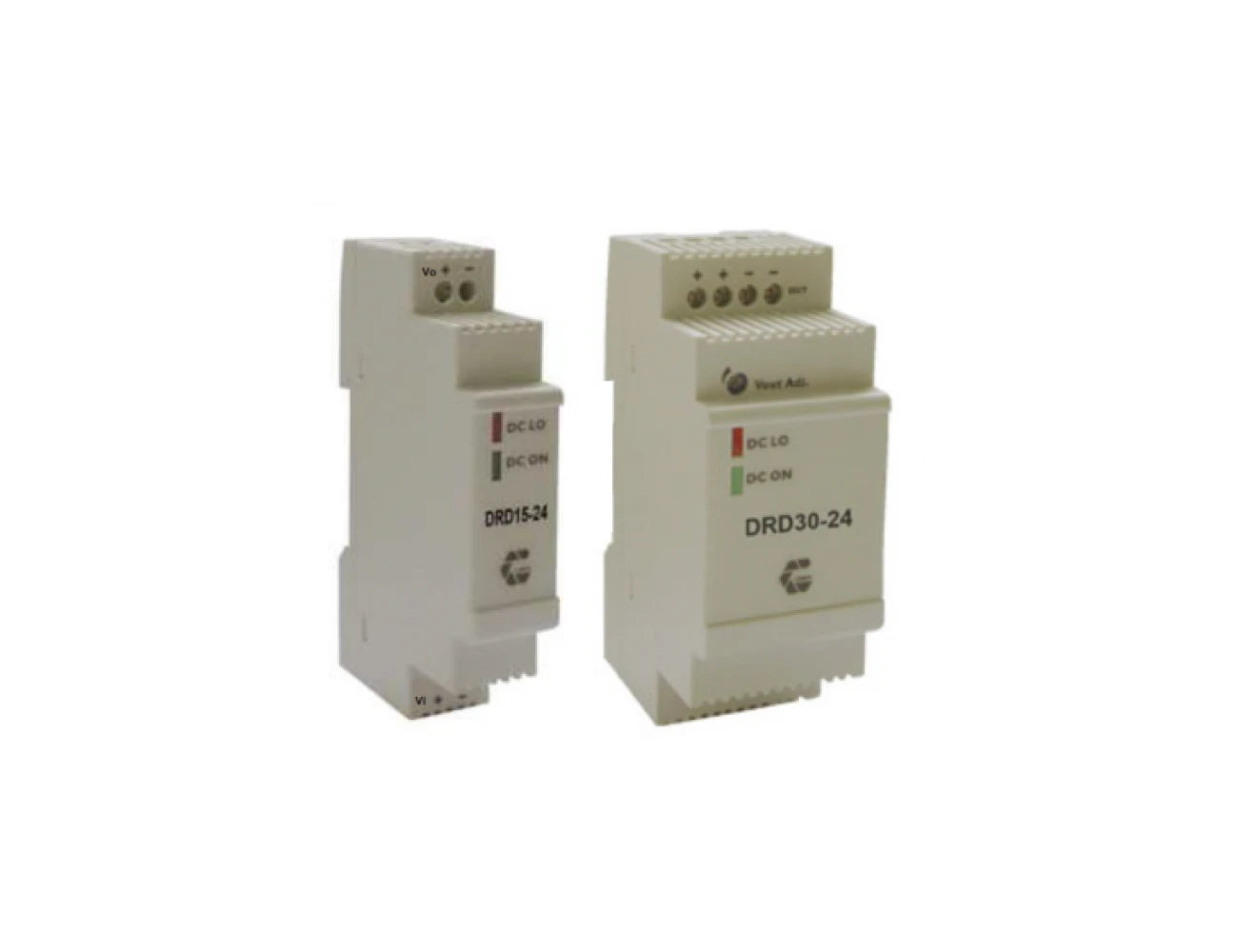

Chinfa PBDRD SERIES DC/DC Converter

Features

  • 15W - 30W DC/DC Converter
  • DIN Rail Mounting
  • 9-36V 4:1 Input Range
  • Short Circuit Protection
  • Internal input filter
  • Low Profile.
Specifications
INPUT
Input voltages 12Vdc, 24Vdc
Input voltage range 9 to 36Vdc (PBDRD15)
10 to 36Vdc (PBDRD30)
OUTPUT
Output Power 15W - 30W
Output Voltage see selection table
Voltage Trim Range +/-10% Vnom
Output voltage accuracy ±1%
Line & Load regulation ±1%
Switching frequency 100 to 200Khz
Startup time 50ms
Transient recovery time 1ms
Ripple &noise 100mV
Efficiency >81% Typical
STANDARDS & APPROVALS
UL/cUL UL508
cTUVus UL60950-1
TUV EN60950-1
CE EN 61000-6-3, EN 55022 Class B
EN 61000-6-2, EN 55024, EN 61000-4-2,
EN 61000-4-3, EN 61000-4-4 EN61000-4-5,
EN 61000-4-6, EN61000-4-8, EN50204, EN 61204-3
Vibration resistance Meet IEC 60068-2-6 (Mounting on rail:10-500 Hz, 2G, along X, Y, Z each Axis, 60 min for each Axis
Shock resistance Meet IEC 60068-2-27 (15G, 11ms, 3Axis, 6 Faces. 3 times for each face)
PROTECTION
Input fuse T3A/63VDC internal
Over voltage protection Yes Auto Recovery
Rated over load protection 110 to 165 %
Internal surge voltage protection IEC 61000-4-5, Varistor
Output short circuit Current limited (Auto-recovery)
Isolation voltage Input-Output 1500Vdc
Isolation resistance Input-Output 100M ohm @500Vdc
Degree of protection IP20
MTBF >689,000hrs
INDICATORS
DC ON Indicator threshold at start up (Green LED)
DC LOW Indicator threshold after start up (Red LED)
Remote ON/OFF Yes
ENVIRONMENTAL
Operating temperature -40 to +71C
Cooling Free Air Convection
Derating Derate from +51 ˚C to +71˚C at 2.5%/C
MECHANICAL
Dimensions/Weight 15W: 91 x 18 x 56.5mm / 65g
30W: 91 x 35 x 56.5mm / 120g
Case material Plastic
Selection Table
MODEL INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT POWER
PBDRD15-03 9-36Vdc 3.3V 3.5A 11.5W
PBDRD15-05 9-36Vdc 5V 2.7A 13.5W
PBDRD30-05 10-36Vdc 5V 4.5A 22.5W
PBDRD15-09 9-36Vdc 9V 1.5A 13.5W
PBDRD30-09 10-36Vdc 9V 2.8A 25W
PBDRD15-12 9-36Vdc 12V 1.25A 15W
PBDRD30-12 10-36Vdc 12V 2.5A 30W
PBDRD15-15 9-36Vdc 15V 1A 15W
PBDRD30-15 10-36Vdc 15V 2A 30W
PBDRD15-24 9-36Vdc 24V 0.63A 15W
PBDRD30-24 10-36Vdc 24V 1.25A 30W

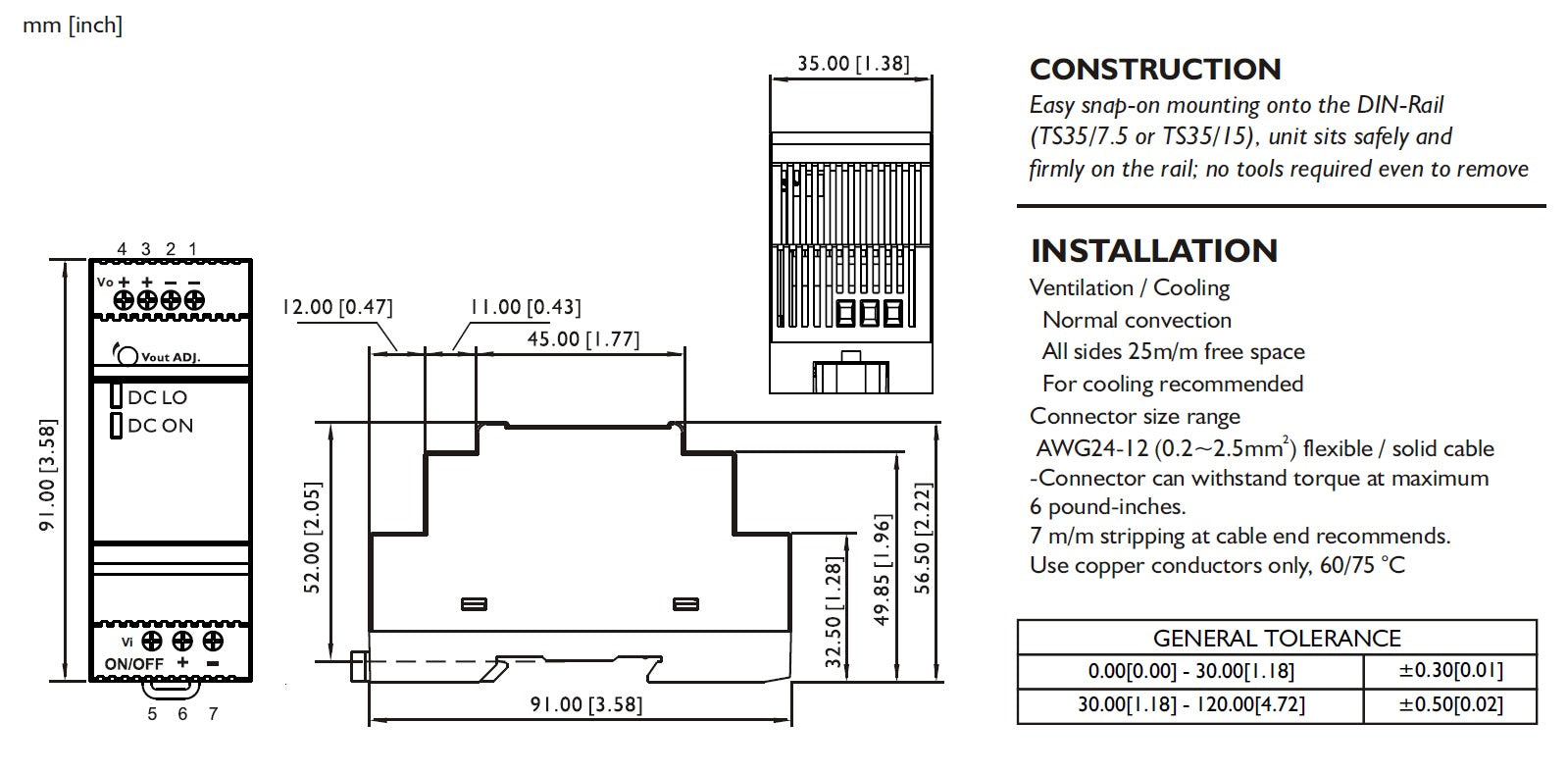

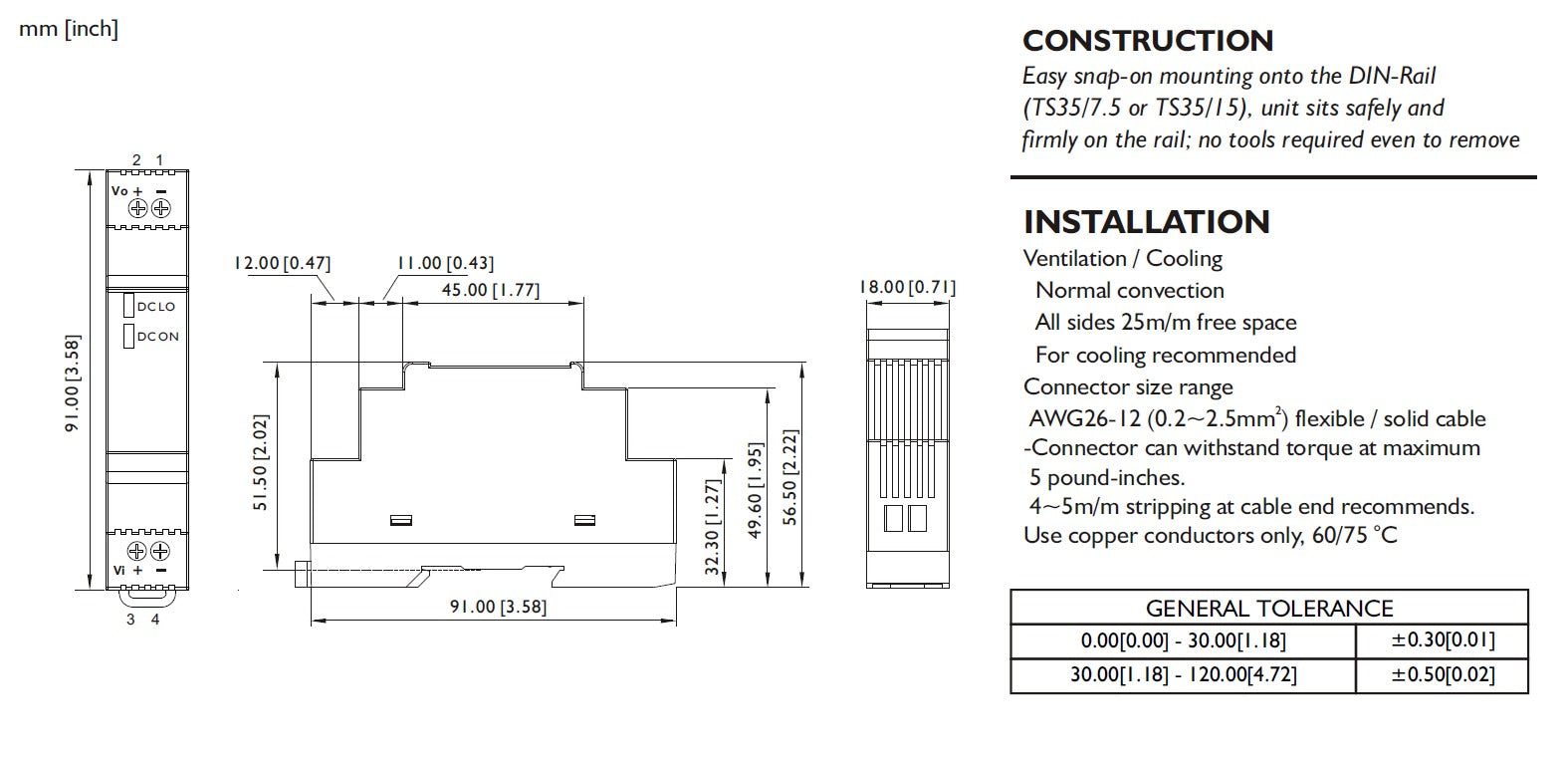

Technical Illustrations
