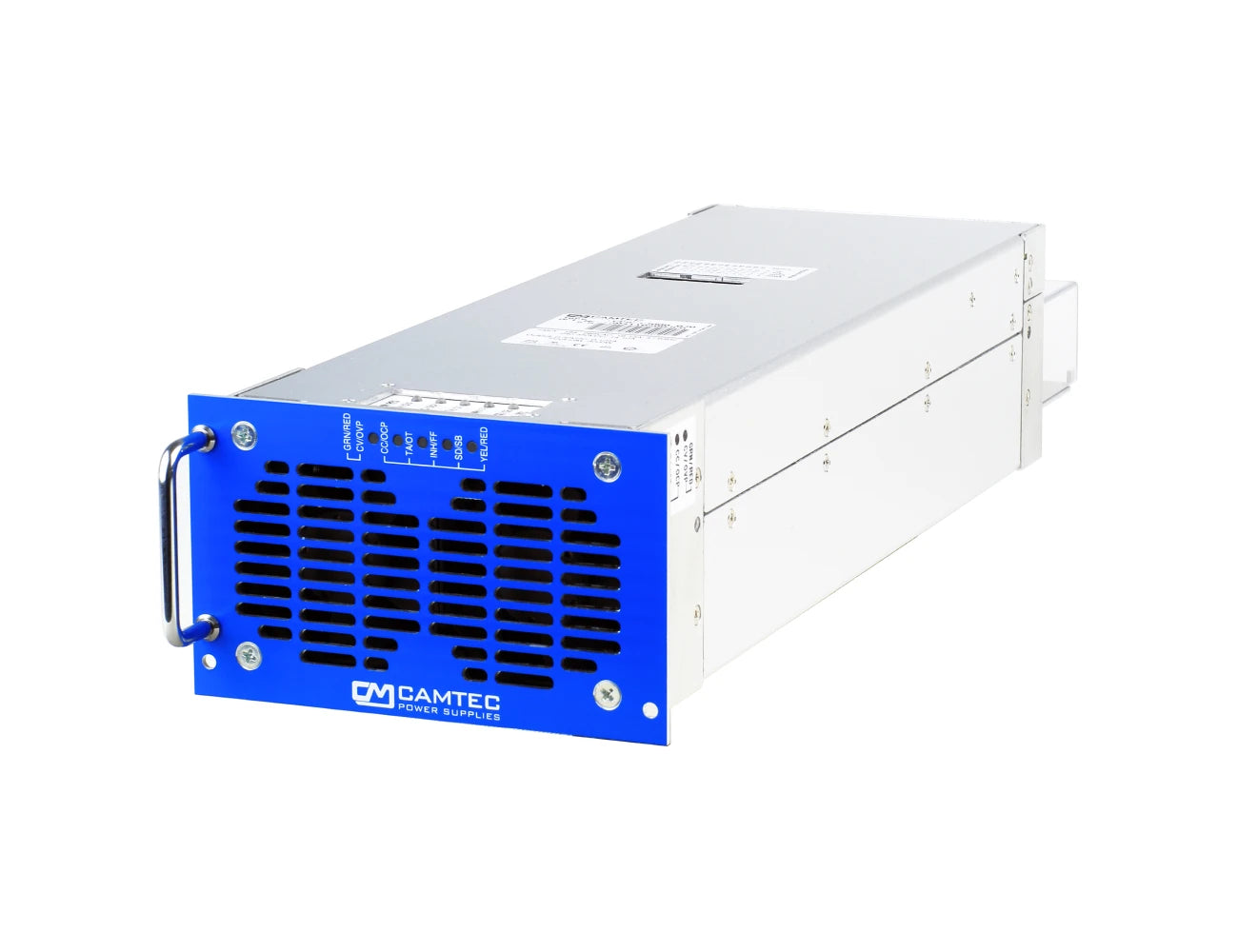

Camtec CPS-EX3000 SERIES AC/DC Power Supply
The Camtec EX3000 Series AC/DC Power Supply is a high-performance, industrial-grade solution, delivering up to 3000W with exceptional efficiency ranging from 92% to 94%. Engineered in Germany, this 19" rack-mountable charger is designed for scalability and reliability in complex systems, making it ideal for applications such as backup power syst...
Read MoreThe Camtec EX3000 Series AC/DC Power Supply is a high-performance, industrial-grade solution, delivering up to 3000W with exceptional efficiency ranging from 92% to 94%. Engineered in Germany, this 19" rack-mountable charger is designed for scalability and reliability in complex systems, making it ideal for applications such as backup power systems, industrial battery charging, and professional DC networks.
Key features include real-time voltage and current programming, precise I/V monitoring, and advanced 3D heat dissipation for optimal cooling in any mounting position. The EX3000 Series supports parallel operation for up to 100kW of scalable power and offers multiple safety features, including overvoltage protection, thermal shutdown with auto-recovery, and a Power Good Relay for DC-ok status. It also features a built-in active PFC with a 0.99 power factor, ensuring minimal energy loss.
Equipped with a robust design and high-end capacitors, the EX3000 Series guarantees a long service life even under extreme conditions. Optional LAN interfaces and plug-and-play configuration make it easy to integrate into digital control environments. Trust the Camtec EX3000 Series for efficient, safe, and reliable battery charging in your most demanding industrial applications.
Show Less
Features
- 3000W Power Supply scalable
- 3D-HD (3D Heat Dissipation)
- Inhibit for safe interlocking
- Remote Shutdown. Sense mode
- Real time & value C/V-monitoring
- Reference voltage f. autonomous programming
- CSB Current Share Bus
- Power Good Relay DC-ok
- PSU can be used as a battery charger due to constant current
- Precise dynamics on load change
- Series & parallel operation up to >100kW
- EMC conducted class B. radiated class A
- Efficiency 92-94%
- PFC Powerfactor 0.99
- Variable controlled fans from Papst
- Long lifetime under hard operation
- Solid 2U and 3U subframes available
Specifications
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 184 – 265Vac |
| Frequency | 47-63Hz |
| DC Input Range | 250 – 350Vdc |
| AC Nominal Voltage | 230Vac <15A |
| DC Nominal Voltage | 250Vdc <14A 350Vdc <10A |
| Auxiliary Voltage | 12Vdc/0,5A accuracy ±0,5V R&N 30mVpp, not influenced from SB, SD, INH operations |
| Continuous Power Pnom | 184 – 265Vac, 2400W for 12-15Vdc, all others 3000W |
| Power Density | 12W / Cubic-Inch |
| Cooling | Continuously controlled and monitored fans from EBM Papst (Germany) |
| Efficiency | typ. 92 - 94% 230Vac at full load |
| Power Factor Control | 0,99 / 230Vac full load |
| Short Circuit Resistance | Yes |
| Open Circuit Protected | Yes |
| Base Load (OCP) | Non required (open circuit protected) |
| Load Regulation | < ± 0,05% 0-100% |
| Load Regulation Time | <1ms on load switch 10-100% |
| Rise Time and Latency | 0V – Voutmax, 15ms over all |
| Accuracy | Ureg: ≤ ± 0,5%, Ireg: ≤ ± 1%, Umon: ≤ ± 0,5%, Imon: ≤ ± 1%, Uref: ≤ ±1% |
| Temperature Control | yes, thermal shutdown & autorecovery (+70°C, outside measuring point distance 10mm) |
| Hold Up Time | >20ms 230Vac mains buffering at full load |
| Inrush Current | <14,6Aeff <20,7Apeak 230Vac active electronic inrush protection (no simple NTC) |
| Startup Delay | typ. 1s |
| Softstart | typ. 100ms |
| RELIABILITY | |
|---|---|
| Isolation Input to Output | 3000Vac |
| Isolation Input to Case | 2500Vac |
| Isolation Output to Case | 500Vdc , ≥60Vdc= 1200Vdc / ≥150Vdc= 2100Vdc |
| MTBF | 419000h (IEC61709) |
| MTTF | 146105h (IEC61709) |
| ROHS | 2011/65/EU conform |
| REACH | EG No. 1907/2006 conform |
| ENVIRONMENTAL | |
|---|---|
| Ambient Temperature | - 20°C…+60°C operating, derating 2,5%/°C >50°C |
| Storage Temperature | - 40°C…+85°C |
| Ambient Conditions | Humidity 95% non-condensing @ 25°C, climate class 3K3, pollution degree 2 |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EN55022 conducted class B, radiated class A |
| Safety | EN60950-1, EN60204-1 |
| Saftey Class I | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 84x126,4x444mm without frontplate, |
| Weight | 4,4kg |
| Input Power Connections | Neutrik NAC3FCA (locked by bajonett) included |
| Output Power Connections | Brass-Powerbars with metric M8 thread, a touch protection is included |
Selection Table
| MODEL | CPS-EX3000.012 | CPS-EX3000.024 | CPS-EX3000.036 | CPS-EX3000.048 |
|---|---|---|---|---|
| DC Vout programmable | 2-15Vdc | 24-30Vdc | 30-45Vdc | 45-58Vdc |
| DC Cout programmable | 100-200A | 62,5-125A | 41,5-83A | 31,2-62,4A |
| Over Voltage OVP | 17Vdc | 35Vdc | 52Vdc | 68Vdc |
| Ripple Noise 230Vac 20MHz | 35mVpp | 35mVpp | 50mVpp | 75mVpp |
| MODEL | CPS-EX3000.072 | CPS-EX3000.110 | CPS-EX3000.220 |
|---|---|---|---|
| DC Vout programmable | 58-90Vdc | 90-150Vdc | 200-300Vdc |
| DC Cout programmable | 20,8-41,6A | 13,6-27,2A | 6,8-13,6A |
| Over Voltage OVP | 105Vdc | 175Vdc | 350Vdc |
| Ripple Noise 230Vac 20MHz | 150mVpp | 300mVpp | 600mVpp |

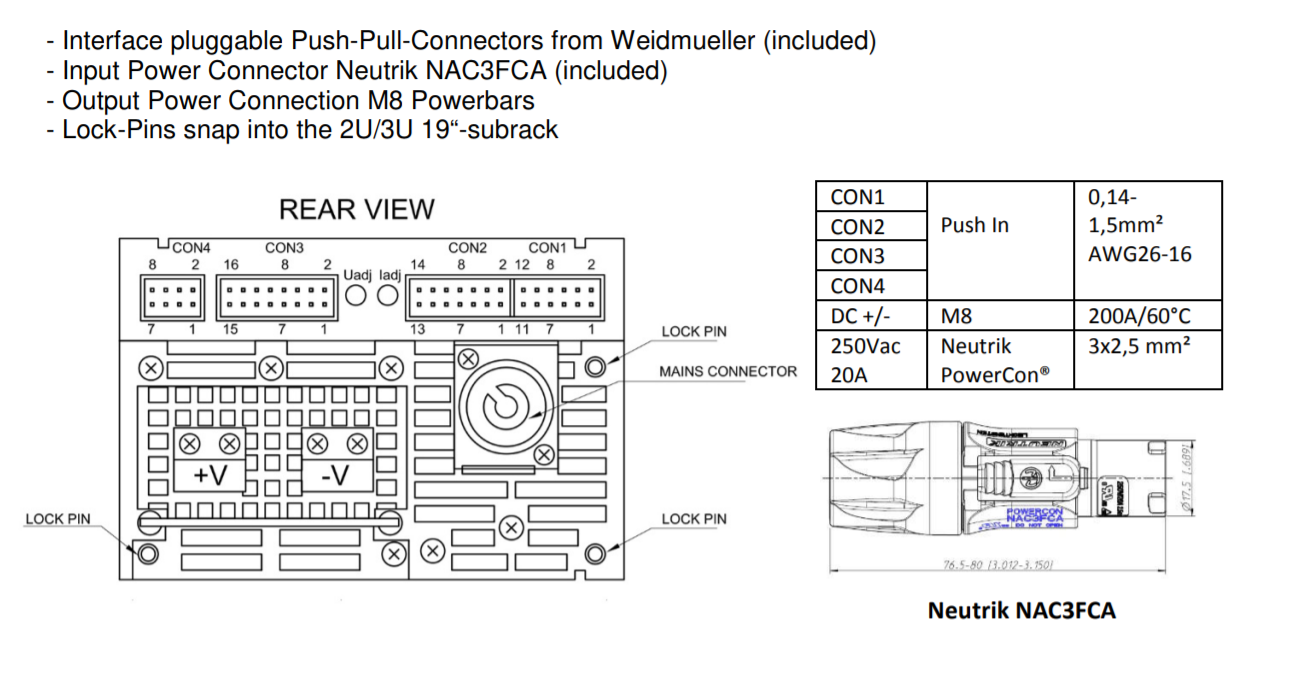

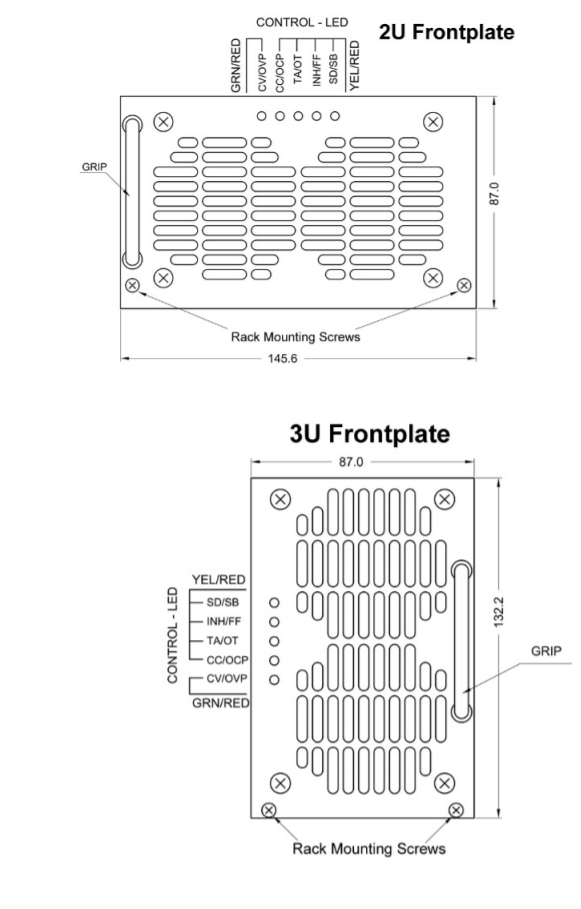

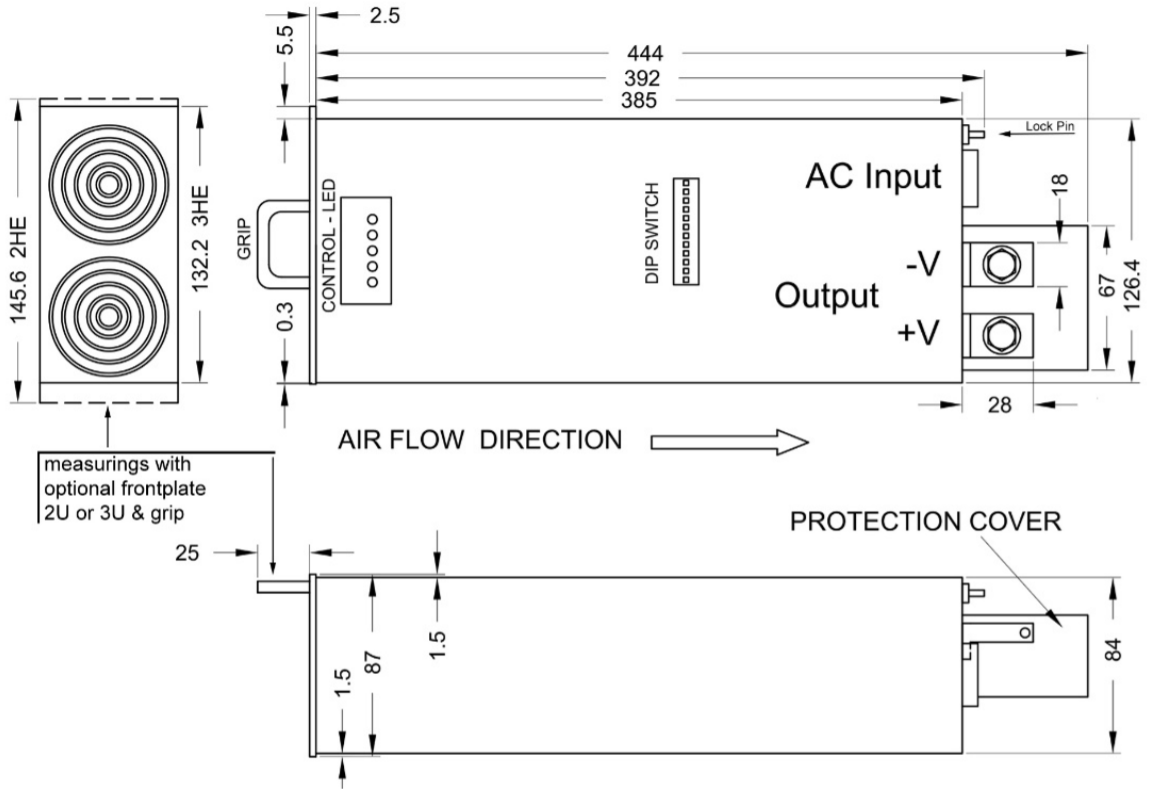

Technical Drawings
