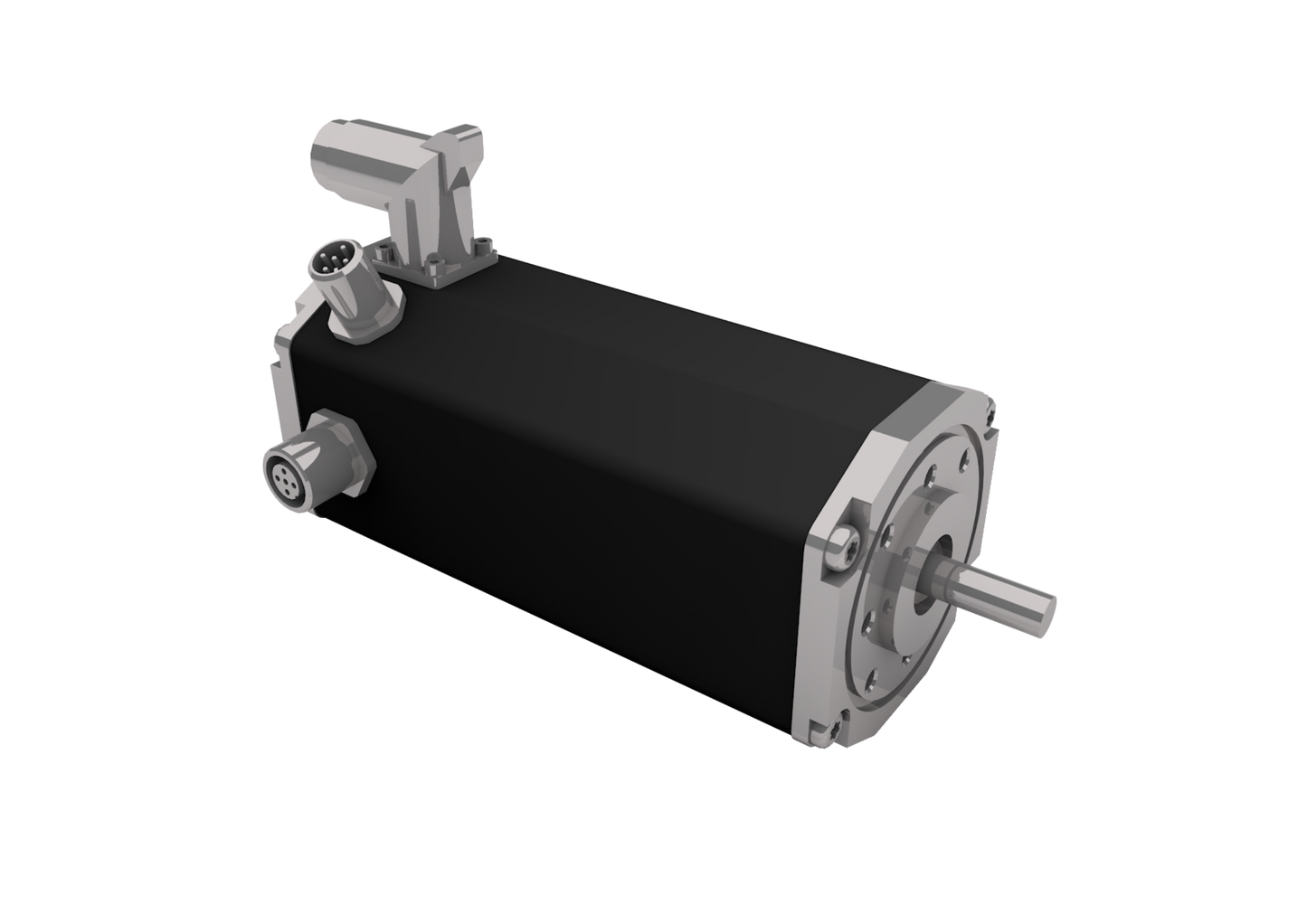

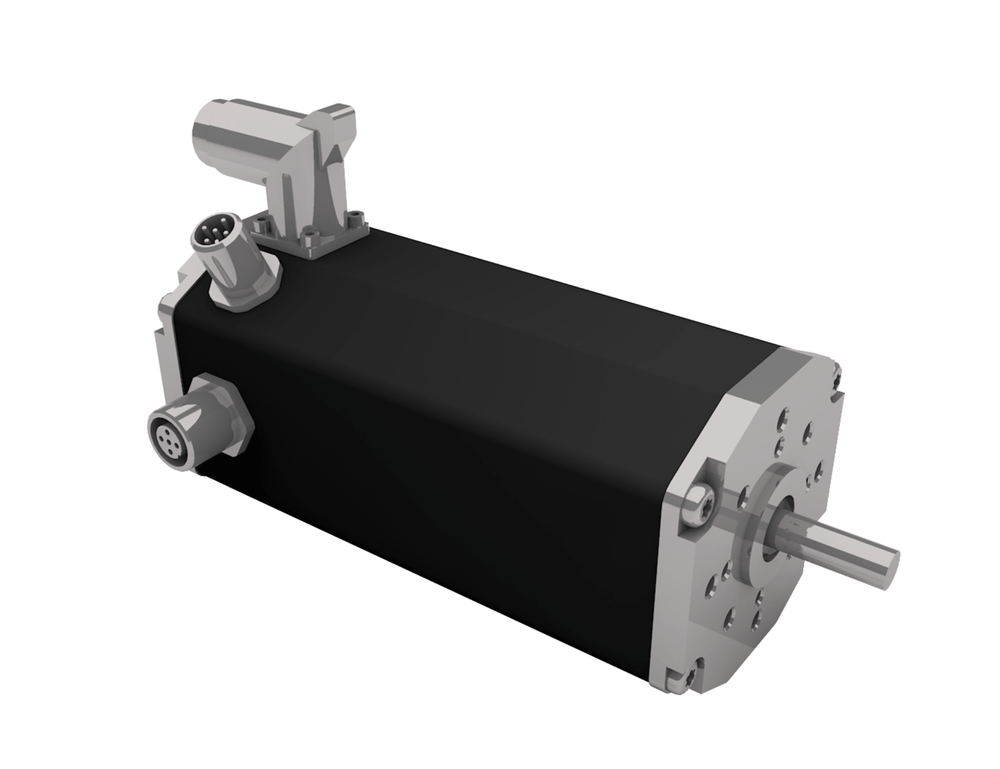

Dunkermotoren BG 66 dMove CO/IO 3-Phase EC Motor
The Dunkermotoren BG 66 dMove CO/IO is a 3-phase EC motor with an integrated 4Q controller, combining the high-torque BG 66 motor frame with intelligent drive electronics. Available in BG 66x25, BG 66x50, and BG 66x75 stack lengths with 12 Vdc, 24 Vdc, and 48 Vdc supply options, the series delivers continuous output power up to 410 W (thermally ...
Read MoreThe Dunkermotoren BG 66 dMove CO/IO is a 3-phase EC motor with an integrated 4Q controller, combining the high-torque BG 66 motor frame with intelligent drive electronics. Available in BG 66x25, BG 66x50, and BG 66x75 stack lengths with 12 Vdc, 24 Vdc, and 48 Vdc supply options, the series delivers continuous output power up to 410 W (thermally connected) and peak output power up to 684 W.
Control is via digital and analogue inputs (IO mode) or CANopen (fully CiA 402 compatible), with individually assignable inputs and outputs and stand-alone operation capability. Speed control, current control, and low-resolution position control are supported. Two CANopen connectors, integrated 30 cpr feedback, brake output, oscilloscope software, Smart Diagnostics, and EPLAN Data Portal support are included. Protection class reaches IP65 for supply voltages above 36 V.
The modular system supports planetary gearboxes (PLG 52 EB/HT, PLG 60, PLG 60 LB, PLG 60 LN, PLG 63 EP/HT, PLG 75 EP/HT, PLG 80 LB), angular gearboxes (SG 80, SG 120, STG 65), hub gearboxes (NG 250), and brakes and encoders (E 90 R, E 100 R, E 105 A, E 310 R, RE 30 TI, AE 38).
Show Less
Features
- 3-phase EC motor with integrated 4Q controller.
- Control via CANopen (fully CiA 402 compatible) or digital/analogue inputs (IO mode).
- Individually assignable inputs and outputs.
- Stand-alone operation capability.
- Speed control, current control, and low-resolution position control.
- Two CANopen connectors.
- Integrated 30 cpr feedback.
- Brake output, oscilloscope software, Smart Diagnostics, and EPLAN Data Portal included.
- Protection class up to IP65 (>36 V supply).
- Hub gearbox NG 250 compatible.
Specifications
| BG 66 dMove CO/IO Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Parameter | Units | BG 66x25 12V |
BG 66x25 24V |
BG 66x25 48V |
BG 66x50 24V |
BG 66x50 48V |
BG 66x75 48V |
| Nominal voltage | VDC | 12 | 24 | 48 | 24 | 48 | 48 |
| Nominal current (thermally connected / insulated) |
A* | 14.0 / 12.84 | 10.1 / 7.1 | 4.9 / 3.6 | 14.0 / 10.0 | 7.4 / 5.0 | 10.0 / 6.9 |
| Nominal torque (thermally connected / insulated) |
Nm* | 0.34 / 0.30 | 0.57 / 0.34 | 0.57 / 0.38 | 0.82 / 0.53 | 0.92 / 0.55 | 1.32 / 0.75 |
| Nominal speed (thermally connected / insulated) |
rpm* | 3680 / 3810 | 3190 / 3820 | 3160 / 3600 | 3100 / 3480 | 2980 / 3440 | 2970 / 3540 |
| Maximum torque | Nm** | 0.82 | 0.98 | 0.98 | 1.9 | 1.94 | 2.88 |
| No load speed | rpm* | 5300 | 5300 | 5090 | 4500 | 4450 | 4470 |
| Nominal output power (thermally connected / insulated) |
W** | 129 / 118 | 190 / 136 | 189 / 143 | 266 / 193 | 286 / 198 | 410 / 278 |
| Maximum output power | W | 218 | 267 | 265 | 433 | 464 | 684 |
| Torque constant | Nm A⁻¹*** | 0.03 | 0.064 | 0.14 | 0.07 | 0.15 | 0.15 |
| Peak current | A** | 28 | 16 | 7.5 | 26 | 12.9 | 18.7 |
| Voltage range (power) | VDC | 3…58 | 3…58 | 3…58 | 3…58 | 3…58 | 3…58 |
| Rotor inertia | gcm² | 70 | 70 | 70 | 129 | 129 | 187 |
| Weight of motor | kg | 1.08 | 1.2 | 1.2 | 1.65 | 1.65 | 2.1 |
|
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point; 1) see thermally connected/insulated note
|
|||||||
