Mobile Energy Solution EFOY ProCube 2030A / 2060A

Features
  • Off Grid Power Supply
  • Methanol Fuel cell battery charger
  • Turnkey energy solution
  • Maintenance free
  • All in one energy solution
  • 100% reliability and operating safety
  • Long autonomy
  • Hybrid compatible
Specification Sheet Make a Sales Enquiry

EFOY ProCube 2030A / 2060A

Product Overview

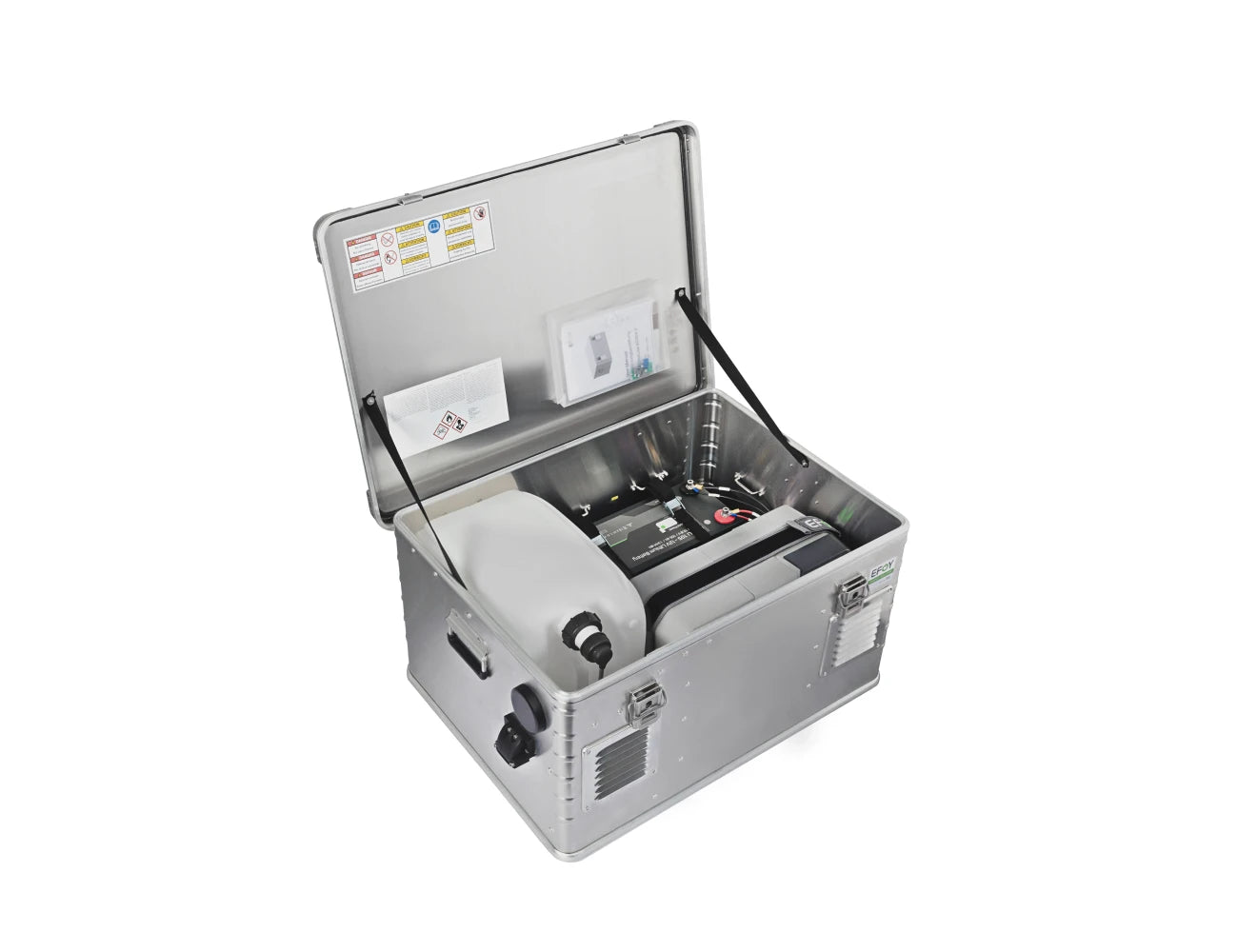

EFOY ProCube  Turnkey mobile off-grid power solution

The EFOY ProCube:   Is a turnkey mobile and maintenance-free and off-grid power supply solution, which is ready for use anywhere and anytime. No modification or integration work required.

You can adjust the EFOY ProCube according to your needs by integrating the right EFOY Pro fuel cell, battery and fuel cartridge. Suitable for outdoor applications and easy to conceal.  Hybrid compatible, eg as a backup or extension for solar energy systems.

Specifications

EFOY ProCube 2030A
Nominal Voltage 12V / 24V

Temperature range

-20°C to 50°C
Housing

Zarges aluminium-housing

including handle bar
Coating

Powder coated

grey [RAL 9007]
IP code IP33
Dimensions

800 x 600 x 410mm (LxWxH)
Weight

15kg (empty)
CONFIGURATION POSSIBILITIES

Compatible EFOY

Pro Fuel Cells

 EFOY Pro 800 / 2400

Compatible EFOY

Fuel Cartridges

M10 and M28

(M28 adapter required)

Compatible batteries

Lead Gel, Lead Acid

AGM, LiFePO4

Max battery dimensions

355 x 175 x 210mm, (LxWxH)
SOLAR CHARGE CONTROLLER

Discharge current

Constant at 12V / 24V

 6.7A / 3.3A

Load current

Max at 12V / 24V

 10A / 10A

Load current

Max at 12V / 24V

 10A / 10A
FUEL CELLS

Weight

EFOY Pro 800: 8.0kg

EFOY Pro 2400: 9.0kg

Dimensions

433 x 188 x 278mm, (LxWxH)

Inclination along

the roll axis

Permananent max 35°

Temporary (<10min) max 45°

Inclination along

the lateral axis

Permananent max 20°

Fuel Cartridges

M10 and M28

See selection table
EFOY PROCUBE ACCESSORIES

GSM Modem

Yes

Fuel Cartridge Sensor FS1

yes

M28 Adapter

yes
DELIVERY CONTENT
*

EFOY Pro fuel cell
*

Solar charge controller Steca Solsum 10.10F for hybrid system with battery deep discharge
*

Air supply and wast heat duct, additional termperature-controlled ventilator and frost proof outlet for exhaust hose
*

Charging cable for the connection to the battery
*

Fixture for EFOY Pro, fuel cartridge and battery
*

Opening for external connectors
*

User manual
*

Operation panel OP2 with data cable

Selection Table

Article No.

Product Name

Nominal voltage

Product information


153 002 004 EFOY ProCube 2030A 12 V DC

Temperature range: -20 °C to +50 °C

Max. fuel capacity: 1 x M28 / 30 kWh

Solar charge current*: 10 A

IP-class: IP 33

Dimensions (Lx W x H): 800 x 600 x 410 mm


153 002 015 EFOY ProCube 2030A 24 V DC

Temperature range: -20 °C to +50 °C

Max. fuel capacity: 1 x M28 / 30 kWh

Solar charge current*: 10 A

IP-class: IP 33

Dimensions (Lx W x H): 800 x 600 x 410 mm


153 002 017 EFOY ProCube 2060A 12 V DC / 24 V DC

Temperature range: -20 °C to +50 °C

Max. fuel capacity: 2 x M28 / 60 kWh

Solar charge current*: 10 A

IP-class: IP 33

Dimensions (Lx W x H): 937 x 787 x 480 mm


FUEL CARTRIDGES

M10

M28




Volume 10L 28L
Weight 8.4kg 22kg
Nominal Capacity 11.1kwh 31.1kwh
Dimensions LxWxH 230 x 193 x 318mm

370 x 285 x 485

with M28 Adapater
