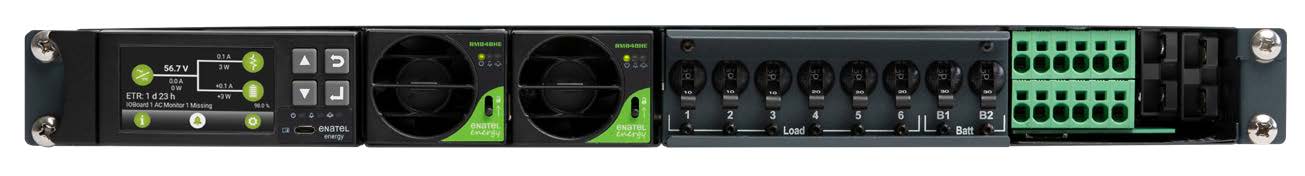

Enatel Energy MicroCompact DC Power System
The Enatel Energy MicroCompact DC Power System delivers high performance in a compact 1U footprint, offering power outputs from 1.72kW to 2.58kW and output currents up to 53.7A. Designed for space-sensitive telecommunications environments, it’s an ideal solution for applications such as access nodes, DAS networks, and micro/pico base stations. With true front-access DC outputs and a convenient pull-out controller tray, the MicroCompact system is engineered for fast, tidy installation and simplified alarm cabling.
Read More
Features
- Ultra-Compact 1U Design: Maximises rack space while delivering up to 2.58kW of DC power.
- Industry-Leading Power Density: Delivers up to 2.58kW from a 1U footprint—ideal for high-efficiency telecom and network applications.
- Modular Telecom-Grade Rectifiers: Hot-swappable RM848HE rectifiers ensure flexibility, serviceability, and performance.
- Front Access for Installation & Maintenance: 19" / 515 mm ETSI design with full front access simplifies setup and ongoing service.
- Remote Monitoring Capability: Full system visibility via Enatel’s Smart Controller enables alarms, diagnostics, and remote access.
- Customisable Configurations: Easily tailored to specific site requirements with flexible options for DC outputs, monitoring, and system layout.
| ELECTRICAL | |
|---|---|
| AC Input | Single Phase - refer to RM848HE |
| Termination | 2.5mm² 3core cable |
| Nominal Voltage | 48Vdc |
| Maximum Output Power |
PSX12: 1.72kW PSX13: 2.58kW |
| Polarity | Positive Earth |
| DC Distribution |
PSX12: 6 x Load CBs (6-30A) + 2 x Battery CBs (30A) PSX13: 4 x Load CBs (6-30A) + 2 x Battery CBs (30A) |
| Breaker Fail Detection | Electronic Fail Detection |
| DC Terminals |
Load: 6mm² push-in spring cage Battery: 50A power-pole plug-in connectors |
| LVD |
80A magnetically latching battery LVD |
| CONFIGURATION OPTIONS | |
|---|---|
| Rectifiers | RM848HE: 860W modular rectifier, 230V AC input, 48V DC output, 17.9A maximum output current |
| Energy Manager | EM4x: Advanced controller with phase balancing, peak shaving, lithium battery management, enhanced logic input and reporting. |
| ARBP-OM: | Metal rectifier blanking panel |
| COMPLIANCES | |
|---|---|
| Safety | EN 62368-1 |
| Other | CE & RoHS Compliant |
| MECHANICAL | |
|---|---|
| Dimensions |
Width: 482.6 mm [19" mount] Height: 44.45 mm [1U] Depth: 285.0mm |
| Weight | 5KG (excluding Rectifier Modules) |
| ELECTRICAL | |
|---|---|
| AC Input | Single Phase - refer to RM848HE |
| Termination | 2.5mm² 3core cable |
| Nominal Voltage | 48Vdc |
| Maximum Output Power |
PSX12: 1.72kW PSX13: 2.58kW |
| Polarity | Positive Earth |
| DC Distribution |
PSX12: 6 x Load CBs (6-30A) + 2 x Battery CBs (30A) PSX13: 4 x Load CBs (6-30A) + 2 x Battery CBs (30A) |
| Breaker Fail Detection | Electronic Fail Detection |
| DC Terminals |
Load: 6mm² push-in spring cage Battery: 50A power-pole plug-in connectors |
| LVD |
80A magnetically latching battery LVD |
| CONFIGURATION OPTIONS | |
|---|---|
| Rectifiers | RM848HE: 860W modular rectifier, 230V AC input, 48V DC output, 17.9A maximum output current |
| Energy Manager | EM4x: Advanced controller with phase balancing, peak shaving, lithium battery management, enhanced logic input and reporting. |
| ARBP-OM: | Metal rectifier blanking panel |
| COMPLIANCES | |
|---|---|
| Safety | EN 62368-1 |
| Other | CE & RoHS Compliant |
| MECHANICAL | |
|---|---|
| Dimensions |
Width: 482.6 mm [19" mount] Height: 44.45 mm [1U] Depth: 285.0mm |
| Weight | 5KG (excluding Rectifier Modules) |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Max. Output Power (W / kW) | ||
|---|---|---|---|---|---|
|
PSX12E1-EM4X-PB1-XX | 230Vac | 48Vdc | 1.72kW | |
|
|
PSX13E1-EM4X-PB1-XX | 230Vac | 48Vdc | 2.58kW |
