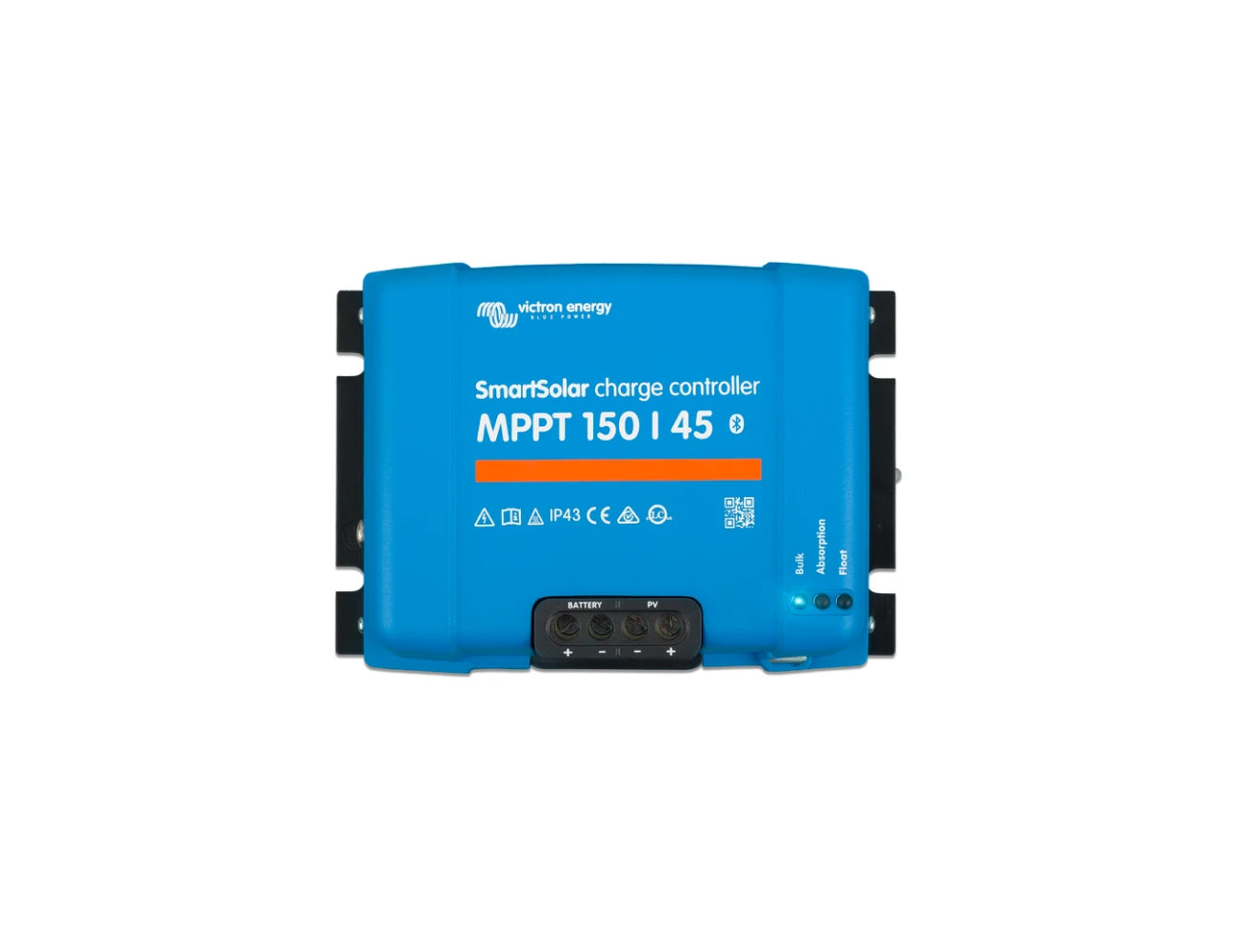

Victron SMARTSOLAR MPPT 150/45 UP TO 150/100 Solar Charge Controller
The Victron SmartSolar MPPT 150/45 to 150/100 Solar Charge Controllers are high-performance energy management solutions designed for off-grid and hybrid solar systems. Supporting 12V, 24V, and 48V battery systems, these controllers offer unmatched reliability and efficiency for residential, commercial, and industrial solar installations.
Read More
Features
- 45A to 100A Solar charge controller
- 12V~48Vdc Autoselect
- Bluetooth Smart built-in: dongle not needed
- 98% efficiency
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading conditions
| SMARTSOLAR CHARGE CONTROLLER | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Battery Voltage |
12V, 24V, 36V, 48V Auto Select (software tool needed to select 36V) See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Rated charge current |
See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Nominal PV power |
See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Max PV open circuit voltage |
150V absolute max coldest conditions 145V start-up and operating max |
||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum efficiency |
98% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Self-consumption |
Less than 35mA @ 12V / 20mA @ 48V |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'absorption' |
Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'float' |
Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'equalization' |
Default setting: 16,2 / 32,4 / 48,6 / 64,8V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge algorithm |
multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature compensation |
12V: -16 mV / 24V: -32 mV / 48V: -64 mV/°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Protection |
Battery reverse polarity (fuse, not user accessible)
PV reverse polarity Output short circuit Over temperature |
||||||||||||||||||||||||||||||||||||||||||||||||
| Data communication port |
VE.Direct or Bluetooth |
||||||||||||||||||||||||||||||||||||||||||||||||
| Remote on/off |
Yes (2 pole connector) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Programmable relay |
DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC |
||||||||||||||||||||||||||||||||||||||||||||||||
| Parallel operation |
Yes (not synchronized) |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |
|---|---|
| Operating temperature |
-30 to +60°C (full rated output up to 40°C) |
| Humidity |
95%, non-condensing |
| Maximum altitude |
5000m (full rated output up to 2000m) |
| Environmental condition |
Indoor, unconditioned |
| Pollution degree |
PD3 |
| STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Colour | Blue (RAL 5012) | ||||||||||||||||||||||||||||||||||||||||||||||||
| PV terminals |
35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models) 150/45, 150/60 and 150/70) . Three pairs of MC4 connectors (MC4 models) 150/85 and 150/100) . MC4 models: several splitter pairs may be needed to parallel the strings of solar panels. |
||||||||||||||||||||||||||||||||||||||||||||||||
| Battery terminals | 35 mm² / AWG2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Protection category | IP43 (electronic components),
IP22 (connection area) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
MPPT150/45, 150/60 and 150/70, 3 kg MPPT150/85 and 150/100, 4,5 kg |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (h.w.d)mm MPPT150/45, 150/60 and 150/70 |
Tr models: 185 x 250 x 95 MC4 models: 215 x 250 x 95 |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (h.w.d)mm MPPT150/85 and 150/100 |
Tr models: 216 x 295 x 103 MC4 models: 246 x 295 x 103 |
||||||||||||||||||||||||||||||||||||||||||||||||
| SmartSolar Charge Controller | MPPT 150/45 | MPPT 150/60 | MPPT 150/70 | MPPT 150/85 | MPPT 150/100 |
|---|---|---|---|---|---|
|
Battery voltage (Auto Select) |
12 / 24 / 48V software tool needed to select 36V |
||||
| Rated charge current | 45A | 60A | 70A | 85A | 100A |
| Nominal PV power, 12V 1a,b) | 650W | 860W | 1000W | 1200W | 1450W |
| Nominal PV power, 24V 1a,b) | 1300W | 1720W | 2000W | 2400W | 2900W |
| Nominal PV power, 36V 1a,b) | 1950W | 2580W | 3000W | 3600W | 4350W |
| Nominal PV power, 48V 1a,b) | 2600W | 3440W | 4000W | 4900W | 5800W |
| Max. PV short circuit current 2) |
50A max 30A / MC4 conn |
70A max 30A / MC4 conn |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V./p>
2) A higher sort circuit current may damage the controller in case of reverse polarity connection of the PV array.
| SMARTSOLAR CHARGE CONTROLLER | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Battery Voltage |
12V, 24V, 36V, 48V Auto Select (software tool needed to select 36V) See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Rated charge current |
See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Nominal PV power |
See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Max PV open circuit voltage |
150V absolute max coldest conditions 145V start-up and operating max |
||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum efficiency |
98% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Self-consumption |
Less than 35mA @ 12V / 20mA @ 48V |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'absorption' |
Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'float' |
Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'equalization' |
Default setting: 16,2 / 32,4 / 48,6 / 64,8V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge algorithm |
multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature compensation |
12V: -16 mV / 24V: -32 mV / 48V: -64 mV/°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Protection |
Battery reverse polarity (fuse, not user accessible)
PV reverse polarity Output short circuit Over temperature |
||||||||||||||||||||||||||||||||||||||||||||||||
| Data communication port |
VE.Direct or Bluetooth |
||||||||||||||||||||||||||||||||||||||||||||||||
| Remote on/off |
Yes (2 pole connector) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Programmable relay |
DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC |
||||||||||||||||||||||||||||||||||||||||||||||||
| Parallel operation |
Yes (not synchronized) |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |
|---|---|
| Operating temperature |
-30 to +60°C (full rated output up to 40°C) |
| Humidity |
95%, non-condensing |
| Maximum altitude |
5000m (full rated output up to 2000m) |
| Environmental condition |
Indoor, unconditioned |
| Pollution degree |
PD3 |
| STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Colour | Blue (RAL 5012) | ||||||||||||||||||||||||||||||||||||||||||||||||
| PV terminals |
35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models) 150/45, 150/60 and 150/70) . Three pairs of MC4 connectors (MC4 models) 150/85 and 150/100) . MC4 models: several splitter pairs may be needed to parallel the strings of solar panels. |
||||||||||||||||||||||||||||||||||||||||||||||||
| Battery terminals | 35 mm² / AWG2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Protection category | IP43 (electronic components),
IP22 (connection area) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
MPPT150/45, 150/60 and 150/70, 3 kg MPPT150/85 and 150/100, 4,5 kg |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (h.w.d)mm MPPT150/45, 150/60 and 150/70 |
Tr models: 185 x 250 x 95 MC4 models: 215 x 250 x 95 |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (h.w.d)mm MPPT150/85 and 150/100 |
Tr models: 216 x 295 x 103 MC4 models: 246 x 295 x 103 |
||||||||||||||||||||||||||||||||||||||||||||||||
| SmartSolar Charge Controller | MPPT 150/45 | MPPT 150/60 | MPPT 150/70 | MPPT 150/85 | MPPT 150/100 |
|---|---|---|---|---|---|
|
Battery voltage (Auto Select) |
12 / 24 / 48V software tool needed to select 36V |
||||
| Rated charge current | 45A | 60A | 70A | 85A | 100A |
| Nominal PV power, 12V 1a,b) | 650W | 860W | 1000W | 1200W | 1450W |
| Nominal PV power, 24V 1a,b) | 1300W | 1720W | 2000W | 2400W | 2900W |
| Nominal PV power, 36V 1a,b) | 1950W | 2580W | 3000W | 3600W | 4350W |
| Nominal PV power, 48V 1a,b) | 2600W | 3440W | 4000W | 4900W | 5800W |
| Max. PV short circuit current 2) |
50A max 30A / MC4 conn |
70A max 30A / MC4 conn |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V./p>
2) A higher sort circuit current may damage the controller in case of reverse polarity connection of the PV array.
Find the Right Model
| Model Number | Battery Voltage (Vdc) | Rated Current (A) | Max. PV Open Circuit Voltage (Vdc) | ||
|---|---|---|---|---|---|
|
MPPT150/45 | 12 / 24 / 48 VdcAuto Select | 45A | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum | |
|
|
MPPT 150/60 | 12 / 24 / 48 VdcAuto Select | 60A | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum | |
|
|
MPPT 150/70 | 12/24/48Vdc Auto Select | 70A | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum | |
|
|
MPPT 150/85 | 12/24/48Vdc Auto Select | 85A | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum | |
|
|
MPPT 150/100 | 12/24/48Vdc Auto Select | 100A | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum |
