Victron QUATTRO SERIES DC / AC Inverter

The Victron Quattro Series DC/AC Inverter is a multifunctional power solution designed for reliability and adaptability. With advanced features like dual AC inputs, two AC outputs, and PowerAssist technology, the Quattro is perfect for grid-tied, off-grid, and hybrid energy systems. It delivers seamless power conversion and exceptional performance in even the most demanding environments.

Read More

View Models

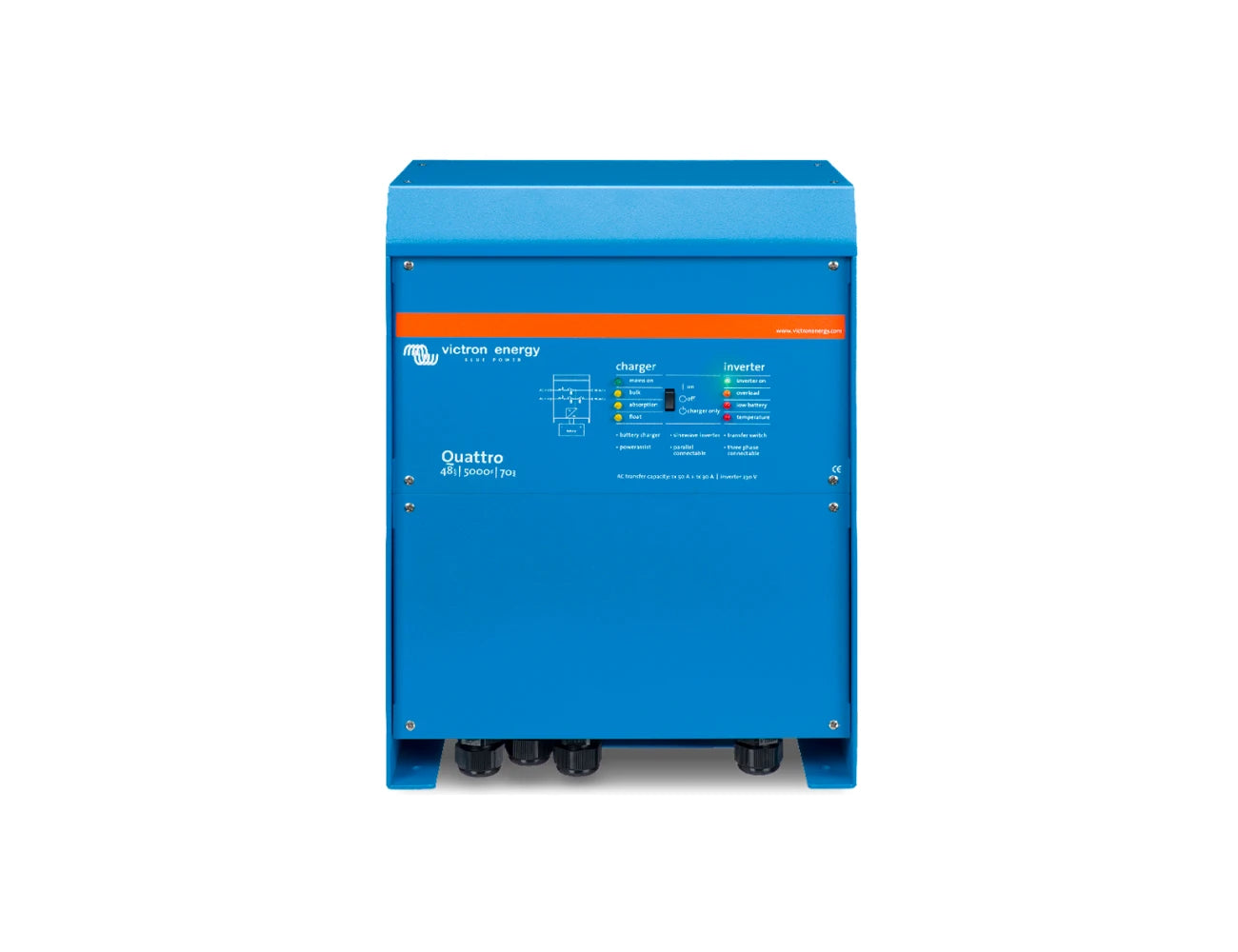

Victron QUATTRO SERIES DC / AC Inverter

Features

  • Dual AC Inputs with Integrated Transfer Switch: Automatically switches between two independent AC sources, such as the grid and a generator, for uninterrupted power.
  • Two AC Outputs: Ensures continuous power for critical loads while isolating non-essential loads to prevent battery drain.
  • PowerControl and PowerAssist: Manages limited generator or grid power and supplements peak power demands by drawing energy from the battery.
  • Solar Integration: Compatible with off-grid and grid-connected solar systems, providing AC power even during grid failures.
  • Virtually unlimited power through parallel operation.
  • Scalable and Flexible: Supports parallel operation, three-phase configuration, and split-phase setups for large systems requiring up to 144 kW of inverter power.
Specifications
INVERTER
Input voltage range 9.5-17Vdc, 19-33Vdc, 38-66Vdc
Output voltage 230Vac +/-2%
Frequency 50Hz +/-0.1%
Output Power See selection table
CHARGER
Charge Voltage 'Absorption' 14.4V, 28.8V, 57.6Vdc
Charge voltage 'Float' 13.8V, 27.6V, 55.2Vdc
Charge voltage 'Storage' 13.2V, 26.4V, 52.8Vdc
Charge current house battery See selection table
Charge current starter battery 4A (12V & 24V models
Battery temperature sensor Yes
PROTECTION
Output overload or short circuit Yes
Battery voltage too high or too low Yes
Temperature too high Yes
Input voltage ripple too high Yes
STANDARDS AND APPROVALS
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
ENVIRONMENT
Operating Temp -40 to +65C Refer to inverter output power in selection table
Humidity 95% (non condensing)
GENERAL
PowerControl Yes, all Quattro inverter/charger models
Integrated Transfer switch Yes, all Quattro inverter/charger models
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current 3kVA, 2 x 50A 5kVA to 15kVA, 2 x 50A
PowerAssist Yes, all Quattro inverter/charger models
Parallel & 3ph operation Yes, all Quattro inverter/charger models
Programmable relay Can be set for general alarm, DC undervoltage or genset start/stop function AC rating 230V/4A DC rating 4A up to 35Vdc, 1A up to 60Vdc
VE Bus Communications For parallel and three phase operation, remote monitoring and system integration
General Purpose Com Port 2 ports
Remote on-off Yes
Auxillary output 3kVA: (25A) 5kVA to 15kVA: (50A)
Digital Multi Control A convenient and low cost solution for remote monitoring, with a rotary knob to set Power Control and Power Assist levels
Blue Power Panel Connects to a Multi or Quattro and all VE.Net devices in particular the VE.Net Battery Controller. Graphic display of current and voltages
BMV Battery Monitor The BMV Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. The Software includes complex calculation algorithms, to exactly determine the state of charge of the battery. The BMV selectively displays the battery voltage, current consumed AH or time to go. The monitor all stores a host of data regarding performance and use of the battery
Selection Table
QUATTRO (INVERTER) 12/3000/120-50/50 24/3000/70-50/50 12/5000/220-100/100 24/5000/120-100/100 48/5000/70-100/100 24/8000/200-100/100 48/8000/110-100/100 48/10000/140-100/100 48/15000/200-100/100
Input Voltage Range 9.7-17V, 19-33V, 38-66Vdc
Output 230Vac +/-2%, 50Hz +/-0.1%
Cont. output power at 25C (VA) 3,000VA 5,000VA 8,000VA 10,000VA 15,000VA
Cont. output power at 25 °C (W) 2,400W 4,000W 6,500W 8,000W 12,000W
Cont. output power at 40C 2,200W 3,700W 5,500W 6,500W 10,000W
Cont output power at 65C 1,700W 3,000W 3,600W 4,500W 7,000W
Peak Power 6,000W 10,000W 16,000W 20,000W 25,000W
Maximum Efficiency 93 / 94% 94 / 94 / 95% 94 / 96% 0.96 0.96
Zero load power (W) 20 / 20W 30 / 30 / 35W 45 / 50W 55W 80W
Zero load power in AES mode 15 / 15W 20 / 25 / 30W 30 / 30W 35W 50W
Zero load power in search mode 8 / 10W 10 / 10 / 15W 10 / 20W 20W 30W
QUATTRO (CHARGER) 12/3000/120-50/50 24/3000/70-50/50 12/5000/220-100/100 24/5000/120-100/100 48/5000/70-100/100 24/8000/200-100/100 48/8000/110-100/100 48/10000/140-100/100 48/15000/200-100/100
Charge voltage 'absorption' 14.4 / 28.8V 14.4 / 28.8 / 57.6V 28.8 / 57.6V 57.6V 57.6V
Charge voltage 'float' 13.8 / 27.6V 13.8 / 27.6 / 55.2V 27.6 / 55.2V 55.2V 55.2V
Storage mode 13.2 / 26.4V 13.2 / 26.4 / 52.8 V 26.4 / 52.8V 52.8V 52.8V
Charge current house battery 120 / 70A 220 / 120 / 70A 200 / 110A 140A 200A
Charge current starter battery 4A (12V, 24V models)
Battery temperature sensor Yes
MECHANICAL 12/3000/120-50/50 24/3000/70-50/50 12/5000/220-100/100 24/5000/120-100/100 48/5000/70-100/100 24/8000/200-100/100 48/8000/110-100/100 48/10000/140-100/100 48/15000/200-100/100
Material Aluminium
Colour Blue RAL5012
Battery Connection 4 x M8 bolts
230Vac Connection Screw Terminals 13mm2 (6 AWG) Bolts M6 Bolts M6 Bolts M6 Bolts M6
Weight 19kg 34kg 30kg 30kg 45kg 41kg 51kg 72kg
Dimensions (h x w x d) 362 x 258 x 218mm 470 x 350 x 280mm 444 x 328 x 240mm 444 x 328 x 240mm 470 x 350 x 280mm 470 x 350 x 280mm 572 x 488 x 344mm

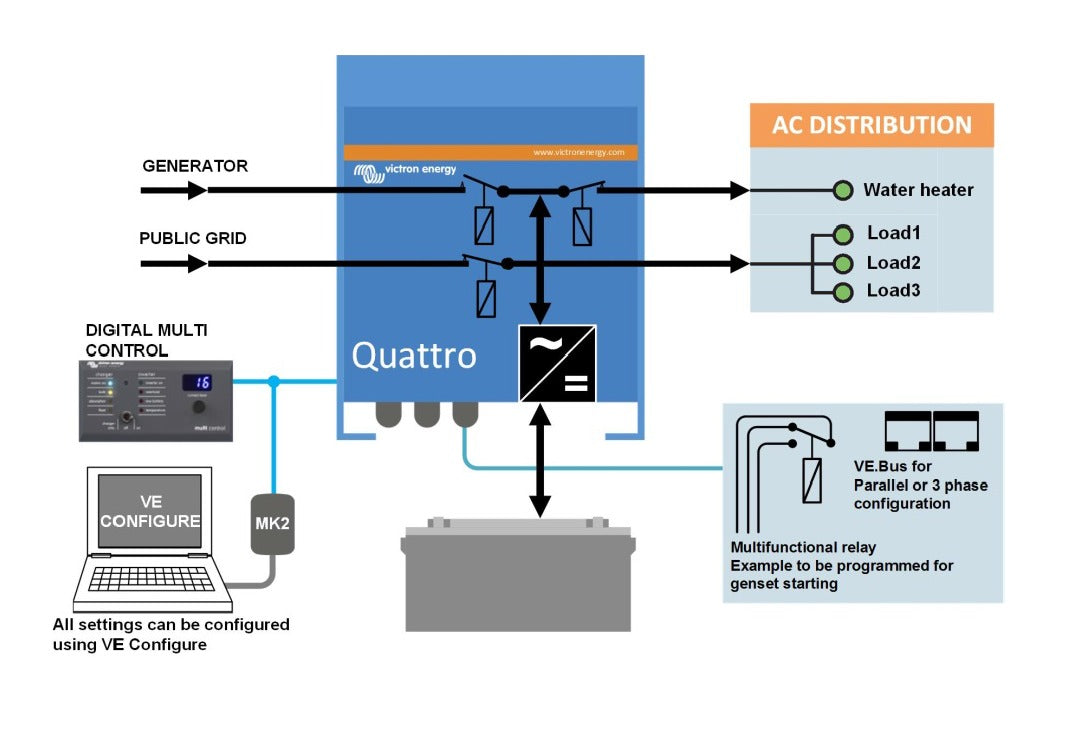

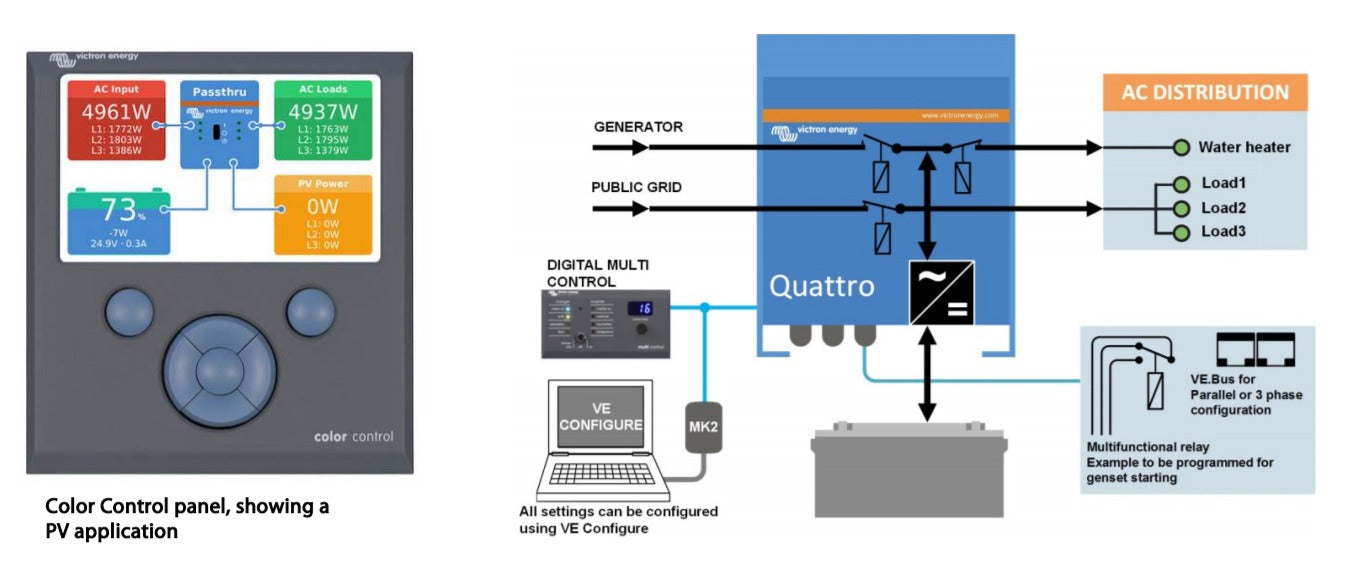

Technical Illustrations
Downloads
Datasheet-Quattro-3kVA-15kVA-EN.pdf
INVERTER
Input voltage range 9.5-17Vdc, 19-33Vdc, 38-66Vdc
Output voltage 230Vac +/-2%
Frequency 50Hz +/-0.1%
Output Power See selection table
CHARGER
Charge Voltage 'Absorption' 14.4V, 28.8V, 57.6Vdc
Charge voltage 'Float' 13.8V, 27.6V, 55.2Vdc
Charge voltage 'Storage' 13.2V, 26.4V, 52.8Vdc
Charge current house battery See selection table
Charge current starter battery 4A (12V & 24V models
Battery temperature sensor Yes
PROTECTION
Output overload or short circuit Yes
Battery voltage too high or too low Yes
Temperature too high Yes
Input voltage ripple too high Yes
STANDARDS AND APPROVALS
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
ENVIRONMENT
Operating Temp -40 to +65C Refer to inverter output power in selection table
Humidity 95% (non condensing)
GENERAL
PowerControl Yes, all Quattro inverter/charger models
Integrated Transfer switch Yes, all Quattro inverter/charger models
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current 3kVA, 2 x 50A 5kVA to 15kVA, 2 x 50A
PowerAssist Yes, all Quattro inverter/charger models
Parallel & 3ph operation Yes, all Quattro inverter/charger models
Programmable relay Can be set for general alarm, DC undervoltage or genset start/stop function AC rating 230V/4A DC rating 4A up to 35Vdc, 1A up to 60Vdc
VE Bus Communications For parallel and three phase operation, remote monitoring and system integration
General Purpose Com Port 2 ports
Remote on-off Yes
Auxillary output 3kVA: (25A) 5kVA to 15kVA: (50A)

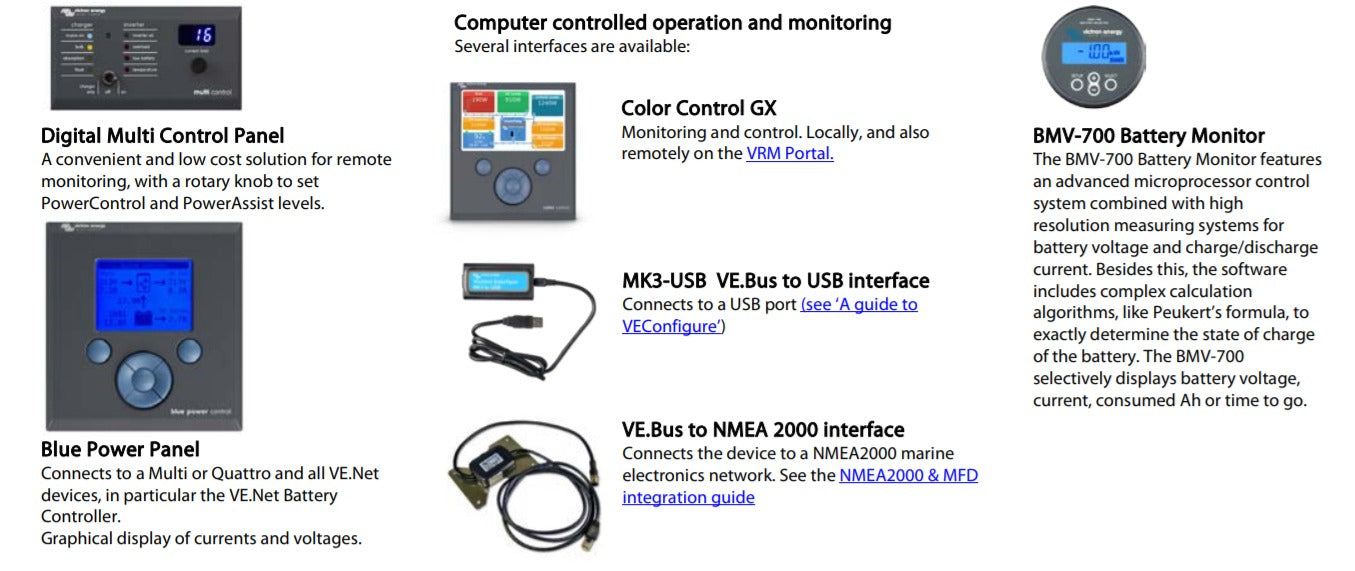

Digital Multi Control A convenient and low cost solution for remote monitoring, with a rotary knob to set Power Control and Power Assist levels
Blue Power Panel Connects to a Multi or Quattro and all VE.Net devices in particular the VE.Net Battery Controller. Graphic display of current and voltages
BMV Battery Monitor The BMV Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. The Software includes complex calculation algorithms, to exactly determine the state of charge of the battery. The BMV selectively displays the battery voltage, current consumed AH or time to go. The monitor all stores a host of data regarding performance and use of the battery
QUATTRO (INVERTER) 12/3000/120-50/50 24/3000/70-50/50 12/5000/220-100/100 24/5000/120-100/100 48/5000/70-100/100 24/8000/200-100/100 48/8000/110-100/100 48/10000/140-100/100 48/15000/200-100/100
Input Voltage Range 9.7-17V, 19-33V, 38-66Vdc
Output 230Vac +/-2%, 50Hz +/-0.1%
Cont. output power at 25C (VA) 3,000VA 5,000VA 8,000VA 10,000VA 15,000VA
Cont. output power at 25 °C (W) 2,400W 4,000W 6,500W 8,000W 12,000W
Cont. output power at 40C 2,200W 3,700W 5,500W 6,500W 10,000W
Cont output power at 65C 1,700W 3,000W 3,600W 4,500W 7,000W
Peak Power 6,000W 10,000W 16,000W 20,000W 25,000W
Maximum Efficiency 93 / 94% 94 / 94 / 95% 94 / 96% 0.96 0.96
Zero load power (W) 20 / 20W 30 / 30 / 35W 45 / 50W 55W 80W
Zero load power in AES mode 15 / 15W 20 / 25 / 30W 30 / 30W 35W 50W
Zero load power in search mode 8 / 10W 10 / 10 / 15W 10 / 20W 20W 30W
QUATTRO (CHARGER) 12/3000/120-50/50 24/3000/70-50/50 12/5000/220-100/100 24/5000/120-100/100 48/5000/70-100/100 24/8000/200-100/100 48/8000/110-100/100 48/10000/140-100/100 48/15000/200-100/100
Charge voltage 'absorption' 14.4 / 28.8V 14.4 / 28.8 / 57.6V 28.8 / 57.6V 57.6V 57.6V
Charge voltage 'float' 13.8 / 27.6V 13.8 / 27.6 / 55.2V 27.6 / 55.2V 55.2V 55.2V
Storage mode 13.2 / 26.4V 13.2 / 26.4 / 52.8 V 26.4 / 52.8V 52.8V 52.8V
Charge current house battery 120 / 70A 220 / 120 / 70A 200 / 110A 140A 200A
Charge current starter battery 4A (12V, 24V models)
Battery temperature sensor Yes
MECHANICAL 12/3000/120-50/50 24/3000/70-50/50 12/5000/220-100/100 24/5000/120-100/100 48/5000/70-100/100 24/8000/200-100/100 48/8000/110-100/100 48/10000/140-100/100 48/15000/200-100/100
Material Aluminium
Colour Blue RAL5012
Battery Connection 4 x M8 bolts
230Vac Connection Screw Terminals 13mm2 (6 AWG) Bolts M6 Bolts M6 Bolts M6 Bolts M6
Weight 19kg 34kg 30kg 30kg 45kg 41kg 51kg 72kg
Dimensions (h x w x d) 362 x 258 x 218mm 470 x 350 x 280mm 444 x 328 x 240mm 444 x 328 x 240mm 470 x 350 x 280mm 470 x 350 x 280mm 572 x 488 x 344mm
Datasheet-Quattro-3kVA-15kVA-EN.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vac) Output Power (Va / kVA)
product variant Quattro 12/3000/120-50/50 230V VE.Bus 12Vdc: 9.5-17Vdc 230Vac +/-2%, 50Hz +/-0.1% 3,000 Va
product variant Quattro 24/3000/70-50/50 230V VE.Bus 24Vdc: 19-33Vdc 230Vac +/-2%, 50Hz +/-0.1% 3,000 Va
product variant Quattro 12/5000/220-100/100 230V VE.Bus 12Vdc: 9.5-17Vdc 230Vac +/-2%, 50Hz +/-0.1% 5,000 Va
product variant Quattro 24/5000/120-100/100 230V VE.Bus 24Vdc: 19-33Vdc 230Vac +/-2%, 50Hz +/-0.1% 5,000 Va
product variant Quattro 48/5000/70-100/100 230V VE.Bus 48Vdc: 38-66Vdc 230Vac +/-2%, 50Hz +/-0.1% 5,000 Va
product variant Quattro 24/8000/200-100/100 230V VE.Bus 24Vdc: 19-33Vdc 230Vac +/-2%, 50Hz +/-0.1% 8,000 Va
product variant Quattro 48/8000/110-100/100 230V VE.Bus 48Vdc: 38-66Vdc 230Vac +/-2%, 50Hz +/-0.1% 8,000 Va
product variant Quattro 48/10000/140-100/100 230V VE.Bus 48Vdc: 38-66Vdc 230Vac +/-2%, 50Hz +/-0.1% 10,000 Va
product variant Quattro 48/15000/200-100/100 230V VE.Bus 48Vdc: 38-66Vdc 230Vac +/-2%, 50Hz +/-0.1% 15,000 Va
