DC/AC Inverters

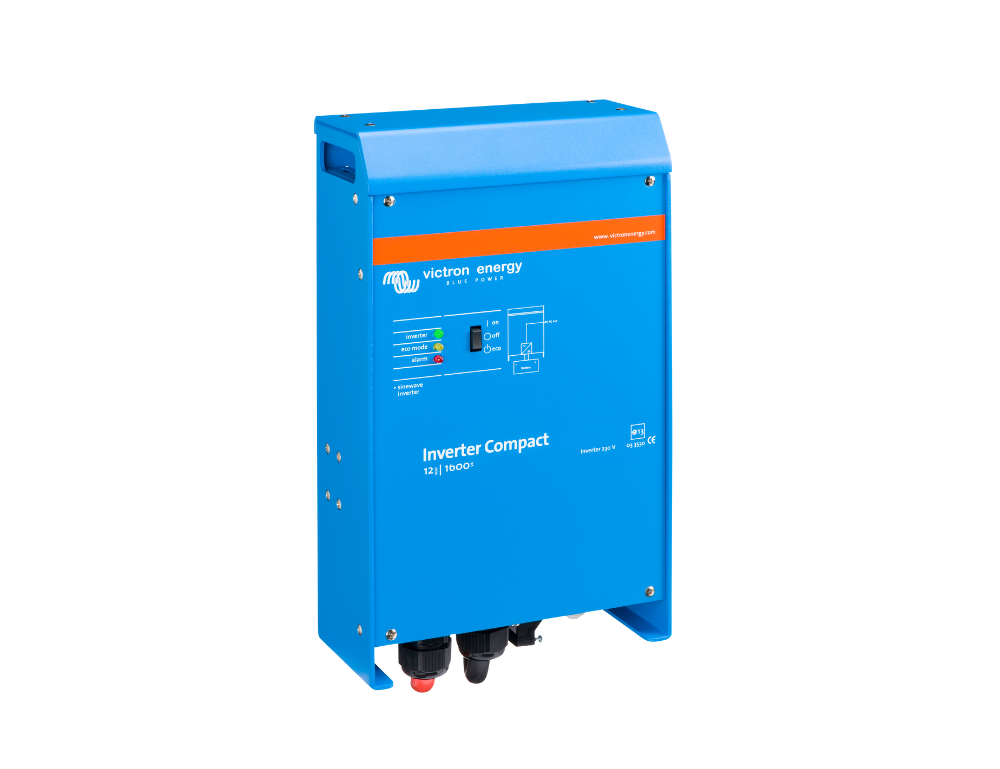

Victron Inverter Compact Series DC/AC Inverter

The Victron Inverter Compact Series DC/AC Inverter offers reliable, high-quality power conversion, making it the perfect choice for professional and consumer applications. With its compact design, superior efficiency, and advanced features, the Phoenix Series ensures uninterrupted power for demanding loads in off-grid, mobile, or backup systems.

Read More

View Models
Victron Inverter Compact Series DC/AC Inverter

Features

  • True Sine Wave Output: Ensures compatibility with sensitive electronics and appliances for smooth and reliable operation.
  • SinusMax Technology: Delivers exceptional start-up power for challenging loads, such as compressors and electric motors.
  • Parallel and Three-Phase Capability: Scale up power by connecting up to six units in parallel or three-phase configurations, achieving outputs of up to 30 kVA.
  • High Efficiency: Achieves up to 95% efficiency, reducing energy losses and operating costs.
  • Wide Range of Models: Available in power ratings from 1200 VA to 5000 VA, with options for 12V, 24V, and 48V systems.
  • Customisable Settings: VE.Bus port allows monitoring and configuration of parameters such as output voltage, frequency, and alarm conditions via VictronConnect or VEConfigure software.
Specifications
GENERAL
Input Voltage 12Vdc: 9.5-17Vdc 24Vdc: 19-33Vdc 48Vdc: 38-66Vdc
Output voltage 230Vac +/- 2% Can be adjusted to 240Vac
Output Frequency 50Hz +/- 0,1% Can be adjusted to 60 Hz
Crest factor 3:1 non linear load
Parallel and 3-phase operation Yes
Programmable relay Can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230 V / 4 A DC rating: 4 A up to 35 VDC, 1A up to 60VDC
Remote on-off Yes
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
PROTECTION
Protection Key a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 V AC on inverter output g) input voltage ripple too high
STANDARDS
Safety EN60335-1
Emission Immunity EN55014-1, EN55014-2

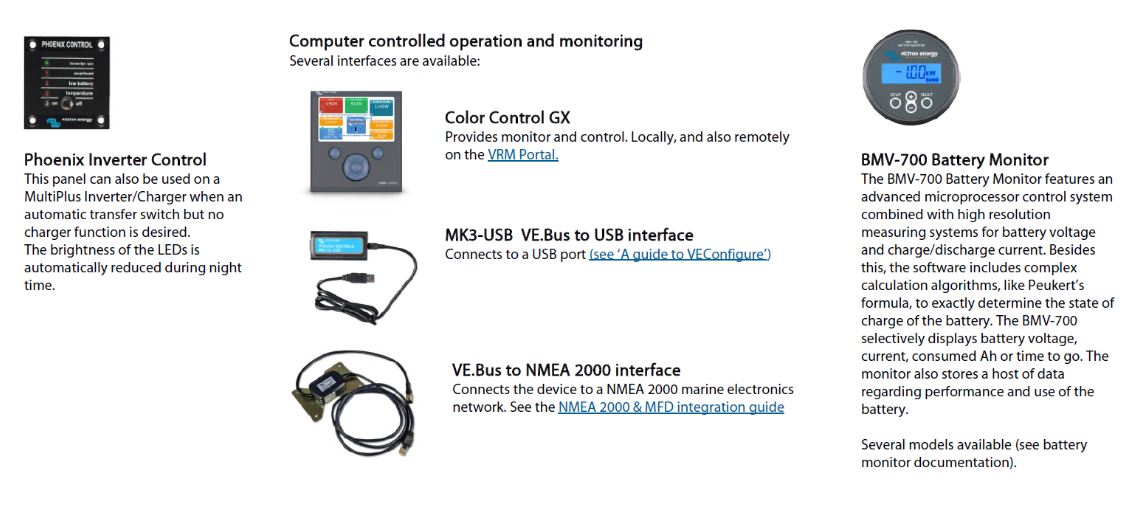

OPTIONS
Phoenix Inverter Control This panel can also be used on a MultiPlus Inverter/Charger when an automatic transfer switch but no charger function is desired. The brightness of the LEDs is automatically reduced during night time.
Color Control GX Provides monitor and control. Locally, and also remotely on the VRM Portal.
MK3-USB VE.Bus to USB interface Connects to a USB port
VE.Bus to NMEA 2000 interface Connects the device to a NMEA 2000 marine electronics network.
BMV-700 Battery Monitor The BMV-700 Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. Besides this, the software includes complex calculation algorithms, like Peukert’s formula, to exactly determine the state of charge of the battery. The BMV-700 selectively displays battery voltage, current, consumed Ah or time to go. The monitor also stores a host of data regarding performance and use of the battery.
ENVIRONMENTAL
Operating temperature -40 to +50°C (fan assisted cooling)
Humidity Max 95% (non condensing)
MECHANICAL
Material Aluminium (Blue Ral 5012)
Protection category IP 21
Battery connections 1200 - 1600VA: battery cables of 1.5 meter included 2000 - 3000VA: M8 bolts 5000VA: 2+2 M8 bolts
230 V AC-connection 1200 - 1600VA: G-ST18i plug 2000 - 3000VA: Spring-clamp 5000VA: Screw terminals
Dimensions 1200 - 1600VA: 375x214x110 mm 2000VA: 520x255x125 mm 3000VA: 362x258x218 mm 5000VA: 444x328x240 mm
Weight 1200 - 1600VA: 10kg 2000VA: 12kg 3000VA: 18kg 5000VA: 30kg
Selection Table
PHOENIX INVERTER C12/1200
C24/1200		 C12/1600
C24/1600		 C12/2000
C24/2000		 12/3000
24/3000
48/3000		 24/5000
48/5000
Cont. output power at 25ºC 1200 VA 1600 VA 2000 VA 3000 VA 5000 VA
Cont. output power at 25ºC 1000 W 1300 W 1600 W 2400 W 4000 W
Cont. output power at 40ºC 900 W 1200 W 1450 W 2200 W 3700 W
Cont. output power at 65ºC 600 W 800 W 1000 W 1700 W 3000 W
Peak power 2400 W 3000 W 4000 W 6000 W 10000 W
Max. efficiency 12/ 24 /48 V 92 / 94 / 94 % 92 / 94 / 94 % 92 / 92 % 93 / 94 / 95% 94 / 95 %
Zero load power 12 / 24 / 48 V 8 / 10 / 12 W 8 / 10 / 12 W 9 / 11 W 20 / 20 / 25 W 30 / 35 W
Zero load power in AES mode 5 / 8 / 10 W 5 / 8 / 10 W 7 / 9 W 15 / 15 / 20 W 25 / 30 W
Zero load power in Search mode 2 / 3 / 4 W 2 / 3 / 4 W 3 / 4 W 8 / 10 / 12 W 10 / 15 W

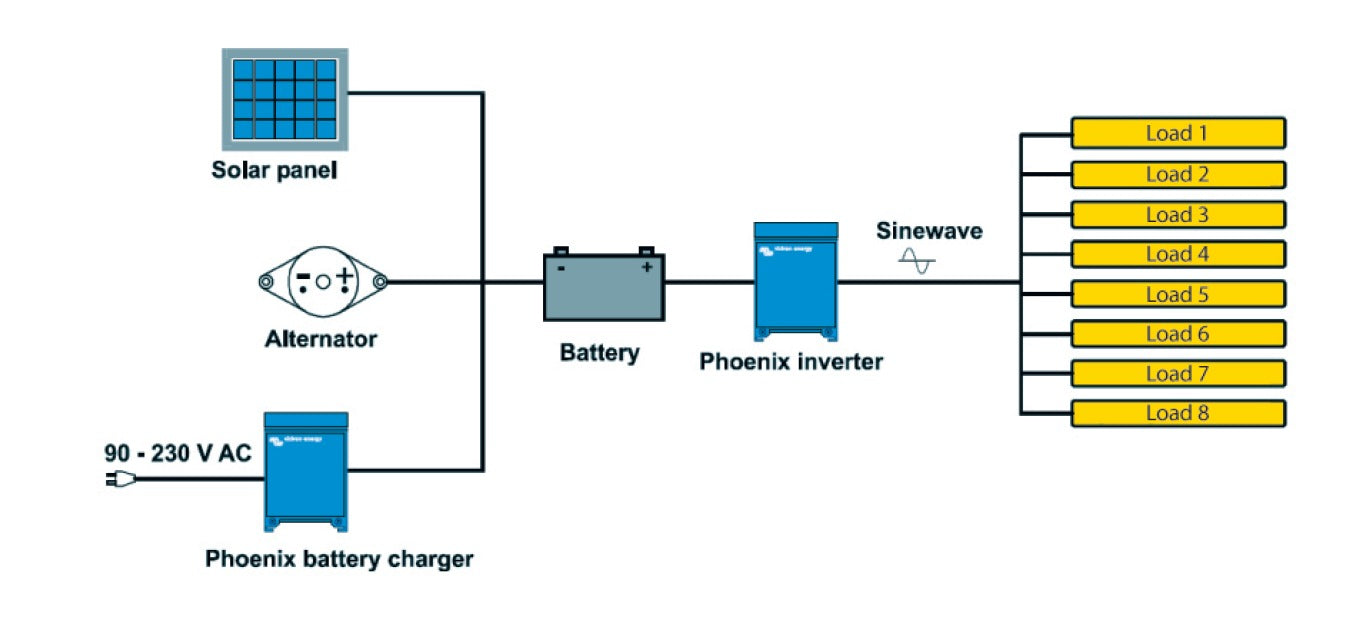

Technical Illustrations
Downloads
Datasheet-Inverter-1200VA-5000VA-EN.pdf
GENERAL
Input Voltage 12Vdc: 9.5-17Vdc 24Vdc: 19-33Vdc 48Vdc: 38-66Vdc
Output voltage 230Vac +/- 2% Can be adjusted to 240Vac
Output Frequency 50Hz +/- 0,1% Can be adjusted to 60 Hz
Crest factor 3:1 non linear load
Parallel and 3-phase operation Yes
Programmable relay Can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230 V / 4 A DC rating: 4 A up to 35 VDC, 1A up to 60VDC
Remote on-off Yes
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
PROTECTION
Protection Key a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 V AC on inverter output g) input voltage ripple too high
STANDARDS
Safety EN60335-1
Emission Immunity EN55014-1, EN55014-2
OPTIONS
Phoenix Inverter Control This panel can also be used on a MultiPlus Inverter/Charger when an automatic transfer switch but no charger function is desired. The brightness of the LEDs is automatically reduced during night time.
Color Control GX Provides monitor and control. Locally, and also remotely on the VRM Portal.
MK3-USB VE.Bus to USB interface Connects to a USB port
VE.Bus to NMEA 2000 interface Connects the device to a NMEA 2000 marine electronics network.
BMV-700 Battery Monitor The BMV-700 Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. Besides this, the software includes complex calculation algorithms, like Peukert’s formula, to exactly determine the state of charge of the battery. The BMV-700 selectively displays battery voltage, current, consumed Ah or time to go. The monitor also stores a host of data regarding performance and use of the battery.
ENVIRONMENTAL
Operating temperature -40 to +50°C (fan assisted cooling)
Humidity Max 95% (non condensing)
MECHANICAL
Material Aluminium (Blue Ral 5012)
Protection category IP 21
Battery connections 1200 - 1600VA: battery cables of 1.5 meter included 2000 - 3000VA: M8 bolts 5000VA: 2+2 M8 bolts
230 V AC-connection 1200 - 1600VA: G-ST18i plug 2000 - 3000VA: Spring-clamp 5000VA: Screw terminals
Dimensions 1200 - 1600VA: 375x214x110 mm 2000VA: 520x255x125 mm 3000VA: 362x258x218 mm 5000VA: 444x328x240 mm
Weight 1200 - 1600VA: 10kg 2000VA: 12kg 3000VA: 18kg 5000VA: 30kg
PHOENIX INVERTER C12/1200
C24/1200		 C12/1600
C24/1600		 C12/2000
C24/2000		 12/3000
24/3000
48/3000		 24/5000
48/5000
Cont. output power at 25ºC 1200 VA 1600 VA 2000 VA 3000 VA 5000 VA
Cont. output power at 25ºC 1000 W 1300 W 1600 W 2400 W 4000 W
Cont. output power at 40ºC 900 W 1200 W 1450 W 2200 W 3700 W
Cont. output power at 65ºC 600 W 800 W 1000 W 1700 W 3000 W
Peak power 2400 W 3000 W 4000 W 6000 W 10000 W
Max. efficiency 12/ 24 /48 V 92 / 94 / 94 % 92 / 94 / 94 % 92 / 92 % 93 / 94 / 95% 94 / 95 %
Zero load power 12 / 24 / 48 V 8 / 10 / 12 W 8 / 10 / 12 W 9 / 11 W 20 / 20 / 25 W 30 / 35 W
Zero load power in AES mode 5 / 8 / 10 W 5 / 8 / 10 W 7 / 9 W 15 / 15 / 20 W 25 / 30 W
Zero load power in Search mode 2 / 3 / 4 W 2 / 3 / 4 W 3 / 4 W 8 / 10 / 12 W 10 / 15 W
Datasheet-Inverter-1200VA-5000VA-EN.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vac) Output Power (Va / kVA)
product variant Inverter Compact 12/1200 230V VE.Bus 12Vdc: 9.5-17Vdc 230Vac +/- 2%, 50Hz +/-0.1% 1,200 Va
product variant Inverter Compact 12/1600 230V VE.Bus 12Vdc: 9.5-17Vdc 230Vac +/- 2%, 50Hz +/-0.1% 1,600 Va
product variant Inverter Compact 12/2000 230V VE.Bus 12Vdc: 9.5-17Vdc 230Vac +/- 2%, 50Hz +/-0.1% 2,000 Va
product variant Inverter 12/3000 230V VE.Bus 12Vdc: 9.5-17Vdc 230Vac +/- 2%, 50Hz +/-0.1% 3,000 Va
product variant Inverter Compact 24/1200 230V VE.Bus 24Vdc: 19-33Vdc 230Vac +/- 2%, 50Hz +/-0.1% 1,200 Va
product variant Inverter Compact 24/1600 230V VE.Bus 24Vdc: 19-33Vdc 230Vac +/- 2%, 50Hz +/-0.1% 1,600 Va
product variant Inverter Compact 24/2000 230V VE.Bus 24Vdc: 19-33Vdc 230Vac +/- 2%, 50Hz +/-0.1% 2,000 Va
product variant Inverter 24/3000 230V VE.Bus 24Vdc: 19-33Vdc 230Vac +/- 2%, 50Hz +/-0.1% 3,000 Va
product variant Inverter 24/5000 230V VE.Bus 24Vdc: 19-33Vdc 230Vac +/- 2%, 50Hz +/-0.1% 5,000 Va
product variant Inverter 48/3000 230V VE.Bus 48Vdc: 38-66Vdc 230Vac +/- 2%, 50Hz +/-0.1% 3,000 Va
product variant Inverter 48/5000 230V VE.Bus 48Vdc: 38-66Vdc 230Vac +/- 2%, 50Hz +/-0.1% 5,000 Va

Need help finding the right product model?
