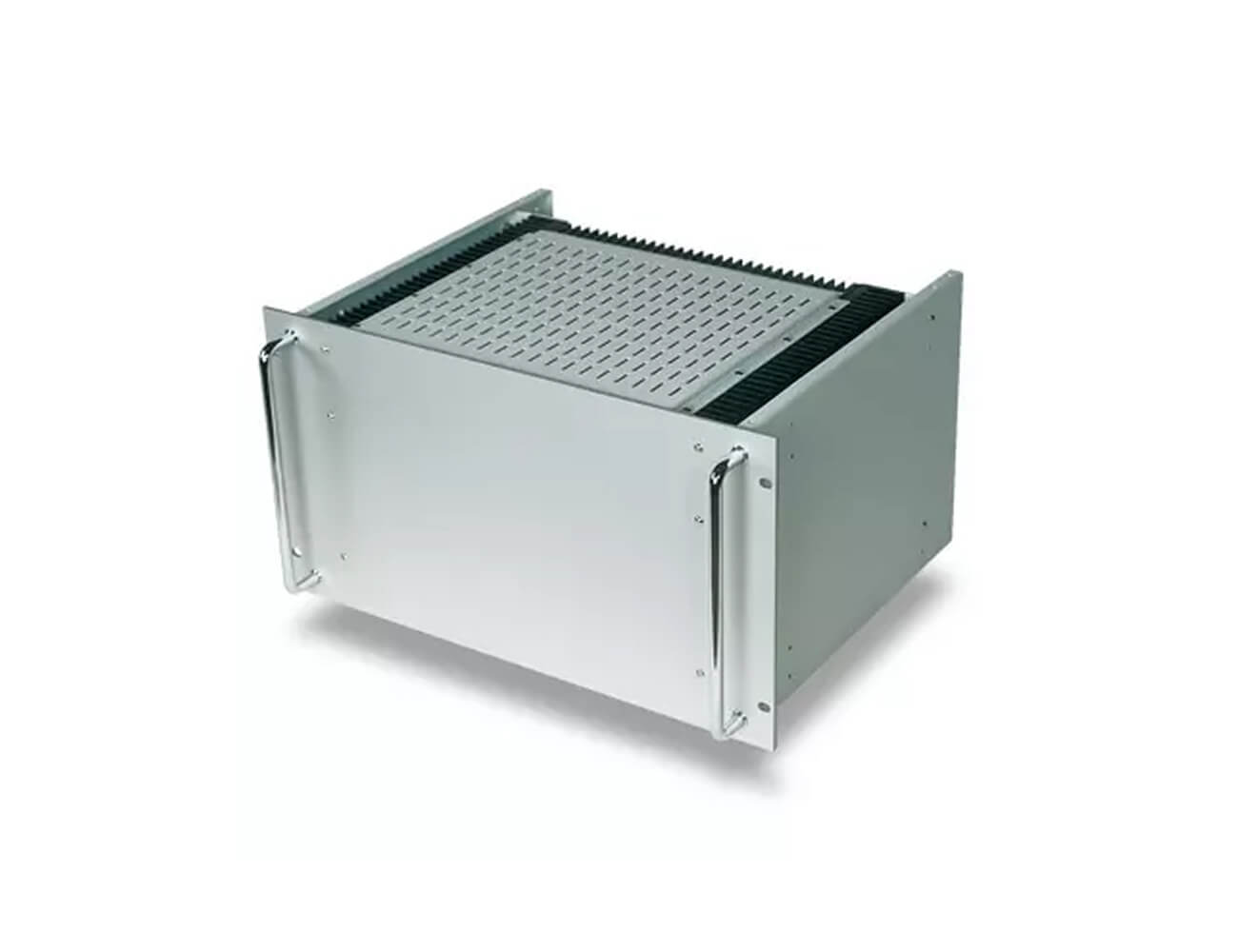

Schaefer C5600A-SERIES AC/DC Power Supply

The Schaefer C5600A Series is a high-power AC/DC power supply for industrial applications, providing output power from 4.5kW to 6kW. This series supports a wide range of industrial voltage outputs, from as low as 5Vdc to 400Vdc, with fan-assisted cooling to ensure reliable performance in demanding environments. Designed for flexibility, the C5600A Series can be mounted within a 19" cabinet or on a wall-mountable plate to suit various industrial requirements. With several options for monitoring, control, and additional environmental protection, the C5600A Series is well-suited for high-demand sectors such as Renewable Energy, Utilities, Mining, and Heavy Industry.

View Models
Schaefer C5600A-SERIES AC/DC Power Supply

Features

  • Industrial Grade AC/DC Power Supply
  • High Output Power: 4.5kW - 6kW
  • AC Input: 1-Phase and 3-Phase Models
  • Wide Range of DC outputs 5, 9, 12, 15, 24, 28, 48, 60, 110, 200, 220, 400
  • Flexible mounting via 19" plug-in module or wall plate
  • Multiple units can be easily installed for high power / redundant installations.
Specifications
INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input 30W typical
Inrush current 3-phase AC input limited by thermister
Switch on time <1s typical.
Input Options See selection table for details
Option i: Inrush current limiting
Option ie: Electronic inrush current limiting
Option sd: Reverse polarity protection for DC input by input by series diode
Option ad: Reverse polarity protection for DC input by anti parallel diode
Option au: Auto-ranging
PROGRAMMING
Programming of output voltage from 0 to 100 % eu1: by external signal, 0 - 10 V
eu2: by external signal, 4 - 20 mA
eu3: by 270° potentiometer
eu4: by 10 turn potentiometer
Programming of output current from 0 to 100 % ei1: by external signal, 0 - 10 V
ei2: by external signal, 4 - 20 mA
ei3: by 270° potentiometer
ei4: by 10 turn potentiometer
Isolating amplifier for programming lso: Programming signal is galvanically isolated from any potentials of the power supply.
Programming via rs: RS232 (external)
can: CAN Bus (external)
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc
See selection table
Output power 4.5kW to 6kW See selection table.
Ripple & noise <1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 10ms typical ±1%
Temp coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 300mS typical (soft start)
Remote sense standard for all series up to 150 V output, except for battery chargers; up to 10 % of Unom for output < 60 VDC, up to 6 V for output > 60 VDC
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation; after 5 seconds, the unit will remain latched off
Efficiency 80 - 95% typical
Output Options See selection table for details
Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing Option
csi: Current sharing interrupt (cs included)
Option icsi: Current sharing interrupt (csi included), galvanically isolated
Option h1: Inhibit by external closing contact, signal referred to input
Option h2: Inhibit by voltage signal, signal referred to output
Option h3: Inhibit by closing contact, signal referred to output
Option rco: Reducing current limiting at over temperature
Option rd: Reverse polarity protection for DC output
Signal Options See selection table for details
Option pr: input voltage supervision (power ok) incl. relay contacts
Option dr: output voltage supervision (DC ok) incl. relay contacts
Option cf: charger / converter fail supervision incl. relay contacts
Option ac: AC ok for inverter including relay contacts
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75°C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling F: Fan - for increased airflow
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
Environment Options See selection table for details
Option t: Tropical protection
Option c: Extended temperature range Option ms: Increased mechanical strength
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MTBF approx 700Khrs at 40°C
acc. to MIL-HDBK-217E (notice 1)
MECHANICAL
Mechanics High power modules are constructed in 19" format
Dimensions See Technical illustration
Mechanical Options Option w: Wall Mounting
Selection Table

INPUT

115Vac

± 20%

OUTPUT

AMPS

INPUT

230Vac

+15% - 20%

INPUT

3x200Vac

+15% - 20%

INPUT

3x400Vac

+15% - 20%

INPUT

3x480Vac

+15% - 20%

OUTPUT

AMPS

COOLING



OUTPUT

VOLTAGE

VOLTAGE

ADJUSTMENT
C5660 400 C5680  C5660V  C5680V  C5690V 400 F 5 4.5 - 5.5
C5661 380 C5681 C5661V  C5681V  C5691V  400 F 9 8 - 10
C5662 310 C5682 C5662V C5682V C5692V 400 F 12 11-13
C5663 265 C5683 C5663V C5683V C5693V 375 F 15 14-16
C5664 170 C5684 C5664V C5684V C5694V 230 F 24 23-26
C5665 150 C5685 C5665V C5685V C5695V 200 F 28 26-30
C5669 80 C5689 C5669V C5689V C5699V 110 F 48 45 - 55
C5666 65 C5686 C5666V C5686V C5696V 88 F 60 58 - 68
C5667 35 C5687 C5667V C5687V C5697V 46 F 110 100-130
C5667J 22 C5687J C5667VJ C5687VJ C5697VJ 30 F 200 190-200
C5668 18 C5688 C5668V C5688V C5698V 24 F 220 200-250
C5668J   11 C5688J C5668VJ  C5688VJ  C5698VJ  15 F 400 380-400
INPUT OPTIONS
Option “i” Inrush current limiting: A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” Electronic inrush current limiting : An electronic circuit limits the high inrush current caused by built-in capacitors. Switch- on time may increase to 5s. This is realized by a series pass transistor or depending on the input voltage by thyristor softstart..
Option “sd” Reverse polarity protection for DC input by series diode: A series diode protects the module against DC input voltage of wrong polarity. However, this also causes extra losses and reduces the overall efficiency..
Option “ad” Reverse polarity protection for DC input by anti parallel diode: To avoid the power losses a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply of wrong polarity.
Option “au” Auto-ranging: For standard dual AC input models the range of 115 / 230 V AC is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.



OUTPUT OPTIONS
Option “dd” Decoupling diode:A series diode built into the units output allows paralleling of 2 or more units for redundancy or higher power or battery charging. For control purposes the anode of the diode is also available at the output connector. It cannot be loaded ≥ 0.5A. The sense signal is taken partially from the anode and partially from the load/cathode of the decoupling diode. This guarantees starting and operating under all conditions, but it also effects the regulation accuracy of 2%. In this way it gives a load sharing of 15-30% between the paralleled units.
Option “cs” Active current sharing:An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. The output lines of the converters have to be in “star point” connection
Option “csi” Current sharing interrupt (“cs” included)“csi” will effect the removal of the “cs” signal from the load voltage common connection. Should there be an instance where a unit is not supplying the load, then the effect of its current sharing signal is removed, and the load voltage is unaffected by this condition. In terms of calibration the same criteria follow as for parallel operation.
Option “icsi” Current sharing interrupt (“csi” included), galvanically isolated: The inclusion of “csi” (current sharing interrupt) and the galvanic isolation is the optimum set up for systems with high power or high currents, were the voltage drop on the power wiring could influence the cs signal.
Option “h1” Inhibit by external closing contact, signal referred to input: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the input. This can also be used in combination with a thermal trip, which shuts the unit down.
Option “h2” Inhibit by voltage signal, signal referred to output: Operation of the unit is inhibited if a voltage signal (5V / 10mA) is applied in reference to the negative line of the output
Option “h3” Inhibit by closing contact, signal referred to output: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the output. This can also be used in combination with a thermal trip, which shuts the unit down. Please note: Only relevant solution for inverters.
Option “rco” Reducing current limiting at over temperature: A circuit reduces the current limiting level at higher temperature (to be specified).
Option "rd" Reverse polarity protection for DC output: by reverse diode with external fuse.



SIGNAL OPTIONS
Option “pr” input voltage supervision (power ok) incl. relay contacts: A logic signal is given if the input voltage (AC or DC) drops below the specified limit. In AC input models the rectified input voltage is sensed so that a power fail alarm can be avoided if at light load mains power returns before the input capacitors are substantially discharged. A relay contact is provided for failure indication
Option “dr” output voltage supervision (DC ok) incl. relay contacts: A logic signal is given if the output voltage is below the specified limit. A relay contact is provided for failure indication. DC ok level: 5V output: 4,75V all other voltages: 90% of adjusted voltage
Option “cf” charger / converter fail supervision incl. relay contacts: A logic signal is given if the input voltage, the auxiliary voltage of the primary side and the current of the primary side exceed or go below a specified range. A relay contact is provided for failure indication.
Option “ac” AC ok for inverter including relay contacts: A logic signal is given if the output voltage of an inverter is below the specified limit. A relay contact is provided for failure indication



ENVIRONMENTAL OPTIONS
Option "t" Tropical protection: The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99% RH, non condensing.
Option "c" Extended temperature range:The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" Increased mechanical strength: Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.



MECHANICAL OPTIONS
Option "w" Wall mounting:Modules, which have the wall mount option, are typically fixed to a structure or within a cabinet. Depending on the size of the module, this may be done with a flat or angled plate (see photo). The load connections are typically through a terminal block. Should the application not require a pluggable module / rack solution, wall mounting presents an alternative option for the customer to choose from.



Technical Illustrations

Downloads
Schaefer_cb5600hi-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input 30W typical
Inrush current 3-phase AC input limited by thermister
Switch on time <1s typical.
Input Options See selection table for details
Option i: Inrush current limiting
Option ie: Electronic inrush current limiting
Option sd: Reverse polarity protection for DC input by input by series diode
Option ad: Reverse polarity protection for DC input by anti parallel diode
Option au: Auto-ranging
PROGRAMMING
Programming of output voltage from 0 to 100 % eu1: by external signal, 0 - 10 V
eu2: by external signal, 4 - 20 mA
eu3: by 270° potentiometer
eu4: by 10 turn potentiometer
Programming of output current from 0 to 100 % ei1: by external signal, 0 - 10 V
ei2: by external signal, 4 - 20 mA
ei3: by 270° potentiometer
ei4: by 10 turn potentiometer
Isolating amplifier for programming lso: Programming signal is galvanically isolated from any potentials of the power supply.
Programming via rs: RS232 (external)
can: CAN Bus (external)
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc
See selection table
Output power 4.5kW to 6kW See selection table.
Ripple & noise <1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 10ms typical ±1%
Temp coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 300mS typical (soft start)
Remote sense standard for all series up to 150 V output, except for battery chargers; up to 10 % of Unom for output < 60 VDC, up to 6 V for output > 60 VDC
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation; after 5 seconds, the unit will remain latched off
Efficiency 80 - 95% typical
Output Options See selection table for details
Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing Option
csi: Current sharing interrupt (cs included)
Option icsi: Current sharing interrupt (csi included), galvanically isolated
Option h1: Inhibit by external closing contact, signal referred to input
Option h2: Inhibit by voltage signal, signal referred to output
Option h3: Inhibit by closing contact, signal referred to output
Option rco: Reducing current limiting at over temperature
Option rd: Reverse polarity protection for DC output
Signal Options See selection table for details
Option pr: input voltage supervision (power ok) incl. relay contacts
Option dr: output voltage supervision (DC ok) incl. relay contacts
Option cf: charger / converter fail supervision incl. relay contacts
Option ac: AC ok for inverter including relay contacts
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75°C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling F: Fan - for increased airflow
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
Environment Options See selection table for details
Option t: Tropical protection
Option c: Extended temperature range Option ms: Increased mechanical strength
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MTBF approx 700Khrs at 40°C
acc. to MIL-HDBK-217E (notice 1)
MECHANICAL
Mechanics High power modules are constructed in 19" format
Dimensions See Technical illustration
Mechanical Options Option w: Wall Mounting

INPUT

115Vac

± 20%

OUTPUT

AMPS

INPUT

230Vac

+15% - 20%

INPUT

3x200Vac

+15% - 20%

INPUT

3x400Vac

+15% - 20%

INPUT

3x480Vac

+15% - 20%

OUTPUT

AMPS

COOLING



OUTPUT

VOLTAGE

VOLTAGE

ADJUSTMENT
C5660 400 C5680  C5660V  C5680V  C5690V 400 F 5 4.5 - 5.5
C5661 380 C5681 C5661V  C5681V  C5691V  400 F 9 8 - 10
C5662 310 C5682 C5662V C5682V C5692V 400 F 12 11-13
C5663 265 C5683 C5663V C5683V C5693V 375 F 15 14-16
C5664 170 C5684 C5664V C5684V C5694V 230 F 24 23-26
C5665 150 C5685 C5665V C5685V C5695V 200 F 28 26-30
C5669 80 C5689 C5669V C5689V C5699V 110 F 48 45 - 55
C5666 65 C5686 C5666V C5686V C5696V 88 F 60 58 - 68
C5667 35 C5687 C5667V C5687V C5697V 46 F 110 100-130
C5667J 22 C5687J C5667VJ C5687VJ C5697VJ 30 F 200 190-200
C5668 18 C5688 C5668V C5688V C5698V 24 F 220 200-250
C5668J   11 C5688J C5668VJ  C5688VJ  C5698VJ  15 F 400 380-400
INPUT OPTIONS
Option “i” Inrush current limiting: A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” Electronic inrush current limiting : An electronic circuit limits the high inrush current caused by built-in capacitors. Switch- on time may increase to 5s. This is realized by a series pass transistor or depending on the input voltage by thyristor softstart..
Option “sd” Reverse polarity protection for DC input by series diode: A series diode protects the module against DC input voltage of wrong polarity. However, this also causes extra losses and reduces the overall efficiency..
Option “ad” Reverse polarity protection for DC input by anti parallel diode: To avoid the power losses a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply of wrong polarity.
Option “au” Auto-ranging: For standard dual AC input models the range of 115 / 230 V AC is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.



OUTPUT OPTIONS
Option “dd” Decoupling diode:A series diode built into the units output allows paralleling of 2 or more units for redundancy or higher power or battery charging. For control purposes the anode of the diode is also available at the output connector. It cannot be loaded ≥ 0.5A. The sense signal is taken partially from the anode and partially from the load/cathode of the decoupling diode. This guarantees starting and operating under all conditions, but it also effects the regulation accuracy of 2%. In this way it gives a load sharing of 15-30% between the paralleled units.
Option “cs” Active current sharing:An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. The output lines of the converters have to be in “star point” connection
Option “csi” Current sharing interrupt (“cs” included)“csi” will effect the removal of the “cs” signal from the load voltage common connection. Should there be an instance where a unit is not supplying the load, then the effect of its current sharing signal is removed, and the load voltage is unaffected by this condition. In terms of calibration the same criteria follow as for parallel operation.
Option “icsi” Current sharing interrupt (“csi” included), galvanically isolated: The inclusion of “csi” (current sharing interrupt) and the galvanic isolation is the optimum set up for systems with high power or high currents, were the voltage drop on the power wiring could influence the cs signal.
Option “h1” Inhibit by external closing contact, signal referred to input: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the input. This can also be used in combination with a thermal trip, which shuts the unit down.
Option “h2” Inhibit by voltage signal, signal referred to output: Operation of the unit is inhibited if a voltage signal (5V / 10mA) is applied in reference to the negative line of the output
Option “h3” Inhibit by closing contact, signal referred to output: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the output. This can also be used in combination with a thermal trip, which shuts the unit down. Please note: Only relevant solution for inverters.
Option “rco” Reducing current limiting at over temperature: A circuit reduces the current limiting level at higher temperature (to be specified).
Option "rd" Reverse polarity protection for DC output: by reverse diode with external fuse.



SIGNAL OPTIONS
Option “pr” input voltage supervision (power ok) incl. relay contacts: A logic signal is given if the input voltage (AC or DC) drops below the specified limit. In AC input models the rectified input voltage is sensed so that a power fail alarm can be avoided if at light load mains power returns before the input capacitors are substantially discharged. A relay contact is provided for failure indication
Option “dr” output voltage supervision (DC ok) incl. relay contacts: A logic signal is given if the output voltage is below the specified limit. A relay contact is provided for failure indication. DC ok level: 5V output: 4,75V all other voltages: 90% of adjusted voltage
Option “cf” charger / converter fail supervision incl. relay contacts: A logic signal is given if the input voltage, the auxiliary voltage of the primary side and the current of the primary side exceed or go below a specified range. A relay contact is provided for failure indication.
Option “ac” AC ok for inverter including relay contacts: A logic signal is given if the output voltage of an inverter is below the specified limit. A relay contact is provided for failure indication



ENVIRONMENTAL OPTIONS
Option "t" Tropical protection: The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99% RH, non condensing.
Option "c" Extended temperature range:The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" Increased mechanical strength: Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.



MECHANICAL OPTIONS
Option "w" Wall mounting:Modules, which have the wall mount option, are typically fixed to a structure or within a cabinet. Depending on the size of the module, this may be done with a flat or angled plate (see photo). The load connections are typically through a terminal block. Should the application not require a pluggable module / rack solution, wall mounting presents an alternative option for the customer to choose from.



Schaefer_cb5600hi-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant C5660 115Vac ± 20 % 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 400A
product variant C5661 115Vac ± 20 % 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 380A
product variant C5662 115Vac ± 20 % 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 310A
product variant C5663 115Vac ± 20 % 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 265A
product variant C5664 115Vac ± 20 % 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 170A
product variant C5665 115Vac ± 20 % 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 150A
product variant C5669 115Vac ± 20 % 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 80A
product variant C5666 115Vac ± 20 % 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 65A
product variant C5667 115Vac ± 20 % 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 35A
product variant C5667J 115Vac ± 20 % 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 22A
product variant C5668 115Vac ± 20 % 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 18A
product variant C5668J 115Vac ± 20 % 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 11A
product variant C5667H 115Vac ± 20 % 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 7.5A
product variant C5668H 115Vac ± 20 % 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 5.625A
product variant C5680 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 400A
product variant C5681 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 400A
product variant C5682 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 400A
product variant C5683 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 375A
product variant C5684 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 230A
product variant C5685 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 200A
product variant C5689 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 110A
product variant C5686 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 88A
product variant C5687 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 46A
product variant C5687J 230Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 30A
product variant C5688 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 24A
product variant C5688J 230Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 15A
product variant C5687H 230Vac +15%/-20% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 10A
product variant C5688H 230Vac +15%/-20% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 7.5A
product variant C5660V 3 x 200Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 400A
product variant C5661V 3 x 200Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 400A
product variant C5662V 3 x 200Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 400A
product variant C5663V 3 x 200Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 375A
product variant C5664V 3 x 200Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 230A
product variant C5665V 3 x 200Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 200A
product variant C5669V 3 x 200Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 110A
product variant C5666V 3 x 200Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 88A
product variant C5667V 3 x 200Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 46A
product variant C5667JV 3 x 200Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 30A
product variant C5668V 3 x 200Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 24A
product variant C5668JV 3 x 200Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 15A
product variant C5667VH 3 x 200Vac +15%/-20% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 10A
product variant C5668VH 3 x 200Vac +15%/-20% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 7.5A
product variant C5680V 3 x 400Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 400A
product variant C5681V 3 x 400Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 400A
product variant C5682V 3 x 400Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 400A
product variant C5683V 3 x 400Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 375A
product variant C5684V 3 x 400Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 230A
product variant C5685V 3 x 400Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 200A
product variant C5689V 3 x 400Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 110A
product variant C5686V 3 x 400Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 88A
product variant C5687V 3 x 400Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 46A
product variant C5687JV 3 x 400Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 30A
product variant C5688V 3 x 400Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 24A
product variant C5688JV 3 x 400Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 15A
product variant C5687VH 3 x 400Vac +15%/-20% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 10A
product variant C5688VH 3 x 400Vac +15%/-20% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 7.5A
product variant C5690V 3 x 480Vac +10%/-15% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 400A
product variant C5691V 3 x 480Vac +10%/-15% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 400A
product variant C5692V 3 x 480Vac +10%/-15% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 400A
product variant C5693V 3 x 480Vac +10%/-15% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 375A
product variant C5694V 3 x 480Vac +10%/-15% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 230A
product variant C5695V 3 x 480Vac +10%/-15% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 200A
product variant C5699V 3 x 480Vac +10%/-15% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 110A
product variant C5696V 3 x 480Vac +10%/-15% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 88A
product variant C5697V 3 x 480Vac +10%/-15% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 46A
product variant C5697JV 3 x 480Vac +10%/-15% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 30A
product variant C5698V 3 x 480Vac +10%/-15% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 24A
product variant C5698JV 3 x 480Vac +10%/-15% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 15A
product variant C5697VH 3 x 480Vac +10%/-15% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 10A
product variant C5698VH 3 x 480Vac +10%/-15% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 7.5A
