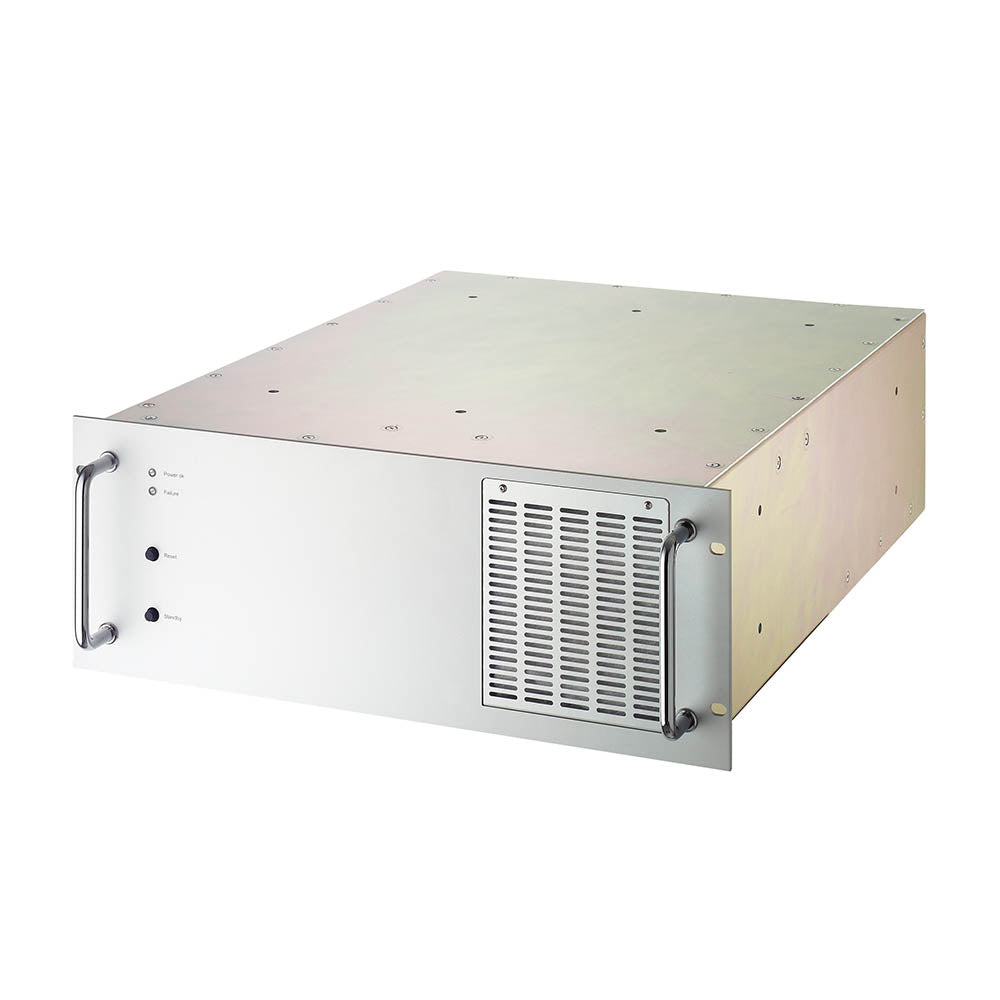

Schaefer C5400A-SERIES AC/DC Power Supply

The Schaefer 5400A Series is a high-power, fan-cooled AC/DC power supply for industrial applications, delivering 10kW output. Designed as a 4RU plug-in module for incorporation within 19" racks, the 5400A Series supports a wide range of DC output voltages from 24Vdc to 400Vdc and can be deployed as a standalone unit or integrated into larger systems for parallel or redundant operation. This versatile design allows for scalability and enhanced reliability in critical applications. With options for monitoring and control, the 5400A Series is ideal for high-demand industrial applications.

View Models
Schaefer C5400A-SERIES AC/DC Power Supply

Features

  • Industrial Grade AC/DC Power Supply
  • High Output Power: 10kW
  • AC Input: via 3-Phase
  • Wide Range of DC outputs 24, 28, 48, 60, 110, 200, 220, 400
  • Mounting via 4U 19" plug-in module
  • Multiple units can be easily installed for high power / redundant installations.
Specifications
INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input 30W typical
Inrush current 3-phase AC input limited by thermister
Switch on time <1s typical.
Input Options See selection table for details
Option i: Inrush current limiting
Option ie: Electronic inrush current limiting
Option sd: Reverse polarity protection for DC input by input by series diode
Option ad: Reverse polarity protection for DC input by anti parallel diode
Option au: Auto-ranging
OUTPUT
Output voltage Voltage range; 24 - 400Vdc
See selection table
Output power 10kW See selection table .
Ripple & noise <1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 10ms typical ±1%
Temp coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 300mS typical (soft start)
Remote sense standard for all series up to 150 V output, except for battery chargers; up to 10 % of Unom for output < 60 VDC, up to 6 V for output > 60 VD
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation; after 5 seconds, the unit will remain latched off
Efficiency 80 - 95% typical
Output Options See selection table for details
Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option csi: Current sharing interrupt (“cs” included)
Option icsi: Current sharing interrupt (“csi” included), galvanically isolated
Option h1: Inhibit by external closing contact, signal referred to input
Option h2: Inhibit by voltage signal, signal referred to output
Option h3: Inhibit by closing contact, signal referred to output
Option rco: Reducing current limiting at over temperature
Option rd: Reverse polarity protection for DC output
Signal Options See selection table for details
Option pr: input voltage supervision (power ok) incl. relay contacts
Option dr: output voltage supervision (DC ok) incl. relay contacts
Option cf: charger / converter fail supervision incl. relay contacts
Option ac: AC ok for inverter including relay contacts
PROGRAMMING
Programming of output voltage from 0 to 100 % eu1: by external signal, 0 – 10 V
eu2: by external signal, 4 – 20 mA
eu3: by 270° potentiometer
eu4: by 10 turn potentiometer
Programming of output current from 0 to 100 % ei1: by external signal, 0 – 10 V
ei2: by external signal, 4 – 20 mA
ei3: by 270° potentiometer
ei4: by 10 turn potentiometer
Isolating amplifier for programming lso: Programming signal is galvanically isolated from any potentials of the power supply.
Programming via rs: RS232 (external)
can: CAN Bus (external)
MONITORING
Monitoring of output voltage from 0 to 100 % mu1: by external signal, 0 – 10 V
mu2: by external signal, 4 – 20 mA
Monitoring of output current from 0 to 100 % mi1: by external signal, 0 – 10 V
mi2: by external signal, 4 – 20 mA
Isolating amplifier for monitoring Iso: Monitoring signal is galvanically isolated from any potentials of the power supply.
Monitoring via rs: RS232 (external)
can: CAN Bus (external)
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling F: Fan - for increased airflow
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
Environment Options See selection table for details
Option t: Tropical protection
Option c: Extended temperature range
Option ms: Increased mechanical strength
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529
NEMA or others on request
MTBF approx 700Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
MECHANICAL
Mechanics High power modules are constructed in 19" format
Dimensions See Technical illustration
Selection Table
INPUT 3x200Vac +15% - 20% INPUT 3x400Vac +15% - 20% INPUT 3x480Vac +15% - 20% OUTPUT AMPS FAN COOLING OUTPUT VOLTAGE VOLTAGE ADJUSTMENT
C5464V C5484V C5494V 350 F 24 23-26
C5465V C5485V C5495V 330 F 28 26-30
C5469V C5489V C5499V 182 F 48 45 - 55
C5466V C5486V C5496V 147 F 60 58 - 68
C5467V C5487V C5497V 77 F 110 100-130
C5467VJ C5487VJ C5497VJ 50 F 200 190-200
C5468V C5488V C5498V 40 F 220 200-250
C5468VJ C5488VJ C5498VJ 25 F 400 380-400
INPUT OPTIONS
Option “i” Inrush current limiting: A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” Electronic inrush current limiting: An electronic circuit limits the high inrush current caused by built-in capacitors. Switch- on time may increase to 5s. This is realized by a series pass transistor or depending on the input voltage by thyristor softstart..
Option “sd” Reverse polarity protection for DC input by series diode: A series diode protects the module against DC input voltage of wrong polarity. However, this also causes extra losses and reduces the overall efficiency..
Option “ad” Reverse polarity protection for DC input by anti parallel diode: To avoid the power losses a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply of wrong polarity.
Option “au” Auto-ranging: For standard dual AC input models the range of 115 / 230 V AC is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
OUTPUT OPTIONS
Option “dd” Decoupling diode: A series diode built into the units output allows paralleling of 2 or more units for redundancy or higher power or battery charging. For control purposes the anode of the diode is also available at the output connector. It cannot be loaded ≥ 0.5A. The sense signal is taken partially from the anode and partially from the load/cathode of the decoupling diode. This guarantees starting and operating under all conditions, but it also effects the regulation accuracy of 2%. In this way it gives a load sharing of 15-30% between the paralleled units.
Option “cs” Active current sharing: An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. The output lines of the converters have to be in “star point” connection
Option “csi” Current sharing interrupt (“cs” included)“csi” will effect the removal of the “cs” signal from the load voltage common connection. Should there be an instance where a unit is not supplying the load, then the effect of its current sharing signal is removed, and the load voltage is unaffected by this condition. In terms of calibration the same criteria follow as for parallel operation.
Option “icsi” Current sharing interrupt (“csi” included), galvanically isolated: The inclusion of “csi” (current sharing interrupt) and the galvanic isolation is the optimum set up for systems with high power or high currents, were the voltage drop on the power wiring could influence the cs signal.
Option “h1” Inhibit by external closing contact, signal referred to input: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the input. This can also be used in combination with a thermal trip, which shuts the unit down.
Option “h2” Inhibit by voltage signal, signal referred to output: Operation of the unit is inhibited if a voltage signal (5V / 10mA) is applied in reference to the negative line of the output
Option “h3” Inhibit by closing contact, signal referred to output: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the output. This can also be used in combination with a thermal trip, which shuts the unit down. Please note: Only relevant solution for inverters.
Option “rco” Reducing current limiting at over temperature: A circuit reduces the current limiting level at higher temperature (to be specified).
Option "rd" Reverse polarity protection for DC output: by reverse diode with external fuse.
SIGNAL OPTIONS
Option “pr” input voltage supervision (power ok) incl. relay contacts: A logic signal is given if the input voltage (AC or DC) drops below the specified limit. In AC input models the rectified input voltage is sensed so that a power fail alarm can be avoided if at light load mains power returns before the input capacitors are substantially discharged. A relay contact is provided for failure indication
Option “dr” output voltage supervision (DC ok) incl. relay contacts: A logic signal is given if the output voltage is below the specified limit. A relay contact is provided for failure indication. DC ok level: 5V output: 4,75V all other voltages: 90% of adjusted voltage
Option “cf” charger / converter fail supervision incl. relay contacts: A logic signal is given if the input voltage, the auxiliary voltage of the primary side and the current of the primary side exceed or go below a specified range. A relay contact is provided for failure indication.
Option “ac” AC ok for inverter including relay contacts: A logic signal is given if the output voltage of an inverter is below the specified limit. A relay contact is provided for failure indication
ENVIRONMENTAL OPTIONS
Option "t" Tropical protection: The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99% RH, non condensing.
Option "c" Extended temperature range: The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" Increased mechanical strength: Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.

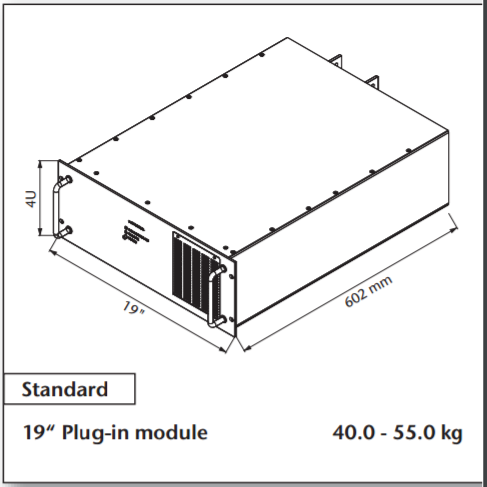

Technical Illustrations
Downloads
Schaefer_cb5400-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input 30W typical
Inrush current 3-phase AC input limited by thermister
Switch on time <1s typical.
Input Options See selection table for details
Option i: Inrush current limiting
Option ie: Electronic inrush current limiting
Option sd: Reverse polarity protection for DC input by input by series diode
Option ad: Reverse polarity protection for DC input by anti parallel diode
Option au: Auto-ranging
OUTPUT
Output voltage Voltage range; 24 - 400Vdc
See selection table
Output power 10kW See selection table .
Ripple & noise <1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 10ms typical ±1%
Temp coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 300mS typical (soft start)
Remote sense standard for all series up to 150 V output, except for battery chargers; up to 10 % of Unom for output < 60 VDC, up to 6 V for output > 60 VD
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation; after 5 seconds, the unit will remain latched off
Efficiency 80 - 95% typical
Output Options See selection table for details
Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option csi: Current sharing interrupt (“cs” included)
Option icsi: Current sharing interrupt (“csi” included), galvanically isolated
Option h1: Inhibit by external closing contact, signal referred to input
Option h2: Inhibit by voltage signal, signal referred to output
Option h3: Inhibit by closing contact, signal referred to output
Option rco: Reducing current limiting at over temperature
Option rd: Reverse polarity protection for DC output
Signal Options See selection table for details
Option pr: input voltage supervision (power ok) incl. relay contacts
Option dr: output voltage supervision (DC ok) incl. relay contacts
Option cf: charger / converter fail supervision incl. relay contacts
Option ac: AC ok for inverter including relay contacts
PROGRAMMING
Programming of output voltage from 0 to 100 % eu1: by external signal, 0 – 10 V
eu2: by external signal, 4 – 20 mA
eu3: by 270° potentiometer
eu4: by 10 turn potentiometer
Programming of output current from 0 to 100 % ei1: by external signal, 0 – 10 V
ei2: by external signal, 4 – 20 mA
ei3: by 270° potentiometer
ei4: by 10 turn potentiometer
Isolating amplifier for programming lso: Programming signal is galvanically isolated from any potentials of the power supply.
Programming via rs: RS232 (external)
can: CAN Bus (external)
MONITORING
Monitoring of output voltage from 0 to 100 % mu1: by external signal, 0 – 10 V
mu2: by external signal, 4 – 20 mA
Monitoring of output current from 0 to 100 % mi1: by external signal, 0 – 10 V
mi2: by external signal, 4 – 20 mA
Isolating amplifier for monitoring Iso: Monitoring signal is galvanically isolated from any potentials of the power supply.
Monitoring via rs: RS232 (external)
can: CAN Bus (external)
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling F: Fan - for increased airflow
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
Environment Options See selection table for details
Option t: Tropical protection
Option c: Extended temperature range
Option ms: Increased mechanical strength
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529
NEMA or others on request
MTBF approx 700Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
MECHANICAL
Mechanics High power modules are constructed in 19" format
Dimensions See Technical illustration
INPUT 3x200Vac +15% - 20% INPUT 3x400Vac +15% - 20% INPUT 3x480Vac +15% - 20% OUTPUT AMPS FAN COOLING OUTPUT VOLTAGE VOLTAGE ADJUSTMENT
C5464V C5484V C5494V 350 F 24 23-26
C5465V C5485V C5495V 330 F 28 26-30
C5469V C5489V C5499V 182 F 48 45 - 55
C5466V C5486V C5496V 147 F 60 58 - 68
C5467V C5487V C5497V 77 F 110 100-130
C5467VJ C5487VJ C5497VJ 50 F 200 190-200
C5468V C5488V C5498V 40 F 220 200-250
C5468VJ C5488VJ C5498VJ 25 F 400 380-400
INPUT OPTIONS
Option “i” Inrush current limiting: A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” Electronic inrush current limiting: An electronic circuit limits the high inrush current caused by built-in capacitors. Switch- on time may increase to 5s. This is realized by a series pass transistor or depending on the input voltage by thyristor softstart..
Option “sd” Reverse polarity protection for DC input by series diode: A series diode protects the module against DC input voltage of wrong polarity. However, this also causes extra losses and reduces the overall efficiency..
Option “ad” Reverse polarity protection for DC input by anti parallel diode: To avoid the power losses a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply of wrong polarity.
Option “au” Auto-ranging: For standard dual AC input models the range of 115 / 230 V AC is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
OUTPUT OPTIONS
Option “dd” Decoupling diode: A series diode built into the units output allows paralleling of 2 or more units for redundancy or higher power or battery charging. For control purposes the anode of the diode is also available at the output connector. It cannot be loaded ≥ 0.5A. The sense signal is taken partially from the anode and partially from the load/cathode of the decoupling diode. This guarantees starting and operating under all conditions, but it also effects the regulation accuracy of 2%. In this way it gives a load sharing of 15-30% between the paralleled units.
Option “cs” Active current sharing: An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. The output lines of the converters have to be in “star point” connection
Option “csi” Current sharing interrupt (“cs” included)“csi” will effect the removal of the “cs” signal from the load voltage common connection. Should there be an instance where a unit is not supplying the load, then the effect of its current sharing signal is removed, and the load voltage is unaffected by this condition. In terms of calibration the same criteria follow as for parallel operation.
Option “icsi” Current sharing interrupt (“csi” included), galvanically isolated: The inclusion of “csi” (current sharing interrupt) and the galvanic isolation is the optimum set up for systems with high power or high currents, were the voltage drop on the power wiring could influence the cs signal.
Option “h1” Inhibit by external closing contact, signal referred to input: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the input. This can also be used in combination with a thermal trip, which shuts the unit down.
Option “h2” Inhibit by voltage signal, signal referred to output: Operation of the unit is inhibited if a voltage signal (5V / 10mA) is applied in reference to the negative line of the output
Option “h3” Inhibit by closing contact, signal referred to output: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the output. This can also be used in combination with a thermal trip, which shuts the unit down. Please note: Only relevant solution for inverters.
Option “rco” Reducing current limiting at over temperature: A circuit reduces the current limiting level at higher temperature (to be specified).
Option "rd" Reverse polarity protection for DC output: by reverse diode with external fuse.
SIGNAL OPTIONS
Option “pr” input voltage supervision (power ok) incl. relay contacts: A logic signal is given if the input voltage (AC or DC) drops below the specified limit. In AC input models the rectified input voltage is sensed so that a power fail alarm can be avoided if at light load mains power returns before the input capacitors are substantially discharged. A relay contact is provided for failure indication
Option “dr” output voltage supervision (DC ok) incl. relay contacts: A logic signal is given if the output voltage is below the specified limit. A relay contact is provided for failure indication. DC ok level: 5V output: 4,75V all other voltages: 90% of adjusted voltage
Option “cf” charger / converter fail supervision incl. relay contacts: A logic signal is given if the input voltage, the auxiliary voltage of the primary side and the current of the primary side exceed or go below a specified range. A relay contact is provided for failure indication.
Option “ac” AC ok for inverter including relay contacts: A logic signal is given if the output voltage of an inverter is below the specified limit. A relay contact is provided for failure indication
ENVIRONMENTAL OPTIONS
Option "t" Tropical protection: The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99% RH, non condensing.
Option "c" Extended temperature range: The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" Increased mechanical strength: Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
Schaefer_cb5400-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant C5464V 3 x 200Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 350A
product variant C5465V 3 x 200Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 330A
product variant C5469V 3 x 200Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 182A
product variant C5466V 3 x 200Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 147A
product variant C5467V 3 x 200Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 77A
product variant C5467VJ 3 x 200Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 50A
product variant C5468V 3 x 200Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 40A
product variant C5468VJ 3 x 200Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 25A
product variant C5467VH 3 x 200Vac +15%/-20% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 17A
product variant C5468VH 3 x 200Vac +15%/-20% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 12.5A
product variant C5484V 3 x 400Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 350A
product variant C5485V 3 x 400Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 330A
product variant C5489V 3 x 400Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 182A
product variant C5486V 3 x 400Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 147A
product variant C5487V 3 x 400Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 77A
product variant C5487VJ 3 x 400Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 50A
product variant C5488V 3 x 400Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 40A
product variant C5488VJ 3 x 400Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 25A
product variant C5487VH 3 x 400Vac +15%/-20% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 17A
product variant C5488VH 3 x 400Vac +15%/-20% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 12.5A
product variant C5494V 3 x 480Vac +10%/-15% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 350A
product variant C5495V 3 x 480Vac +10%/-15% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 350A
product variant C5499V 3 x 480Vac +10%/-15% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 182A
product variant C5496V 3 x 480Vac +10%/-15% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 147A
product variant C5497V 3 x 480Vac +10%/-15% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 77A
product variant C5497VJ 3 x 480Vac +10%/-15% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 77A
product variant C5498V 3 x 480Vac +10%/-15% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 40A
product variant C5498VJ 3 x 480Vac +10%/-15% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 25A
product variant C5497VH 3 x 480Vac +10%/-15% 50/60Hz 600Vdc (Adj. 570 - 600Vdc) 17A
product variant C5498VH 3 x 480Vac +10%/-15% 50/60Hz 800Vdc (Adj. 760 - 800Vdc) 12.5A
