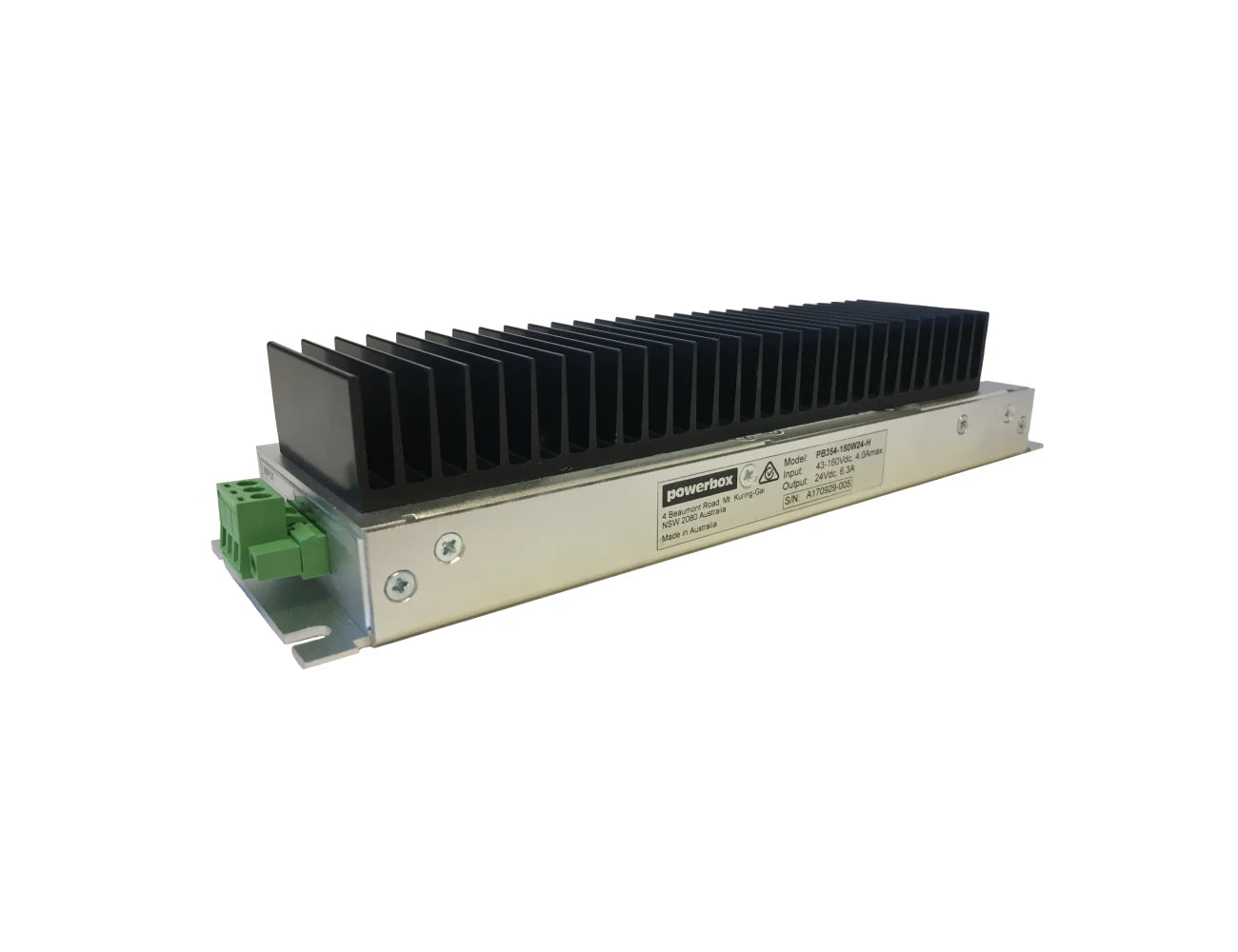

Powerbox PB354 SERIES DC/DC Converter - Railway (50-150W)
The Powerbox PB354 Series DC/DC Converter delivers reliable power conversion for railway applications, offering output capacities ranging from 50W to 150W. Engineered to meet EN50155 and EN50121-3-2 railway standards, it is ideal for onboard systems, signaling, and other critical railway functions. Key features include a wide input voltage range...
Read MoreThe Powerbox PB354 Series DC/DC Converter delivers reliable power conversion for railway applications, offering output capacities ranging from 50W to 150W. Engineered to meet EN50155 and EN50121-3-2 railway standards, it is ideal for onboard systems, signaling, and other critical railway functions.
Key features include a wide input voltage range (14-160Vdc for 50W models and 43-160Vdc for 150W models), high efficiency (up to 92%), and robust protection mechanisms such as continuous overload and short circuit protection. The PB354 Series is potted with a thermally conductive MIL-spec silicon rubber compound, providing superior thermal management and durability in harsh environments.
Available in 12V and 24V output configurations, with options for active droop current sharing for parallel operation, the PB354 Series ensures flexibility and scalability. The converter operates within an ambient temperature range of -30°C to 85°C, with natural convection cooling for reliable performance.
The Powerbox PB354 Series is the perfect choice for railway applications requiring dependable, high-efficiency DC/DC power conversion.
Show Less
Features
- 50W-150W; 14-160Vdc Input
- Rail rolling stock DC/DC converter
- Designed to rail standards EN50155 & EN50121-3-2
- Potted with thermally conductive MIL-spec silicon rubber compound
- Very wide range input 12:1 for 50W converter
- Wide range input 4:1 for 150W converter
- EMC: Meets EN50121-3-2
- Natural convection cooling
- Continuous overload and short circuit protection
- Overvoltage protection
- Optional parallel operation supported by active droop current sharing method Oring diode required
Specifications
| INPUT | |
|---|---|
| Input voltage | 50W 14-160Vdc 60W 43-160Vdc 100W 66-160Vdc 150W 43-160Vdc |
| Input current | 50W 4.6A max at 14Vdc input 60W 1.6A max at 43Vdc input 100W 1.7A max at 66Vdc input 150W 4.0A max at 43Vdc input |
| No load current | 0.01A max |
| Input Reverse Voltage Protection | Input Parallel TVS Diode External input fuse required |
| OUTPUT | |
|---|---|
| Output Voltage | See selection table Load= 50% of Full Load |
| Output Current | See selection table |
| Output Power | See selection table |
| Line regulation | ±5%max |
| Load regulation | ±1% max -CS droop slope, see table |
| Ripple and Noise | See selection table BW=20MHz |
| Short Circuit Protection | Continuous, non-latching |
| Overcurrent Protection | Hiccup overcurrent protection >160% of rated current |
| Overvoltage Protection | 180% voltage typical |
| ENVIRONMENT | |
|---|---|
| Operating Ambient Temp | -30°C to 85°C with derating |
| Case Temperature | 100°C maximum full load |
| Cooling | Natural Convection |
| Humidity | 20-80%RH Non condensing |
| STANDARDS | |
|---|---|
| Safety | EN50155 |
| Isolation | Input/Output: 3000Vdc Input/Case: 2250Vdc Output/Case: 500Vdc |
| EMC | EN50121-3-2 |
| ESD | EN61000-4-2 |
| Radiated immunity | EN61000-4-3 |
| Fast Transients | EN61000-4-4 |
| Surge | EN61000-4-5 |
| Conducted immunity | EN61000-4-6 |
| Shock and vibration | EN61373 |
| Energy Efficiency | 50W 86% typ 60W 90% typ 100W 92% typ 150W 89% typ |
| MECHANICAL | |
|---|---|
| Dimensions (LxWxH) | 69.0 x 244.4 x 22.6 mm -H (Heatsink) 69.0 x 244.4 x 47.6 mm |
| Weight | 530 g - 50W/60W models 770 g - 100W/150W models |
| DC Input Connector | Dinkle 2EHDRM-03P or equiv. |
| DC Output Connector | Dinkle DT-39-B01W-04 or equiv. |
Selection Table
| MODEL | Output Voltage | Output Current | Output Power | Output Voltage Tolerance | Output Ripple and Noise *2 |
|---|---|---|---|---|---|
| PB354-50W12 | 12.0Vdc | 4.2A | 50W | ±1% | <150mVp-p |
| PB354-50W24 | 24.0Vdc | 2.1A | 50W | ±1% | <240mVp-p |
| PB354-150W12-H | 12.0Vdc | 12.5A | 150W | ±1% | <150mVp-p |
| PB354-150W24-H | 24.0Vdc | 6.3A | 150W | ±1% | <240mVp-p |
| PB354-50W12-CS | 12.0Vdc | 4.4A | 50W | 11.3V~12.2V w/ droop -0.15V/A | <150mVp-p |
| PB354-50W24-CS | 24.0Vdc | 2.2A | 50W | 22.9V~24.4V w/ droop -0.50V/A | <240mVp-p |
| PB354-150W12-H-CS | 12.0Vdc | 13.2A | 150W | 11.3V~12.2V w/ droop -0.055V/A | <150mVp-p |
| PB354-150W24-H-CS | 24.0Vdc | 6.5A | 150W | 23.0V~24.5V w/ droop -0.18V/A | <240mVp-p |
| PB354-60W12 | 12.0Vdc | 5.0A | 60W | ±1% | <150mVp-p |
| PB354-60W24 | 24.0Vdc | 2.5A | 60W | ±1% | <240mVp-p |
| PB354-100W12-H | 12.0Vdc | 8.4A | 100W | ±1% | <150mVp-p |
| PB354-100W24-H | 24.0Vdc | 4.2A | 100W | ±1% | <240mVp-p |
| PB354-60W12-CS | 12.0Vdc | 5.2A | 60W | 11.3V~12.2V w/ droop -tbd V/A | <150mVp-p |
| PB354-60W24-CS | 24.0Vdc | 2.6A | 60W | 22.9V~24.4V w/ droop -tbd V/A | <240mVp-p |
| PB354-100W12-H-CS | 12.0Vdc | 8.8A | 100W | 11.3V~12.2V w/ droop -tbd V/A | <150mVp-p |
| PB354-100W24-H-CS | 24.0Vdc | 4.4A | 100W | 23.0V~24.5V w/ droop -tbd V/A | <240mVp-p |
