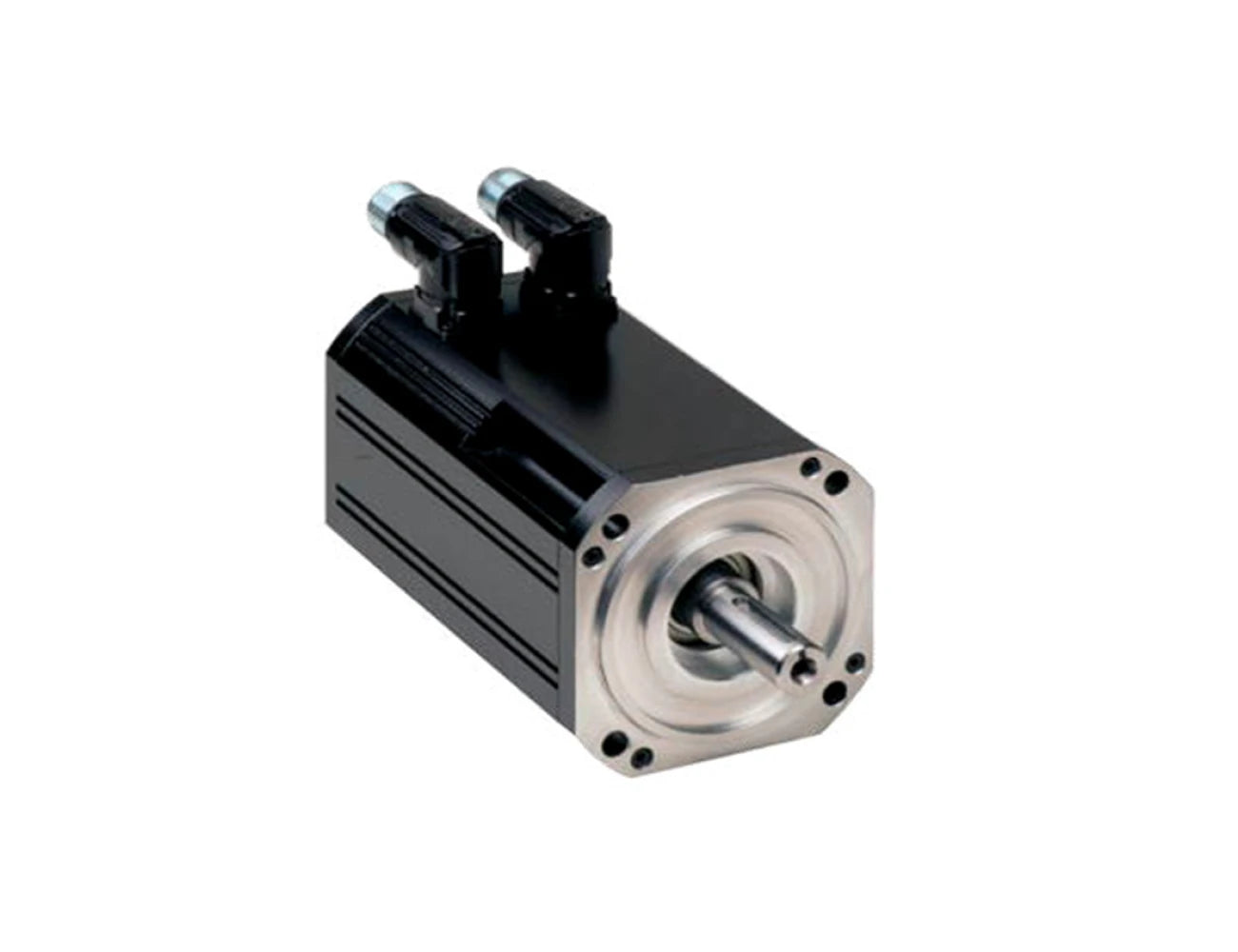

Mavilor BLS/BLT 74 SERIES AC Servo Motor
The Mavilor BLS/BLT 74 Series AC Servo Motor is a powerful and versatile brushless motor designed for demanding industrial applications. It combines advanced engineering with exceptional dynamic response to deliver precise and efficient performance in heavy-duty environments. Key features include a stall torque of up to 3.4 Nm and a peak torque ...
Read MoreThe Mavilor BLS/BLT 74 Series AC Servo Motor is a powerful and versatile brushless motor designed for demanding industrial applications. It combines advanced engineering with exceptional dynamic response to deliver precise and efficient performance in heavy-duty environments.
Key features include a stall torque of up to 3.4 Nm and a peak torque of up to 13.6 Nm, providing robust and reliable motion control. With a maximum speed of 11,000 rpm, the motor supports smooth and responsive operation in high-speed applications. Its compatibility with sinusoidal and trapezoidal current waveforms ensures seamless integration into a wide range of systems.
The BLS Series incorporates a resolver for accurate speed and position feedback, while the BLT Series utilises Hall Effect sensors for efficient synchronisation. Optional accessories include a fail-safe holding brake and a variety of encoder options, allowing for tailored configurations to meet specific industrial needs.
Applications include heavy-duty robotics, CNC machinery, automated systems, and other precision-driven industrial solutions requiring high torque and reliability.
The Mavilor BLS/BLT 74 Series AC Servo Motor delivers consistent performance, adaptability, and efficiency, making it a dependable choice for engineers and integrators seeking advanced motion control solutions.
Show Less
Features
- Nominal Speed: 11,000 r.p.m
- Stall Torque: 3.4Nm (+/-10%)
- Stall Current: 2.25A~5.15A (+/-10%)
- Peak Torque: 13.6Nm (+/-10%)
- Torque Weight Ratio: 1.21 - 1.23Nm/kg
Selection Table
| Characteristics | Symbol | Units | BLT-74 | BLS-74 | ||
|---|---|---|---|---|---|---|
| 220 VAC | 400 VAC | 220 VAC | 400 VAC | |||
| NOMINAL SPEED | n | r.p.m | 11000 | 11000 | ||
| STALL TORQUE (+/-10%) | Ms | Nm | 3.4 | 3.4 | 3.4 | 3.4 |
| STALL CURRENT (+/-10%) | Is | A | 5.15 | 2.76 | 4.2 | 2.25 |
| PEAK TORQUE (+/-10%) | Mj | Nm | 13.6 | 13.6 | 13.6 | 13.6 |
| TORQUE-WEIGHT RATIO | Tw | Nm/kg | 1.23 | 1.23 | 1.21 | 1.21 |
| EMF CONSTANT (+/-5%) | Ke | Vs/rad | 0.66 | 1.23 | 0.47 | 0.87 |
| TORQUE CONSTANT (+/-5%) | Kt | Nm/A | 0.66 | 1.23 | 0.81 | 1.51 |
