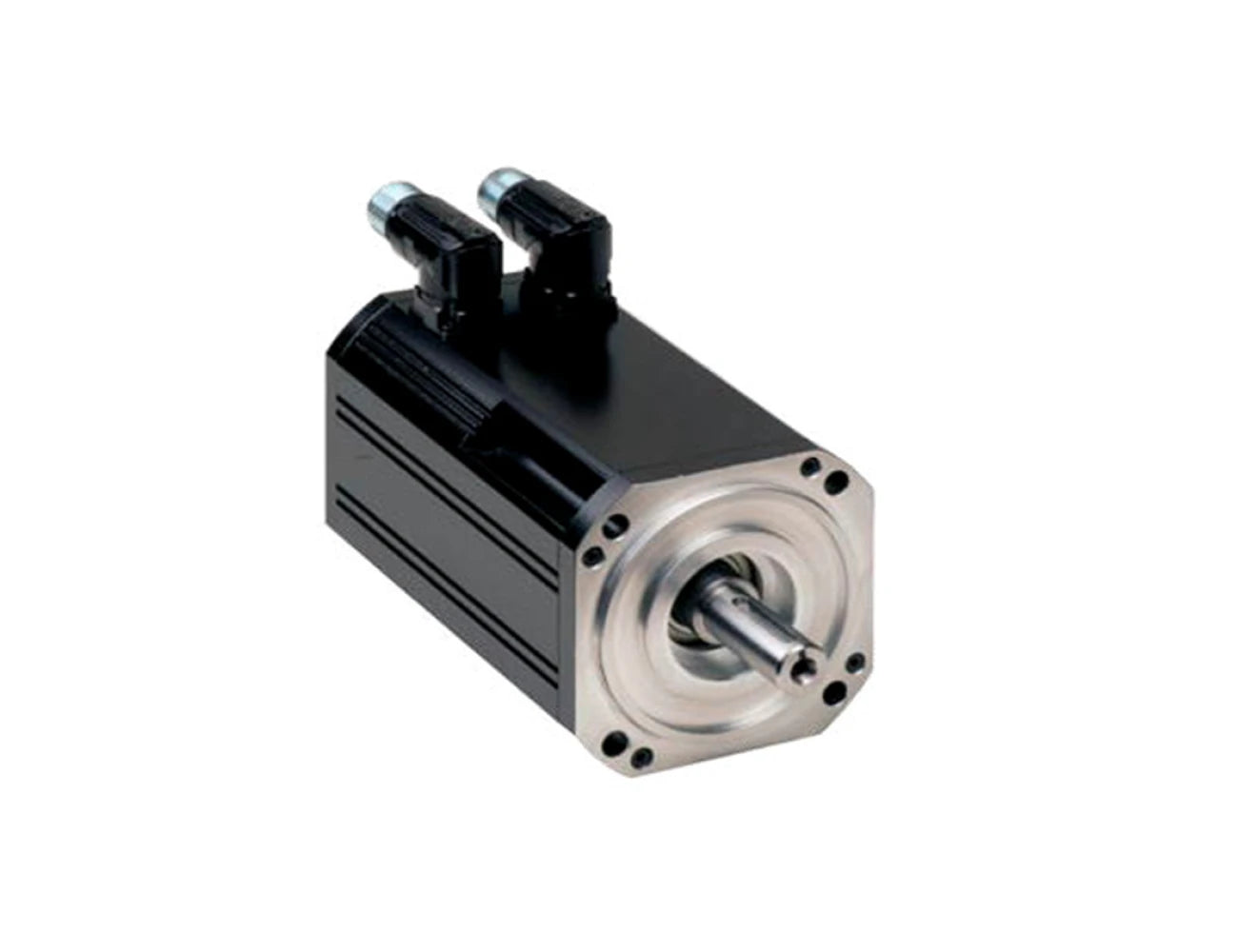

Mavilor BLS/BLT 73 SERIES AC Servo Motor
The Mavilor BLS/BLT 73 Series AC Servo Motor is a robust and high-performance brushless motor designed for precision-driven applications in industrial automation, robotics, and CNC machinery. It combines advanced feedback technology with exceptional dynamic capabilities to ensure reliable and efficient operation. Key features include a stall tor...
Read MoreThe Mavilor BLS/BLT 73 Series AC Servo Motor is a robust and high-performance brushless motor designed for precision-driven applications in industrial automation, robotics, and CNC machinery. It combines advanced feedback technology with exceptional dynamic capabilities to ensure reliable and efficient operation.
Key features include a stall torque of up to 2.7 Nm and a peak torque of up to 10.8 Nm, delivering powerful and consistent motion control for demanding tasks. With a maximum speed of 11,000 rpm, this motor excels in high-speed and responsive applications. Its compatibility with sinusoidal and trapezoidal current waveforms ensures flexible integration into a variety of systems.
The BLS Series features a resolver for precise position and speed feedback, while the BLT Series incorporates Hall Effect sensors for efficient synchronisation and control. Optional accessories such as a fail-safe holding brake and multiple encoder configurations provide customisation to suit specific operational requirements.
Applications include robotics, CNC systems, automated assembly lines, and other industrial processes requiring precise, high-torque motion control.
The Mavilor BLS/BLT 73 Series AC Servo Motor offers consistent performance, versatile functionality, and reliable operation, making it an ideal choice for engineers and system integrators seeking advanced servo motor solutions.
Show Less
Features
- Nominal Speed: 11,000 r.p.m
- Stall Torque: 2.7Nm (+/-10%)
- Stall Current: 2.2A - 4.82A (+/-10%)
- Peak Torque: 10.8Nm (+/-10%)
- Torque Weight Ratio: 1.17 - 1.19
Selection Table
| Characteristics | Symbol | Units | BLT-73 | BLS-73 | ||
|---|---|---|---|---|---|---|
| 220 VAC | 400 VAC | 220 VAC | 400 VAC | |||
| NOMINAL SPEED | n | r.p.m | 11000 | 11000 | ||
| STALL TORQUE (+/-10%) | Ms | Nm | 2.7 | 2.7 | 2.7 | 2.7 |
| STALL CURRENT (+/-10%) | Is | A | 4.82 | 2.7 | 3.91 | 2.2 |
| PEAK TORQUE (+/-10%) | Mj | Nm | 10.8 | 10.8 | 10.8 | 10.8 |
| TORQUE-WEIGHT RATIO | Tw | Nm/kg | 1.19 | 1.19 | 1.17 | 1.17 |
| EMF CONSTANT (+/-5%) | Ke | Vs/rad | 0.56 | 1 | 0.4 | 0.71 |
| TORQUE CONSTANT (+/-5%) | Kt | Nm/A | 0.56 | 1 | 0.69 | 1.23 |
