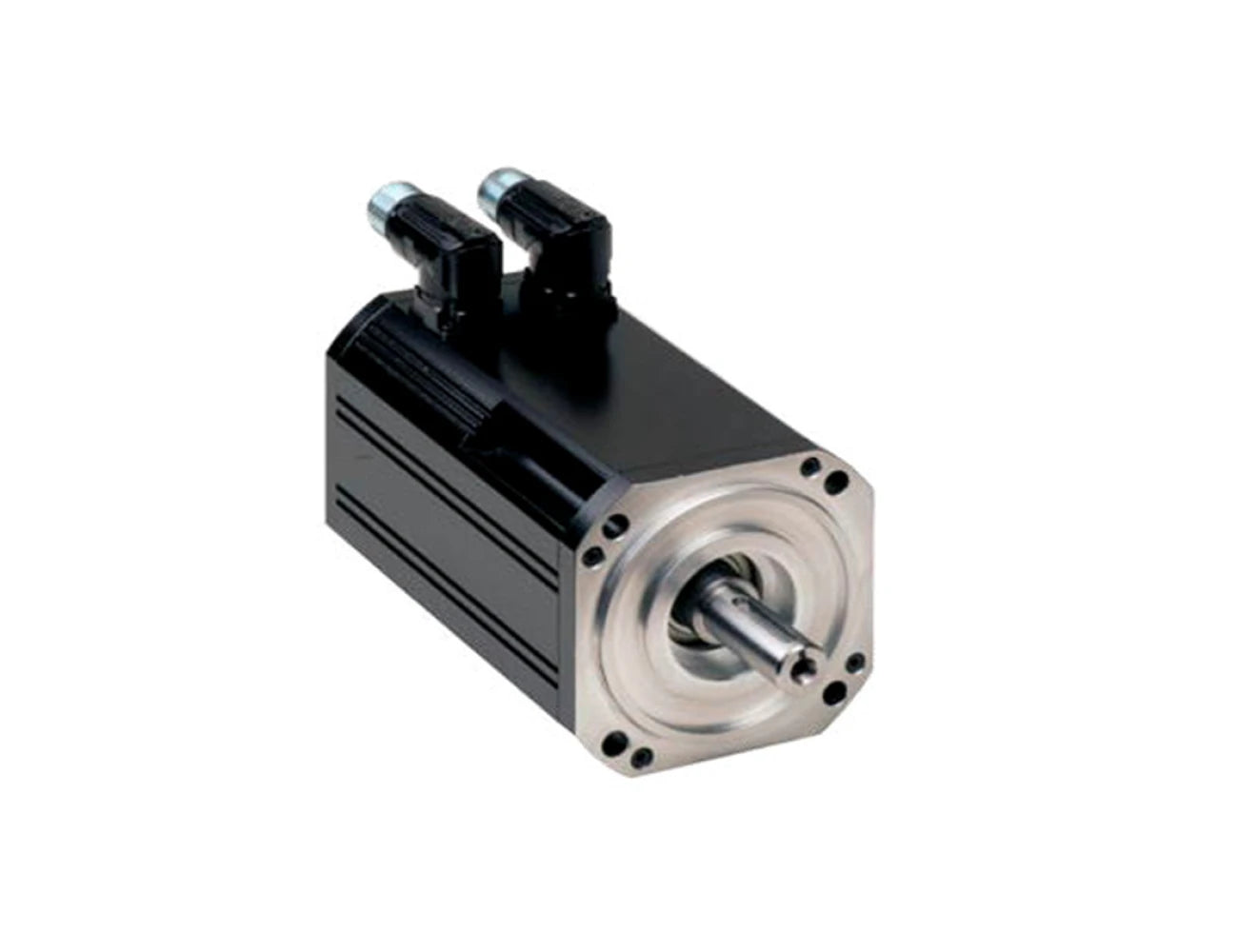

Mavilor BLS/BLT 72 SERIES AC Servo Motor
The Mavilor BLS/BLT 72 Series AC Servo Motor is a high-performance, brushless motor designed for demanding industrial and automation applications. It combines precision engineering with advanced feedback systems to deliver superior dynamic response, reliability, and efficiency. Key features include a stall torque of up to 1.9 Nm and a peak torqu...
Read MoreThe Mavilor BLS/BLT 72 Series AC Servo Motor is a high-performance, brushless motor designed for demanding industrial and automation applications. It combines precision engineering with advanced feedback systems to deliver superior dynamic response, reliability, and efficiency.
Key features include a stall torque of up to 1.9 Nm and a peak torque of up to 7.6 Nm, ensuring robust and responsive motion control for a wide range of applications. With a maximum speed of 11,000 rpm, this motor offers smooth operation in high-speed environments. The compact and robust design supports sinusoidal and trapezoidal current waveforms for flexible system integration.
The BLS Series incorporates a resolver for precise speed and position feedback, while the BLT Series utilises Hall Effect sensors for efficient synchronisation. Optional accessories include a fail-safe holding brake and compatibility with various encoder options, allowing tailored configurations for specific operational needs.
Applications include robotics, CNC machinery, automated assembly systems, and other precision-driven industrial solutions requiring reliability and adaptability.
The Mavilor BLS/BLT 72 Series AC Servo Motor offers unmatched performance, efficient operation, and customisable options, making it a dependable choice for engineers and integrators seeking high-quality motion control solutions.
Show Less
Features
- Nominal Speed: 11,000 r.p.m
- Stall Torque: 1.8 - 1.9 Nm (+/-10%)
- Stall Current: 2.37 - 4.87A (+/-10%)
- Peak Torque: 7.2 - 7.6 Nm (+/-10%)
- Torque Weight Ratio: 0.96 - 1.02 Nm/kg
Selection Table
| Characteristics | Symbol | Units | BLT-72 | BLS-72 | ||
|---|---|---|---|---|---|---|
| 220 VAC | 400 VAC | 220 VAC | 400 VAC | |||
| NOMINAL SPEED | n | r.p.m | 11000 | 11000 | ||
| STALL TORQUE (+/-10%) | Ms | Nm | 1.9 | 1.8 | 1.9 | 1.9 |
| STALL CURRENT (+/-10%) | Is | A | 4.87 | 2.77 | 3.96 | 2.37 |
| PEAK TORQUE (+/-10%) | Mj | Nm | 7.6 | 7.20 | 7.6 | 7.6 |
| TORQUE-WEIGHT RATIO | Tw | Nm/kg | 1.02 | 0.96 | 1 | 1 |
| EMF CONSTANT (+/-5%) | Ke | Vs/rad | 0.39 | 0.65 | 0.28 | 0.46 |
| TORQUE CONSTANT (+/-5%) | Kt | Nm/A | 0.39 | 0.65 | 0.48 | 0.8 |
| RELUCTANCE TORQUE | Tr | Nm | <3.5% | <3.5% | ||
| WINDING RESISTANCE (+/-5%) | R | Ω | 5.3 | 15.5 | 5.3 | 15.5 |
| WINDING INDUCTANCE (+/-5%) | L(ph-ph) | mH | 5.4 | 13.2 | 5.4 | 13.2 |
| ROTOR INERTIA | J | kgm10 | 0.051 | 0.051 | 0.051 | 0.051 |
| MECHANICAL TIME CONSTANT | Tm | ms | 1.78 | 1.87 | 2.01 | 2.15 |
| ELECTRICAL TIME CONSTANT | Te | ms | 1.02 | 0.85 | 1.02 | 0.85 |
| THERMAL TIME CONSTANT | Tth | s | 1280 | 1280 | 1280 | 1280 |
| THERMAL RESISTANCE | Rth | ºC/W | 0.68 | 0.72 | 0.69 | 0.69 |
| MASS | M | kg | 1.87 | 1.87 | 1.9 | 1.9 |
| RADIAL LOAD | Fr | N | 245 | |||
| AXIAL LOAD | Fa | N | 98 | |||
| INSULATION | class-F | |||||
| PROTECTION | IP-65 | |||||
| ALUMINIUM HEAT SINK PLATE | 300x300x10 | |||||
