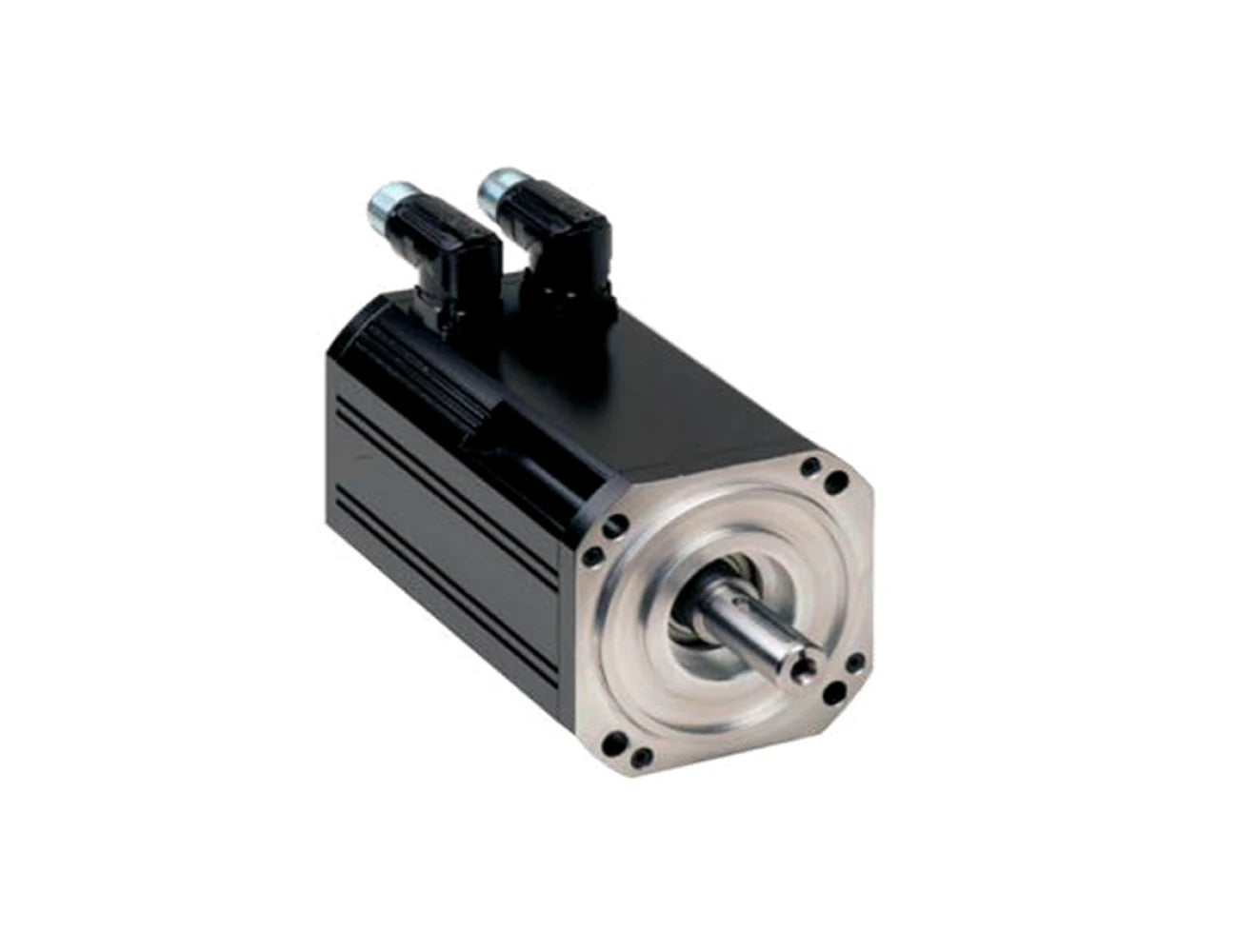

Mavilor BLS/BLT 55 SERIES AC Servo Motor
The Mavilor BLS/BLT 55 Series AC Servo Motor is a compact and efficient servo solution designed for precision-driven applications in robotics, industrial automation, and CNC machinery. Leveraging advanced brushless technology, this motor delivers exceptional dynamic performance, minimal maintenance, and reliable operation in demanding environmen...
Read MoreThe Mavilor BLS/BLT 55 Series AC Servo Motor is a compact and efficient servo solution designed for precision-driven applications in robotics, industrial automation, and CNC machinery. Leveraging advanced brushless technology, this motor delivers exceptional dynamic performance, minimal maintenance, and reliable operation in demanding environments.
Key features include a stall torque of up to 0.7 Nm and a peak torque of up to 2.8 Nm, providing precise and responsive motion control. With a maximum speed of 10,000 rpm, the motor ensures smooth and efficient operation across a wide range of applications. The compact design of the BLS/BLT 55 Series makes it ideal for integration into space-constrained systems, while its compatibility with sinusoidal and trapezoidal current waveforms enhances its versatility.
The BLS Series incorporates a resolver for high-accuracy synchronisation, while the BLT Series utilises Hall Effect sensors for efficient speed and position feedback. Optional accessories include fail-safe holding brakes and encoder compatibility, offering tailored configuration options to meet specific application needs.
Applications include robotics, CNC systems, automated machinery, and industrial motion control systems, where precise, reliable, and compact servo solutions are essential.
The Mavilor BLS/BLT 55 Series AC Servo Motor provides consistent performance and adaptability, making it a dependable choice for engineers seeking efficient and cost-effective motion control solutions.
Show Less
Features
- Nominal Speed: 10,000 r.p.m
- Stall Torque: 0.70Nm (+/-10%)
- Stall Current: 7.14A - 8.75A (+/-10%)
- Peak Torque: 2.80Nm (+/-10%)
- Torque Weight Ratio: 0.50 - 0.51 Nm/kg
Selection Table
| BLS/BLT 55 SERIES | ||||||
|---|---|---|---|---|---|---|
| Characteristics | Symbol | Units | BLT-55 | BLS-55 | ||
| 220 VAC | 400 VAC | 220 VAC | 400 VAC | |||
| NOMINAL SPEED | n | r.p.m | 10000 | 10000 | ||
| STALL TORQUE (+/-10%) | Ms | Nm | 0.7 | 0.7 | 0.7 | 0.7 |
| STALL CURRENT (+/-10%) | Is | A | 1.71 | 0.95 | 1.4 | 0.77 |
| PEAK TORQUE (+/-10%) | Mj | Nm | 2.8 | 2.8 | 2.8 | 2.8 |
| TORQUE-WEIGHT RATIO | Tw | Nm/kg | 0.51 | 0.51 | 0.5 | 0.5 |
| EMF CONSTANT (+/-5%) | Ke | Vs/rad | 0.41 | 0.74 | 0.29 | 0.53 |
| TORQUE CONSTANT (+/-5%) | Kt | Nm/A | 0.41 | 0.74 | 0.5 | 0.91 |
| RELUCTANCE TORQUE | Tr | Nm | <4% | <4% | ||
| WINDING RESISTANCE (+/-5%) | R(ph-ph) | Ω | 14.7 | 47 | 14.7 | 47 |
| WINDING INDUCTANCE (+/-5%) | L(ph-ph) | mH | 18.6 | 61 | 18.6 | 61 |
| ROTOR INERTIA | J | kg m² 10⁻³ | 0.017 | 0.017 | 0.017 | 0.017 |
| MECHANICAL TIME CONSTANT | Tm | ms | 1.49 | 1.46 | 1.72 | 1.66 |
| ELECTRICAL TIME CONSTANT | Te | ms | 1.27 | 1.3 | 1.27 | 1.3 |
| THERMAL TIME CONSTANT | Tth | s | 1,120 | 1,120 | 1,120 | 1,120 |
| THERMAL RESISTANCE | Rth | ºC/W | 2.01 | 2.05 | 1.99 | 2.06 |
| MASS | M | kg | 1.37 | 1.37 | 1.4 | 1.4 |
| RADIAL LOAD | Fr | N | 250 | 250 | ||
| AXIAL LOAD | Fa | N | 100 | 100 | ||
| INSULATION | CLASS-F | CLASS-F | ||||
| PROTECTION | IP-65 | IP-65 | ||||
| ALUMINIUM HEAT SINK PLATE | 300x300x10 | 300x300x10 | ||||
