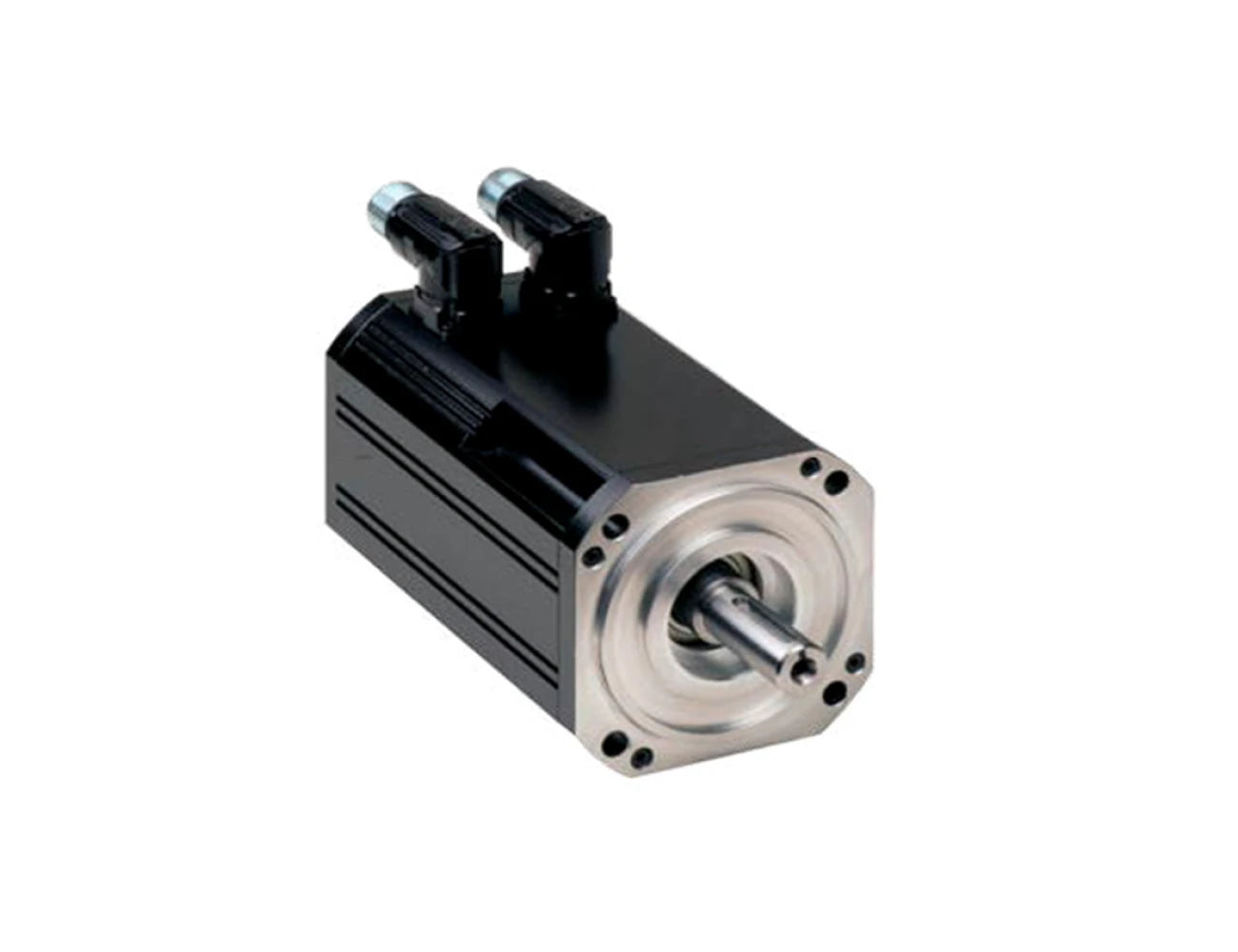

Mavilor BLS/BLT 40 SERIES AC Servo Motor
The Mavilor BLS/BLT 40 Series AC Servo Motor is a high-performance, brushless servo motor engineered for precision applications in robotics, CNC machinery, automated assembly lines, and other demanding industrial systems. Its advanced brushless technology and options for resolver (BLS series) or Hall Effect sensors (BLT series) ensure efficient,...
Read MoreThe Mavilor BLS/BLT 40 Series AC Servo Motor is a high-performance, brushless servo motor engineered for precision applications in robotics, CNC machinery, automated assembly lines, and other demanding industrial systems. Its advanced brushless technology and options for resolver (BLS series) or Hall Effect sensors (BLT series) ensure efficient, accurate control and minimal maintenance, even in challenging environments.
Key features include stall torque options of up to 0.36 Nm and maximum speeds reaching 10,000 rpm, delivering exceptional dynamic response and performance. The motor supports both sinusoidal and trapezoidal current waveforms, making it versatile for various control systems. With an IP65 protection rating and Class-F insulation, the BLS/BLT 40 Series is built to withstand harsh conditions, offering reliable operation over a wide temperature range.
The BLS Series incorporates a resolver for precise position feedback, ideal for applications requiring high accuracy. The BLT Series utilises Hall Effect sensors for synchronisation and speed control. Optional accessories include a fail-safe holding brake and compatibility with various encoders, providing flexible configuration options for tailored applications. Its compact design and robust construction make it suitable for integration into space-constrained environments.
Applications include agile robotics, precision CNC machinery, automated assembly lines, and other precision-driven industrial automation. This motor offers an excellent balance of quality and performance, making it a dependable choice for engineers seeking efficient and reliable servo motors without exceeding their budget.
The Mavilor BLS/BLT 40 Series AC Servo Motor delivers consistent, efficient, and customisable performance, making it a perfect solution for precision-driven industrial projects.
Features
- Nominal Speed: 10,000 r.p.m
- Stall Torque: 0.36Nm (+/-10%)
- Stall Current: 1.24 - 3.0A (+/-10%)
- Peak Torque: 1.44Nm (+/-10%)
- Torque Weight Ratio: 0.60 - 0.63Nm/kg
Selection Table
| BLS/BLT 40 SERIES | ||||||
|---|---|---|---|---|---|---|
| Characteristics | Symbol | Units | BLT-40 | BLS-40 | ||
| 110 VAC | 220 VAC | 110 VAC | 220 VAC | |||
| NOMINAL SPEED | n | r.p.m | 10000 | 10000 | ||
| STALL TORQUE (+/-10%) | Ms | Nm | 0.36 | 0.36 | 0.36 | 0.36 |
| STALL CURRENT (+/-10%) | Is | A | 3 | 1.5 | 2.57 | 1.24 |
| PEAK TORQUE (+/-10%) | Mj | Nm | 1.44 | 1.44 | 1.44 | 1.44 |
| TORQUE-WEIGHT RATIO | Tw | Nm/kg | 0.6 | 0.63 | 0.6 | 0.6 |
| EMF CONSTANT (+/-5%) | Ke | Vs/rad | 0.12 | 0.24 | 0.08 | 0.17 |
| TORQUE CONSTANT (+/-5%) | Kt | Nm/A | 0.12 | 0.24 | 0.14 | 0.29 |
| RELUCTANCE TORQUE | Tr | Nm | <6% | <6% | ||
| WINDING RESISTANCE (+/-5%) | R(ph-ph) | ¢ | 6 | 24.4 | 6 | 24.4 |
| WINDING INDUCTANCE (+/-5%) | L(ph-ph) | mH | 3.23 | 12 | 3.23 | 12 |
| ROTOR INERTIA | J | kgm10 | 0.0024 | 0.0024 | 0.0024 | 0.0024 |
| MECHANICAL TIME CONSTANT | Tm | ms | 1.02 | 1.02 | 1.19 | 1.19 |
| ELECTRICAL TIME CONSTANT | Te | ms | 0.54 | 0.49 | 0.54 | 0.49 |
| THERMAL TIME CONSTANT | Tth | s | 1190 | 1190 | 1190 | 1190 |
| THERMAL RESISTANCE | Rth | ºC/W | 1.53 | 1.57 | 1.53 | 1.53 |
| MASS | M | kg | 0.6 | 0.57 | 0.6 | 0.6 |
| RADIAL LOAD | Fr | N | 150 | 150 | ||
| AXIAL LOAD | Fa | N | 80 | 80 | ||
| INSULATION | class-F | class-F | ||||
| PROTECTION | IP65 | IP65 | ||||
| ALUMINIUM HEAT SINK PLATE | 300x300x10 | 300x300x10 | ||||
