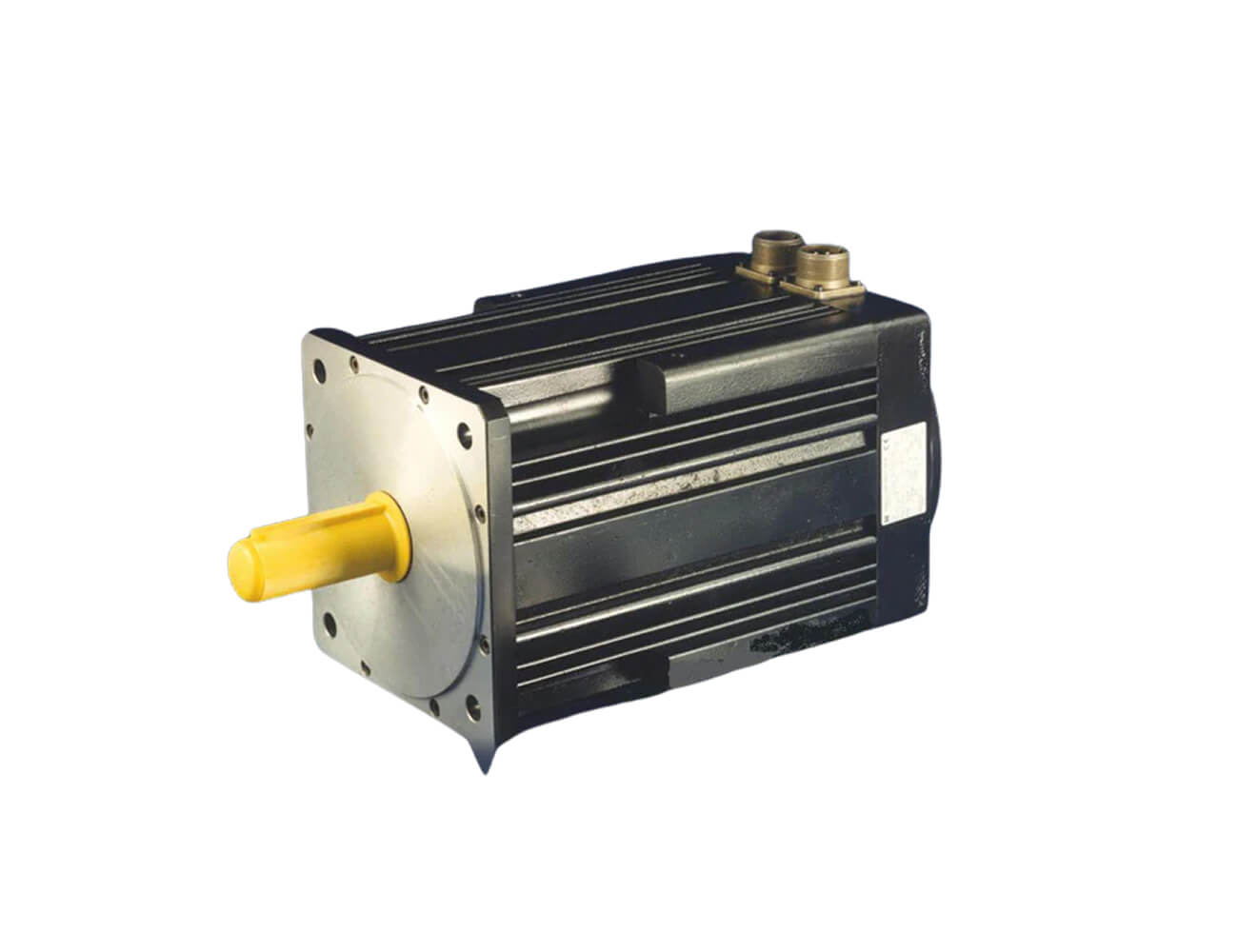

Mavilor BL190/BL191/BL192 SERIES AC Servo Motors
The Mavilor BL190-192 Series AC Servo Motor is built to handle high-demand industrial applications with precision and reliability. Combining robust brushless motor technology with advanced engineering, this series is designed for applications that require sustained high torque and superior dynamic response. Key specifications include: BL190: Sta...
Read MoreThe Mavilor BL190-192 Series AC Servo Motor is built to handle high-demand industrial applications with precision and reliability. Combining robust brushless motor technology with advanced engineering, this series is designed for applications that require sustained high torque and superior dynamic response.
Key specifications include:
BL190: Stall torque up to 31 Nm and peak torque up to 124 Nm, with a maximum speed of 3,500 rpm.
BL191: Stall torque up to 56 Nm and peak torque up to 224 Nm, operating at a maximum speed of 2,800 rpm.
BL192: Stall torque up to 82 Nm and peak torque up to 328 Nm, with a maximum speed of 2,800 rpm.
These motors deliver consistent performance in high-load environments. Designed for compatibility with sinusoidal and trapezoidal current waveforms, they integrate seamlessly into a wide range of motion control systems.
The BL Series offers advanced feedback mechanisms, with resolver-based options for precision control and Hall Effect sensors for effective synchronisation. Each model is IP65 rated, ensuring protection against dust and low-pressure water jets, making it suitable for challenging industrial environments.
Applications for the BL190-192 Series include heavy-duty robotics, industrial presses, automated material handling, and large-scale CNC machinery.
The Mavilor BL190-192 Series AC Servo Motor delivers exceptional torque, robust construction, and reliable performance, making it the go-to solution for demanding industrial projects.
Show Less
Features
- Nominal speed: 2800~3500 r.p.m
- Stall torque: 31Nm~82Nm(+/-10%)
- Stall current: 19.71A~34.60A (+/-10%)
- Peak Torque: 124Nm~328Nm (+/-10%)
Selection Table
| Characteristics | Symbol | Units | BL-190 | BL-191 | BL-192 |
|---|---|---|---|---|---|
| NOMINAL SPEED | n | r.p.m | 3500 | 2800 | 2800 |
| STALL TORQUE (+/-10%) | Ms | Nm | 31 | 56 | 82 |
| STALL CURRENT (+/-10%) | Is | A | 19.71 | 25.11 | 34.6 |
| PEAK TORQUE (+/-10%) | Mj | Nm | 124 | 224 | 328 |
| TORQUE-WEIGHT RATIO | Tw | Nm/kg | 1.63 | 1.9 | 2.1 |
| EMF CONSTANT (+/-5%) | Ke | Vs/rad | 0.91 | 1.29 | 1.37 |
| TORQUE CONSTANT (+/-5%) | Kt | Nm/A | 1.57 | 2.23 | 2.37 |
| RELUCTANCE TORQUE | Tr | Nm | <2% | <2% | <2% |
| WINDING RESISTANCE (+/-5%) | R(ph-ph) | Ω | 0.44 | 0.39 | 0.26 |
| WINDING INDUCTANCE (+/-5%) | L(ph-ph) | mH | 2.2 | 1.9 | 1.5 |
| ROTOR INERTIA | J | kgm10 | 5.1 | 14.7 | 22 |
| MECHANICAL TIME CONSTANT | Tm | ms | 1.57 | 1.99 | 1.76 |
| ELECTRICAL TIME CONSTANT | Te | ms | 5.01 | 4.87 | 5.77 |
| MASS | M | kg | 19 | 29.5 | 39 |
| Nº OF POLES | 12 | 12 | 12 |
