Enetek Power SMU01 Site Management Monitoring

The Enetek Power SMU01 Site Management Monitoring system provides comprehensive oversight and control for energy management in various settings. It offers real-time monitoring and data analysis to optimise site performance and ensure efficient power usage. Its user-friendly interface and advanced features enable effective management and maintenance, enhancing overall operational efficiency.

View Models

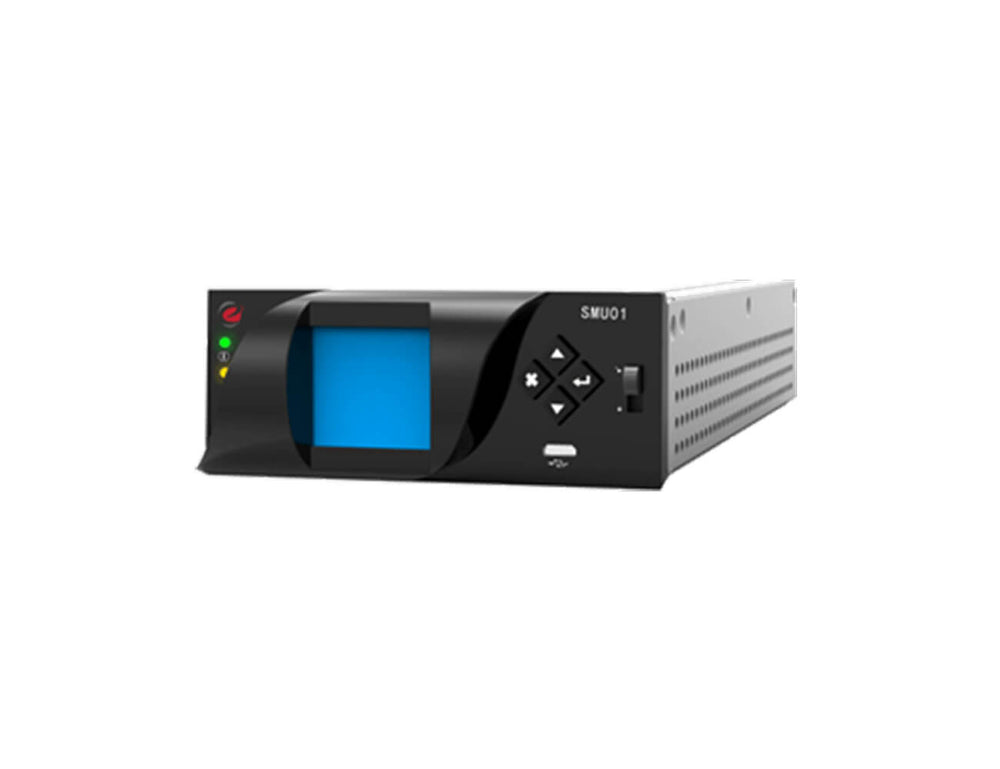

Enetek Power SMU01 Site Management Monitoring

Features

  • Control and Management for Rectifier Modules and Peripheral Devices
  • Alarm/Data Logging @ > 10 000 Records
  • Multiple Language Options
  • Intelligent Energy Saving Management
  • Comprehensive Battery Management
  • Multiple LVD Controls
Specifications
COMPATIBILITY
Enetek SMU01 Enetek's range of rectifier solutions
SPECIFICATIONS
Input Voltage Range / Power  18Vdc to 60Vdc @ 27W
Display  1.5” LCD
User Interface 3 x LED, 4 x user buttons
Communication Interface  USB, RS485, TCP/IP (Modbus), SNMP
Operating Temperature Range -40 to +75°C
Storage Temperature Range -40 to +85°C
Relative Humidity Operating: 0%-95% non-condensing; Storage: 0%-99% non-condensing
MTBF >300,000hrs (Ambient temp of 25°C
Weight < 0.5kg
Dimensions 108(W) x 220(D) x 43(H) mm
SYSTEM INTERFACE
1 x Voltage sensing (expansion module available)  6 x Digital inputs (expansion module available)
2 x Current sensing (expansion module available)  6 x Digital outputs (expansion module available)
2 x Temperature sensing (expansion module available) Battery mid-point measurement
Up to 2 x LVD  Load/battery fuse monitoring
SYSTEM FEATURES
AC voltage measurement (via optional module)  User configurable alarms and settings
Alarm grouping and alarm mapping  Auxiliary input and load monitoring
Alarm Logs (> 10,000 events) User profile configuration
Data logs (> 10,000 logs)  Multi languages Option
Site information and management  Up to 3 levels of password settings
BATTERY FEATURES
Battery temperature measurement  Low voltage disconnection
Temperature compensated charging  High/low battery voltage
Automatic float/boost charging High/low battery temperature
Automatic battery capacity test  Optional 24-point measurement
RECTIFIER FEATURES
Individual rectifier information  Efficiency management (intelligent energy management)
Rectifier current, temperature and status monitoring  Remote control including voltage adjustment
Active current sharing Overload monitoring
Power limit walk-in  Module position addressing
CONTROL and MONITORING
Local management through LCD, 3 x LED and 4 x user buttons  Full monitoring and control functions can be accessed locally through the use of the 4 user buttons
DESIGN STANDARDS (SAFETY)
EN60950-1
DESIGN STANDARDS (EMC)
EN61000-6-4-2/-4/-5
DESIGN STANDARDS (OTHERS)
CE, RoHS compliant

*Due to continuous product development, specifications are subject to change without prior notice

Downloads
SMU01.pdf
