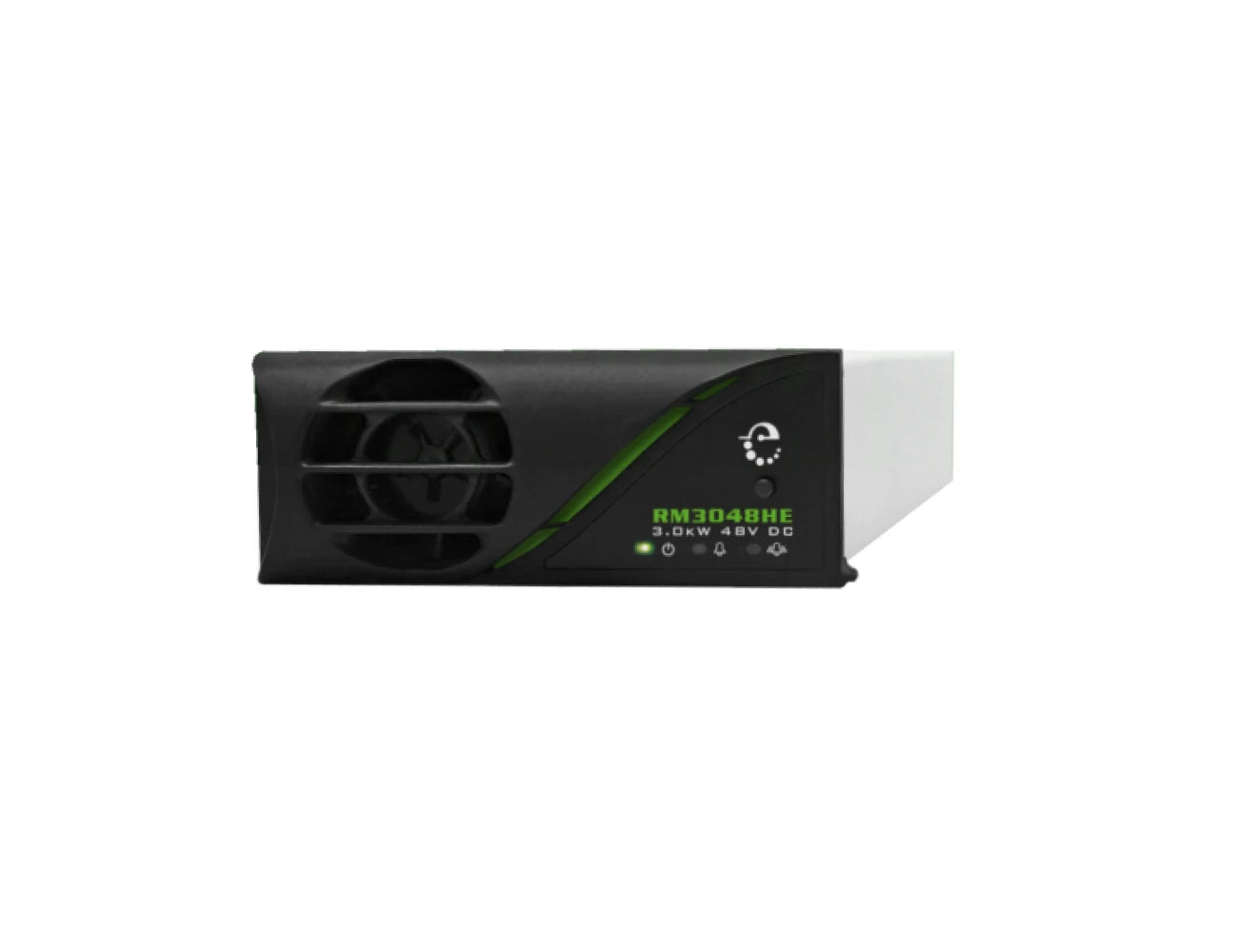

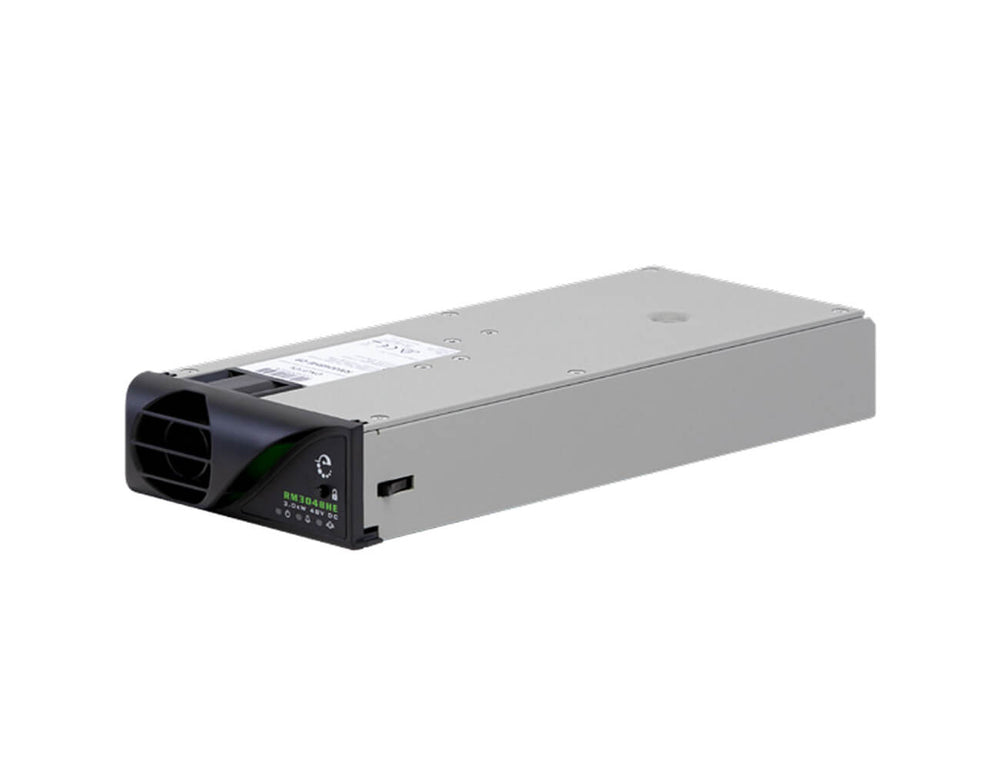

Enatel Energy RM3048HE - 3kW Rectifier Module

The Enatel RM3048HE is a 3.0kW high-efficiency 48V DC rectifier module designed for use in modern telecommunications and DC power systems. With an efficiency rating of >96%, it offers exceptional energy savings, reduced heat output, and compact power delivery—all within a slim 1U, hot-swappable module. The RM3048HE is ideal for integration into modular DC power platforms such as Enatel’s FlexiCompact and UltraCompact systems, delivering outstanding power density and system scalability.

Read More

View Models
  • Enatel Energy RM3048HE - 3kW Rectifier Module
  • Enatel Energy RM3048HE - 3kW Rectifier Module
  • Enatel Energy RM3048HE - 3kW Rectifier Module
NRND Not Recommended for New Design
EOL End of Life

Features

  • Ultra-High Efficiency (>96%): Reduces energy losses and heat output, improving ROI and system longevity.
  • Compact & Scalable: Delivers 3.0kW in a 1U hot-swappable module—scalable up to 36kW in 3RU.
  • Hot Plug/Swap Capability: Enables quick and easy rectifier replacement without system downtime.
  • Wide Input Range: Operates from 85–300Vac, with power derating below 185Vac.
  • Robust Cooling & Build Quality: Forced-air cooling with temperature-controlled, monitored fan ensures reliable operation.
Specifications
AC INPUT
Nominal input voltage 230Vac
Input Voltage Range 85...300Vac (reduced power below 185Vac)
Frequency Range 45 to 66Hz
Maximum Input Current: 16A rms (185Vac, 20°C)
Power Factor >0.99 (50 to 100% load)
Peak Efficiency

96.3%

>95% (30 to 82% load, 230Vac)
Total Harmonic Distortion (THD)

<5% (50 to 100% load, rated AC voltage)
Swell Tolerance

Rectifier shuts down above 320V, returns to normal operation when input is within operating range.
Input Over-Current Protection:

Fuses (phase and neutral) HRC
AC Fuse Ratings:

25A / 250V
DC OUTPUT
Nominal Voltage 48Vdc
Adjustable Voltage Range 43...60Vdc
Rated Output Power

100Vac: 1050W

120Vac: 1500W

208...240Vac: 3000W
Preset Accuracy ±0.2V
Regulation

±0.7%

No load to full load
Default (Fail-Safe) Voltages

Loss of System Communication: Output voltage (current limit and power limit) reset to system presets after 8minutes of loss of communications.

Preset voltage: 54 ±0.2V (manufacturer preset)
Hold-up Time

10ms (at rated output power and rated AC voltage the DC output voltage drops by no more than 20%)
Start-up Time

Soft start
Protection

Current Limit: Factory set to 60A

Over Temperature Turndown: Automatic power turndown.

Over Voltage Shutdown: Adjustable and latchable (1 Volt maximum negative slope at full load for discrimination)

Short-Circuit: Full short-circuit protection. Output current limited to less than 100% of rated output current. Foldback function is implemented ensuring <35Amps below 30VDC output. Rectifier will continue normal operation after short-circuit is removed. Non-urgent (Current Limit) alarm generated.
Noise under nominal conditions

Ripple (<100Hz): <20mV rms (unweighted)
Audio Frequency (300 Hz – 3.4 kHz): <2mV (psophometric, with battery connected)
Wide band (5Hz – 1MHz): <40mV rms (unweighted)
Peak to peak (0 – 20 kHz): <200mV p-p (unweighted)
Discrete frequency (3.4kHz – 150kHz): <50mV rms (1kHz wide selective frequency)



ENVIRONMENTAL
Ambient Temperature

Rated Operating Range: -10°C to +45°C

Extended Operating Range: -25°C to +70°C (Output derates above 45°C and below -10°C)
Humidity

Nominal: 50% RH

Range: < 95% RH (non condensing)
Altitude

< 2000m
MECHANICAL
Dimensions (WxHxD) 111.5mm, 44mm, 282mm
Weight 1.5kg
Connector  Positronics “goldfish” type connector

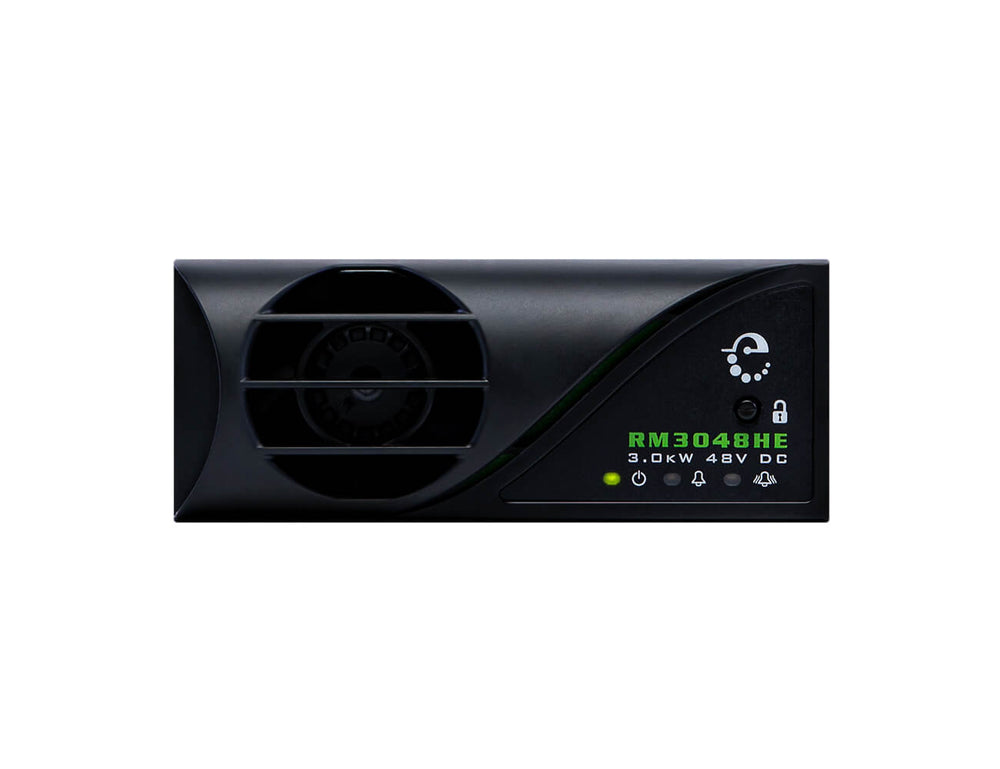

Front Panel LEDs
  • Power On: Green
  • Non-Urgent Alarm: Yellow
  • Urgent Alarm: Red
Cooling Forced cooled Front to back airflow
Alarms
Operational
  • This green LED indicates that mains power is connected to the unit and that the primary stages of the rectifier are operating.
  • A flashing green LED indicates the RM848HE is in power saving mode.
Non-Urgent
  • Rectifier in output power/current limit.
  • Rectifier over temperature.
  • Fan failed.
  • Rectifier soft starting.
Urgent
  • Rectifier failed.
  • The AC input voltage is outside the operating range.
  • Rectifier shut down due to output over voltage or over temperature

*Note alarms are user configurable.
COMPLIANCE
Safety AS/NZS 60950-1, EN 60950-1
EMC - Immunity
  • Electrostatic discharge: EN 61000-4-2
  • Radiated radio frequency: EN 61000-4-3
  • Electrical fast transients: EN 61000-4-4
  • Surge: EN 61000-4-5
  • Conducted radio frequency: EN 61000-4-6
  • Power frequency magnetic field immunity test): EN 61000-4-8
  • Dips, interruptions & variations: EN 61000-4-11
EMC - Emissions
  • Conducted emissions (AC): EN 55022 / CISPR 22
  • Radiated emissions: EN 55022 / CISPR 22
  • Harmonics: EN 61000-3-2
  • Fluctuations and flicker: EN 61000-3-3
Other CE & RoHS compliant
Downloads
Enatel_RM2048HE_RM3048HE-Product-Sheet-2022-8-9.pdf
AC INPUT
Nominal input voltage 230Vac
Input Voltage Range 85...300Vac (reduced power below 185Vac)
Frequency Range 45 to 66Hz
Maximum Input Current: 16A rms (185Vac, 20°C)
Power Factor >0.99 (50 to 100% load)
Peak Efficiency

96.3%

>95% (30 to 82% load, 230Vac)
Total Harmonic Distortion (THD)

<5% (50 to 100% load, rated AC voltage)
Swell Tolerance

Rectifier shuts down above 320V, returns to normal operation when input is within operating range.
Input Over-Current Protection:

Fuses (phase and neutral) HRC
AC Fuse Ratings:

25A / 250V
DC OUTPUT
Nominal Voltage 48Vdc
Adjustable Voltage Range 43...60Vdc
Rated Output Power

100Vac: 1050W

120Vac: 1500W

208...240Vac: 3000W
Preset Accuracy ±0.2V
Regulation

±0.7%

No load to full load
Default (Fail-Safe) Voltages

Loss of System Communication: Output voltage (current limit and power limit) reset to system presets after 8minutes of loss of communications.

Preset voltage: 54 ±0.2V (manufacturer preset)
Hold-up Time

10ms (at rated output power and rated AC voltage the DC output voltage drops by no more than 20%)
Start-up Time

Soft start
Protection

Current Limit: Factory set to 60A

Over Temperature Turndown: Automatic power turndown.

Over Voltage Shutdown: Adjustable and latchable (1 Volt maximum negative slope at full load for discrimination)

Short-Circuit: Full short-circuit protection. Output current limited to less than 100% of rated output current. Foldback function is implemented ensuring <35Amps below 30VDC output. Rectifier will continue normal operation after short-circuit is removed. Non-urgent (Current Limit) alarm generated.
Noise under nominal conditions

Ripple (<100Hz): <20mV rms (unweighted)
Audio Frequency (300 Hz – 3.4 kHz): <2mV (psophometric, with battery connected)
Wide band (5Hz – 1MHz): <40mV rms (unweighted)
Peak to peak (0 – 20 kHz): <200mV p-p (unweighted)
Discrete frequency (3.4kHz – 150kHz): <50mV rms (1kHz wide selective frequency)



ENVIRONMENTAL
Ambient Temperature

Rated Operating Range: -10°C to +45°C

Extended Operating Range: -25°C to +70°C (Output derates above 45°C and below -10°C)
Humidity

Nominal: 50% RH

Range: < 95% RH (non condensing)
Altitude

< 2000m
MECHANICAL
Dimensions (WxHxD) 111.5mm, 44mm, 282mm
Weight 1.5kg
Connector  Positronics “goldfish” type connector
Front Panel LEDs
  • Power On: Green
  • Non-Urgent Alarm: Yellow
  • Urgent Alarm: Red
Cooling Forced cooled Front to back airflow
Alarms
Operational
  • This green LED indicates that mains power is connected to the unit and that the primary stages of the rectifier are operating.
  • A flashing green LED indicates the RM848HE is in power saving mode.
Non-Urgent
  • Rectifier in output power/current limit.
  • Rectifier over temperature.
  • Fan failed.
  • Rectifier soft starting.
Urgent
  • Rectifier failed.
  • The AC input voltage is outside the operating range.
  • Rectifier shut down due to output over voltage or over temperature

*Note alarms are user configurable.
COMPLIANCE
Safety AS/NZS 60950-1, EN 60950-1
EMC - Immunity
  • Electrostatic discharge: EN 61000-4-2
  • Radiated radio frequency: EN 61000-4-3
  • Electrical fast transients: EN 61000-4-4
  • Surge: EN 61000-4-5
  • Conducted radio frequency: EN 61000-4-6
  • Power frequency magnetic field immunity test): EN 61000-4-8
  • Dips, interruptions & variations: EN 61000-4-11
EMC - Emissions
  • Conducted emissions (AC): EN 55022 / CISPR 22
  • Radiated emissions: EN 55022 / CISPR 22
  • Harmonics: EN 61000-3-2
  • Fluctuations and flicker: EN 61000-3-3
Other CE & RoHS compliant
Enatel_RM2048HE_RM3048HE-Product-Sheet-2022-8-9.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Max. Output Power (W / kW)
product variant RM3048HE 85...300Vac (power d-rated below 185Vac) 48Vdc (Adj. 43...60Vdc) 3.0kW
