Brushless DC Motors

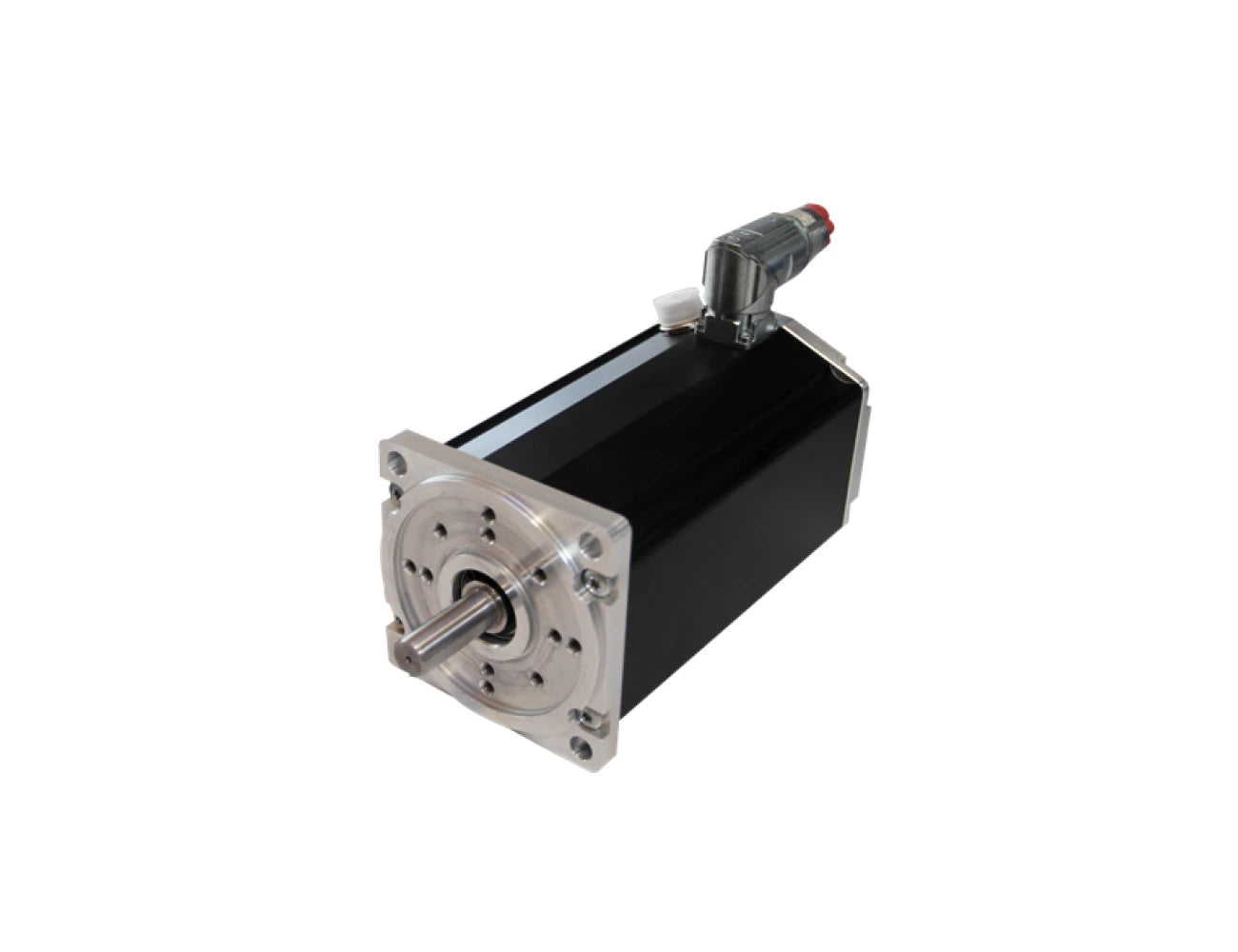

Dunkermotoren BG95 SERIES Brushless DC Motor

The Dunkermotoren BG95 Series Brushless DC Motor is a powerful and dynamic solution, delivering continuous power outputs up to 1100W with peak performance reaching 4400W. Designed for high-demand applications, this series is ideal for industrial automation, heavy machinery, and robotics where exceptional power density and precision control are essential.

Read More

View Models
Dunkermotoren BG95 SERIES Brushless DC Motor

Features

  • Nominal Voltage: 12~325VDC
  • Nominal Torque: 1.7~3.5Ncm
  • Nominal Speed: 3900~4088rpm
  • Nominal Output Power: 700~1370W
  • Modular compatibility with Dunkermotoren’s gearboxes, controllers, brakes, and encoders
Selection Table
BG 95 Series
Data   BG 95x40 dCore BG 95x80 dCore BG 95x120dCore
Stack length   x40 x80 x120
Nominal voltage VDC 12* 24 48 60 325 24 48 60 325 48* 60* 325*
Nominal current A 50 33.3 16.7 13.5 2.5 47.2 24.6 20 3.8 32.6 26.5 tbd.
Nominal torque Nm 1.7 1.7 1.7 1.67 1.72 2.44 2.61 2.6 2.74 3.5 3.5 tbd.
Nominal speed rpm 3900 3940 3940 4088 3940 3890 3800 3829 3855 3900 3900 tbd.
Stall torque Nm 16 16.3 16.3 5.19 22.1 32.65 41 8.08 53.6 48 48 tbd.
Maximum torque Nm 6.5 6.45 6.33 6 5.95 10 11 10.5 10.5 14.5 14.5 tbd.
No load speed rpm 4400 4400 4400 4546 4310 4150 4120 4138 4070 4200 4200 tbd.
Nominal output power W 700 701 701 714 710 1000 1044 1042 1106 1370 1370 tbd.
Maximum output power W 1700 1819 1649 1700 2468 3000 3550 2969 3640 4400 4400 tbd.
Torque constant Nm A-1 0.12 0.057 0.111 0.123 0.75 0.06 0.1156 0.0916 0.828 0.12 0.12 tbd.
Terminal Resistance ¢ tbd. 0.023 0.93 tbd. 4.03 0.013 0.055 tbd. 1.83 tbd. tbd. tbd.
Terminal inductance µH tbd. 0.067 0.27 tbd. 12.9 0.037 0.15 tbd. 7.2 tbd. tbd. tbd.
Starting current A tbd. 1043 519 tbd. 80.7 1846 873 tbd. 173 tbd. tbd. tbd.
No load current A tbd. 2.8 1.4 tbd. 0.22 4.2 2 tbd. 0.33 tbd. tbd. tbd.
Demagnetisation current A tbd. 140 70 tbd. 10 185 95 tbd. 14 tbd. tbd. tbd.
Rotor inertia gcm2 950 1890 2830
Weight of motor kg 3.5 5.1 6.7
External controller BGE 6060 A, DME 230x4
Encoder AE 38 2, MR integrated
Brakes E 310 R, E 600
Planetary gearbox PLG 75 HT, PLG 80 LB, PLG 95 HT
Right-angle gearbox SG 120, STG 65, KG 150, KG 120
IP Cover IP65 cover
Downloads
bg_95_dcore_Brushless_DC_Motor_Datasheet.pdf
BG 95 Series
Data   BG 95x40 dCore BG 95x80 dCore BG 95x120dCore
Stack length   x40 x80 x120
Nominal voltage VDC 12* 24 48 60 325 24 48 60 325 48* 60* 325*
Nominal current A 50 33.3 16.7 13.5 2.5 47.2 24.6 20 3.8 32.6 26.5 tbd.
Nominal torque Nm 1.7 1.7 1.7 1.67 1.72 2.44 2.61 2.6 2.74 3.5 3.5 tbd.
Nominal speed rpm 3900 3940 3940 4088 3940 3890 3800 3829 3855 3900 3900 tbd.
Stall torque Nm 16 16.3 16.3 5.19 22.1 32.65 41 8.08 53.6 48 48 tbd.
Maximum torque Nm 6.5 6.45 6.33 6 5.95 10 11 10.5 10.5 14.5 14.5 tbd.
No load speed rpm 4400 4400 4400 4546 4310 4150 4120 4138 4070 4200 4200 tbd.
Nominal output power W 700 701 701 714 710 1000 1044 1042 1106 1370 1370 tbd.
Maximum output power W 1700 1819 1649 1700 2468 3000 3550 2969 3640 4400 4400 tbd.
Torque constant Nm A-1 0.12 0.057 0.111 0.123 0.75 0.06 0.1156 0.0916 0.828 0.12 0.12 tbd.
Terminal Resistance ¢ tbd. 0.023 0.93 tbd. 4.03 0.013 0.055 tbd. 1.83 tbd. tbd. tbd.
Terminal inductance µH tbd. 0.067 0.27 tbd. 12.9 0.037 0.15 tbd. 7.2 tbd. tbd. tbd.
Starting current A tbd. 1043 519 tbd. 80.7 1846 873 tbd. 173 tbd. tbd. tbd.
No load current A tbd. 2.8 1.4 tbd. 0.22 4.2 2 tbd. 0.33 tbd. tbd. tbd.
Demagnetisation current A tbd. 140 70 tbd. 10 185 95 tbd. 14 tbd. tbd. tbd.
Rotor inertia gcm2 950 1890 2830
Weight of motor kg 3.5 5.1 6.7
External controller BGE 6060 A, DME 230x4
Encoder AE 38 2, MR integrated
Brakes E 310 R, E 600
Planetary gearbox PLG 75 HT, PLG 80 LB, PLG 95 HT
Right-angle gearbox SG 120, STG 65, KG 150, KG 120
IP Cover IP65 cover
bg_95_dcore_Brushless_DC_Motor_Datasheet.pdf

Find the Right Model

Model Number Nom. Voltage (Vdc) Nom. Torque (Nm) Nom. Speed (RPM)
product variant BG95x40 dCore-12 12Vdc 1.7Nm 3900RPM
product variant BG95x40 dCore-24 24Vdc 1.7Nm 3940RPM
product variant BG95x40 dCore-48 48Vdc 1.7Nm 3940RPM
product variant BG95x40 dCore-60 60Vdc 1.67Nm 4088RPM
product variant BG95x40 dCore-325 325Vdc 1.72Nm 3940RPM
product variant BG95x80 dCore-24 24Vdc 2.44Nm 3890RPM
product variant BG95x80 dCore-48 48Vdc 2.61Nm 3800RPM
product variant BG95x80 dCore-60 60Vdc 2.6Nm 3829RPM
product variant BG95x80 dCore-325 325Vdc 2.74Nm 3855RPM
product variant BG95x120 dCore-48 48Vdc 3.5Nm 3900RPM
product variant BG95x120 dCore-60 60Vdc 3.5Nm 3900RPM
product variant BG95x120 dCore-325 325Vdc N/A N/A

Need help finding the right product model?
