Dunkermotoren BG62 SERIES Brushless DC Motor

The Dunkermotoren BG62 Series Brushless DC Motor is a high-performance and robust solution, delivering continuous power outputs up to 125W with peak performance reaching 274W. Designed for precision applications, this series is ideal for industrial automation, robotics, and machinery requiring low noise, high efficiency, and reliable motion control.

Read More

View Models

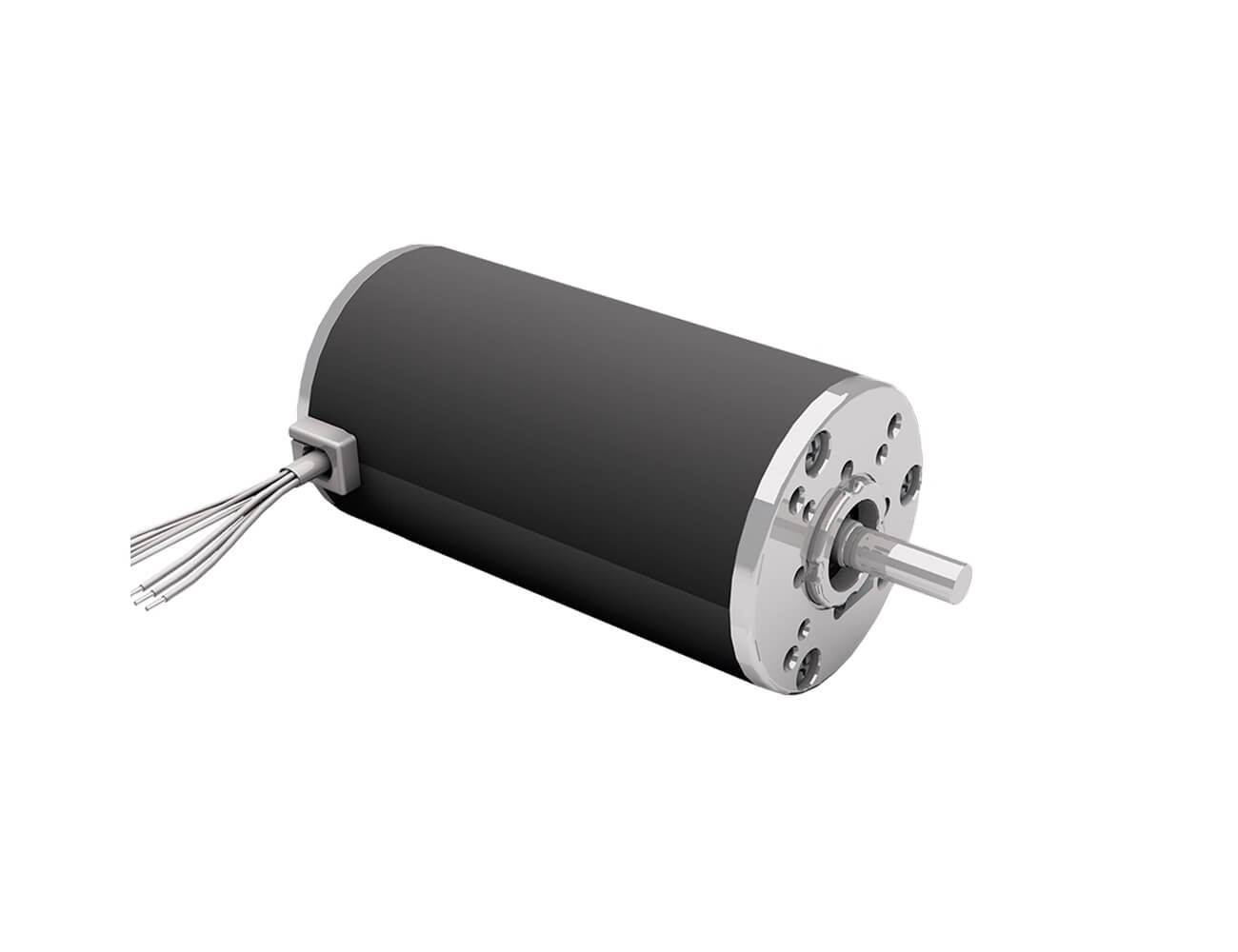

Dunkermotoren BG62 Series Brushless DC Motor

Features

  • Nominal Voltage: 24VDC
  • Nominal Torque: 0.20 - 0.36Nm
  • Nominal Speed: 3000~3350rpm
  • Nominal Output Power: 63~125W
  • Modular compatibility with Dunkermotoren’s gearboxes, controllers, encoders, and brakes
Selection Table
Data BG 62 Series
Stack length BG 62x30 dCore BG 62x45 dCore BG 62x60 dCore
Nominal voltage VDC x30 x45 x60
Nominal current A 24 24 24
Nominal torque Nm 3.7 5.1 6.8
Nominal speed rpm 0.2 0.27 0.36
Stall torque Nm 3000 3210 3350
Maximum torque Nm 1.31 2.11 3.07
No load speed rpm 1.31 2.11 3.07
Nominal output power W 3855 3855 3865
Maximum output power W 63 91 125
Torque constant Nm A-1 110 182 280
Peak Current A 0.068 0.067 0.067
Terminal inductance µH 0.9 0.52 0.34
Starting current A 1.5 0.95 0.68
No load current A 23.5 38.7 56
Demagnetisation current A 0.42 0.7 0.8
Rotor inertia gcm2 46  70 93
Weight of motor kg 185 262 353
External controller   1.15 1.4 1.65
Encoder BGE 5510 dPro, BGE 6005 A
Brakes RE 20, RE 30 (TI), RE 56 (TI), ME 52
Magnetic pulse encoder E 90 R, E 100 R / A
Right-angle gearbox PLG 52 EB/HT, PLG 60, PLG 63 EP/HT, PLG 75 EP, PLG 75 HT
Hub gearbox SG 65, SG 80, SG 85, SG 120



Downloads
bg_62_dcore_Brushless_DC_Motor_Datasheet.pdf
Data BG 62 Series
Stack length BG 62x30 dCore BG 62x45 dCore BG 62x60 dCore
Nominal voltage VDC x30 x45 x60
Nominal current A 24 24 24
Nominal torque Nm 3.7 5.1 6.8
Nominal speed rpm 0.2 0.27 0.36
Stall torque Nm 3000 3210 3350
Maximum torque Nm 1.31 2.11 3.07
No load speed rpm 1.31 2.11 3.07
Nominal output power W 3855 3855 3865
Maximum output power W 63 91 125
Torque constant Nm A-1 110 182 280
Peak Current A 0.068 0.067 0.067
Terminal inductance µH 0.9 0.52 0.34
Starting current A 1.5 0.95 0.68
No load current A 23.5 38.7 56
Demagnetisation current A 0.42 0.7 0.8
Rotor inertia gcm2 46  70 93
Weight of motor kg 185 262 353
External controller   1.15 1.4 1.65
Encoder BGE 5510 dPro, BGE 6005 A
Brakes RE 20, RE 30 (TI), RE 56 (TI), ME 52
Magnetic pulse encoder E 90 R, E 100 R / A
Right-angle gearbox PLG 52 EB/HT, PLG 60, PLG 63 EP/HT, PLG 75 EP, PLG 75 HT
Hub gearbox SG 65, SG 80, SG 85, SG 120



bg_62_dcore_Brushless_DC_Motor_Datasheet.pdf

Find the Right Model

Model Number Nom. Voltage (Vdc) Nom. Torque (Nm) Nom. Speed (RPM)
product variant BG62x30 dCore-24 24Vdc 0.2Nm 3000RPM
product variant BG62x45 dCore-24 24Vdc 0.27Nm 3210RPM
product variant BG62x60 dCore-24 24Vdc 0.36Nm 3350RPM

Need help finding the right product model?
