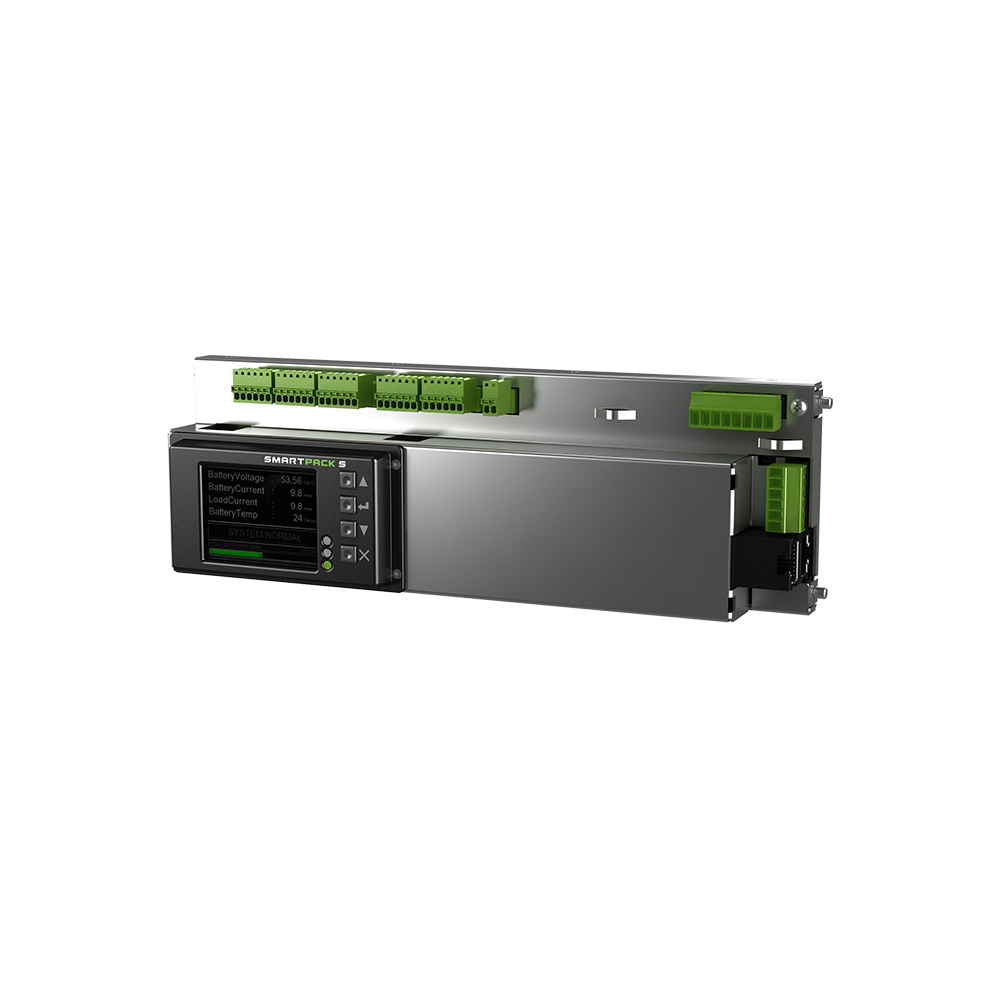

Delta Eltek Smartpack S Controller (Panel Mount)
The Eltek Smartpack S Controller (Panel Mount) is specifically engineered for the comprehensive management and monitoring of Eltek DC power systems, making it ideal for applications within telecommunications, industrial, and infrastructure environments. Suitable for nominal voltages ranging from 10 VDC to 75 VDC, the controller effectively suppo...
Read MoreThe Eltek Smartpack S Controller (Panel Mount) is specifically engineered for the comprehensive management and monitoring of Eltek DC power systems, making it ideal for applications within telecommunications, industrial, and infrastructure environments.
Suitable for nominal voltages ranging from 10 VDC to 75 VDC, the controller effectively supports positive, floating, and negative system grounding configurations, making it versatile for various systems. All inputs are precisely referenced to a shunt, ensuring accurate measurement and reliable monitoring.
Its compact, panel-mountable form factor simplifies integration into space-constrained installations, while the hot-swappable design significantly streamlines maintenance and system downtime.
Through advanced automatic battery monitoring, robust data logging, and intuitive user interfaces—including a high-resolution colour display and remote management via Ethernet—the Smartpack S provides detailed visibility into system performance, facilitating proactive system management and fault diagnosis. The result is enhanced operational reliability and optimal performance of DC power systems in demanding environments.
Show Less
Features
- Designed exclusively for use within Eltek Flatpack S and Flatpack 2 power systems
- 2.2” high-resolution TFT colour display for intuitive local navigation
- Ethernet connectivity for remote monitoring and control
- Six programmable relay outputs and six multi-purpose inputs, accommodating digital and analog signals
- Comprehensive logging for operational tracking and diagnostics
- Automatic battery monitoring and routine testing
- Compact, hot-swappable design facilitating easy maintenance in-field
Specifications
| MANUFACTURER PART NUMBER | |
|---|---|
| Model | Smartpack S (Panel Mount) |
| Manufacturer Part Number | 242100.415 |
| Compatible Delta Eltek Systems | Designed for use within Delta Eltek Flatpack S and Flatpack2 systems |
| INPUT DATA | |
|---|---|
| Voltage (Nominal) | 10...75Vdc |
| System Output Grounding | Supports positive, floating and negative distributions. All inputs are referenced to shunt. |
| Power Consumption | 3.1W (Display = Sleep) 5.5W (Display = Awake) |
| SYSTEM CONNECTIONS - SYSTEM MONITORS | |
|---|---|
| Voltage Sense (System Voltage Support) | 12Vdc, 24Vdc, 48Vdc, 60Vdc |
| Current Sense (Shunt Support) | 0...20mV and 0...60mV |
| Battery Fuse Monitoring | Auxiliary switch NO/NC, Pull up/down |
| Load Fuse Monitoring | Auxiliary switch NO/NC, Diode Matrix Pull up/down |
| Ground Fault Detection | Simple bridge circuit detection [Tolerance: ±10%, alarm range: 25kΩ – 500kΩ] |
| Fan Speed Monitoring | Tacho sense 0-65000 rpm [Input max. 15V] |
| SYSTEM CONNECTIONS - LVD CONTROL | |
|---|---|
| Battery Disconnect | 1 (supports latched or non-latched configuration) |
| Load Disconnect | 1 (supports latched or non-latched configuration) |
| INPUTS & OUTPUTS | |
|---|---|
| Digital Configurations (Inputs #1 - 6) | Auxiliary switch: NO/NC Temperature (for NTC probe) |
| Analog Configurations (Inputs #1 - 4) | Analog Voltage[±0 - 10V] ±4-20mA current measurement (through external 470kΩ resistor) |
| Analog Configurations (Inputs #5 - 6) | Analog Voltage [0-75V] Symmetry Measurement |
| Output Configurations - Alarms (Outputs #1 - 6) | 6x Relay–Dry/Form C Configurable Normally Open/Closed [Max capacity 75V/2A/60W] |
| Fan Control | Analog Voltage [0 - 10V] Output Current 0 - 20 mA Fan Input Impedance minimum 10 kΩ |
| CAN Power Available for Eltek CAN Nodes | 500mA |
| USER INTERFACE | |
|---|---|
| Local | 2.2” TFT 65k Colour display QVGA resolution 4 keys |
| Ethernet Port | 10/100 BASE-T HP Auto MDI/MDI-X IP protocols: HTTP / SSL, SNMP v3, MODBUS TCP and pComm UDP (PowerSuite) |
| Serial Port | RS-232 and RS-485 on RJ11 connector Serial protocols: MODBUS RTU, Modem Call-Back/SMS reporting (PSTN or GSM), COMLI, CSCP and pComm (PowerSuite) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions (WxHxD) | 232.2 x 76.2 x 33.0mm |
| Operating Temperature Range | -20 to +65˚C (-40 to 149˚F) |
| DESIGN STANDARDS | |
|---|---|
| Electrical safety | UL 60950-1-3rd edition, EN 60950-1-3rd edition |
| EMC | ETSI EN 300 386 V.1.4.1 EN 61000-6-1 / -2 / -3 / -4 FCC Part 15 Subpart 109 |
| Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) ROHS compliant |
