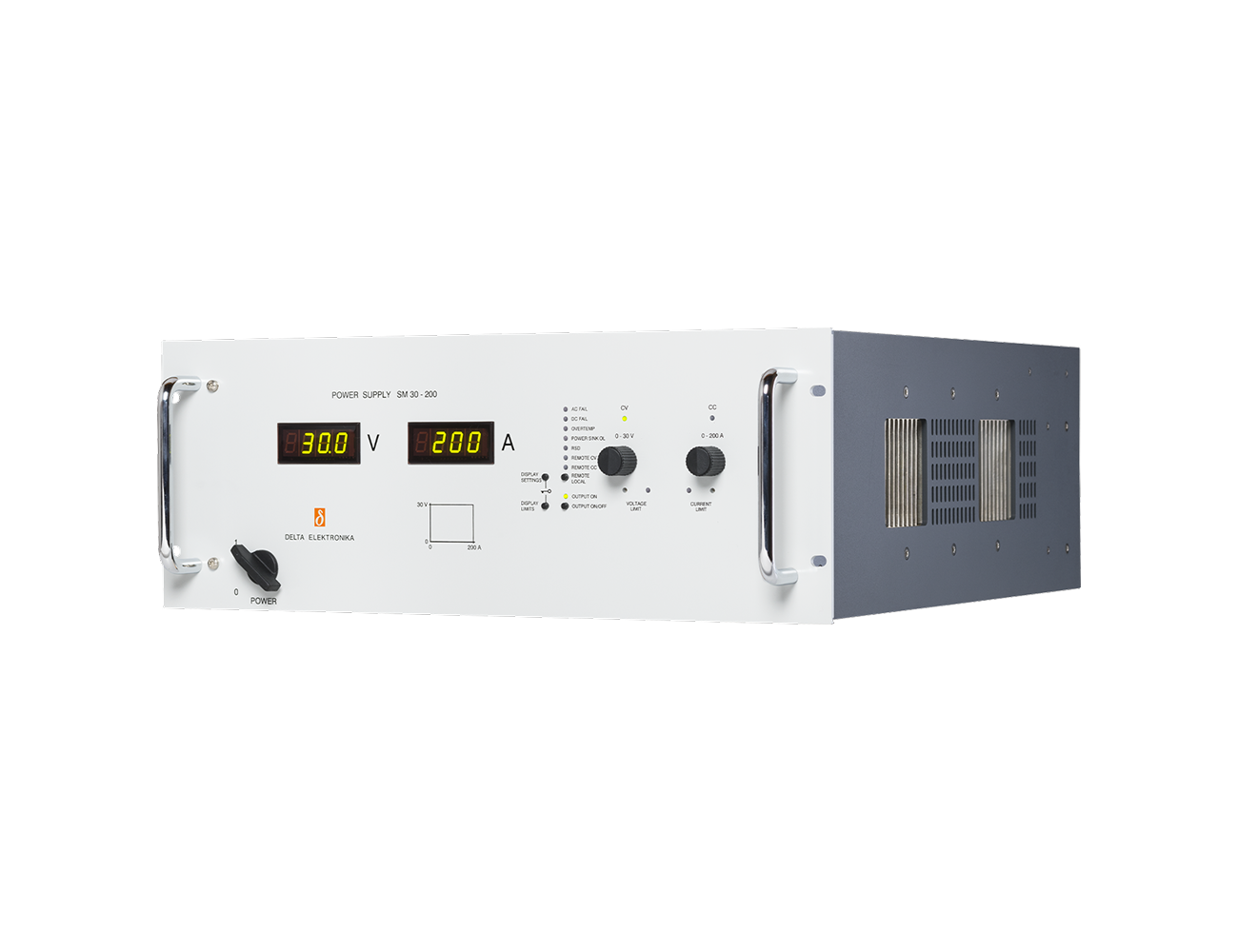

Delta Elektronika SM6000 SERIES Laboratory Power Supply

The Delta Elektronika SM6000 Series is a high-power, precision DC power supply, engineered to meet the needs of demanding industrial, laboratory, and research applications. Delivering up to 6000W of output, with voltage options ranging from 15V to 600V and current capacities up to 400A, the SM6000 Series ensures reliable performance for diverse and critical operations. Its robust 4U design supports 19” rack mounting or standalone setups for maximum versatility.

View Models

Features

6000W Laboratory Supply
Ranges 0-15V to 0-600V and 0-10A to 0-400A
Designed for long life at full power
Excellent dynamic response to load changes
Protected against all overload and short circuit conditions
EMC surpasses CE requirements for low emissions and high immunity

Specifications

INPUT
Input voltages	342 - 528Vac 3Ph
Input Frequency	48 - 62Hz
Power Factor	400V 3Ph, full load 0.98, with 100% load 0.97 with 50% load
Input Current	10.2A rms (400Vac 3ph)
Internal Fuse	15 AT
Standby input power	55W Vo = 0 110W Vo = max
Turn on delay	200ms (after mains switch on
Inrush Current	20A (electronic limit)
Phase Loss	Output shuts down in case of phase loss
Hold-up time	6ms 100% load Vin=3x380Vac 15ms 50% load Vin=3x380Vac

OPERATING
Series Operation	Max total voltage 600V Master / Slave operation yes
Parallel Operation	Max total current - No limit Master / Slave operation - max 3 units (including master)
Remote Sensing	Max volt, drop per load lead: 2V
Potentiometers & Encoders	Standard: Front panel control with knobs Resolution: 0.03%
Screwdriver adjustment	Option P001
Digital encoders	Option P002
Remote Shutdown	with +5V, 1mA or relay contact
Interlock	Contact at rear panel
Indicators	Voltage meter, Amp meter, AC-Fail, DC-Fail, Over Temperature, Power Sink Overload, Remote Shutdown, Remote-CV, Remote-CC, Output On,CV-limit, CV- and CC- mode
Controls	Mains on/off switch, CV and VV potmeter, CV and CC limit potmeter, Display Settings button, Display limits button, Remote/Local button, Output On/off button, Front panel lock button
Efficiency	87% Typical
Isolation	Input - Output: 3750Vrms(1 min) Creepage clearance; 8mm Input - Case: 2500Vrms Output - Case: 600VDC
MTBF	500,000hrs

OUTPUT
Output Voltage Range	0-15V to 0-600V Auto ranging models See Selection Table
Output Current Range	0-10A to 0-400A Auto ranging models See Selection Table
Output Power Range	0 to 6000W See Selection Table

STANDARDS AND APPROVALS
Safety	cTUVus / EN60950 / EN61010
Power Supply Standard	EN61204-3 Emission residential light industrial environment CISP22 Class B Immunity - industrial environment
General Emission	EN61000-6-3 residential, light industrial environment EN55022B EN61000-6-2, industrial environment

ANALOG PROGRAMMING
Programming Inputs: CV	Input Range: 0 - 5V Accuracy: +/-0.2% Offset: -0.1...+1.3mV (on 5V) Temp. coeff. offset:: 10uV/C Input Impedance: > 1Mohm
Programming Inputs: CC	Input Range: 0 - 5V Accuracy: +/-0.5% Offset: 0...+2.2mV (on 5V) Temp. coeff. offset:: 50uV/C Input Impedance: > 1Mohm
Monitoring Outputs: CV	Input Range: 0 - 5V Accuracy: +/-0.2% Offset: -1.1..0mV (on 5V) Temp. coeff. offset:: 3uV/C Output Impedance: > 2 ohm /max 4mA
Monitoring Outputs: CC	Input Range: 0 - 5V Accuracy: +/-0.5% Offset: -1.1..0mV (on 5V) Temp. coeff. offset:: 60uV/C Output Impedance: > 2 ohm /max 4mA
Reference voltage	Vref: 5.114V +/-15mV (Ro = 2ohm, max 4mA) TC: 20ppm
+12V output	Vo: 12V+/-0.23V Imax: 0.2A Ro: 3ohm

ENVIRONMENTAL
Operating Temperature	-20°C to +50°C (100% load) Derate output to 75% at 60°C
Temperature coefficient	0.02%./°C
Storage temperature	-40°C to 85°C.
Thermal Protection	Output shuts down in case of insufficient cooling
Humidity	max 95% RH, non condensing up to 40°C max 75% RH, non condensing up to 50°C

MECHANICAL
Mounting	Stacking of units allowed, air flow is from left to right.
Input Connector	Screw terminals for cable 2.5 - 4.0mm2 3 phase + earth (no neutral required)
Output Terminals	0-15V: M12 bolts 0-30V, 0-45V, 0-60V,0-70V M10 bolts 0-120V, 0-300V, 0-600V; M8 bolts
Programming Connector	15 pole D-connector at rear panel (FEMALE)
Enclosure	IP20 Protection
Dimensions	177x 443 x 500mm Behind front panel (feet removed) 177 x 483mm, Front panel (19" 4U)
Weight	27kg

Selection Table

OUTPUT	SM 15-400	SM 30-200	SM 45-140	SM 60-100	SM-70-90	SM-120-50	SM 300-20	SM 600-10
Output Voltage Range	0 - 15V	0 - 30V	0 - 45V	0 - 60V	0 - 70V	0 - 120V	0 - 300V	0 - 600V
Output Current Range	0 - 400A	0 - 200A	0 - 140A	0 - 100A	0 - 90A	0 - 50A	0-20A	0-10A
Meters	3.5 digit	3.5 digit	3.5 digit	3.5 digit	3.5 digit	3.5 digit	3.5 digit	3.5 digit
Scale voltage	0 - 15.00 V	0 - 30.0 V	0 - 45.0 V	0 - 60.0 V	0 - 70.0 V	0 - 120 V	0 - 300 V	0 - 600 V
Scale current	0 - 400 A	0 - 200.0 A	0 - 140.0 A	0 - 100.0 A	0 - 90.0 A	0 - 50.00 A	0 - 20.0A	0 - 10.0 A
Accuracy	0.5% + 2 digit	0.5% + 2 digit	0.5% + 2 digit	0.5% + 2 digit	0.5% + 2 digit	0.5% + 2 digit	0.5% + 2 digit	0.5% + 2 digit

PROGRAMMING SPEED STANDARD VERSION(Resisitive Load)	SM 15-400	SM 30-200	SM 45-140	SM 60-100	SM 70-90	SM 120-50	SM 300-20	SM 600-10
Rise time (10 - 90%) Output voltage step	0 - 15V	0 - 30V	0 - 45V	0 - 70V	0 - 120V	0 - 300V
Time, (100 % load)	7 ms
Time, (10 % load)	7 ms
Fall time (90 - 10%) Output voltage step	15 - 0 V	30 - 0 V	45 - 0 V	70 - 0 V	120 - 0 V	300 - 0 V
Time, (100 % load)	7 ms	7 ms	87 ms	8 ms	7 ms	11 ms
Time, (10 % load)	32 ms	58 ms	29 ms	82 ms	39 ms	91 ms
Programming bandwidth Small signal	50 Hz
Large signal,(100 % load)	50 Hz
Large signal,(10 % load)	5 Hz

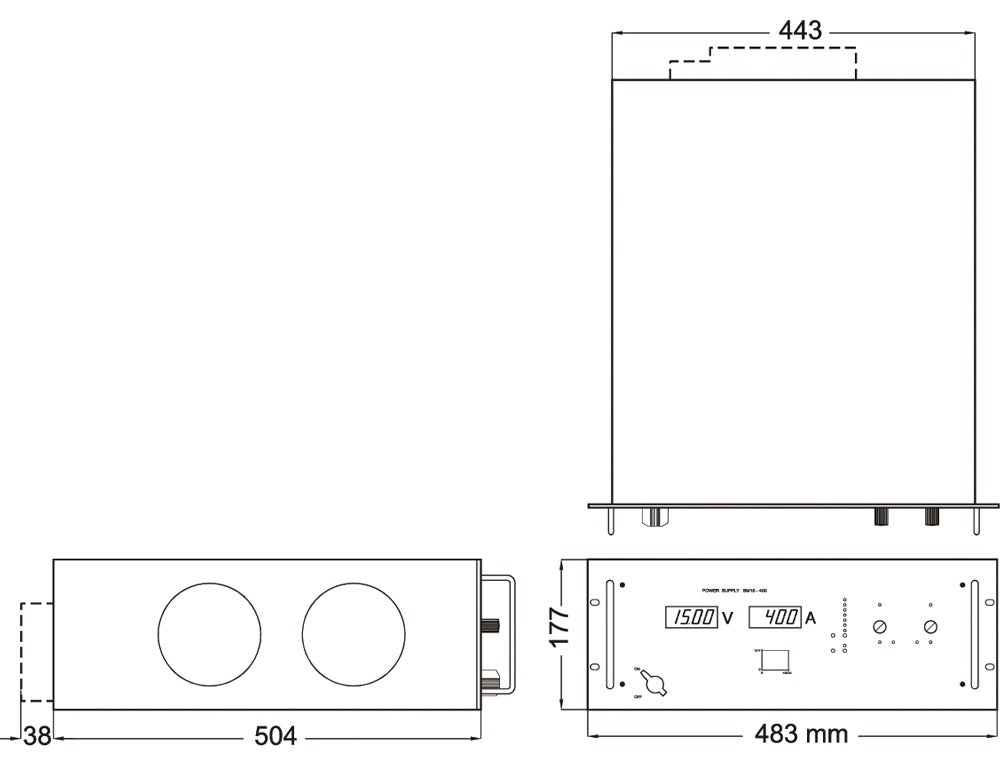

Technical Illustrations
