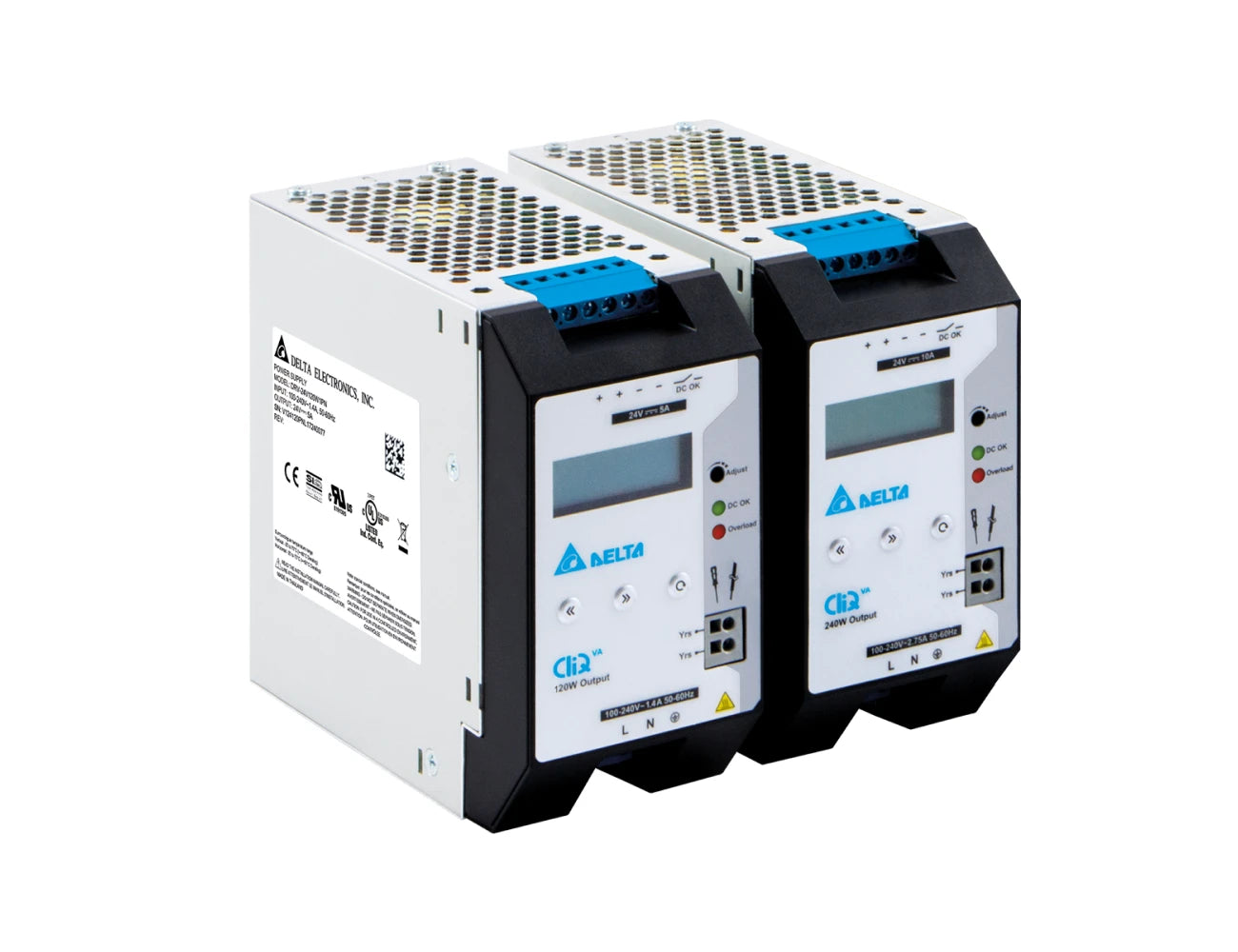

Delta Electronics CliQ DRV-24 SERIES AC/DC Power Supply
The DRV-24 Series from Delta Electronics introduces a state-of-the-art AC/DC DIN rail power supply, ranging from 120W to 480W. It features an LCD display for real-time monitoring of output parameters and system health. With built-in active PFC and up to 94% efficiency, it includes a 150% power boost capability. The Advanced Power Boost (APB) feature ensures system protection against inrush current, while the DC OK Contact and LED indicator provide status updates. Conformal coating on PCBAs guards against environmental pollutants, ensuring durability and reliability.
Features
- 24VDC 120W - 480W
- 1Ph AC/DC Power Supply
- DIN Rail Mountable
- LCD display monitoring
- The output current / voltage / peak current and temperature
- Life time expectancy alarm signal and monitoring
Specifications
Selection Table

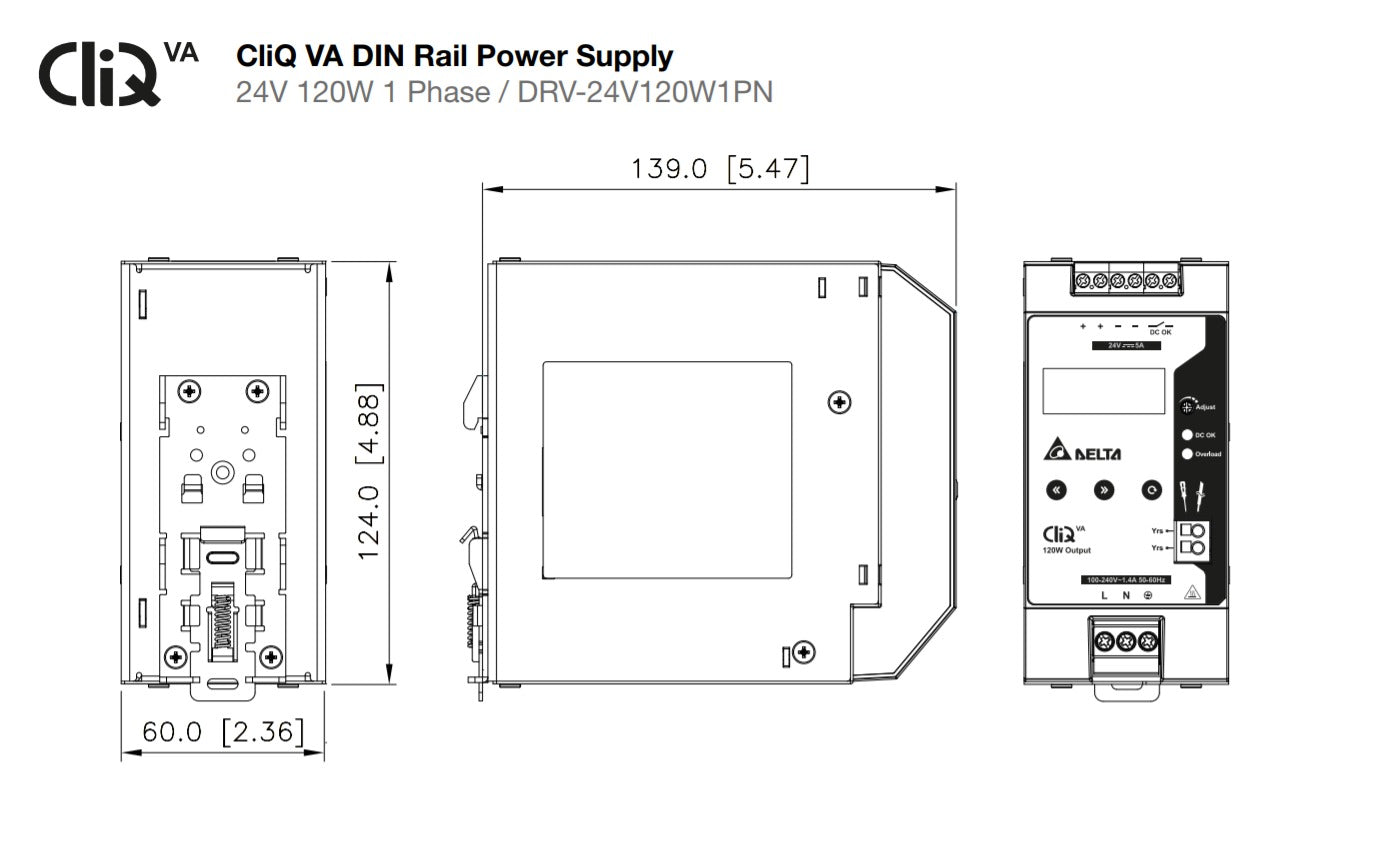

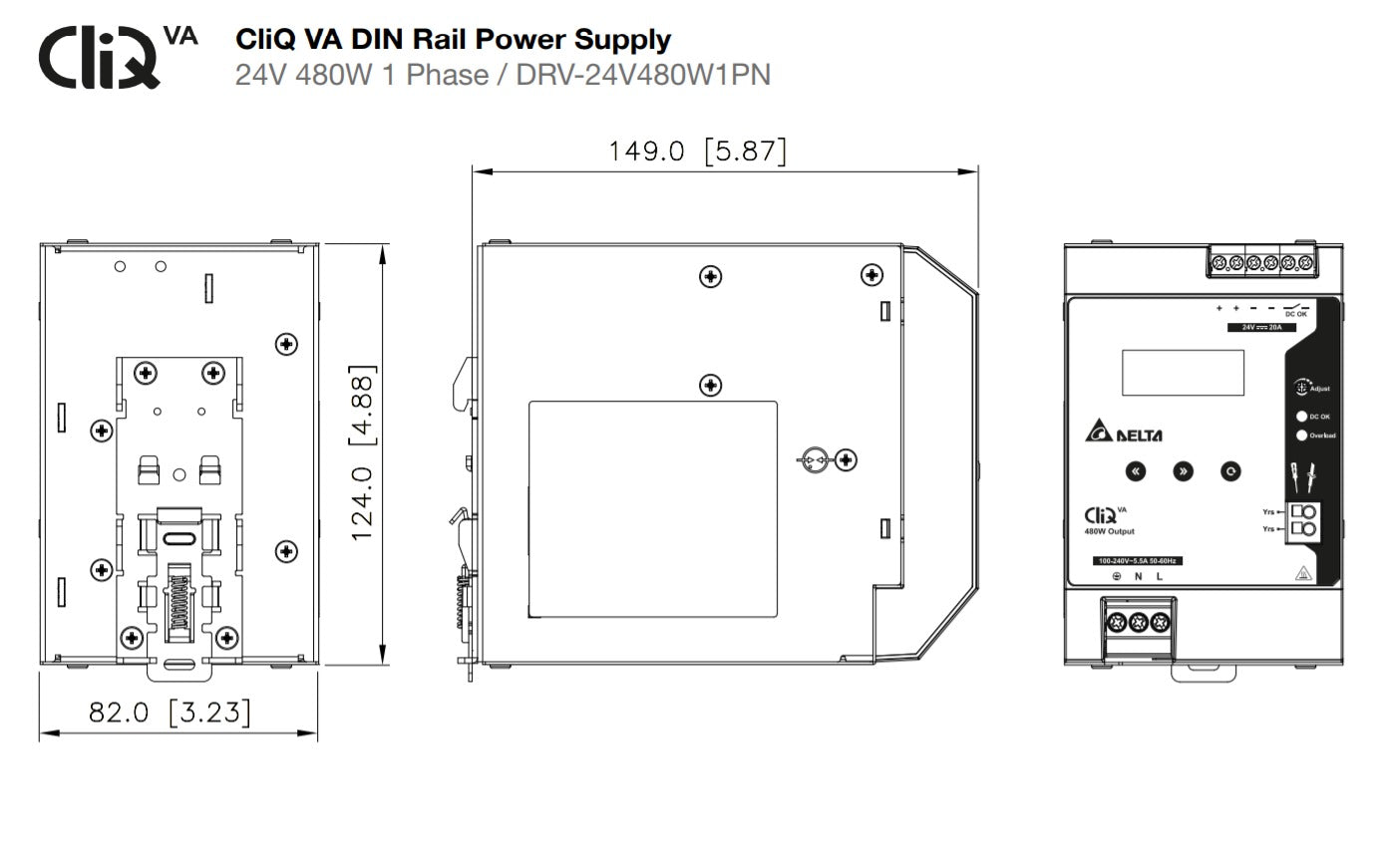

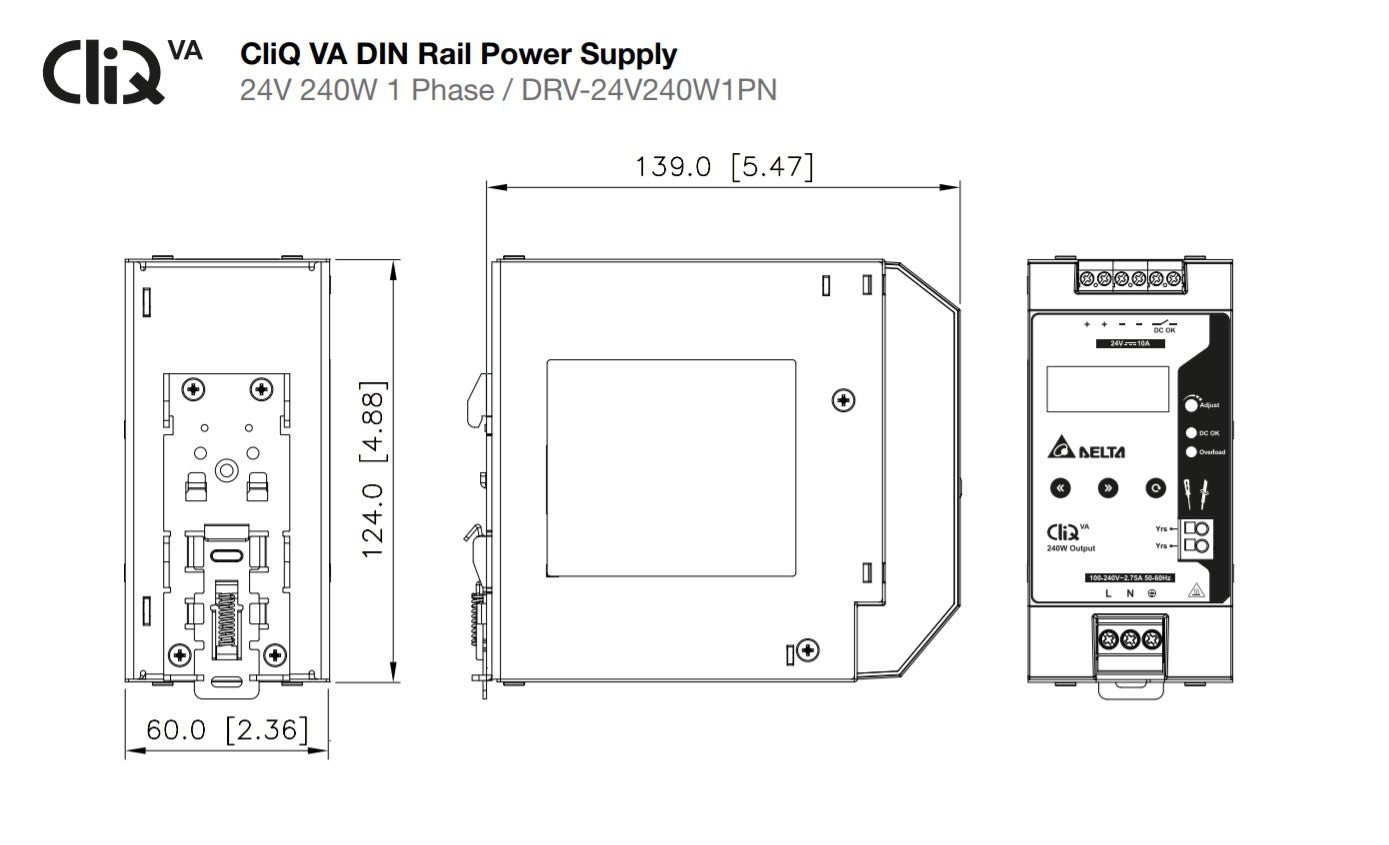

Technical Illustrations
Downloads
| OUTPUT | |||
|---|---|---|---|
| Model | DRV-24V120W1PN | DRV-24V240W1PN | DRV-24V480W1PN |
| Output Voltage | 24Vdc | 24Vdc | 24Vdc |
| Output Current | 5A | 10A | 20A |
| Output Voltage Range | 24V - 28Vdc | 24V - 28Vdc | 24V - 28Vdc |
| Output Power | 120W | 240W | 480W |
| Line Regulation | 20mV Max, (85-264Vac, 100% load) | 10mV Max, (85-264Vac, 100% load) | 10mV Max, (85-264Vac, 100% load) |
| Load Regulation | 100mV Max, (85-264Vac, 0-100% load) | 100mV Max, (85-264Vac, 0-100% load) | 100mV Max, (85-264Vac, 0-100% load) |
| PARD (20MHz) | 50mVpp Max. | 50mVpp Max. | 100mVpp Max. |
| Start-up Time | At 24V, 5A: 750ms max. @ 230Vac | At 24V, 10A: 800ms max. @ 230Vac | At 24V, 20A: 1000ms max. @ 230Vac |
| Hold-up Time | 70ms typ. (24V, 5A.) @ 230Vac | 92ms typ. (24V, 10A.) @ 230Vac | 90ms typ. (24V, 10A.) @ 230Vac |
| Start-up with capacitive loads | 10,000uF max | 10,000uF max | 20,000uF max |
| Rise TIme | 50ms Max. (5,000µF, 24V, 5A) @ 230Vac | 120ms Max. (10,000µF, 24V, 10A) @ 230Vac | 100ms Max. (20,000µF, 24V, 20A) @ 230Vac |
| INPUT | |||
|---|---|---|---|
| Model | DRV-24V120W1PN | DRV-24V240W1PN | DRV-24V480W1PN |
| Input Voltage | 85-276Vac | 85-276Vac | 85-276Vac |
| Input Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Nominal DC Input Voltage | 110-300Vdc | 110-300Vdc | 110-300Vdc |
| DC Input Voltage Range | 88-375Vdc | 88-375Vdc | Vertical Mounting: 88-375Vdc Horizontal Mounting: 100-375Vdc |
| Input Current | 0.61A Typ. @ 230Vac | 1.16A Typ. @ 230Vac | 2.29A Typ. @ 230Vac |
| Efficiency at 100% Load | 91% Typ. @ 230Vac | 94% Typ. @ 230Vac | 94% Typ. @ 230Vac |
| Max Inrush Current | (Cold Start) 15.0A Max. @ 230Vac | (Cold Start) 10.0A Max. @ 230Vac | (Cold Start) 13A Max @ 230Vac |
| Power Factor at 100% load | 0.93 Typ. @ 230Vac | 0.95 Typ. @ 230Vac | 0.95 Typ. @ 230Vac |
| Leakage Current | Enclosure to Neutral) < 0.45mA / 1.08mA : 264Vac, 50Hz, TN/TT system / IT system | (Enclosure to Neutral), < 0.74mA / 2.10mA: 264Vac, 50Hz, TN/TT system / IT system | (Enclosure to Neutral) < 0.80mA / 2.00mA: 264Vac, 50Hz, TN/TT system / IT system |
| Max Power Dissipation | At 24V,5A: 11.60W Max. @ 230Vac | At 24V,10A: 16.7W Max. @ 230Vac | At 24V,20A: 34.00W Max. @ 230Vac |
| ENVIRONMENTAL | |||
|---|---|---|---|
| Output Model | DRV-24V120W1PN | DRV-24V240W1PN | DRV-24V480W1PN |
| Operating Temperature | -25°C to +70°C | -25°C to +70°C | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Power De-rating | Vertical Mounting: > 60°C de-rate power by 2.5% / °C Horizontal Mounting: > 50°C de-rate power by 2.5% / °C | Vertical Mounting: > 60°C de-rate power by 2.5% / °C Horizontal Mounting: > 50°C de-rate power by 2.5% / °C | Vertical Mounting: > 60°C de-rate power by 2.5% / °C Horizontal Mounting: > 40°C de-rate power by 2.5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) | 5 to 95% RH (Non-Condensing) | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, 30G for a duration of 18ms, 2 times per direction, 6 times in total | IEC 60068-2-27, 30G for a duration of 18ms, 2 times per direction, 6 times in total | IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total |
| Vibration Test (Non-Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions |
| Operating Altitude | 0 to 5,000 Meters | 0 to 5,000 Meters | 0 to 5,000 Meters |
| Pollution Degree | 2 | 2 | 2 |
| Bump Test (Operating) | IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms, 1,000 times per direction, 6,000 times in total | IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms, 1,000 times per direction, 6,000 times in total | IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms, 1,000 times per direction, 6,000 times in total |
| Over Voltage Category | III | III | III |
| RELIABILITY | |||
|---|---|---|---|
| MTBF | MTBF (as per Telcordia SR-332): 1,444,000 hrs. I/P: 100Vac, O/P: 24V, 5A, Ta: 25°C 801,000 hrs. I/P: 100Vac, O/P: 24V, 5A, Ta: 40°C | MTBF (as per Telcordia SR-332): 1,268,000 hrs. I/P: 100Vac, O/P: 24V, 10A, Ta: 25°C 666,000 hrs. I/P: 100Vac, O/P: 24V, 10A, Ta: 40°C | MTBF (as per Telcordia SR-332): 751,100 hrs. I/P: 100Vac, O/P: 24V, 20A, Ta: 25°C 424,800 hrs. I/P: 100Vac, O/P: 24V, 20A, Ta: 40°C |
| Expected Cap Life Time | 131,400hrs. O/P: 24V, 5A, Ta: 25°C 92,230hrs. @ 100Vac, 98,540hrs. @ 230Vac O/P: 24V, 5A, Ta: 40°C 131,400hrs. O/P: 24V, 2.5A, Ta: 40°C | 131,400hrs. O/P: 24V, 10A, Ta: 25°C 81,490hrs. @ 100Vac, 121,350hrs. @ 230Vac O/P: 24V, 10A, Ta: 40°C 131,400hrs. O/P: 24V, 5A, Ta: 40°C | 131,400hrs. O/P: 24V, 20A, Ta: 25°C 96,500hrs. @ 100Vac, 114,100hrs. @ 230Vac O/P: 24V, 20A, Ta: 40°C 131,400hrs. O/P: 24V, 10A, Ta: 40°C |
| MECHANICAL | |||
|---|---|---|---|
| Output Model | DRV-24V120W1PN | DRV-24V240W1PN | DRV-24V480W1PN |
| Dimensions | 124 x 60 x 139 mm | 124 x 60 x 139 mm | 124 x 82 x 149 mm |
| Weight | 0.75 kg | 1.02 kg | 1.45 kg |
| Case Chassis / Cover | Aluminium and Plastic / Aluminium | Aluminium and Plastic / Aluminium | Aluminium and Plastic / Aluminium |
| Indicator | Green LED (DC OK) and Red LED (Overload) | Green LED (DC OK) and Red LED (Overload) | Green LED (DC OK) and Red LED (Overload) |
| Cooling System | Convection | Convection | Convection |
| SAFETY | |
|---|---|
| Electrical Safety | SIQ Bauart: EN 60950-1, EN 61010-1, EN 61010-2-201 UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395) CB scheme: IEC 60950-1, IEC 61010-1, IEC 61010-2-201 |
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU |
| Galvanic Isolation | 3.0KVac: Input / Output 2.0KVac: Input / PE 3.0KVac: Input / DC OK relay contact 1.5KVac: Output / PE 0.5KVac: Output / DC OK relay contact 1.5KVac: DC OK relay contact / PE |
| Industrial Control Equipment | UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355) |
| Electrical Equipments of Machines | EN 60204-1 (over voltage category III) |
| Electrical Equipment for Use in Electrical Power Installations | IEC/EN 62477-1 / IEC 62103 |
| Safety Entry Low Voltage | PELV* (EN 60204-1), SELV (EN 60950-1) |
| Material and Parts | RoHS Directive 2011/65/EU Compliant (EN 50581) |
| Isolation Resistance | > 5MOhm: Input to Output, 500Vdc |
| PE Resistance | < 0.1Ohm |
| PROTECTIONS | |
|---|---|
| Overvoltage | 28.8 – 35.2V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery) |
| Overload/Overcurrent | > 150% of rated load current, Constant current, Hiccup Mode (Auto-Recovery) |
| Over Temperature | < 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery) |
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed) |
| Degree of Protection | IP20 |
| Protection Against Shock | Class I with Primary Earth connection |
| EMC | |
|---|---|
| Emission | (CE & RE) Generic Standards: EN 61000-6-3 CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class B |
| Immunity | Generic Standards: EN 55024, EN 61000-6-2 |
| Harmonic Current Emissions | IEC/EN 61000-3-2, Class A |
| Voltage Fluctuation & Flicker | IEC/EN 61000-3-3 |
| Component Supply General Use | EN 61204-3 |
| MODEL NUMBER | Output Voltage | Output Current | Output Power |
|---|---|---|---|
| DRV-24V120W1PN | 24Vdc | 5A | 120W |
| DRV-24V240W1PN | 24Vdc | 10A | 240W |
| DRV-24V480W1PN | 24Vdc | 20A | 480W |
| OUTPUT | |||
|---|---|---|---|
| Model | DRV-24V120W1PN | DRV-24V240W1PN | DRV-24V480W1PN |
| Output Voltage | 24Vdc | 24Vdc | 24Vdc |
| Output Current | 5A | 10A | 20A |
| Output Voltage Range | 24V - 28Vdc | 24V - 28Vdc | 24V - 28Vdc |
| Output Power | 120W | 240W | 480W |
| Line Regulation | 20mV Max, (85-264Vac, 100% load) | 10mV Max, (85-264Vac, 100% load) | 10mV Max, (85-264Vac, 100% load) |
| Load Regulation | 100mV Max, (85-264Vac, 0-100% load) | 100mV Max, (85-264Vac, 0-100% load) | 100mV Max, (85-264Vac, 0-100% load) |
| PARD (20MHz) | 50mVpp Max. | 50mVpp Max. | 100mVpp Max. |
| Start-up Time | At 24V, 5A: 750ms max. @ 230Vac | At 24V, 10A: 800ms max. @ 230Vac | At 24V, 20A: 1000ms max. @ 230Vac |
| Hold-up Time | 70ms typ. (24V, 5A.) @ 230Vac | 92ms typ. (24V, 10A.) @ 230Vac | 90ms typ. (24V, 10A.) @ 230Vac |
| Start-up with capacitive loads | 10,000uF max | 10,000uF max | 20,000uF max |
| Rise TIme | 50ms Max. (5,000µF, 24V, 5A) @ 230Vac | 120ms Max. (10,000µF, 24V, 10A) @ 230Vac | 100ms Max. (20,000µF, 24V, 20A) @ 230Vac |
| INPUT | |||
|---|---|---|---|
| Model | DRV-24V120W1PN | DRV-24V240W1PN | DRV-24V480W1PN |
| Input Voltage | 85-276Vac | 85-276Vac | 85-276Vac |
| Input Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Nominal DC Input Voltage | 110-300Vdc | 110-300Vdc | 110-300Vdc |
| DC Input Voltage Range | 88-375Vdc | 88-375Vdc | Vertical Mounting: 88-375Vdc Horizontal Mounting: 100-375Vdc |
| Input Current | 0.61A Typ. @ 230Vac | 1.16A Typ. @ 230Vac | 2.29A Typ. @ 230Vac |
| Efficiency at 100% Load | 91% Typ. @ 230Vac | 94% Typ. @ 230Vac | 94% Typ. @ 230Vac |
| Max Inrush Current | (Cold Start) 15.0A Max. @ 230Vac | (Cold Start) 10.0A Max. @ 230Vac | (Cold Start) 13A Max @ 230Vac |
| Power Factor at 100% load | 0.93 Typ. @ 230Vac | 0.95 Typ. @ 230Vac | 0.95 Typ. @ 230Vac |
| Leakage Current | Enclosure to Neutral) < 0.45mA / 1.08mA : 264Vac, 50Hz, TN/TT system / IT system | (Enclosure to Neutral), < 0.74mA / 2.10mA: 264Vac, 50Hz, TN/TT system / IT system | (Enclosure to Neutral) < 0.80mA / 2.00mA: 264Vac, 50Hz, TN/TT system / IT system |
| Max Power Dissipation | At 24V,5A: 11.60W Max. @ 230Vac | At 24V,10A: 16.7W Max. @ 230Vac | At 24V,20A: 34.00W Max. @ 230Vac |
| ENVIRONMENTAL | |||
|---|---|---|---|
| Output Model | DRV-24V120W1PN | DRV-24V240W1PN | DRV-24V480W1PN |
| Operating Temperature | -25°C to +70°C | -25°C to +70°C | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Power De-rating | Vertical Mounting: > 60°C de-rate power by 2.5% / °C Horizontal Mounting: > 50°C de-rate power by 2.5% / °C | Vertical Mounting: > 60°C de-rate power by 2.5% / °C Horizontal Mounting: > 50°C de-rate power by 2.5% / °C | Vertical Mounting: > 60°C de-rate power by 2.5% / °C Horizontal Mounting: > 40°C de-rate power by 2.5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) | 5 to 95% RH (Non-Condensing) | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, 30G for a duration of 18ms, 2 times per direction, 6 times in total | IEC 60068-2-27, 30G for a duration of 18ms, 2 times per direction, 6 times in total | IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total |
| Vibration Test (Non-Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions |
| Operating Altitude | 0 to 5,000 Meters | 0 to 5,000 Meters | 0 to 5,000 Meters |
| Pollution Degree | 2 | 2 | 2 |
| Bump Test (Operating) | IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms, 1,000 times per direction, 6,000 times in total | IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms, 1,000 times per direction, 6,000 times in total | IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms, 1,000 times per direction, 6,000 times in total |
| Over Voltage Category | III | III | III |
| RELIABILITY | |||
|---|---|---|---|
| MTBF | MTBF (as per Telcordia SR-332): 1,444,000 hrs. I/P: 100Vac, O/P: 24V, 5A, Ta: 25°C 801,000 hrs. I/P: 100Vac, O/P: 24V, 5A, Ta: 40°C | MTBF (as per Telcordia SR-332): 1,268,000 hrs. I/P: 100Vac, O/P: 24V, 10A, Ta: 25°C 666,000 hrs. I/P: 100Vac, O/P: 24V, 10A, Ta: 40°C | MTBF (as per Telcordia SR-332): 751,100 hrs. I/P: 100Vac, O/P: 24V, 20A, Ta: 25°C 424,800 hrs. I/P: 100Vac, O/P: 24V, 20A, Ta: 40°C |
| Expected Cap Life Time | 131,400hrs. O/P: 24V, 5A, Ta: 25°C 92,230hrs. @ 100Vac, 98,540hrs. @ 230Vac O/P: 24V, 5A, Ta: 40°C 131,400hrs. O/P: 24V, 2.5A, Ta: 40°C | 131,400hrs. O/P: 24V, 10A, Ta: 25°C 81,490hrs. @ 100Vac, 121,350hrs. @ 230Vac O/P: 24V, 10A, Ta: 40°C 131,400hrs. O/P: 24V, 5A, Ta: 40°C | 131,400hrs. O/P: 24V, 20A, Ta: 25°C 96,500hrs. @ 100Vac, 114,100hrs. @ 230Vac O/P: 24V, 20A, Ta: 40°C 131,400hrs. O/P: 24V, 10A, Ta: 40°C |
| MECHANICAL | |||
|---|---|---|---|
| Output Model | DRV-24V120W1PN | DRV-24V240W1PN | DRV-24V480W1PN |
| Dimensions | 124 x 60 x 139 mm | 124 x 60 x 139 mm | 124 x 82 x 149 mm |
| Weight | 0.75 kg | 1.02 kg | 1.45 kg |
| Case Chassis / Cover | Aluminium and Plastic / Aluminium | Aluminium and Plastic / Aluminium | Aluminium and Plastic / Aluminium |
| Indicator | Green LED (DC OK) and Red LED (Overload) | Green LED (DC OK) and Red LED (Overload) | Green LED (DC OK) and Red LED (Overload) |
| Cooling System | Convection | Convection | Convection |
| SAFETY | |
|---|---|
| Electrical Safety | SIQ Bauart: EN 60950-1, EN 61010-1, EN 61010-2-201 UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395) CB scheme: IEC 60950-1, IEC 61010-1, IEC 61010-2-201 |
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU |
| Galvanic Isolation | 3.0KVac: Input / Output 2.0KVac: Input / PE 3.0KVac: Input / DC OK relay contact 1.5KVac: Output / PE 0.5KVac: Output / DC OK relay contact 1.5KVac: DC OK relay contact / PE |
| Industrial Control Equipment | UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355) |
| Electrical Equipments of Machines | EN 60204-1 (over voltage category III) |
| Electrical Equipment for Use in Electrical Power Installations | IEC/EN 62477-1 / IEC 62103 |
| Safety Entry Low Voltage | PELV* (EN 60204-1), SELV (EN 60950-1) |
| Material and Parts | RoHS Directive 2011/65/EU Compliant (EN 50581) |
| Isolation Resistance | > 5MOhm: Input to Output, 500Vdc |
| PE Resistance | < 0.1Ohm |
| PROTECTIONS | |
|---|---|
| Overvoltage | 28.8 – 35.2V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery) |
| Overload/Overcurrent | > 150% of rated load current, Constant current, Hiccup Mode (Auto-Recovery) |
| Over Temperature | < 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery) |
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed) |
| Degree of Protection | IP20 |
| Protection Against Shock | Class I with Primary Earth connection |
| EMC | |
|---|---|
| Emission | (CE & RE) Generic Standards: EN 61000-6-3 CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class B |
| Immunity | Generic Standards: EN 55024, EN 61000-6-2 |
| Harmonic Current Emissions | IEC/EN 61000-3-2, Class A |
| Voltage Fluctuation & Flicker | IEC/EN 61000-3-3 |
| Component Supply General Use | EN 61204-3 |
| MODEL NUMBER | Output Voltage | Output Current | Output Power |
|---|---|---|---|
| DRV-24V120W1PN | 24Vdc | 5A | 120W |
| DRV-24V240W1PN | 24Vdc | 10A | 240W |
| DRV-24V480W1PN | 24Vdc | 20A | 480W |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
DRV-24V120W1PN | 85...264Vac 50/60Hz | 24Vdc | 5A | |
|
|
DRV-24V240W1PN | 85...264Vac 50/60Hz | 24Vdc | 10A | |
|
|
DRV-24V480W1PN | 85...264Vac 50/60Hz | 24Vdc | 20A |
