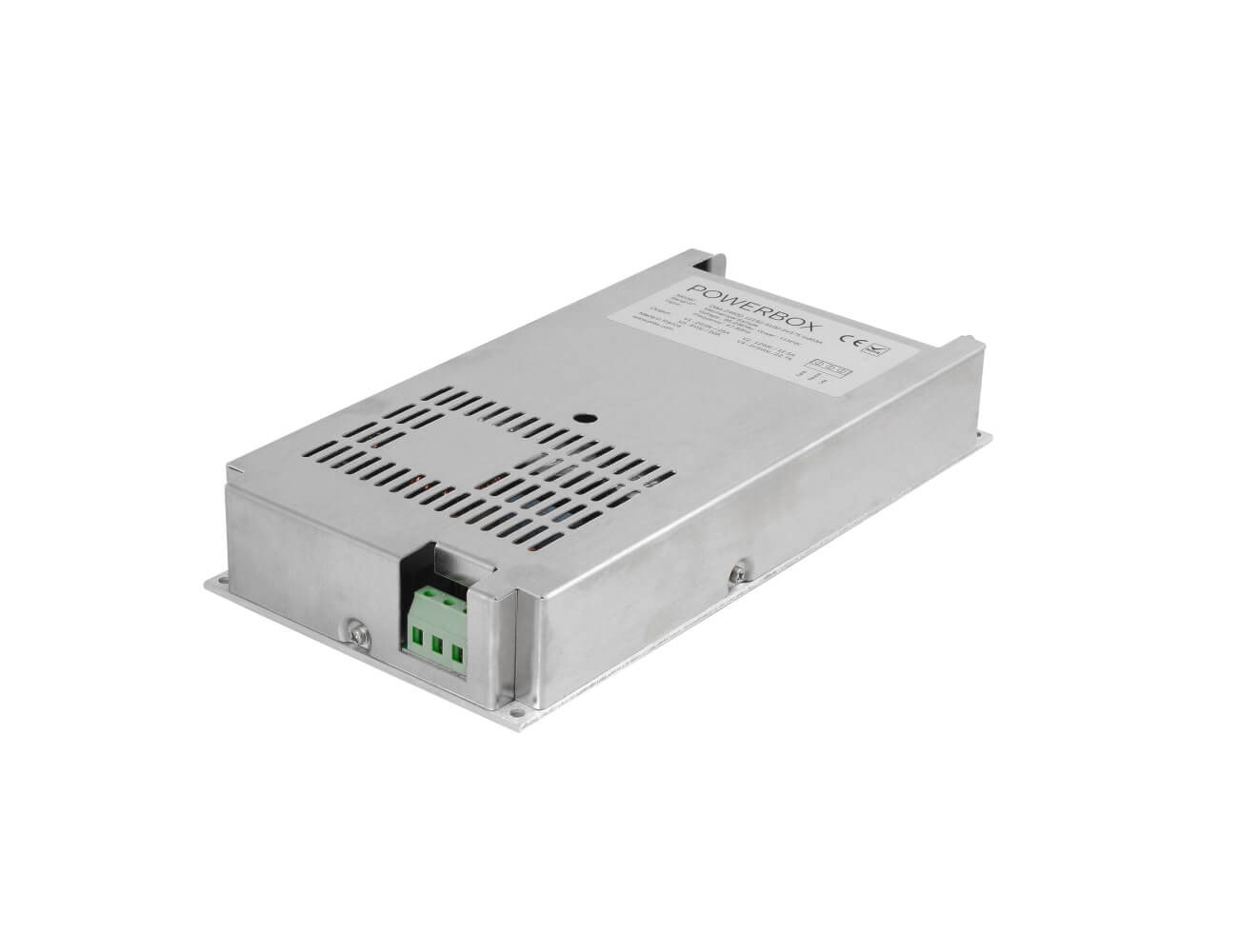

PRBX DBA1200 Series AC/DC Power Supply

The PRBX DBA1200 Series AC/DC Power Supply is a powerful and versatile solution for industrial, defense, and railway applications. Delivering up to 1200W of power, it ensures efficient and reliable performance in demanding environments.

Read More

View Models
Powerbox DBA1200

Features

  • 85-264VAC or 120-350VDC input voltage ranges
  • 1-6 isolated outputs up to 1200W
  • 255 x 127 x 40mm very low profile
  • Power Factor Correction EN61000-3-2
  • Active very low inrush limitation
  • Surge and transient protection
Specifications
INPUT
Operating input voltage 85-264VAC. 120-350VDC.
Frequency 44Hz min, 50Hz typ, 440Hz max.
Power factor 0.96 typ, 230VAC, 50Hz, Pnom
Input current 16A at Vin min.
No-load input power 15W at Vin typ.
Peak inrush current 4A Vin max.
Start-up time 3s typ.
Input fuse A fuse mounted inside the psu protects against damages in case of a failure.
Fuse type Littlefuse, 15A, 0218015.MXP
Transient protection Yes.
OPTIONS
MIL-STD ruggedized (-M) Meet MIL-STD 461E CE102, MIL-STD 1399- 300A, MIL-STD810E shock & vibrations. No laboratory certification.
-40°C operation (-T) The thermal grade of the DC/DC converters used and other components are changed to comply with low ambient temperature.
Conformal coating (-V) During manufacturing process , when V option is specified, components and pcb are covered with an acrylic coating to address high level of ambiant humidity application.

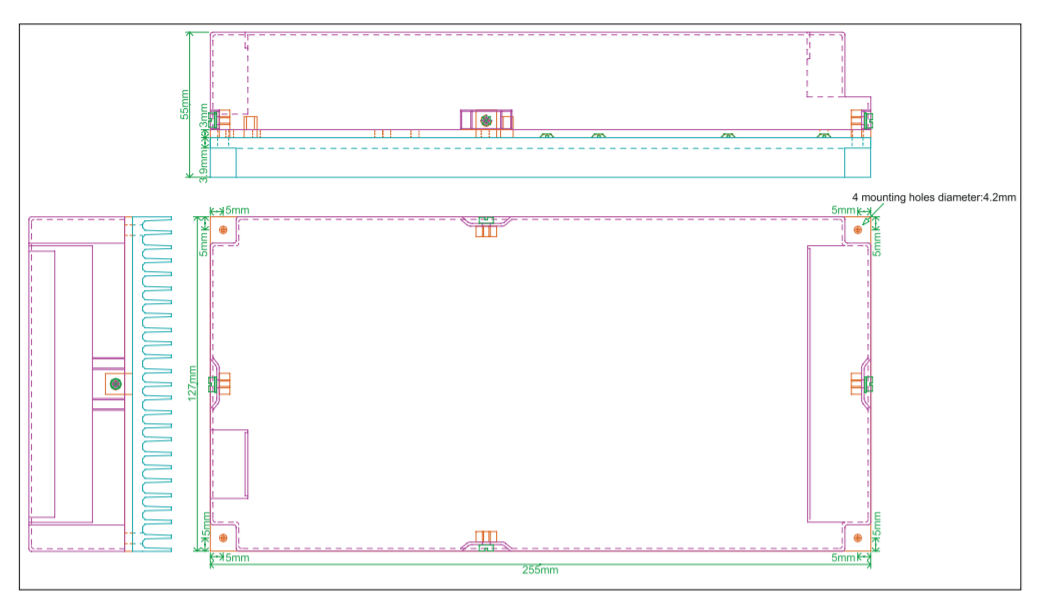

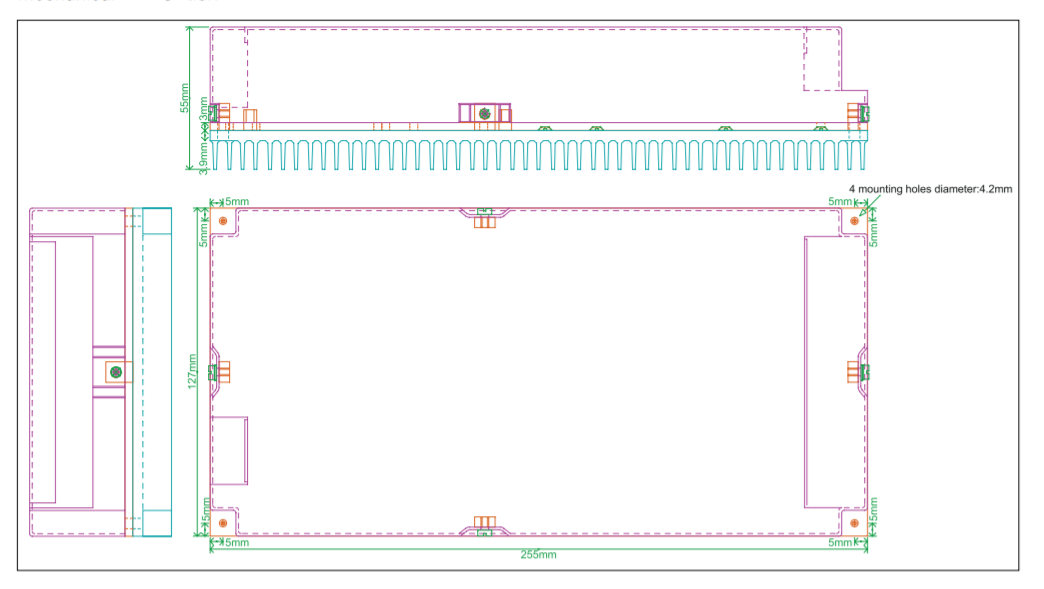

Heatsink (-H, -H1) -H: a 15 mm heatsink is mounted on the baseplate with longitudinal fins. -H1: a 15 mm heatsink is mounted on the baseplate with transversal fins.
OUTPUT

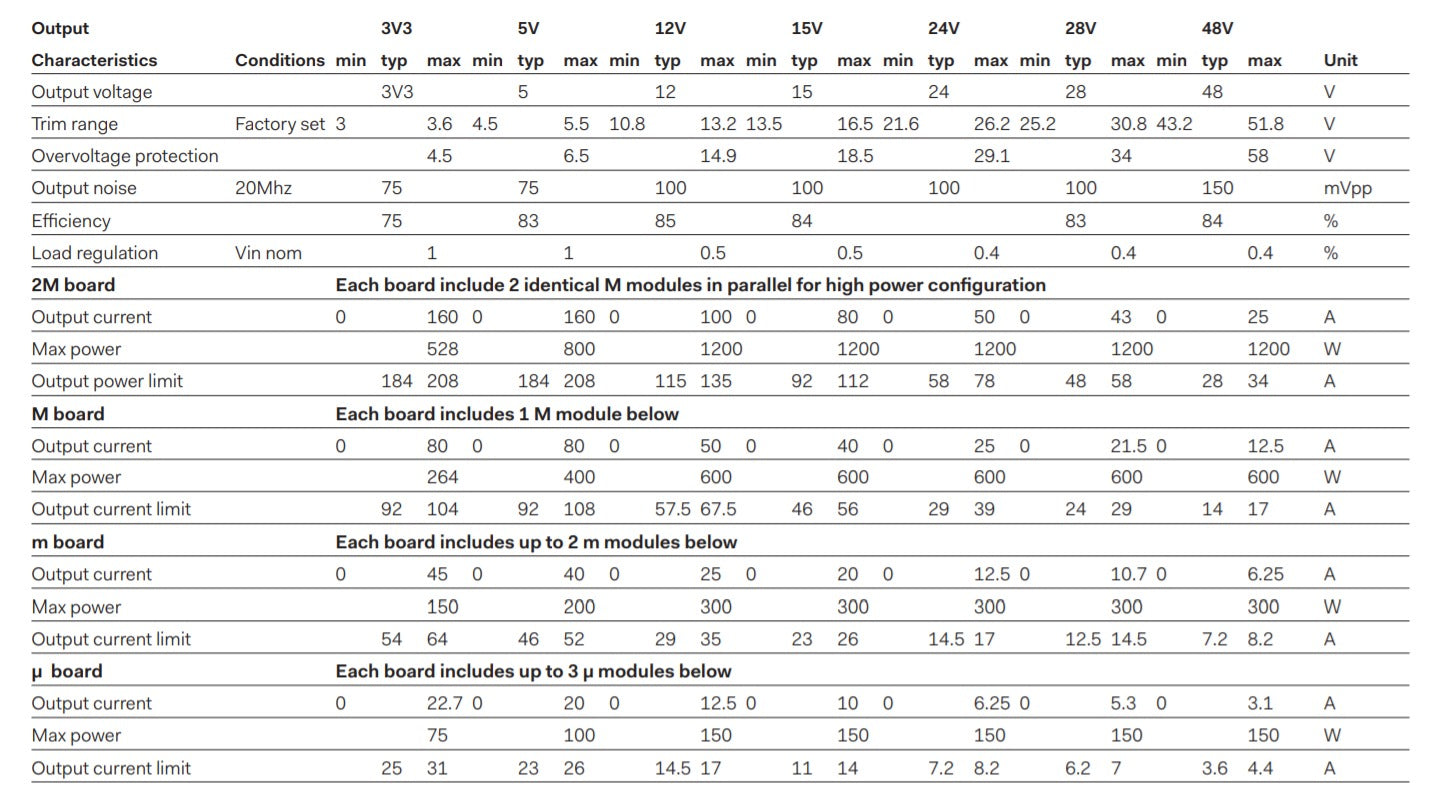

Output Voltage See Selection Table
Parallel operation Possible.
Redundant operation Requires external oring diodes.
Hold-up time Yes.
Output current limitation All outputs are protected against short circuit, automatic recovery.
Thermal considerations Baseplate should not exceed 100°C.
Thermal protection OTP protection, automatic restart.
Overvoltage protection Incorporated on each output.
Remote on/off An isolated INHIB signal disable corresponding output voltage when connected to RTN.
Overvoltage adjustment 90-110%Vnom.
Remote sense V1, V2, total drop <0.5V, positive line drop <0.25V.
Auxiliary bias voltage Limited to 200mA.
Paralleling signal Parallel only identical outputs (voltage and power).
ENVIRONMENTAL

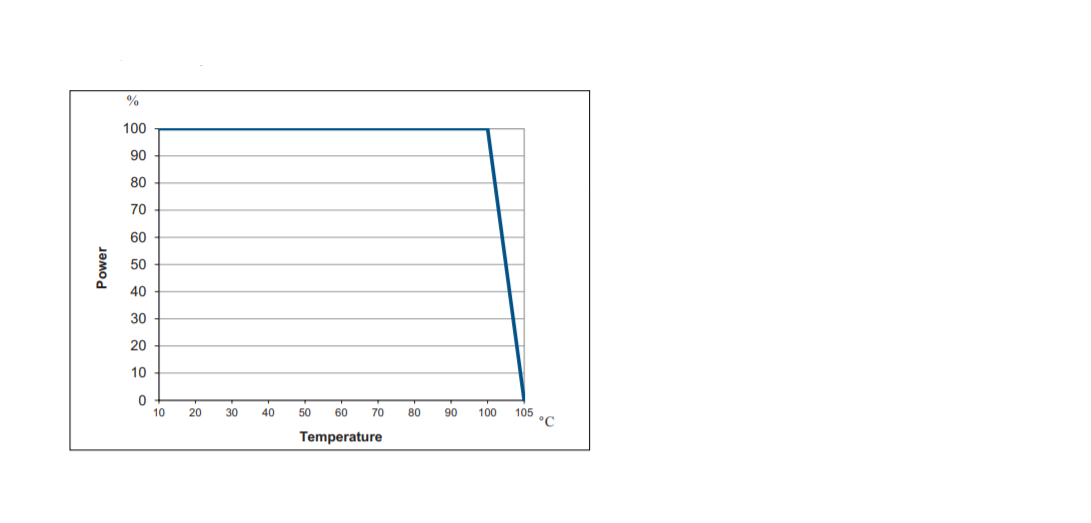

Operating temperature -20°C to +71°C, see derating (T-option -40°C).
Heatsink temperature -20°C to +71°C, see derating (T-option -40°C).
Storage temperature -40°C to +125°C.
Damp heat MIL STD 810 Proc. 507-2.
Shock MIL STD 810 Proc. 516.3
Vibrations MIL STD 810 Proc. 514-5.
MTBF MTBF calculation for a specific part number has to be ordered
GENERAL
Electric strength Input to earth 1500Vrms
Input to output 3000Vrms
Output to earth 500Vrms
Insulation resistance >100Mohms.
Dimensions 255 x 127 x 40mm
Case Aluminum natural.
Weight 1500g without heatsink.
STANDARDS
Safety standards Built to meet IEC60950-1, EN60950-1.
Surges Built to meet EN61000-4-5, 1kV, Criteria B. 2kV, Critiera A.
Electrostatic discharge Built to meet EN61000-4-2, 8000V, Critiera B.
Fast transients/burst Built to meet EN61000-4-4, 4000V, Critiera B.
Harmonics Built to meet EN61000-3-2.
Flickers Meets EN61000-3-3. EN61000-4-3, -6, -11.

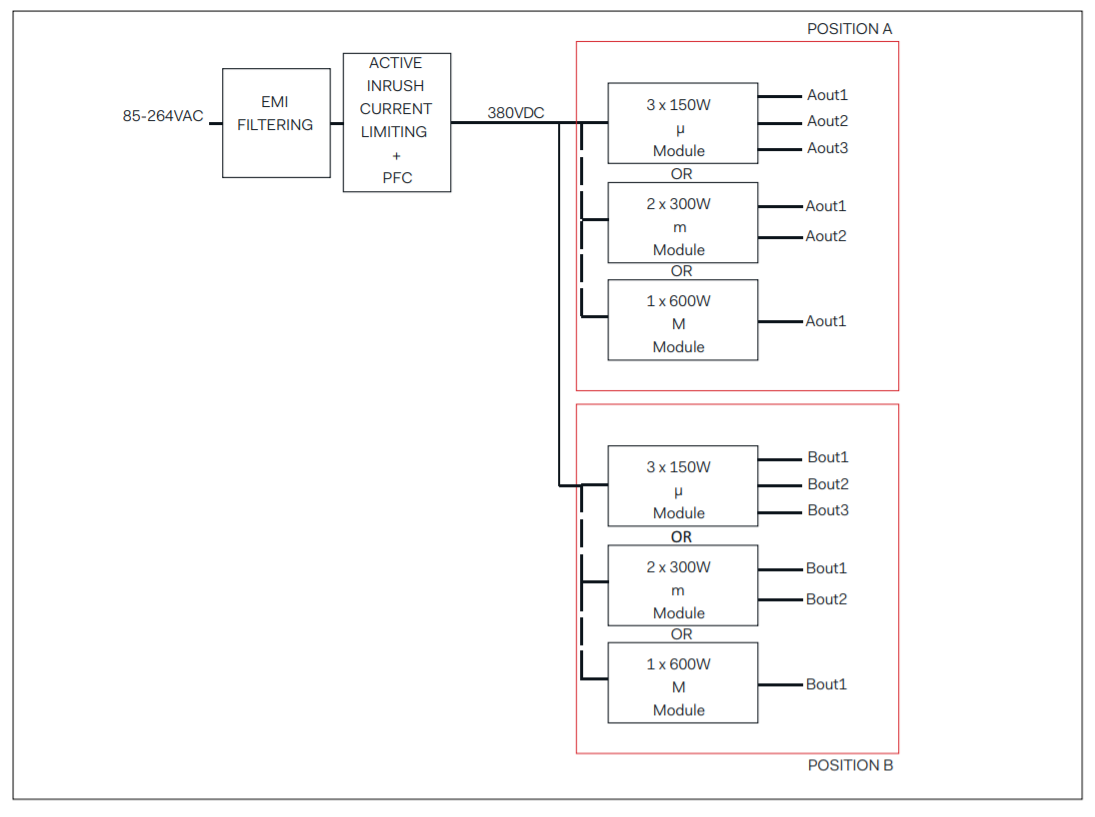

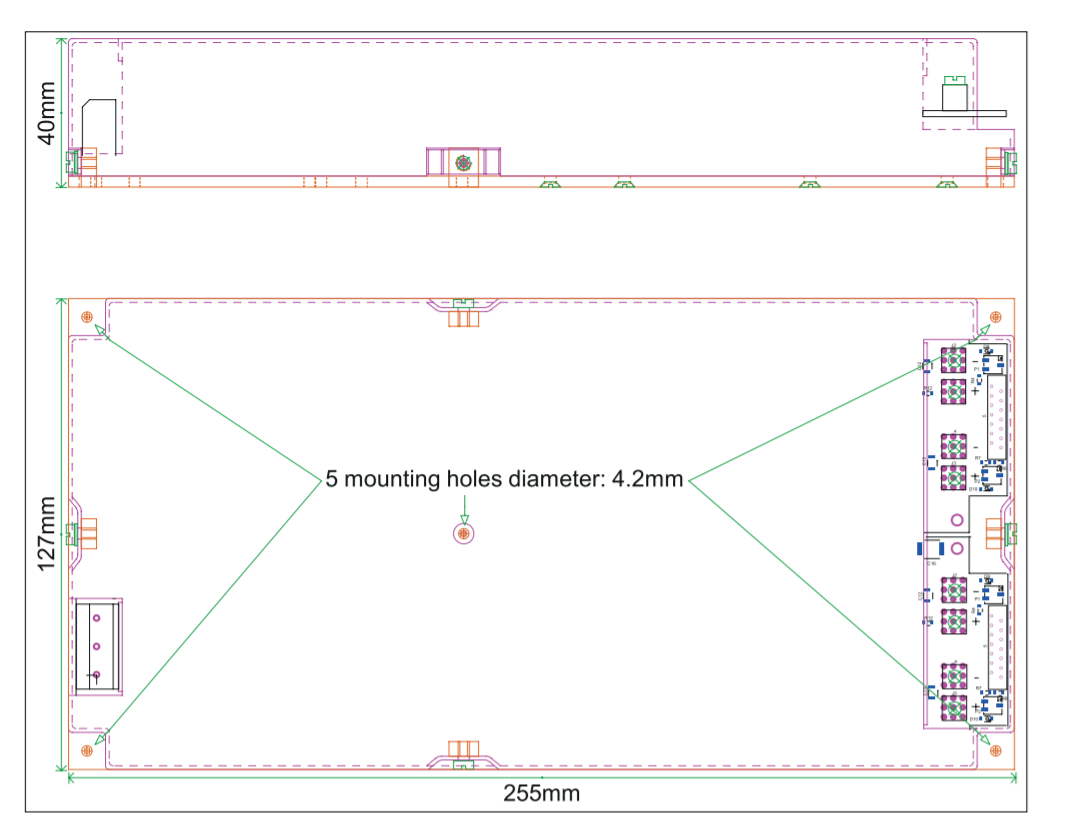

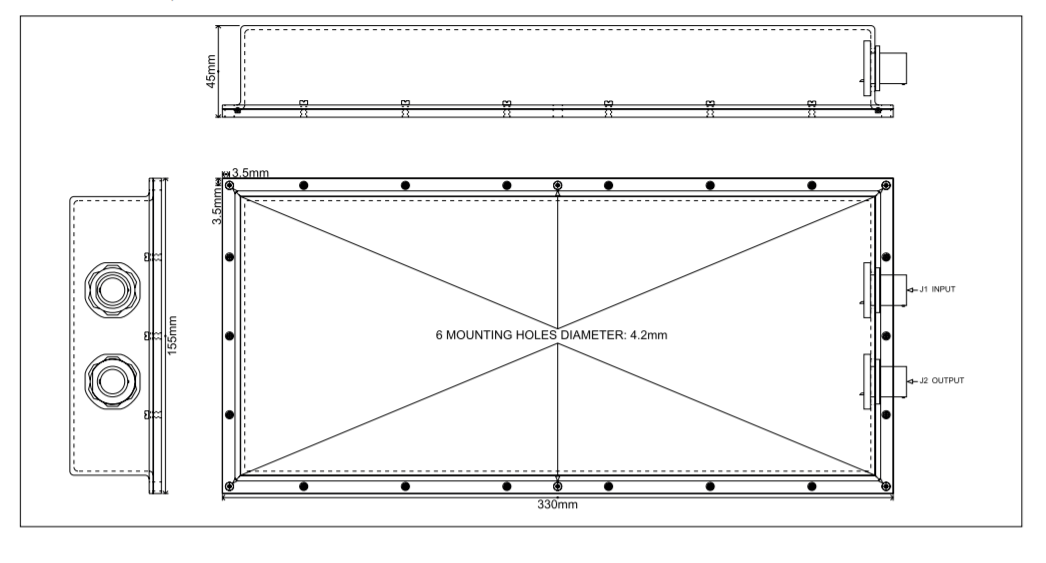

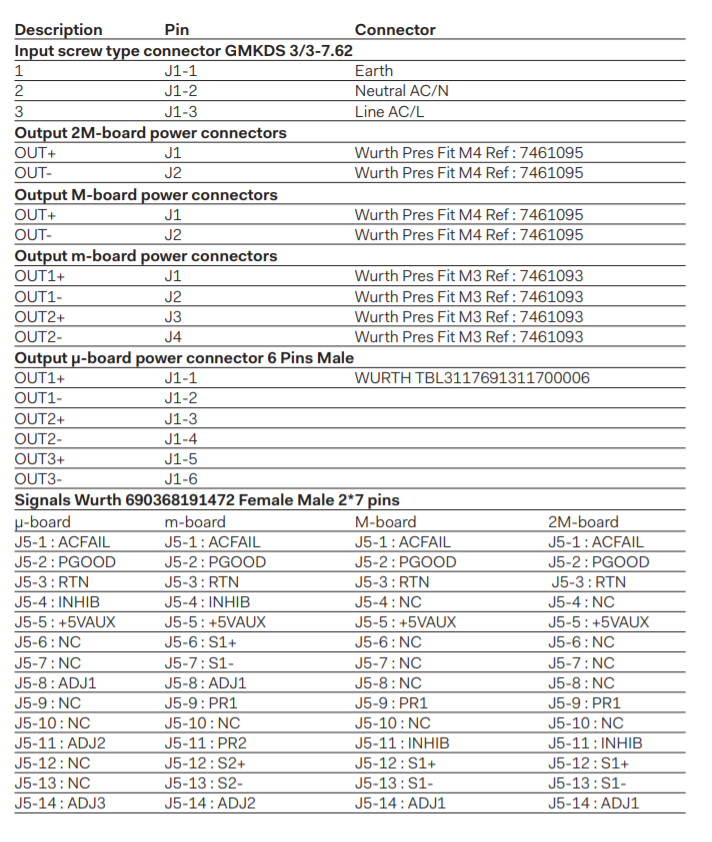

Technical Illustrations
Downloads
DS_DBA_1200W_Series_Datasheet.pdf
PRBX_Part_number_configurator.xlsm
INPUT
Operating input voltage 85-264VAC. 120-350VDC.
Frequency 44Hz min, 50Hz typ, 440Hz max.
Power factor 0.96 typ, 230VAC, 50Hz, Pnom
Input current 16A at Vin min.
No-load input power 15W at Vin typ.
Peak inrush current 4A Vin max.
Start-up time 3s typ.
Input fuse A fuse mounted inside the psu protects against damages in case of a failure.
Fuse type Littlefuse, 15A, 0218015.MXP
Transient protection Yes.
OPTIONS
MIL-STD ruggedized (-M) Meet MIL-STD 461E CE102, MIL-STD 1399- 300A, MIL-STD810E shock & vibrations. No laboratory certification.
-40°C operation (-T) The thermal grade of the DC/DC converters used and other components are changed to comply with low ambient temperature.
Conformal coating (-V) During manufacturing process , when V option is specified, components and pcb are covered with an acrylic coating to address high level of ambiant humidity application.
Heatsink (-H, -H1) -H: a 15 mm heatsink is mounted on the baseplate with longitudinal fins. -H1: a 15 mm heatsink is mounted on the baseplate with transversal fins.
OUTPUT
Output Voltage See Selection Table
Parallel operation Possible.
Redundant operation Requires external oring diodes.
Hold-up time Yes.
Output current limitation All outputs are protected against short circuit, automatic recovery.
Thermal considerations Baseplate should not exceed 100°C.
Thermal protection OTP protection, automatic restart.
Overvoltage protection Incorporated on each output.
Remote on/off An isolated INHIB signal disable corresponding output voltage when connected to RTN.
Overvoltage adjustment 90-110%Vnom.
Remote sense V1, V2, total drop <0.5V, positive line drop <0.25V.
Auxiliary bias voltage Limited to 200mA.
Paralleling signal Parallel only identical outputs (voltage and power).
ENVIRONMENTAL
Operating temperature -20°C to +71°C, see derating (T-option -40°C).
Heatsink temperature -20°C to +71°C, see derating (T-option -40°C).
Storage temperature -40°C to +125°C.
Damp heat MIL STD 810 Proc. 507-2.
Shock MIL STD 810 Proc. 516.3
Vibrations MIL STD 810 Proc. 514-5.
MTBF MTBF calculation for a specific part number has to be ordered
GENERAL
Electric strength Input to earth 1500Vrms
Input to output 3000Vrms
Output to earth 500Vrms
Insulation resistance >100Mohms.
Dimensions 255 x 127 x 40mm
Case Aluminum natural.
Weight 1500g without heatsink.
STANDARDS
Safety standards Built to meet IEC60950-1, EN60950-1.
Surges Built to meet EN61000-4-5, 1kV, Criteria B. 2kV, Critiera A.
Electrostatic discharge Built to meet EN61000-4-2, 8000V, Critiera B.
Fast transients/burst Built to meet EN61000-4-4, 4000V, Critiera B.
Harmonics Built to meet EN61000-3-2.
Flickers Meets EN61000-3-3. EN61000-4-3, -6, -11.
DS_DBA_1200W_Series_Datasheet.pdf
PRBX_Part_number_configurator.xlsm

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant DBA-2M 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 1: 160A
product variant DBA-M-M 110/230Vac Output 1: 24 (3 to 51.8)Vdc Ouput 2: 24 (3 to 51.8)Vdc Output 1: 80A Output 2: 80A
product variant DBA-M 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 1: 80A
product variant DBA-M-nn 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 1: 80A Output 2: 45A Output 3: 45A
product variant DBA-M-n 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 1: 80A Output 2: 45A
product variant DBA-M-µµµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 4: 24 (3 to 51.8)Vdc Output 1: 80A Output 2: 22.7A Output 3: 22.7A Output 4: 22.7A
product variant DBA-M-µµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 1: 80A Output 2: 22.7A Output 3: 22.7A
product variant DBA-M-µ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 1: 80A Output 2: 22.7A
product variant DBA-nn-nn 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 4: 24 (3 to 51.8)Vdc Output 1: 45A Output 2: 45A Output 3: 45A Output 4: 45A
product variant DBA-nn-n 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 1: 45A Output 2: 45A Output 3: 45A
product variant DBA-nn 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 1: 45A Output 2: 45A
product variant DBA-n 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 1: 45A
product variant DBA-nn-µµµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 4: 24 (3 to 51.8)Vdc Output 1: 45A Output 2: 45A Output 3: 22.7A Output 4: 22.7A
product variant DBA-nn-µµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 1: 45A Output 2: 45A Output 3: 22.7A
product variant DBA-nn-µ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 1: 45A Output 2: 22.7A
product variant DBA-n-µµµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 4: 24 (3 to 51.8)Vdc Output 1: 45A Output 2: 22.7A Output 3: 22.7A Output 4: 22.7A
product variant DBA-n-µµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 1: 45A Output 2: 22.7A Output 3: 22.7A
product variant DBA-n-µ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 1: 45A Output 2: 22.7A
product variant DBA-µµµ-µµµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 4: 24 (3 to 51.8)Vdc Output 1: 22.7A Output 2: 22.7A Output 3: 22.7A Output 4: 22.7A
product variant DBA-µµµ-µµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 4: 24 (3 to 51.8)Vdc Output 1: 22.7A Output 2: 22.7A Output 3: 22.7A Output 4: 22.7A
product variant DBA-µµµ-µ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 4: 24 (3 to 51.8)Vdc Output 1: 22.7A Output 2: 22.7A Output 3: 22.7A Output 4: 22.7A
product variant DBA-µµµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 3: 24 (3 to 51.8)Vdc Output 1: 22.7A Output 2: 22.7A Output 3: 22.7A
product variant DBA-µµ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 2: 24 (3 to 51.8)Vdc Output 1: 22.7A Output 2: 22.7A
product variant DBA-µ 110/230Vac Output 1: 24 (3 to 51.8)Vdc Output 1: 22.7A
