DC/AC Inverters

Premium ODS-3000 SERIES DC/AC Inverter

The Premium ODS-3000 Series DC/AC Inverter is a high-performance power solution designed for industrial and railway applications. Delivering up to 4000VA of pure sine wave output, it ensures reliable and efficient power conversion in demanding environments, making it ideal for mission-critical operations.

Read More

View Models
premium-ods-3000-series

Features

  • Sine wave output voltage
  • Selectable output frequency: 50/60Hz
  • Adjustable output voltage
  • High input-output isolation 3000Vrms
  • Remote inhibit
  • Remote control via RS232
Specifications
INPUT
Input Voltage range -30, +25% Vin nom
Max input ripple 5% Vin nom (Vrms, 100Hz)
SAFETY
Dielectric strength: Input /output Dielectric strength: Input /output
Dielectric strength: Output / Earth 1500 Vrms / 50Hz / 1min
Dielectric strength Input / Earth 500 Vrms / 50Hz / 1min
Safety according to EN60950-1, EN62368-1
Fire and smoke EN45545-2 approved
OUTPUT
Output Voltage 120 / 230Vac sinusoidal
Output frequency 50 / 60Hz ± 0.25Hz
Line regulation < 2 % Vin -25% … +25%, < 10% Vin -30% … +30%
Load regulation < 4 %
Output wave distortion THD < 2% (average of 16 samples)
Output HF ripple < 2.5%

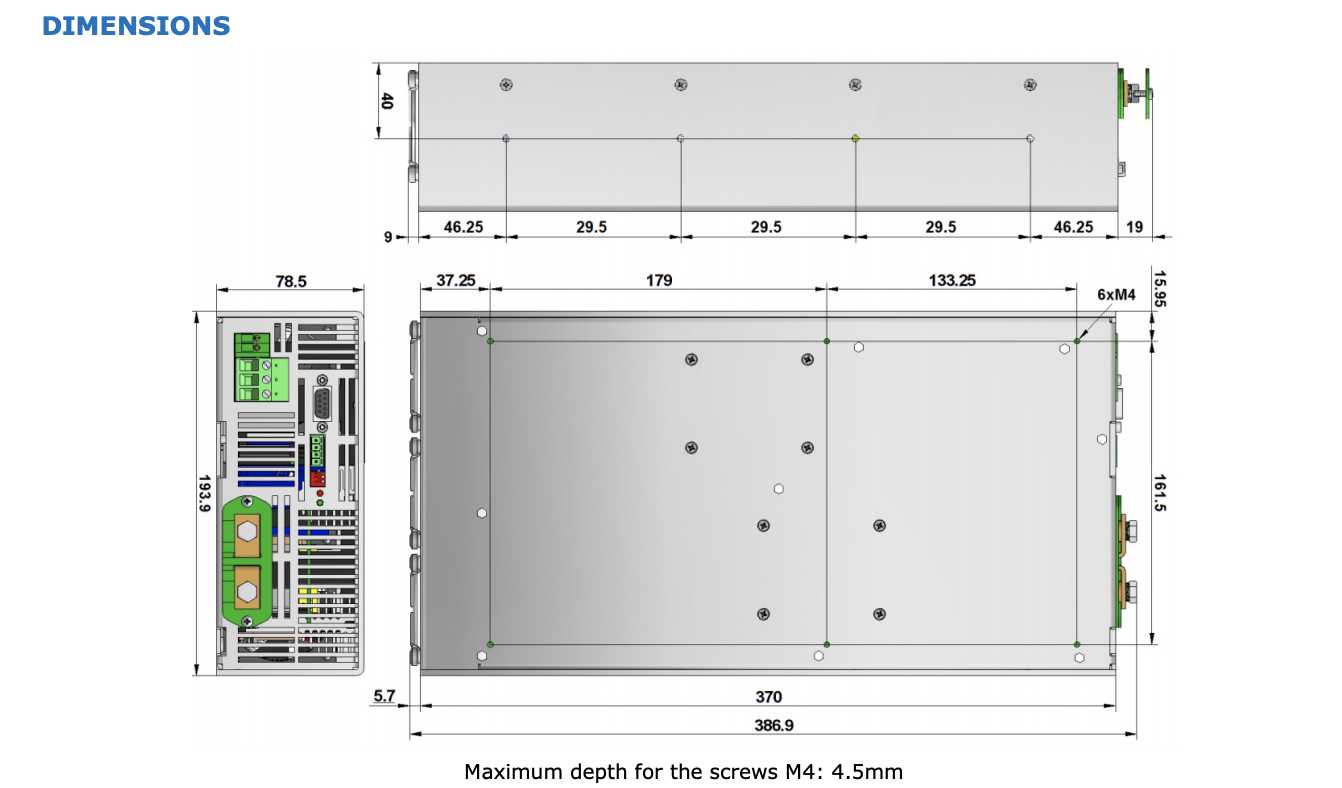

MECHANICAL
Approximate weight < 6000g
Protection degree IP20
ENVIRONMENTAL
Options B and T Option L (Note-1)
StorageTemperature -25 … 80°C -40 … 80°C
Operating temperature at Full load -25 … 55°C (EN50155 OT1) -40 … 55°C (EN50155 OT2)
Operating temperature at 62.5% load -25 … 70°C (EN50155 OT3) -40 … 70°C (EN50155 OT4)
Relative humidity without condensation 5 … 95%
Cooling Controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C) 100.000 h

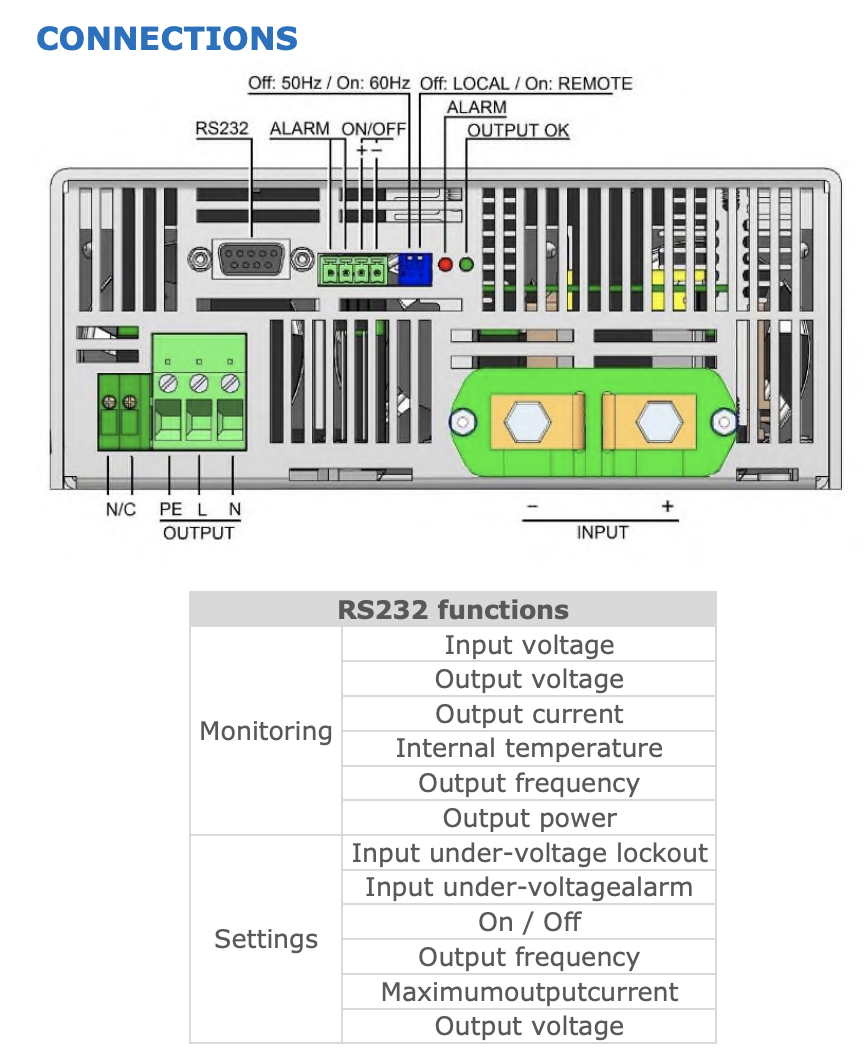

CONTROL
Output OK LED Green
Alarm LED Red
Output failure alarm Isolated contact relay open when alarm (<0.3A at 150Vcc)
Remote OFF Off applying 4…24 Vdc, Impedance > 3k3Ω
Status and programming RS232 port
EMC
Immunity according EN61000-6-2 (EN50121-3-2)
Emissions according EN61000-6-4 (EN50121-3-2)
PROTECTIONS

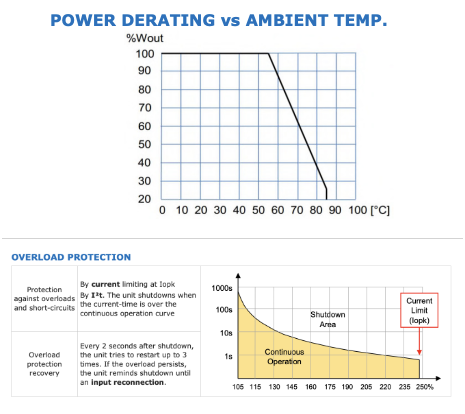

Against overloads  Current and I²T limited (see overload protection)
Against over-temperature Shutdown with auto-recovery

Note:1 The unit can start up and work at an ambient temperature between -40°C and -25°C without connectors handling.

Selection Table
PART NUMBER Input
voltage
DC
[V]		 Input
voltage
range
[V] 		Max.
Input
Current
[A]		 Output
voltage
AC
[V]		 Output
current
[A]		 Active
output
power
[W]		 Appar.
output
power
[VA]		 Output
peak
current		 Efficien.
[%]		 No
load
input
current
[A]
(rms)
5s
[A]		 (rms)
5s
[A]
ODS-3000-7153 24 16.8 - 30 161 230 10.4 2400 2400 15 32 89 < 0.7
ODS-3000-7154 36 25.2 - 45 133 230 13.0 3000 3000 20 32 90 < 0.5
ODS-3000-7155 48 33.6 - 60 99 230 13.0 3000 3000 20 32 91 < 0.4
ODS-3000-7156 72 50.4 - 90 66 230 13.0 3000 3000 20 32 91 < 0.3
ODS-3000-7157 110 77 - 138 43 230 13.0 3000 3000 20 32 92 < 0.2
ODS-3000-7163 24 16.8 - 30 163 120 20.0 2400 2400 28 52 88 < 0.7
ODS-3000-7164 36 25.2 - 45 134 120 20.8 2500 2500 32 52 89 < 0.5
ODS-3000-7165 48 33.6 - 60 84 120 20.8 2500 2500 32 52 89 < 0.4
ODS-3000-7166 72 50.4 - 90 56 120 20.8 2500 2500 32 52 90 < 0.3
ODS-3000-7167 110 77 - 138 36 120 20.8 2500 2500 32 52 91 < 0.2
ODS-3000-7177 110 77 - 138 57 230 17.4 4000 4000 22 34 92 < 0.2
ODS-3000-7179 300 290 - 330 15 230 17.4 4000 4000 22 34 92 < 0.2

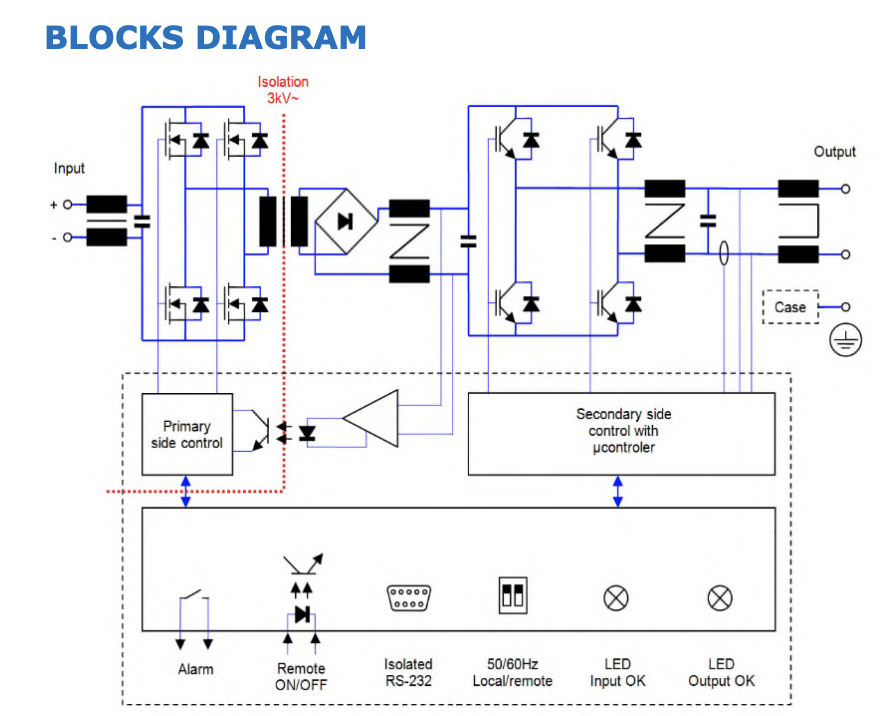

Technical Illustrations
Downloads
ODS-3000_Datasheet.pdf
INPUT
Input Voltage range -30, +25% Vin nom
Max input ripple 5% Vin nom (Vrms, 100Hz)
SAFETY
Dielectric strength: Input /output Dielectric strength: Input /output
Dielectric strength: Output / Earth 1500 Vrms / 50Hz / 1min
Dielectric strength Input / Earth 500 Vrms / 50Hz / 1min
Safety according to EN60950-1, EN62368-1
Fire and smoke EN45545-2 approved
OUTPUT
Output Voltage 120 / 230Vac sinusoidal
Output frequency 50 / 60Hz ± 0.25Hz
Line regulation < 2 % Vin -25% … +25%, < 10% Vin -30% … +30%
Load regulation < 4 %
Output wave distortion THD < 2% (average of 16 samples)
Output HF ripple < 2.5%
MECHANICAL
Approximate weight < 6000g
Protection degree IP20
ENVIRONMENTAL
Options B and T Option L (Note-1)
StorageTemperature -25 … 80°C -40 … 80°C
Operating temperature at Full load -25 … 55°C (EN50155 OT1) -40 … 55°C (EN50155 OT2)
Operating temperature at 62.5% load -25 … 70°C (EN50155 OT3) -40 … 70°C (EN50155 OT4)
Relative humidity without condensation 5 … 95%
Cooling Controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C) 100.000 h
CONTROL
Output OK LED Green
Alarm LED Red
Output failure alarm Isolated contact relay open when alarm (<0.3A at 150Vcc)
Remote OFF Off applying 4…24 Vdc, Impedance > 3k3Ω
Status and programming RS232 port
EMC
Immunity according EN61000-6-2 (EN50121-3-2)
Emissions according EN61000-6-4 (EN50121-3-2)
PROTECTIONS
Against overloads  Current and I²T limited (see overload protection)
Against over-temperature Shutdown with auto-recovery

Note:1 The unit can start up and work at an ambient temperature between -40°C and -25°C without connectors handling.

PART NUMBER Input
voltage
DC
[V]		 Input
voltage
range
[V] 		Max.
Input
Current
[A]		 Output
voltage
AC
[V]		 Output
current
[A]		 Active
output
power
[W]		 Appar.
output
power
[VA]		 Output
peak
current		 Efficien.
[%]		 No
load
input
current
[A]
(rms)
5s
[A]		 (rms)
5s
[A]
ODS-3000-7153 24 16.8 - 30 161 230 10.4 2400 2400 15 32 89 < 0.7
ODS-3000-7154 36 25.2 - 45 133 230 13.0 3000 3000 20 32 90 < 0.5
ODS-3000-7155 48 33.6 - 60 99 230 13.0 3000 3000 20 32 91 < 0.4
ODS-3000-7156 72 50.4 - 90 66 230 13.0 3000 3000 20 32 91 < 0.3
ODS-3000-7157 110 77 - 138 43 230 13.0 3000 3000 20 32 92 < 0.2
ODS-3000-7163 24 16.8 - 30 163 120 20.0 2400 2400 28 52 88 < 0.7
ODS-3000-7164 36 25.2 - 45 134 120 20.8 2500 2500 32 52 89 < 0.5
ODS-3000-7165 48 33.6 - 60 84 120 20.8 2500 2500 32 52 89 < 0.4
ODS-3000-7166 72 50.4 - 90 56 120 20.8 2500 2500 32 52 90 < 0.3
ODS-3000-7167 110 77 - 138 36 120 20.8 2500 2500 32 52 91 < 0.2
ODS-3000-7177 110 77 - 138 57 230 17.4 4000 4000 22 34 92 < 0.2
ODS-3000-7179 300 290 - 330 15 230 17.4 4000 4000 22 34 92 < 0.2
ODS-3000_Datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vac) Output Power (Va / kVA)
product variant ODS-3000-7153 24Vdc: 16.8 - 30Vdc 230Vac 50 / 60Hz ± 0.25Hz 2,400 VA
product variant ODS-3000-7154 36Vdc: 25.2 - 45Vdc 230Vac 50 / 60Hz ± 0.25Hz 3,000 VA
product variant ODS-3000-7155 48Vdc: 33.6 - 60Vdc 230Vac 50 / 60Hz ± 0.25Hz 3,000 VA
product variant ODS-3000-7156 72Vdc: 50.4 - 90Vdc 230Vac 50 / 60Hz ± 0.25Hz 3,000 VA
product variant ODS-3000-7157 110Vdc: 77 - 138Vdc 230Vac 50 / 60Hz ± 0.25Hz 3,000 VA
product variant ODS-3000-7163 24Vdc: 16.8 - 30Vdc 120Vac 50 / 60Hz ± 0.25Hz 2,400 VA
product variant ODS-3000-7164 36Vdc: 25.2 - 45Vdc 120Vac 50 / 60Hz ± 0.25Hz 2,500 VA
product variant ODS-3000-7165 48Vdc: 33.6 - 60Vdc 120Vac 50 / 60Hz ± 0.25Hz 2,500 VA
product variant ODS-3000-7166 72Vdc: 50.4 - 90Vdc 120Vac 50 / 60Hz ± 0.25Hz 2,500 VA
product variant ODS-3000-7167 110Vdc: 77 - 138Vdc 120Vac 50 / 60Hz ± 0.25Hz 2,500 VA
product variant ODS-3000-7177 110Vdc: 77 - 138Vdc 230Vac 50 / 60Hz ± 0.25Hz 4,000 VA
product variant ODS-3000-7178 120Vdc: 84 - 150Vdc 230Vac 50 / 60Hz ± 0.25Hz 4,000 VA
product variant ODS-3000-7179 300Vdc: 290 - 330Vdc 230Vac 50 / 60Hz ± 0.25Hz 4,000 VA

Need help finding the right product model?
