SFC Energy Power Manager 3G
The SFC Energy Power Manager 3G is a robust, intelligent power management solution tailored for military and field operations requiring reliable, efficient energy distribution. This versatile system seamlessly integrates multiple power sources—such as fuel cells, solar panels, and vehicle power—optimizing power flow to support critical equipment and charging needs. Compact and portable, the Power Manager 3G is designed to reduce logistical load by managing and charging multiple devices and battery types simultaneously, ensuring mission-critical systems stay operational in challenging environments.
Features
- Intelligent Power Distribution: Automatically manages and optimises energy from various sources, ensuring efficient power delivery to connected devices.

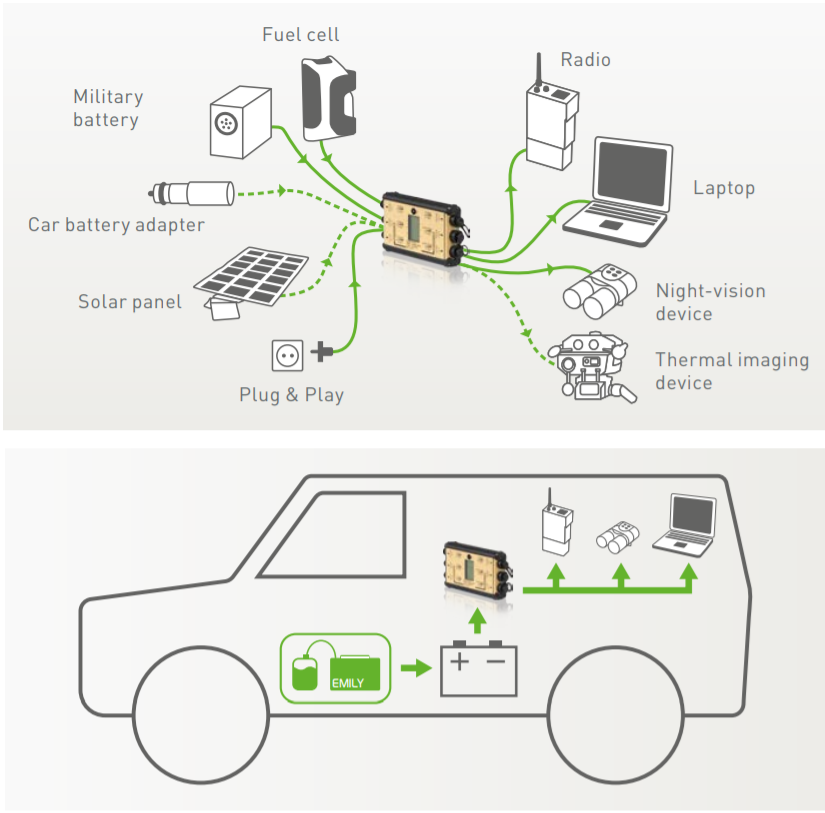

- Multi-Source Integration: Seamlessly connects with fuel cells, solar panels, vehicle power, and batteries for versatile energy management in the field.
- Simultaneous Charging: Capable of charging multiple batteries and powering devices at the same time, reducing downtime and increasing mission efficiency.
- Portable and Compact Design: Lightweight and easy to transport, ideal for rapid deployment in rugged and remote environments.
- User-Friendly Operation: Simple plug-and-play setup with an intuitive interface for effortless power management in high-pressure situations.
- Ruggedised for Field Use: Built to withstand harsh conditions, ensuring reliable performance in extreme temperatures and demanding military operations.
Specifications
Selection Table
Technical Illustrations
Downloads
| TECHNICAL DATA | |
|---|---|
| Weight | 520 g |
| Dimensions L x W x H | 162 x 95 x 36 mm |
| Display | LCD-Display with graphics and full text |
| Data interface | USB (USB 1.0 or higher) |
| Communication interface | SMBus (SMBus v 1.0 or higher) |
| Electrical interface | Glenair # 804-005-07ZNU6-7S Glenair # 804-005-07ZNU7-10S Glenair # 804-005-07ZNU8-13S |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -31°C to +55°C |
| Storage temperature | -31°C to +80°C |
| Humidity | 0 to 100 % |
| Water protection | MIL-STD 810F method 506.4, procedure I and II Submersible up to 1 meter for 2 hours |
| Sand and dust | MIL-STD 810G method 510.5, procedure I |
| Vibration | MIL-STD 810F method 514.5, category 5, 8 and 20 |
| Shock | MIL-STD 810F method 516.5, procedure I and IV |
| Noise | Not applicable |
| Electrical | |
|---|---|
| Ports | 2 High-power I/Os[1], 2 Power-harvesting I/Os[1], 2 Power Outputs[1] |
| Voltage range | 8 – 33 V DC |
| Current range | 5 A / 13 A[1] |
| Power range | 65 W / 500 W[1] |
| Cable-identification | One-wire Chip |
| Port protection | Over-voltage Over-current Short circuit Reverse polarity over temperature |

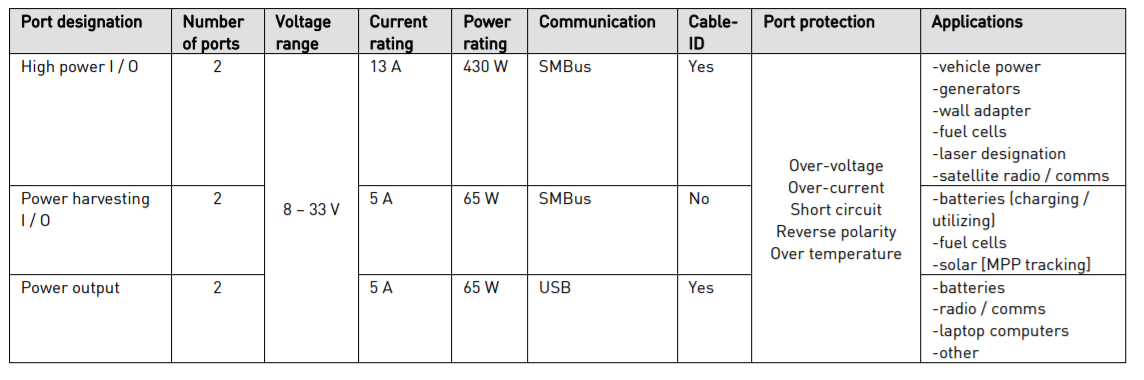

[1] see port overview for details
| SFC Power Manager 3G – color: sand | 905 000 004 |
|---|---|
| SFC Power Manager 3G – color: olive green | 905 000 005 |
| Power Manager pouch, sand | 905 902 007 |
|---|---|
| Power Manager pouch, ACU | 905 902 006 |
| Cable pouch, sand | 905 902 008 |
| Cable pouch, ACU | 905 902 009 |
| Web dominator, brown | 905 908 018 |
| Web dominator, grey | 905 908 019 |
| Web dominator, black | 905 908 020 |

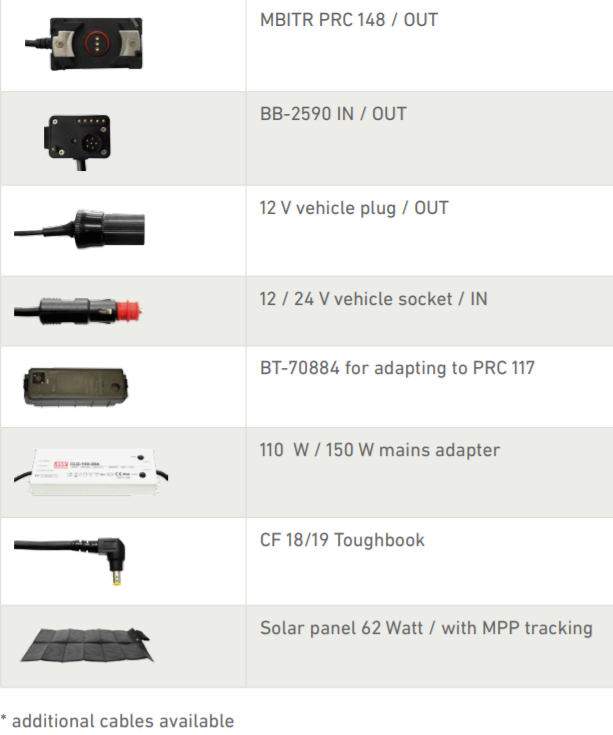

| Fuel Cell IN | 905 906 184 |
|---|---|
| Solar IN | 905 906 199 |
| Li-145 / Li-80 IN / OUT | 905 906 123 |
| 12 / 24 V Auto IN | 905 906 179 |
| 12 V Auto OUT | 905 906 180 |
| CF-18 OUT | 905 906 187 |
| BB-2590 IN / OUT | 905 906 131 |
| USB | 905 906 188 |
| AA / AAA-Charger OUT | 905 906 147 |
| Wall Adapter IN | 905 906 186 |
| Delivery Contents SFC Power Manager 3G |
|---|
| User manual |
| Windows tool and driver on CD |
| Transport box |
| TECHNICAL DATA | |
|---|---|
| Weight | 520 g |
| Dimensions L x W x H | 162 x 95 x 36 mm |
| Display | LCD-Display with graphics and full text |
| Data interface | USB (USB 1.0 or higher) |
| Communication interface | SMBus (SMBus v 1.0 or higher) |
| Electrical interface | Glenair # 804-005-07ZNU6-7S Glenair # 804-005-07ZNU7-10S Glenair # 804-005-07ZNU8-13S |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -31°C to +55°C |
| Storage temperature | -31°C to +80°C |
| Humidity | 0 to 100 % |
| Water protection | MIL-STD 810F method 506.4, procedure I and II Submersible up to 1 meter for 2 hours |
| Sand and dust | MIL-STD 810G method 510.5, procedure I |
| Vibration | MIL-STD 810F method 514.5, category 5, 8 and 20 |
| Shock | MIL-STD 810F method 516.5, procedure I and IV |
| Noise | Not applicable |
| Electrical | |
|---|---|
| Ports | 2 High-power I/Os[1], 2 Power-harvesting I/Os[1], 2 Power Outputs[1] |
| Voltage range | 8 – 33 V DC |
| Current range | 5 A / 13 A[1] |
| Power range | 65 W / 500 W[1] |
| Cable-identification | One-wire Chip |
| Port protection | Over-voltage Over-current Short circuit Reverse polarity over temperature |
[1] see port overview for details
| SFC Power Manager 3G – color: sand | 905 000 004 |
|---|---|
| SFC Power Manager 3G – color: olive green | 905 000 005 |
| Power Manager pouch, sand | 905 902 007 |
|---|---|
| Power Manager pouch, ACU | 905 902 006 |
| Cable pouch, sand | 905 902 008 |
| Cable pouch, ACU | 905 902 009 |
| Web dominator, brown | 905 908 018 |
| Web dominator, grey | 905 908 019 |
| Web dominator, black | 905 908 020 |
| Fuel Cell IN | 905 906 184 |
|---|---|
| Solar IN | 905 906 199 |
| Li-145 / Li-80 IN / OUT | 905 906 123 |
| 12 / 24 V Auto IN | 905 906 179 |
| 12 V Auto OUT | 905 906 180 |
| CF-18 OUT | 905 906 187 |
| BB-2590 IN / OUT | 905 906 131 |
| USB | 905 906 188 |
| AA / AAA-Charger OUT | 905 906 147 |
| Wall Adapter IN | 905 906 186 |
| Delivery Contents SFC Power Manager 3G |
|---|
| User manual |
| Windows tool and driver on CD |
| Transport box |
Find the Right Model
| Model Number | Nom. Voltage(s) (Vdc) | Max Output Current (A) | Max Output Power (W) | ||
|---|---|---|---|---|---|
|
SFC Power Manager 3G- Olive Green | 8 – 33Vdc | 5A/13A | 65W/500W | |
|
SFC Power Manager 3G- Sand | 8 – 33Vdc | 5A/13A | 65W/500W |
