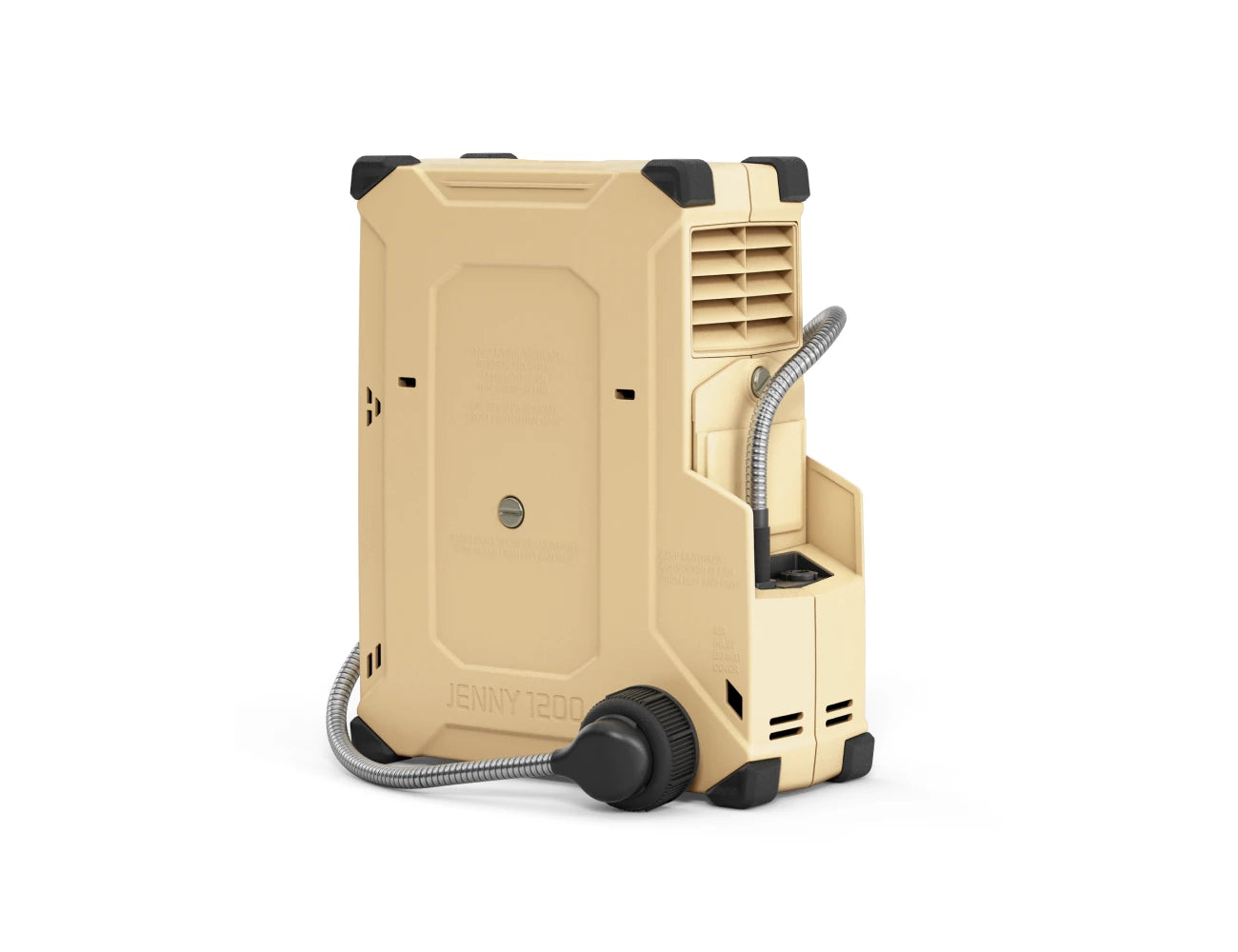

SFC Energy JENNY 1200 Fuel Cell
The SFC Energy JENNY 1200 Fuel Cell is a mission-critical power source engineered to meet the intense demands of military field operations and tactical deployments. Designed to support extended off-grid missions, the JENNY 1200 delivers silent, reliable energy with a low thermal profile, ideal for maintaining operational stealth. Utilising advanced methanol fuel cell technology, it provides long-lasting power for essential equipment and communications, ensuring mission continuity without frequent resupply needs. Its compact, ruggedised design is built to withstand harsh conditions, allowing easy integration into military packs and rapid deployment in challenging environments.
Features
- Silent Operation: Operates with minimal noise to support covert missions.
- Long-lasting Power: Provides extended energy for uninterrupted off-grid deployment.
- Low Thermal Signature: Maintains a low heat output for enhanced stealth in the field.
- Lightweight and Portable: Compact design fits easily into military packs for quick mobility. Approved for air transport in accordance with UN3473.
- Rugged Durability: Built to withstand extreme weather and challenging environments.
- Minimal Maintenance: Reliable operation with minimal upkeep, ideal for remote missions.
| TECHNICAL DATA | |
|---|---|
| Max. charging power per day | 1200 Wh |
| Nominal power | 50 W |
| Voltage range | 10 – 30 V DC[1] |
| Nominal voltage | 16.4 V DC [3] |
| Weight | < 3.3 kg |
| Dimensions L x W x H | 214.5 x 96 x 264 mm |
| Nominal consumption | < 1.0 l/kWh @ 50 W [4] |
| User interface | LCD Display with full text messages |
| Data interface | SMBus (compliant with SMBus v 1.0 or higher) |
| Electrical interface | Glenair # 804-005-07ZNU6-7SC |
| Chargeable batteries |
Lead acid, lead gel, AGM (VRAL), LiFePO4 |
| Chargeable smart batteries |
SMBus batteries (e.g. BB2590, BT70884) |
[1] Power output can temporarily decrease when operation temperature is above +40 °C or at altitude above 2,500 m
[2] Voltage is self adjusting via SMBus communication or can be manually adjusted.
[3] Factory setting.
[4] Effective consumption depends on operating conditions.
[5] For temperature range below -20 °C a winter pouch should be used.
[6] Frost-Protection mode needs to be activated manually when putting the fuel cell in the off state.
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature |
-20 °C to +49 °C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Start-up temperature |
+3 °C to +49 °C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Storage temperature |
+1 °C to +71 °C -20 °C to +71 °C in Frost-Protection Mode [6] |
||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity |
0 to 95 % |
||||||||||||||||||||||||||||||||||||||||||||||||
| Water protection |
MIL-STD 810G method 506.5, procedure I – blowing rain Operation in heavy rainfall |
||||||||||||||||||||||||||||||||||||||||||||||||
| Sand and dust |
MIL-STD 810G method 510.5, procedure I |
||||||||||||||||||||||||||||||||||||||||||||||||
| Vibration |
MIL-STD 810G method 514.6, category 5, 8, 20 and 23 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Drop |
MIL-STD 810G method 516.6, procedure I & IV |
||||||||||||||||||||||||||||||||||||||||||||||||
| Operating altitude |
up to 4,000 m |
||||||||||||||||||||||||||||||||||||||||||||||||
| Noise |
20 m non detectable |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Inclination along the lateral / roll axis
|
Permanent max +/- 90° |
||||||||||||||||||||||||||||||||||||||||||||||||
| Delivery content JENNY 1200 |
Item number |
NSN Number |
|---|---|---|
| JENNY 1200 Fuel Cell – color: sand | 303 002 016 | - |
| User Manual JENNY 1200 | 303 901 037 | - |
| Quick Reference JENNY 1200 | 303 901 038 | - |
| Service Fluid, 100 ml | 150 903 001 | 6810-12-383-1616 |
| Optional cables |
Item number |
NSN Number |
|---|---|---|
| Li-145 Y-cable | 905 906 072 | 6150-12-377-3236 |
| Li-145 charging cable | 905 906 073 | - |
| BB-2590 Y-cable | 905 906 074 | 6150-12-389-4598 |
| BB-2590 charging cable | 905 906 075 | - |
| PM3G Cable | 905 906 165 | 6150-12-381-8016 |
| MicroSun Y-cable | 905 906 078 | - |
| Accessories and spare parts |
Item number |
NSN Number |
|---|---|---|
| Air Filter – color: sand | 303 046 030 | - |
| Service Fluid, 100 ml | 150 903 001 | 6810-12-383-1616 |
| Winter Pouch JENNY 1200 | 303 902 038 | - |
| Fuel Cartridges |
M2.5 Regular |
M5 Regular |
|---|---|---|
| Item number | 303 905 069 | 303 905 097 |
| NSN Number | 6810-12-381-8735 | 6810-12-382-0392 |
| Volume | 2500 ml | 5000 ml |
| Content | 100 % methanol | 100 % methanol |
| Weight | 2.2 kg | 4.3 kg |
| Nominal capacity | min. 2500 Wh | min. 5 kWh |
| Operating temperature | -32 °C to +49 °C | -32 °C to +49 °C |
| Dimensions L x W x H | 153 x 115 x 231 mm | 190 x 145 x 283 mm |
| TECHNICAL DATA | |
|---|---|
| Max. charging power per day | 1200 Wh |
| Nominal power | 50 W |
| Voltage range | 10 – 30 V DC[1] |
| Nominal voltage | 16.4 V DC [3] |
| Weight | < 3.3 kg |
| Dimensions L x W x H | 214.5 x 96 x 264 mm |
| Nominal consumption | < 1.0 l/kWh @ 50 W [4] |
| User interface | LCD Display with full text messages |
| Data interface | SMBus (compliant with SMBus v 1.0 or higher) |
| Electrical interface | Glenair # 804-005-07ZNU6-7SC |
| Chargeable batteries |
Lead acid, lead gel, AGM (VRAL), LiFePO4 |
| Chargeable smart batteries |
SMBus batteries (e.g. BB2590, BT70884) |
[1] Power output can temporarily decrease when operation temperature is above +40 °C or at altitude above 2,500 m
[2] Voltage is self adjusting via SMBus communication or can be manually adjusted.
[3] Factory setting.
[4] Effective consumption depends on operating conditions.
[5] For temperature range below -20 °C a winter pouch should be used.
[6] Frost-Protection mode needs to be activated manually when putting the fuel cell in the off state.
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature |
-20 °C to +49 °C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Start-up temperature |
+3 °C to +49 °C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Storage temperature |
+1 °C to +71 °C -20 °C to +71 °C in Frost-Protection Mode [6] |
||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity |
0 to 95 % |
||||||||||||||||||||||||||||||||||||||||||||||||
| Water protection |
MIL-STD 810G method 506.5, procedure I – blowing rain Operation in heavy rainfall |
||||||||||||||||||||||||||||||||||||||||||||||||
| Sand and dust |
MIL-STD 810G method 510.5, procedure I |
||||||||||||||||||||||||||||||||||||||||||||||||
| Vibration |
MIL-STD 810G method 514.6, category 5, 8, 20 and 23 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Drop |
MIL-STD 810G method 516.6, procedure I & IV |
||||||||||||||||||||||||||||||||||||||||||||||||
| Operating altitude |
up to 4,000 m |
||||||||||||||||||||||||||||||||||||||||||||||||
| Noise |
20 m non detectable |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Inclination along the lateral / roll axis
|
Permanent max +/- 90° |
||||||||||||||||||||||||||||||||||||||||||||||||
| Delivery content JENNY 1200 |
Item number |
NSN Number |
|---|---|---|
| JENNY 1200 Fuel Cell – color: sand | 303 002 016 | - |
| User Manual JENNY 1200 | 303 901 037 | - |
| Quick Reference JENNY 1200 | 303 901 038 | - |
| Service Fluid, 100 ml | 150 903 001 | 6810-12-383-1616 |
| Optional cables |
Item number |
NSN Number |
|---|---|---|
| Li-145 Y-cable | 905 906 072 | 6150-12-377-3236 |
| Li-145 charging cable | 905 906 073 | - |
| BB-2590 Y-cable | 905 906 074 | 6150-12-389-4598 |
| BB-2590 charging cable | 905 906 075 | - |
| PM3G Cable | 905 906 165 | 6150-12-381-8016 |
| MicroSun Y-cable | 905 906 078 | - |
| Accessories and spare parts |
Item number |
NSN Number |
|---|---|---|
| Air Filter – color: sand | 303 046 030 | - |
| Service Fluid, 100 ml | 150 903 001 | 6810-12-383-1616 |
| Winter Pouch JENNY 1200 | 303 902 038 | - |
| Fuel Cartridges |
M2.5 Regular |
M5 Regular |
|---|---|---|
| Item number | 303 905 069 | 303 905 097 |
| NSN Number | 6810-12-381-8735 | 6810-12-382-0392 |
| Volume | 2500 ml | 5000 ml |
| Content | 100 % methanol | 100 % methanol |
| Weight | 2.2 kg | 4.3 kg |
| Nominal capacity | min. 2500 Wh | min. 5 kWh |
| Operating temperature | -32 °C to +49 °C | -32 °C to +49 °C |
| Dimensions L x W x H | 153 x 115 x 231 mm | 190 x 145 x 283 mm |
